How to carry out replacement: Control Arm 1.2 (169.AXB11, 169.AXB1A) Fiat Panda Mk2
Disclaimer
Change Fiat Panda Mk2 1.4 Natural Power (169AXHIA) Control Arm yourself – manuals and video tutorials

How to change front lower arm on Fiat Panda 169 – replacement guide

downloads: 18
Views: 366
Download your free tutorial and fix FIAT PANDA (169) 1.4 (169AXE1B) problems yourself Download for free 1.96 MB Control Arm for Fiat Panda Mk2 Shop now
Leave a comment Open in a new tab
Important!
This replacement procedure can be used for:
FIAT PANDA (169) 1.2 4x4 (169.AXB2A), FIAT PANDA (169) 1.2 Natural Power (169.AXB1A), FIAT PANDA (169) 1.2 LPG (169.AXB1A), FIAT PANDA (169) 1.2 (169AXF2A, 169AXF1A), FIAT PANDA (169) 1.4 Natural Power (169AXHIA), FIAT PANDA (169) 1.3 JTD Multijet 4x4 (169AXG1A, 169AXG2A), FIAT PANDA (169) 1.2 4x4 (169AXF2A, 169AXF1A), FIAT PANDA (169) 1.2 LPG (169CXF1A), FIAT PANDA (169) 1.1 (169.AXA1A), FIAT PANDA (169) 1.3 D Multijet (169.AXC1A), FIAT PANDA (169) 1.3 D Multijet 4x4 (169.AXC2A), FIAT PANDA (169) 1.4 (169AXE1B), FIAT PANDA (169) 1.3 D Multijet (169AXG1A, 169AXD1A) … View more

The steps may slightly vary depending on the car design.

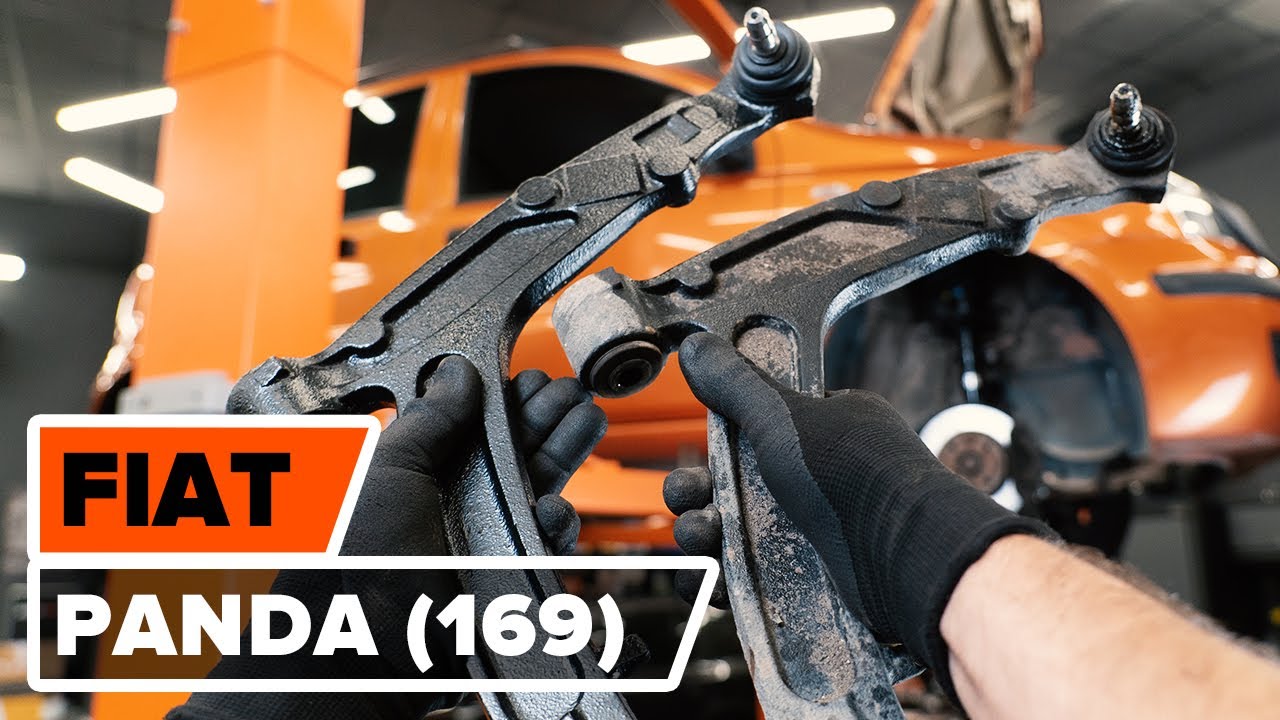

How to change front suspension arm on FIAT PANDA (169) [TUTORIAL AUTODOC]

video
Published on: 03/11/2020
14K views
All the parts you need to replace – Control Arm for PANDA (169) and other FIAT models
How to change Suspension arm on Fiat Panda Mk2 1.2 (169.AXB11, 169.AXB1A) – step-by-step instructions for straightforward car repair Suspension arm
How to change Suspension arm on Panda II Hatchback (169) – tips for proper car maintenance
Suspension arm for Panda II Hatchback (169) Petrol (69 hp)
Simple DIY car repair steps – Replacing Suspension arm on Panda II Hatchback (169)
Suspension arm for Panda II Hatchback (169) Petrol/Natural Gas (CNG) (78 hp)
Easy tricks to help you to replace Suspension arm on Panda II Hatchback (169)
Suspension arm for Panda II Hatchback (169) Diesel (75 hp)
Suspension arm removal & installation, incredibly easy steps for Panda II Hatchback (169)
Suspension arm for Panda II Hatchback (169) Petrol (69 hp)
Changing Suspension arm on Panda II Hatchback (169) – tips for first time repair
Suspension arm for Panda II Hatchback (169) Petrol/Petroleum Gas (LPG) (69 hp)
Main steps for Suspension arm replacement on Panda II Hatchback (169)
Suspension arm for Panda II Hatchback (169) Petrol (54 hp)
How to change Suspension arm on Panda II Hatchback (169) – tips for proper car maintenance
Suspension arm for Panda II Hatchback (169) Diesel (70 hp)
Simple DIY car repair steps – Replacing Suspension arm on Panda II Hatchback (169)
Suspension arm for Panda II Hatchback (169) Diesel (70 hp)
Easy tricks to help you to replace Suspension arm on Panda II Hatchback (169)
Suspension arm for Panda II Hatchback (169) Petrol (60 hp)
Tools
Replacement: front lower arm – Fiat Panda 169. List of the tools you'll need:
Wire brush
WD-40 spray
Brake cleaner
Copper grease
Torque wrench
Combination spanner #16
Drive socket # 13
Drive socket # 18
Wheel impact socket #17
Ratchet wrench
Tap wrench
Hydraulic transmission jack
Wheel chock
Buy tools
Replacement: front lower arm – Fiat Panda 169. AUTODOC experts recommend:
  • The replacement procedure is identical for the left and right lower control arms.
  • All work should be done with the engine stopped.
Replacement: front lower arm – Fiat Panda 169. Recommended sequence of steps:
  1. Step 1
    How to change Control Arm on Fiat Panda Mk2 2003 - free PDF and video manuals
    Secure the wheels with chocks.
  2. Step 2
    How to replace FIAT PANDA (169) 1.2 (169.AXB11, 169.AXB1A) 2004 Control Arm - step-by-step manuals and video guides
    Loosen the wheel mounting bolts. Use wheel impact socket #17.
  3. Step 3
    Fiat Panda Mk2 1.1 (169.AXA1A) 2005 Control Arm replacement: free workshop manuals
    Raise the front of the car and secure on supports.
  4. Step 4
    Changing Control Arm on FIAT PANDA (169) 1.2 Natural Power (169.AXB1A) 2006 by yourself
    Unscrew the wheel bolts.
    AUTODOC recommends:
    Warning! To avoid injury, hold the wheel while unscrewing the fastening bolts. Fiat Panda 169
  5. Step 5
    How to remove FIAT PANDA 1.3 D Multijet 4x4 (169.AXC2A) 2007 Control Arm - online easy-to-follow instructions
    Remove the wheel.
  6. Step 6
    How to replace Control Arm on FIAT PANDA (169) 2008: download PDF manuals and video instructions
    Clean all joints of the arm. Use a wire brush. Use WD-40 spray.
    AUTODOC recommends:
    Replacement: front lower arm – Fiat Panda 169. After applying the spray, wait a few minutes.Wear protective goggles.Wear a respirator.
  7. Step 7
    How hard is it to do yourself: Control Arm replacement on Fiat Panda Mk2 1.3 D Multijet (169.AXC1A) 2009 - download illustrated guide
    Unscrew the fastener connecting the ball joint to the steering knuckle. Use a combination spanner #13. Use a drive socket #16. Use a ratchet wrench.
  8. Step 8
    Remove the fastening bolt.
    Step 9
    Need to know how to renew Control Arm on FIAT PANDA 2010? This free workshop manual will help you to do it yourself
    Unscrew the front arm fastener. Use a drive socket #18. Use a tap wrench.
  9. Step 10
    Changing of Control Arm on Fiat Panda Mk2 2011 won't be an issue if you follow this illustrated step-by-step guide
    Remove the front fastener of the control arm.
  10. Step 11
    FIAT PANDA 1.4 Natural Power (169AXHIA) Control Arm replacement: online guides and video tutorials
    Unscrew the rear fastener connecting the control arm to the subframe. Use a drive socket #18. Use a tap wrench.
  11. Step 12
    Replacing Control Arm on Fiat Panda Mk2 2013 1.2 (169.AXB11, 169.AXB1A) by yourself
    Remove the rear fastener of the control arm.
  12. Step 13
    PANDA (169) 1.3 D Multijet 4x4 (169.AXC2A) 2014 Control Arm DIY replacement workshop manual
    Remove the arm.
  13. Step 14
    How to change Control Arm on FIAT PANDA (169) 2015 - tips and tricks
    Clean the mounting seats and the thread of the suspension arm. Use a wire brush. Use WD-40 spray.
  14. Step 15
    Step-by-step recommendations for DIY replacement Fiat Panda Mk2 2016 1.3 D Multijet 4x4 (169.AXC2A) Control Arm
    Install a new arm.
    Replacement: front lower arm – Fiat Panda 169. Professionals recommend:
    During the installation process, use only new bolts and nuts.Do not damage the ball joint cover.
  15. Step 16
    DIY replacement of Control Arm on FIAT PANDA (169) 1.2 (169AXF2A, 169AXF1A) 2017 is not an issue anymore with our step-by-step tutorial
    Install the control arm fasteners. Use a drive socket #18. Use a ratchet wrench.
  16. Step 17
    How to change Control Arm on Fiat Panda Mk2 2003 - free PDF and video manuals
    Support the arm. Use a hydraulic transmission jack.
  17. Step 18
    How to replace FIAT PANDA (169) 1.2 (169.AXB11, 169.AXB1A) 2004 Control Arm - step-by-step manuals and video guides
    Screw the front arm fastener. Use a drive socket #18. Use a ratchet wrench.
Comments – 1
  • r. w.
    14.01.2023 22:13
    Member
    My 2021 Fiat Panda HYbrid is nothing like this otherwise excellent video . the front control arm to subframe bolt head is hidden by the front chassis member which require the front panel to be removed to gain access to the fixing bolts . I have removed the headlight screws and the wheel arc liners and still cannot gain access to removing the front panel and bumper [email protected] .
    I have relocated the anti roll bar drop link from the macpherson strut onto the lower wishbone .
