Important!

This replacement procedure can be used for:
HYUNDAI SANTA FÉ II (CM) 2.2 CRDi, HYUNDAI SANTA FÉ II (CM) 2.2 CRDi 4x4, HYUNDAI SANTA FÉ II (CM) 2.2 CRDi GLS, HYUNDAI SANTA FÉ II (CM) 2.2 CRDi GLS 4x4, HYUNDAI SANTA FÉ II (CM) 2.2 CRDi 4x4, HYUNDAI SANTA FÉ II (CM) 3.3, HYUNDAI SANTA FÉ II (CM) 3.5 4x4, HYUNDAI SANTA FÉ II (CM) 2.0 CRDi, HYUNDAI SANTA FÉ II (CM) 2.4, HYUNDAI SANTA FÉ II (CM) 2.0 CRDi 4x4, HYUNDAI SANTA FÉ II (CM) 2.7 4x4, HYUNDAI SANTA FÉ II (CM) 2.7, HYUNDAI SANTA FÉ II (CM) 2.7 V6 GLS, HYUNDAI SANTA FÉ II (CM) 2.7 V6 GLS 4x4, HYUNDAI SANTA FÉ II (CM) 3.3 Dynamic 4x4, HYUNDAI SANTA FÉ II (CM) 2.2 CRDi, HYUNDAI SANTA FÉ II (CM) 2.2 CRDi 4x4, HYUNDAI SANTA FÉ II (CM) 2.4 4x4, HYUNDAI SANTA FÉ II (CM) 3.3 AWD, HYUNDAI SANTA FÉ II (CM) 2.4 AWD, HYUNDAI SANTA FÉ II (CM) 2.4, HYUNDAI SANTA FÉ II (CM) 3.5, HYUNDAI SANTA FÉ II (CM) 2.7 4x4, HYUNDAI SANTA FÉ II (CM) 3.5 4x4, HYUNDAI SANTA FÉ II (CM) 3.5 4x4, HYUNDAI SANTA FÉ II (CM) 2.0 CRDi 4x4, HYUNDAI SANTA FÉ II (CM) 2.0 CRDi 4x4, HYUNDAI SANTA FÉ II (CM) 2.0 CRDi, HYUNDAI SANTA FÉ II (CM) 2.2 CRDi 4x4, HYUNDAI SANTA FÉ II (CM) 2.2 CRDi, HYUNDAI SANTA FÉ II (CM) 2.7, HYUNDAI SANTA FÉ II (CM) 2.7 4x4, HYUNDAI SANTA FÉ II (CM) 3.5 4x4, HYUNDAI SANTA FÉ II (CM) 3.5, HYUNDAI SANTA FÉ II (CM) 2.0 4x4 … View more

The steps may slightly vary depending on the car design.

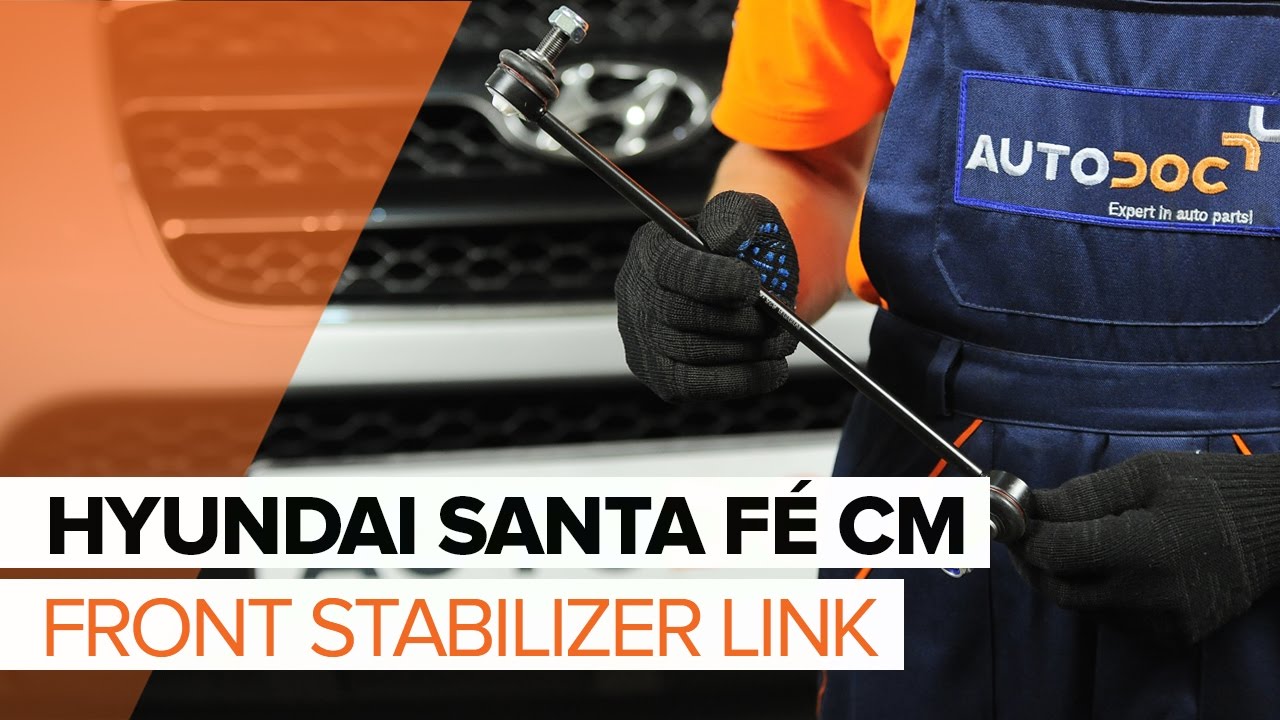

How to change Front Anti Roll Bar Link on HYUNDAI SANTA FÉ CM TUTORIAL | AUTODOC

All the parts you need to replace – Anti Roll Bar Links for SANTA FÉ II (CM) and other HYUNDAI models

Anti-roll bar link

        Anti-roll bar link for Santa Fe II (CM) Petrol (245 hp)

        Anti-roll bar link for Santa Fe II (CM) Petrol (277 hp)

        Anti-roll bar link for Santa Fe II (CM) Diesel (150 hp)

        Anti-roll bar link for Santa Fe II (CM) Petrol (174 hp)

        Anti-roll bar link for Santa Fe II (CM) Diesel (150 hp)

        Anti-roll bar link for Santa Fe II (CM) Petrol (170 hp)

        Anti-roll bar link for Santa Fe II (CM) Petrol (170 hp)

        Anti-roll bar link for Santa Fe II (CM) Diesel (139 hp)

        Anti-roll bar link for Santa Fe II (CM) Diesel (139 hp)

Replacement: anti roll bar links – Hyundai Santa Fe CM. List of the tools you'll need:

                        Wire brush

                        WD-40 spray

                        Brake cleaner

                        Copper grease

                        Torque wrench

                        Combination spanner #17

                        Drive socket # 17

                        Wheel impact socket #21

                        Ratchet wrench

                        Wheel chock

Buy tools

AUTODOC recommends:

Replace the stabiliser links on Hyundai Santa Fe CM in pairs.
The replacement procedure is identical for both stabiliser links on the same axle.
Please note: all work on the car – Hyundai Santa Fe CM – should be done with the engine switched off.

Carry out replacement in the following order:

Step 1

Secure the wheels with chocks.
Step 2

Loosen the wheel mounting bolts. Use wheel impact socket #21.
Step 3

Raise the front of the car and secure on supports.
Step 4

Unscrew the wheel bolts.

AUTODOC recommends:
Warning! To avoid injury, hold the wheel while unscrewing the fastening bolts. Hyundai Santa Fe CM
Step 5

Remove the wheel.
Step 6

Clean the stabiliser link fasteners. Use a wire brush. Use WD-40 spray.

Step 7

Unscrew the fastener connecting the stabilizer link to the shock strut. Use a drive socket #17. Use a ratchet wrench.
Step 8

Unscrew the fastener connecting the stabilizer link to the stabilizer bar. Use a drive socket #17. Use a ratchet wrench.
Step 9

Remove the stabiliser link.

Replacement: anti roll bar links – Hyundai Santa Fe CM. Professionals recommend:
Examine stabiliser bushes. Replace them if needed.
Step 10

Clean the mounting seats of the stabiliser link. Use a wire brush. Use WD-40 spray.
Step 11

Install a new rod, tighten the fasteners.
Step 12

Tighten the fastener connecting the stabilizer link to the stabilizer bar. Use a combination spanner #17. Use a drive socket #17. Use a torque wrench. Tighten it to 65 Nm torque.
Step 13

Tighten the fastener connecting the stabilizer link to the shock strut. Use a combination spanner #17. Use a drive socket #17. Use a torque wrench. Tighten it to 65 Nm torque.
Step 14

Treat all joints of the stabiliser link. Use copper grease.
Step 15

Treat the surface where the brake disc contacts the wheel rim. Use copper grease.
Step 16

Clean the brake disk surface. Use a brake cleaner.

AUTODOC recommends:
Replacement: anti roll bar links – Hyundai Santa Fe CM. After applying the spray, wait a few minutes.
Step 17

Install the wheel.

AUTODOC recommends:
Warning! To avoid injury, hold the wheel while screwing in the fastening bolts on the car. Hyundai Santa Fe CM
Step 18

Screw in the wheel bolts. Use wheel impact socket #21.
Step 19

Lower the car and working in a cross order, tighten the wheel bolts. Use wheel impact socket #21. Use a torque wrench. Tighten it to 108 Nm torque.
Step 20

Remove the jacks and chocks.
