How to carry out replacement: Control Arm 2.0 dCi 4x4 (HY0K) Renault Koleos 1
Disclaimer
Change Renault Koleos 1 2.0 dCi 4x4 Control Arm yourself – manuals and video tutorials

How to change rear suspension lower control arm on RENAULT KOLEOS (HY_) – replacement guide

downloads: 0
Views: 23
Download your free tutorial and fix RENAULT KOLEOS (HY_) 2.0 dCi problems yourself Download for free 1.78 MB Control Arm for Renault Koleos 1 Shop now
Leave a comment Open in a new tab
Important!
This replacement procedure can be used for:
RENAULT KOLEOS (HY_) 2.0 dCi, RENAULT KOLEOS (HY_) 2.0 dCi 4x4, RENAULT KOLEOS (HY_) 2.0, RENAULT KOLEOS (HY_) 2.5 4x4 (HY0C, HY0N), RENAULT KOLEOS (HY_) 2.5 (HY0C, HY0N), RENAULT KOLEOS (HY_) 2.0 dCi 4x4 (HY0B), RENAULT KOLEOS (HY_) 2.0 dCi 4x4 (HY0K), RENAULT KOLEOS (HY_) 2.0 dCi (HY0K) … View more

The steps may slightly vary depending on the car design.

This video shows the replacement procedure of a similar car part on another vehicle

All the parts you need to replace – Control Arm for KOLEOS (HY_) and other RENAULT models

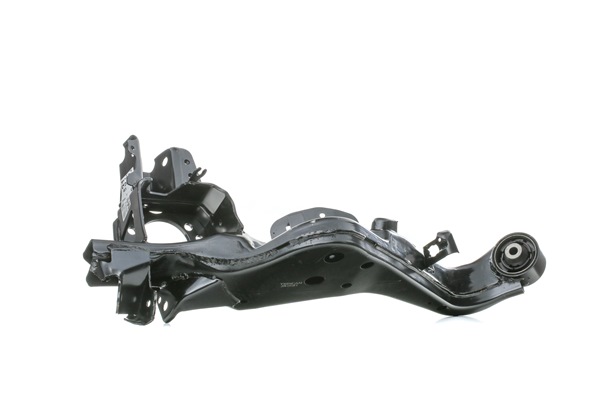

How to change Suspension arm on Renault Koleos 1 2.0 dCi 4x4 (HY0K) – step-by-step instructions for straightforward car repair Suspension arm
How to change Suspension arm on Koleos I (HY) – tips for proper car maintenance
Suspension arm for Koleos I (HY) Diesel (150 hp)
Simple DIY car repair steps – Replacing Suspension arm on Koleos I (HY)
Suspension arm for Koleos I (HY) Diesel (150 hp)
Easy tricks to help you to replace Suspension arm on Koleos I (HY)
Suspension arm for Koleos I (HY) Diesel (173 hp)
Suspension arm removal & installation, incredibly easy steps for Koleos I (HY)
Suspension arm for Koleos I (HY) Petrol (171 hp)
Changing Suspension arm on Koleos I (HY) – tips for first time repair
Suspension arm for Koleos I (HY) Petrol (171 hp)
Main steps for Suspension arm replacement on Koleos I (HY)
Suspension arm for Koleos I (HY) Petrol (140 hp)
How to change Suspension arm on Koleos I (HY) – tips for proper car maintenance
Suspension arm for Koleos I (HY) Diesel (177 hp)
Simple DIY car repair steps – Replacing Suspension arm on Koleos I (HY)
Suspension arm for Koleos I (HY) Diesel (173 hp)
Tools
Replacement: rear suspension lower control arm – RENAULT KOLEOS (HY_). Tools you might need:
Wire brush
WD-40 spray
Copper grease
Torque wrench
Combination spanner #16
Combination spanner #18
Combination spanner #21
Drive socket # 18
Drive socket # 21
Wheel impact socket #21
Ratchet wrench
Hammer
Pin punch
Hydraulic transmission jack
Wheel chock
Buy tools
Replacement: rear suspension lower control arm – RENAULT KOLEOS (HY_). Tip from AUTODOC experts:
  • The replacement procedure is identical for the left and right lower control arms.
  • Please note: all work on the car – RENAULT KOLEOS (HY_) – should be done with the engine switched off.
Carry out replacement in the following order:
  1. Step 1
    Secure the wheels with chocks.
    Step 2
    How to change Control Arm on Renault Koleos 1 2008 - free PDF and video manuals
    Loosen the wheel mounting bolts. Use wheel impact socket #21.
  2. Step 3
    Raise the rear of the car and secure on supports.
    Step 4
    How to replace RENAULT KOLEOS (HY_) 2.0 dCi 4x4 (HY0K) 2009 Control Arm - step-by-step manuals and video guides
    Unscrew the wheel bolts.
    Replacement: rear suspension lower control arm – RENAULT KOLEOS (HY_). AUTODOC recommends:
    To avoid injury, hold up the wheel when unscrewing the bolts.
  3. Step 5
    Renault Koleos 1 2.0 dCi 2010 Control Arm replacement: free workshop manuals
    Remove the wheel.
  4. Step 6
    Changing Control Arm on RENAULT KOLEOS (HY_) 2.5 4x4 2011 by yourself
    Clean the control arm fasteners. Use a wire brush. Use WD-40 spray.
  5. Step 7
    How to remove RENAULT KOLEOS 2.5 2012 Control Arm - online easy-to-follow instructions
    Make a mark on the camber adjustment bolt.
  6. Step 8
    How to replace Control Arm on RENAULT KOLEOS (HY_) 2013: download PDF manuals and video instructions
    Unscrew the fastener connecting the control arm to the rear subframe. Use a combination spanner #21. Use a drive socket #21. Use a ratchet wrench.
  7. Step 9
    How hard is it to do yourself: Control Arm replacement on Renault Koleos 1 2.0 dCi 4x4 (HY0K) 2014 - download illustrated guide
    Unscrew the fastener connecting the control arm to the rear knuckle. Use a combination spanner #18. Use a drive socket #21. Use a ratchet wrench.
  8. Step 10
    Need to know how to renew Control Arm on RENAULT KOLEOS 2015? This free workshop manual will help you to do it yourself
    Unscrew the fastener connecting the stabilizer bar with the control arm. Use a combination spanner #16. Use a drive socket #18. Use a ratchet wrench.
  9. Step 11
    Changing of Control Arm on Renault Koleos 1 2016 won't be an issue if you follow this illustrated step-by-step guide
    Support the arm. Use a hydraulic transmission jack.
  10. Step 12
    RENAULT KOLEOS 2.0 dCi 4x4 Control Arm replacement: online guides and video tutorials
    Remove the fastening bolt. Use a pin punch. Use a hammer.
  11. Step 13
    Replacing Control Arm on Renault Koleos 1 2018 2.0 dCi 4x4 (HY0K) by yourself
    Remove the fastening bolt.
  12. Step 14
    KOLEOS (HY_) 2.5 2019 Control Arm DIY replacement workshop manual
    Remove the arm.
  13. Step 15
    How to change Control Arm on RENAULT KOLEOS (HY_) 2020 - tips and tricks
    Clean the mounting seats and the thread of the suspension arm. Use a wire brush. Use WD-40 spray.
  14. Step 16
    Step-by-step recommendations for DIY replacement Renault Koleos 1 2021 2.5 Control Arm
    Install a new arm.
  15. Step 17
    DIY replacement of Control Arm on RENAULT KOLEOS (HY_) 2.0 dCi 4x4 2022 is not an issue anymore with our step-by-step tutorial
    Install the fastening bolts.
