Important!

This replacement procedure can be used for:
PEUGEOT 407 (6D_) 2.0 (6DRFNB, 6DRFNE), PEUGEOT 407 (6D_) 2.2 (6D3FZE, 6D3FZH), PEUGEOT 407 (6D_) 3.0 (6DXFVJ), PEUGEOT 407 (6D_) 2.0 HDi 135 (6DRHRH, 6DRHRE, 6DRHRG, 6DRHRJ), PEUGEOT 407 (6D_) 1.8 (6D6FZB), PEUGEOT 407 (6D_) 1.8 16V (6D6FYC), PEUGEOT 407 (6D_) 2.0 16V (6DRFJC, 6DRFJE, 6DRFJF), PEUGEOT 407 (6D_) 2.2 16V (6D3FYH, 6D3FYE), PEUGEOT 407 (6D_) 2.7 HDi (6DUHZJ, 6DUHZF), PEUGEOT 407 (6D_) 2.0 HDi (6DRHLG, 6DRHLE) … View more

The steps may slightly vary depending on the car design.

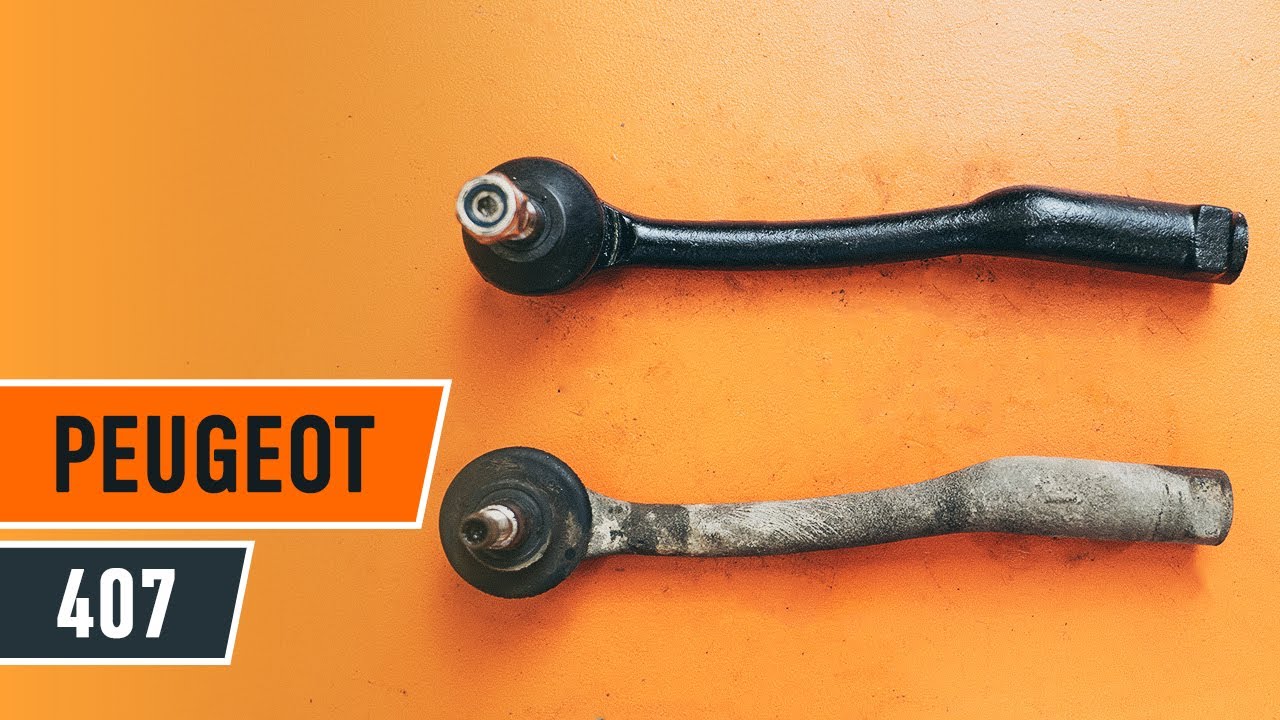

How to change tie rod end PEUGEOT 407 Saloon [TUTORIAL AUTODOC]

All the parts you need to replace – Track Rod End for 407 (6D_) and other PEUGEOT models

Alternative products

Track rod end

SKTE-0280274 STARK Track rod end

14,95 GBP

Shop

TA1947 DELPHI Track rod end

16,96 GBP

Shop

4315526 KRAFT Track rod end

17,20 GBP

Shop

53132 SIDEM Track rod end

18,11 GBP

Shop

54031401 METZGER Track rod end

19,18 GBP

Shop

23323 FEBI BILSTEIN Track rod end

20,56 GBP

Shop

QR3380S QUINTON HAZELL Track rod end

22,62 GBP

Shop

11-16 020 0020 MEYLE Track rod end

22,74 GBP

Shop

5033739 NK Track rod end

25,53 GBP

Shop

33311 01 LEMFÖRDER Track rod end

26,28 GBP

Shop

Replacement: track rod end – Peugeot 407 saloon. Tools you'll need:

                      Wire brush

                      WD-40 spray

                      Brake cleaner

                      Copper grease

                      Combination spanner #19

                      Combination spanner #24

                      Drive socket # 19

                      Wheel impact socket #19

                      Ratchet wrench

                      Torque wrench

                      Vernier caliper

                      Ball joint puller

                      Wheel chock

Buy tools

Replacement: track rod end – Peugeot 407 saloon. Tip from AUTODOC experts:

Replace tie rod ends in pairs.
The replacement procedure is identical for the right and left tie rod ends.
All work should be done with the engine stopped.

Replacement: track rod end – Peugeot 407 saloon. Use the following procedure:

Step 1

Secure the wheels with chocks.
Step 2

Loosen the wheel mounting bolts. Use wheel impact socket #19.
Step 3

Raise the front of the car and secure on supports.

Step 4

Unscrew the wheel bolts.

AUTODOC recommends:
Important! Hold the wheel while unscrewing the fastening bolts. Peugeot 407 saloon
Step 5

Remove the wheel.
Step 6

When deinstalling, mark or measure the precise position of the ball joint on the track rod, or count the number of turns in order to prevent misalignment afterward. Use a vernier caliper.
Step 7

Clean the fastener connecting the tie rod end to the steering knuckle. Use a wire brush. Use WD-40 spray.
Step 8

Unscrew the end fastening nut to the steering knuckle. Use a drive socket #19. Use a ratchet wrench.
Step 9

Disconnect the tie rod end from the steering knuckle. Use a ball joint puller.
Step 10

Clean the lock nut that connects the tie rod to the tie rod end. Use a wire brush. Use WD-40 spray.

Step 11

Loosen the lock nut securing the tie rod end to the tie rod. Use a combination spanner #19. Use a combination spanner #24.
Step 12

Screw the end out of the tie rod.
Step 13

Clean the mounting seats of the tie rod end. Use a wire brush. Use WD-40 spray.
Step 14

Screw on a new tie rod end.

Replacement: track rod end – Peugeot 407 saloon. AUTODOC recommends:
While installing the steering rod end remember to make the same number of turns or to leave the same length of thread showing as per your measurements.
Step 15

Connect the tie rod end to the steering knuckle.
Step 16

Tighten the tie rod end locknut. Use a combination spanner #19. Use a combination spanner #24. Use a torque wrench. Tighten it to 60 nm torque.
Step 17

Tighten the fastening nut connecting the tie rod end to the steering knuckle. Use a drive socket #19. Use a torque wrench. Tighten it to 48 nm torque.
Step 18

Treat the fastener connecting the tie rod end to the steering knuckle. Use copper grease.
Step 19

Treat the surface where the brake disc contacts the wheel rim. Use copper grease.
Step 20

Clean the brake disk surface. Use a brake cleaner.

AUTODOC recommends:
Replacement: track rod end – Peugeot 407 saloon. After applying the spray, wait a few minutes.
Step 21

Install the wheel.

Replacement: track rod end – Peugeot 407 saloon. Tip:
To avoid injury, hold up the wheel when screwing in the fastening bolts.
Step 22

Screw in the wheel bolts. Use wheel impact socket #19.
Step 23

Lower the car and working in a cross order, tighten the wheel bolts. Use wheel impact socket #19. Use a torque wrench. Tighten it to 100 nm torque.

Replacement: track rod end – Peugeot 407 saloon. Professionals recommend:
Check and adjust wheel alignment if necessary.
Step 24

Remove the jacks and chocks.
