Important!

This replacement procedure can be used for:
PEUGEOT 407 (6D_) 1.6 HDi 110, PEUGEOT 407 SW (6E_) 1.6 HDi 110

The steps may slightly vary depending on the car design.

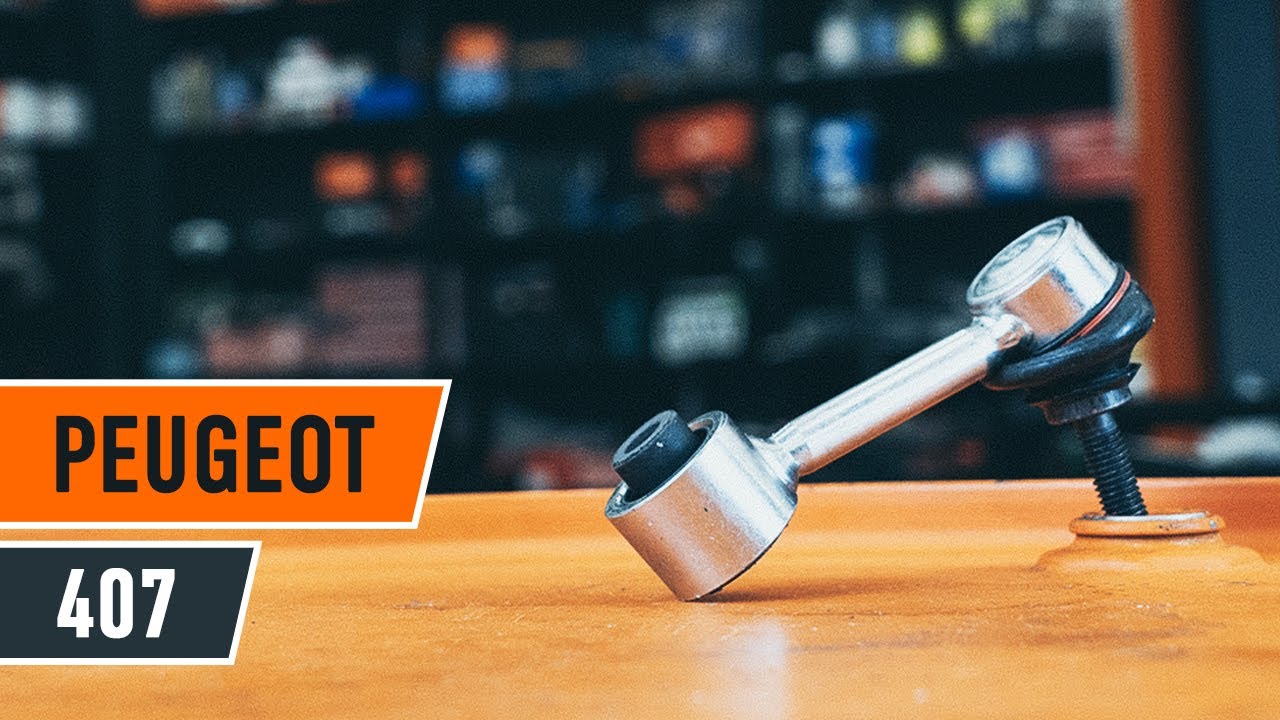

How to change rear anti roll bar link on PEUGEOT 407 Saloon [TUTORIAL AUTODOC]

All the parts you need to replace – Anti Roll Bar Links for 407 (6D_) and other PEUGEOT models

Repair Kit, stabilizer suspension

Rod / Strut, stabiliser

Rod / Strut, wheel suspension

PEUGEOT 407 (6D_) 1.6 HDi 110

PEUGEOT 407 SW (6E_) 1.6 HDi 110

Replacement: anti roll bar links – Peugeot 407 saloon. Tools you might need:

                        Wire brush

                        WD-40 spray

                        Copper grease

                        Brake cleaner

                        Combination spanner #16

                        Torx bit T30

                        Wheel impact socket #19

                        Ratchet wrench

                        Torque wrench

                        Wheel chock

Buy tools

Replacement: anti roll bar links – Peugeot 407 saloon. AUTODOC recommends:

Replace the stabiliser links on Peugeot 407 in pairs.
The replacement procedure is identical for both stabiliser links on the same axle.
All work should be done with the engine stopped.

Replacement: anti roll bar links – Peugeot 407 saloon. Use the following procedure:

Step 1

Secure the wheels with chocks.
Step 2

Loosen the wheel mounting bolts.Use wheel impact socket #19.
Step 3

Raise the rear of the car and secure on supports.

Step 4

Unscrew the wheel bolts.

Replacement: anti roll bar links – Peugeot 407 saloon. AUTODOC experts recommend:

To avoid injury, hold up the wheel when unscrewing the bolts.
Step 5

Remove the wheel.
Step 6

Clean the stabiliser link fasteners.Use a wire brush.Use WD-40 spray.
Step 7

Unscrew the fastener connecting the stabilizer bar with the control arm. Use a combination spanner #16.Use Torx T30.Use a ratchet wrench.
Step 8

Unscrew the fastener connecting the stabilizer link to the stabilizer bar.Use a combination spanner #16.Use Torx T30.Use a ratchet wrench.
Step 9

Remove the stabilizer rod.
Step 10

Clean the mounting seats of the stabiliser link.Use a wire brush.Use WD-40 spray.

Step 11

Install a new rod, tighten the fasteners.
Step 12

Tighten the fastener connecting the stabilizer link to the stabilizer bar.Use a combination spanner #16.Use Torx T30.Use a torque wrench.Tighten it to 55 Nm torque.
Step 13

Tighten the fastener connecting the stabilizer bar with the control arm.Use a combination spanner #16.Use Torx T30.Use a torque wrench.Tighten it to 55 Nm torque.
Step 14

Treat all joints of the stabiliser link.Use copper grease.
Step 15

Treat the surface where the brake disc contacts the wheel rim. Use copper grease.
Step 16

Clean the brake disk surface.Use a brake cleaner.

AUTODOC recommends:

Replacement: anti roll bar links – Peugeot 407 saloon. After applying the spray, wait a few minutes.
Step 17

Install the wheel.

Replacement: anti roll bar links – Peugeot 407 saloon. Tip from AUTODOC experts:

To avoid injury, hold up the wheel when screwing in the fastening bolts.
Step 18

Screw in the wheel bolts.Use wheel impact socket #19.
Step 19

Lower the car and working in a cross order, tighten the wheel bolts.Use wheel impact socket #19.Use a torque wrench.Tighten it to 120 nm torque.
Step 20

Remove the jacks and chocks.
