Recommended replacement interval for the part category Brake pad set : 30000 km

Important!

This replacement procedure can be used for:
TOYOTA RAV 4 IV (ZSA4_, ALA4_) 2.0 4WD (ZSA44), TOYOTA RAV 4 IV (ZSA4_, ALA4_) 2.0 D (ALA40_), TOYOTA RAV 4 IV (ZSA4_, ALA4_) 2.0 4WD (ZSA44_), TOYOTA RAV 4 IV (ZSA4_, ALA4_) 2.2 D 4WD (ALA49), TOYOTA RAV 4 IV (ZSA4_, ALA4_) 2.0 (ZSA42), TOYOTA RAV 4 IV (ZSA4_, ALA4_) 2.5 4WD (ASA44), TOYOTA RAV 4 IV (ZSA4_, ALA4_) 2.0 D 4WD (ALA41_), TOYOTA RAV 4 IV (ZSA4_, ALA4_) 2.5 (ASA42), TOYOTA RAV 4 IV (ZSA4_, ALA4_) 2.5 4WD (ASA44), TOYOTA RAV 4 IV (ZSA4_, ALA4_) 2.0 4WD (ZSA44_), TOYOTA RAV 4 IV (ZSA4_, ALA4_) 2.5 Hybrid (AVA42_), TOYOTA RAV 4 IV (ZSA4_, ALA4_) 2.5 Hybrid 4WD (AVA44_), TOYOTA RAV 4 IV (ZSA4_, ALA4_) 2.5 Hybrid 4WD (AVA44, AVA44_), TOYOTA RAV 4 IV (ZSA4_, ALA4_) 2.0 D (WWA42_), TOYOTA RAV 4 IV (ZSA4_, ALA4_) 2.5 (ASA42), TOYOTA RAV 4 IV (ZSA4_, ALA4_) 2.5 Hybrid (AVA42_), TOYOTA RAV 4 IV (ZSA4_, ALA4_) 2.0 (ZSA42), TOYOTA RAV 4 IV (ZSA4_, ALA4_) 2.2 D 4WD (ALA49), TOYOTA RAV 4 IV (ZSA4_, ALA4_) 2.0 4WD (ZSA44) … View more

The steps may slightly vary depending on the car design.

This video shows the replacement procedure of a similar car part on another vehicle

All the parts you need to replace – Brake Pads for RAV 4 IV (ZSA4_, ALA4_) and other TOYOTA models

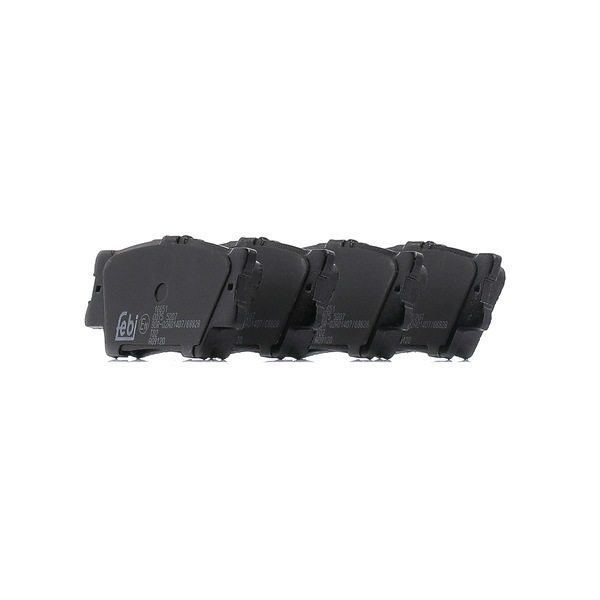

Brake pad set

        Brake pad set for RAV4 IV Off-Road (XA40) Petrol (146 hp)

        Brake pad set for RAV4 IV Off-Road (XA40) Diesel (124 hp)

        Brake pad set for RAV4 IV Off-Road (XA40) Petrol (151 hp)

        Brake pad set for RAV4 IV Off-Road (XA40) Diesel (150 hp)

        Brake pad set for RAV4 IV Off-Road (XA40) Petrol (146 hp)

        Brake pad set for RAV4 IV Off-Road (XA40) Petrol (180 hp)

        Brake pad set for RAV4 IV Off-Road (XA40) Diesel (124 hp)

        Brake pad set for RAV4 IV Off-Road (XA40) Petrol (178 hp)

        Brake pad set for RAV4 IV Off-Road (XA40) Petrol (178 hp)

Replacement: brake pads – TOYOTA RAV 4 IV (ZSA4_, ALA4_). List of the tools you'll need:

                        Wire brush

                        WD-40 spray

                        Brake cleaner

                        Copper grease

                        Anti-squeal paste

                        Drive socket # 14

                        Wheel impact socket #21

                        Brake caliper wind back tool

                        Torque wrench

                        Crow bar

                        Wheel chock

Buy tools

Replacement: brake pads – TOYOTA RAV 4 IV (ZSA4_, ALA4_). AUTODOC recommends:

Perform the replacement of brake pads in complete set for each axis. This provides effective braking.
The replacement procedure is identical for all brake pads on the same axle.
Warning! Shut down the engine before starting any work – TOYOTA RAV 4 IV (ZSA4_, ALA4_).

Carry out replacement in the following order:

Step 1

Open the bonnet. Unscrew the brake fluid reservoir cap.

Step 2

Secure the wheels with chocks.

Step 3

Loosen the wheel mounting bolts. Use wheel impact socket #21.
Step 4

Raise the rear of the car and secure on supports.

Step 5

Unscrew the wheel bolts.

Replacement: brake pads – TOYOTA RAV 4 IV (ZSA4_, ALA4_). AUTODOC experts recommend:
To avoid injury, hold up the wheel when unscrewing the bolts.
Step 6

Remove the wheel.
Step 7

Spread the brake pads. Use a crowbar.
Step 8

Clean the brake caliper fasteners. Use a wire brush. Use WD-40 spray.
Step 9

Unscrew the brake caliper fastening. Use a drive socket #14. Use a tap wrench.
Step 10

Remove the brake caliper.

Replacement: brake pads – TOYOTA RAV 4 IV (ZSA4_, ALA4_). Tip from AUTODOC:
Tie the caliper to the suspension or to the body with a wire without disconnecting from the brake hose to prevent depressurization of the brake system.Make sure that the brake caliper is not hanging on the brake hose.Don't press the brake pedal after the brake caliper has been removed. As a result, the piston can fall out from the brake cylinder, and brake fluid leakage and depressurization of the system may occur. Check the brake caliper bracket, brake caliper guide pins and boots. Clean them. Replace, if necessary.
Step 11

Remove the brake pads.

Replacement: brake pads – TOYOTA RAV 4 IV (ZSA4_, ALA4_). Tip from AUTODOC experts:
Measure the brake disc thickness. Upon reaching the wear limit the part must be replaced.
Step 12

Clean the brake caliper bracket from dirt and dust. Use a wire brush. Use a brake cleaner.

AUTODOC recommends:
Replacement: brake pads – TOYOTA RAV 4 IV (ZSA4_, ALA4_). After applying the spray, wait a few minutes.
Step 13

Treat the brake caliper piston. Use a brake cleaner.

Replacement: brake pads – TOYOTA RAV 4 IV (ZSA4_, ALA4_). Tip:
After applying the spray, wait a few minutes.
Step 14

Press in the brake caliper piston. Use brake caliper wind back tool.
Step 15

Treat the brake pads in the area where their surface comes into contact with the brake caliper bracket. Use anti-squeal paste.

Replacement: brake pads – TOYOTA RAV 4 IV (ZSA4_, ALA4_). Professionals recommend:
Make sure the disc surface is clean before installing the pads.
Step 16

Install new brake pads.

AUTODOC recommends:
Make sure the pads are installed with linings facing the disc.
Step 17

Install the brake caliper and fix it. Use a drive socket #14. Use a torque wrench. Tighten it to 27 Nm torque.
Step 18

Treat the surface where the brake disc contacts the wheel rim. Use copper grease.
Step 19

Clean the brake disk surface. Use a brake cleaner.

AUTODOC recommends:
Replacement: brake pads – TOYOTA RAV 4 IV (ZSA4_, ALA4_). After applying the spray, wait a few minutes.
Step 20

Install the wheel.

Replacement: brake pads – TOYOTA RAV 4 IV (ZSA4_, ALA4_). AUTODOC recommends:
To avoid injury, hold up the wheel when screwing in the fastening bolts.
Step 21

Screw in the wheel bolts. Use wheel impact socket #21.
Step 22

Lower the car and working in a cross order, tighten the wheel bolts. Use a torque wrench. Tighten it to 103 Nm torque.
Step 23

Remove the jacks and chocks.

AUTODOC recommends:
Important! Replacement: brake pads – TOYOTA RAV 4 IV (ZSA4_, ALA4_). Check the brake fluid level in the reservoir and top up if necessary.
Step 24

Tighten the brake fluid reservoir cap.

AUTODOC recommends:
TOYOTA RAV 4 IV (ZSA4_, ALA4_) – Press the brake pedal several times with the engine shut down until you feel the resistance built up.
Step 25

Close the hood.

Replacement: brake pads – TOYOTA RAV 4 IV (ZSA4_, ALA4_). Professionals recommend:
Slow down smoothly for first 150-200 km after the brake pads replacement. Avoid unneccessary and sharp braking to a stop.
