When to replace the Brake Pads on your PEUGEOT 406
Recommended replacement interval for the part category Brake pad set : 30000 km
Important!
This replacement procedure can be used for:
PEUGEOT 406 (8B) 2.0 16V, PEUGEOT 406 (8B) 1.9 TD, PEUGEOT 406 (8B) 2.1 TD 12V, PEUGEOT 406 (8B) 2.0 Turbo, PEUGEOT 406 (8B) 1.9 TD, PEUGEOT 406 (8B) 3.0 24V, PEUGEOT 406 (8B) 2.0 HDI, PEUGEOT 406 (8B) 2.0 HDI, PEUGEOT 406 (8B) 2.0 16V, PEUGEOT 406 (8B) 3.0 V6, PEUGEOT 406 (8B) 2.0 16V, PEUGEOT 406 (8B) 2.2 HDi, PEUGEOT 406 (8B) 2.0 16V HPi, PEUGEOT 406 (8B) 2.0 HDi, PEUGEOT 406 (8B) 1.9 TD … View more

The steps may slightly vary depending on the car design.

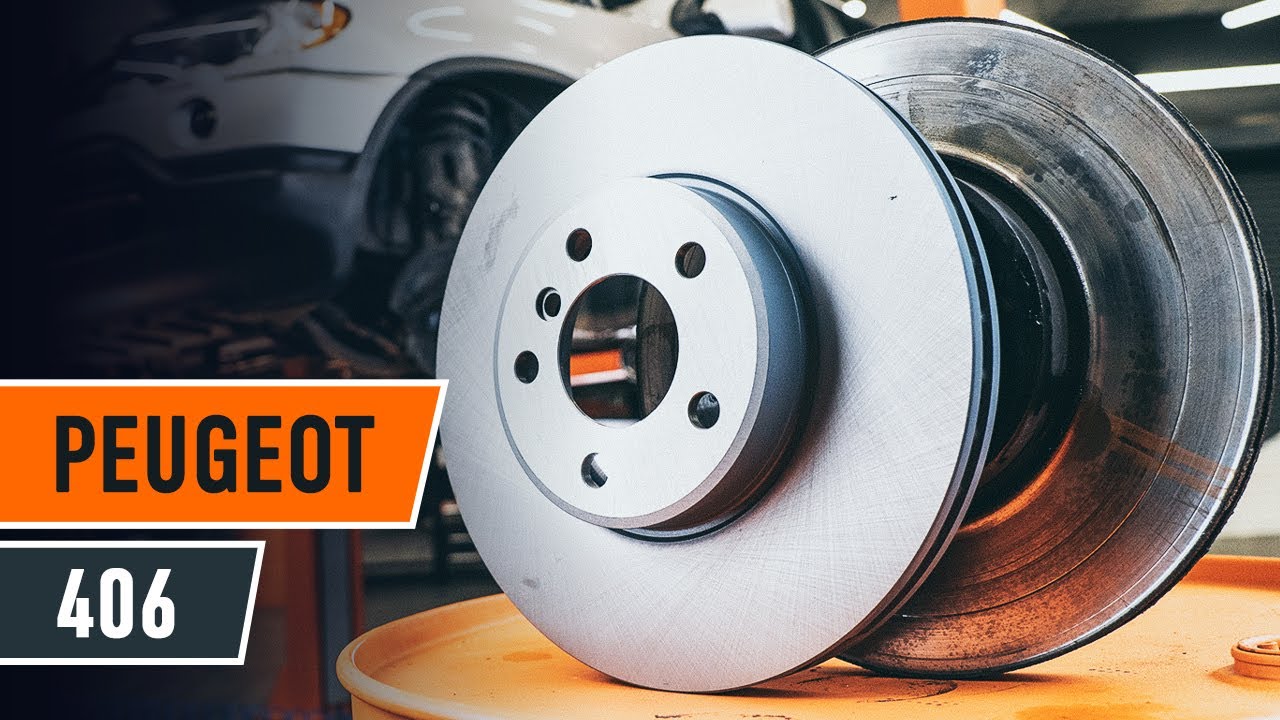

How to change front brake discs and brake pads PEUGEOT 406 TUTORIAL | AUTODOC

video
Published on: 15/08/2017
20K views
All the parts you need to replace – Brake Pads for 406 (8B) and other PEUGEOT models
Alternative products
How to change Brake pad set on Peugeot 406 Saloon 2.0 HDI – step-by-step instructions for straightforward car repair Brake pad set
Tools
Replacement: brake pads – Peugeot 406 saloon. Tools you need:
Wire brush
WD-40 spray
Brake cleaner
Anti-squeal paste
Copper grease
High-temperature ceramic grease
Combination spanner #13
Combination spanner #17
Wheel impact socket #19
Ratchet wrench
Torque wrench
Brake caliper wind back tool
Crow bar
Wheel chock
Buy tools
Replacement: brake pads – Peugeot 406 saloon. AUTODOC recommends:
  • Perform the replacement of brake pads in complete set for each axis. This provides effective braking.
  • The replacement procedure is identical for all brake pads on the same axle.
  • All work should be done with the engine stopped.
Replacement: brake pads – Peugeot 406 saloon. Take the following steps:
  1. Step 1
    How to change Brake Pads on Peugeot 406 Saloon 1995 - free PDF and video manuals
    Open the bonnet. Unscrew the brake fluid reservoir cap.
  2. Step 2
    How to replace PEUGEOT 406 (8B) 2.0 HDI 1996 Brake Pads - step-by-step manuals and video guides
    Secure the wheels with chocks.
  3. Step 3
    Peugeot 406 Saloon 1.8 16V 1997 Brake Pads replacement: free workshop manuals
    Loosen the wheel mounting bolts. Use wheel impact socket #19.
  4. Step 4
    Changing Brake Pads on PEUGEOT 406 (8B) 1.9 TD 1998 by yourself
    Raise the front of the car and secure on supports.
  5. Step 5
    How to remove PEUGEOT 406 2.0 HDi 1999 Brake Pads - online easy-to-follow instructions
    Unscrew the wheel bolts.
    AUTODOC recommends:
    Warning! To avoid injury, hold the wheel while unscrewing the fastening bolts. Peugeot 406 saloon
  6. Step 6
    How to replace Brake Pads on PEUGEOT 406 (8B) 2000: download PDF manuals and video instructions
    Remove the wheel.
  7. Step 7
    Clean the brake caliper fasteners. Use a wire brush. Use WD-40 spray.
    Step 8
    How hard is it to do yourself: Brake Pads replacement on Peugeot 406 Saloon 2.0 16V 2001 - download illustrated guide
    Unscrew the brake caliper fasteners. Use a combination spanner #13. Use a combination spanner #17.
  8. Step 9
    Remove the fastening bolts (2 pieces).
    Step 10
    Need to know how to renew Brake Pads on PEUGEOT 406 2002? This free workshop manual will help you to do it yourself
    Disconnect the brake pad wear sensor plug.
  9. Step 11
    Disconnect the brake pad wear sensor wire.
    Step 12
    Changing of Brake Pads on Peugeot 406 Saloon 2003 won't be an issue if you follow this illustrated step-by-step guide
    Spread the brake pads. Use a crowbar.
  10. Step 13
    PEUGEOT 406 1.8 16V Brake Pads replacement: online guides and video tutorials
    Remove the brake caliper. Use a crowbar.
    Replacement: brake pads – Peugeot 406 saloon. Professionals recommend:
    Tie the caliper to the suspension or to the body with a wire without disconnecting from the brake hose to prevent depressurization of the brake system.Make sure that the brake caliper is not hanging on the brake hose.Don't press the brake pedal after the brake caliper has been removed. As a result, the piston can fall out from the brake cylinder, and brake fluid leakage and depressurization of the system may occur. Check the brake caliper bracket, brake caliper guide pins and boots. Clean them. Replace, if necessary.
  11. Step 14
    Replacing Brake Pads on Peugeot 406 Saloon 2005 2.0 HDI by yourself
    Remove the brake pads. Use a crowbar.
    Replacement: brake pads – Peugeot 406 saloon. AUTODOC recommends:
    Measure the brake disc thickness. Upon reaching the wear limit the part must be replaced.
  12. Step 15
    406 (8B) 2.0 HDi 1995 Brake Pads DIY replacement workshop manual
    Clean the brake caliper bracket from dirt and dust. Use a wire brush. Use a brake cleaner.
  13. Step 16
    How to change Brake Pads on PEUGEOT 406 (8B) 1996 - tips and tricks
    Treat the brake pads in the area where their surface comes into contact with the brake caliper bracket. Use anti-squeal paste.
    Replacement: brake pads – Peugeot 406 saloon. Professionals recommend:
    Make sure the disc surface is clean before installing the pads.
  14. Step 17
    Step-by-step recommendations for DIY replacement Peugeot 406 Saloon 1997 2.0 HDi Brake Pads
    Install new brake pads.
    Replacement: brake pads – Peugeot 406 saloon. Tip:
    Make sure the pads are installed with linings facing the disc.
  15. Step 18
    DIY replacement of Brake Pads on PEUGEOT 406 (8B) 2.1 TD 12V 1998 is not an issue anymore with our step-by-step tutorial
    Treat the brake caliper piston. Use a brake cleaner.
