When to replace the Brake Discs on your SUZUKI SWIFT
Recommended replacement interval for the part category Brake disc : 50000 km
Important!
This replacement procedure can be used for:
SUZUKI SWIFT III (MZ, EZ) 1.5 4x4 (RS 415, ZD21S), SUZUKI SWIFT III (MZ, EZ) 1.3 (RS 413, ZC11S), SUZUKI SWIFT III (MZ, EZ) 1.3 DDiS (RS 413D), SUZUKI SWIFT III (MZ, EZ) 1.3 4x4 (RS 413, ZD11S), SUZUKI SWIFT III (MZ, EZ) 1.6 (RS 416, RR 416, ZC31S), SUZUKI SWIFT III (MZ, EZ) 1.3 4x4 (RS 413, ZD11S), SUZUKI SWIFT III (MZ, EZ) 1.3 DDiS (RS 413D), SUZUKI SWIFT III (MZ, EZ) 1.3 (RS 413, ZC11S), SUZUKI SWIFT III (MZ, EZ) 1.2 (ZC71S), SUZUKI SWIFT III (MZ, EZ) 1.3 4WD (RS 413, ZD11S), SUZUKI SWIFT III (MZ, EZ) 1.3 LPG (RS 413) … View more

The steps may slightly vary depending on the car design.

How to change front brake discs and front brake pads set on SUZUKI SWIFT 3 [TUTORIAL AUTODOC]

video
Published on: 29/10/2018
103K views

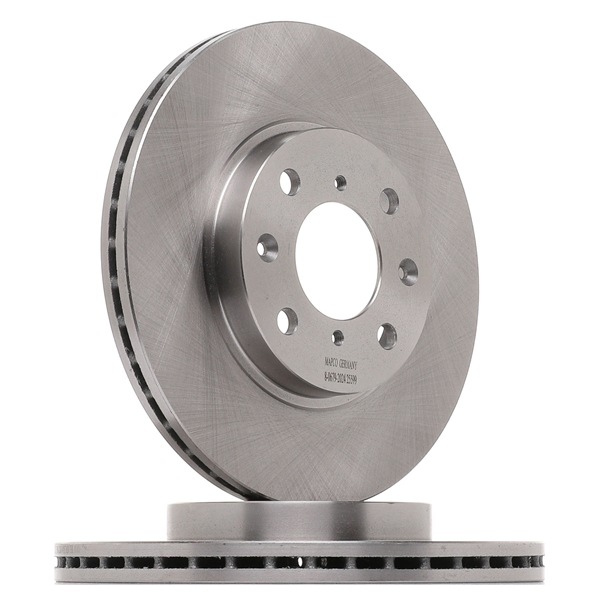

All the parts you need to replace – Brake Discs for SWIFT III (MZ, EZ) and other SUZUKI models
Alternative products
How to change Brake disc on Suzuki Swift Mk3 1.3 (RS 413, ZC11S) – step-by-step instructions for straightforward car repair Brake disc
Tools
Replacement: brake discs – Suzuki Swift MK3. Tools you need:
Wire brush
WD-40 spray
Brake cleaner
Sealant
Brake caliper guide pins grease
Copper grease
Torx bit T30
Combination spanner #15
Drive socket # 13
Drive socket # 17
Wheel impact socket #21
Ratchet wrench
Torque wrench
Brake caliper wind back tool
Tap wrench
Crow bar
Wheel chock
Buy tools
AUTODOC recommends:
  • Replace the brake disks on the car Suzuki Swift MK3 in complete set for each axis. Regardless of the state of components. This will ensure even braking.
  • The replacement procedure is identical for both brake disks on the same axle.
  • When changing the brake discs, always replace the brake pads.
  • Please note: all work on the car – Suzuki Swift MK3 – should be done with the engine switched off.
Carry out replacement in the following order:
  1. Step 1
    How to change Brake Discs on Suzuki Swift Mk3 2005 - free PDF and video manuals
    Open the bonnet. Unscrew the brake fluid reservoir cap.
  2. Step 2
    How to replace SUZUKI SWIFT III (MZ, EZ) 1.3 (RS 413, ZC11S) 2006 Brake Discs - step-by-step manuals and video guides
    Secure the wheels with chocks.
  3. Step 3
    Suzuki Swift Mk3 1.3 DDiS (RS 413D) 2007 Brake Discs replacement: free workshop manuals
    Loosen the wheel mounting bolts. Use wheel impact socket #21.
  4. Step 4
    Raise the front of the car and secure on supports.
    Step 5
    Changing Brake Discs on SUZUKI SWIFT III (MZ, EZ) 1.5 (RS 415) 2008 by yourself
    Unscrew the wheel bolts.
    AUTODOC recommends:
    Important! Hold the wheel while unscrewing the fastening bolts. Suzuki Swift MK3
  5. Step 6
    How to remove SUZUKI SWIFT 1.3 4x4 (RS 413, ZD11S) 2009 Brake Discs - online easy-to-follow instructions
    Remove the wheel.
  6. Step 7
    Clean the brake caliper fasteners. Use a wire brush. Use WD-40 spray.
    Step 8
    How to replace Brake Discs on SUZUKI SWIFT III (MZ, EZ) 2010: download PDF manuals and video instructions
    Unscrew the brake caliper fastening. Use a combination spanner #15. Use a drive socket #13. Use a ratchet wrench.
  7. Step 9
    How hard is it to do yourself: Brake Discs replacement on Suzuki Swift Mk3 1.5 4x4 (RS 415, ZD21S) 2011 - download illustrated guide
    Spread the brake pads. Use a crowbar.
  8. Step 10
    Need to know how to renew Brake Discs on SUZUKI SWIFT 2012? This free workshop manual will help you to do it yourself
    Remove the brake caliper.
    Replacement: brake discs – Suzuki Swift MK3. AUTODOC recommends:
    Tie the caliper to the suspension or to the body with a wire without disconnecting from the brake hose to prevent depressurization of the brake system.Make sure that the brake caliper is not hanging on the brake hose.Don't press the brake pedal after the brake caliper has been removed. As a result, the piston can fall out from the brake cylinder, and brake fluid leakage and depressurization of the system may occur.Check the brake caliper bracket, brake caliper guide pins and boots. Clean them. Replace, if necessary.
  9. Step 11
    Changing of Brake Discs on Suzuki Swift Mk3 2013 won't be an issue if you follow this illustrated step-by-step guide
    Remove the brake pads.
  10. Step 12
    SUZUKI SWIFT 1.3 DDiS (RS 413D) Brake Discs replacement: online guides and video tutorials
    Clean the brake caliper bracket fasteners. Use a wire brush. Use WD-40 spray.
  11. Step 13
    Replacing Brake Discs on Suzuki Swift Mk3 2015 1.3 (RS 413, ZC11S) by yourself
    Unscrew the caliper bracket fastening. Use a drive socket #17. Use a tap wrench. Use a ratchet wrench.
  12. Step 14
    Remove the fastening bolts (2 pieces).
    Step 15
    SWIFT III (MZ, EZ) 1.3 4x4 (RS 413, ZD11S) 2016 Brake Discs DIY replacement workshop manual
    Remove the caliper bracket.
  13. Step 16
    How to change Brake Discs on SUZUKI SWIFT III (MZ, EZ) 2017 - tips and tricks
    Clean the brake disc fasteners. Use a wire brush. Use WD-40 spray.
  14. Step 17
    Step-by-step recommendations for DIY replacement Suzuki Swift Mk3 2018 1.3 4x4 (RS 413, ZD11S) Brake Discs
    Unscrew the brake disc fastening. Use Torx T30. Use a ratchet wrench.
  15. Step 18
    DIY replacement of Brake Discs on SUZUKI SWIFT III (MZ, EZ) 1.6 (RS 416, RR 416, ZC31S) 2019 is not an issue anymore with our step-by-step tutorial
    Remove the brake disc.
  16. Step 19
    How to change Brake Discs on Suzuki Swift Mk3 2005 - free PDF and video manuals
    Clean the hub. Use a wire brush. Treat the contacting surface. Use copper grease.
  17. Step 20
    How to replace SUZUKI SWIFT III (MZ, EZ) 1.3 (RS 413, ZC11S) 2006 Brake Discs - step-by-step manuals and video guides
    Install the brake disc.
  18. Step 21
    Suzuki Swift Mk3 1.3 DDiS (RS 413D) 2007 Brake Discs replacement: free workshop manuals
    Tighten the brake disc fastening. Use Torx T30. Use a torque wrench. Tighten it to 9 Nm torque.
  19. Step 22
    Changing Brake Discs on SUZUKI SWIFT III (MZ, EZ) 1.5 (RS 415) 2008 by yourself
    Clean the brake caliper bracket from dirt and dust. Use a wire brush. Use a brake cleaner.
    AUTODOC recommends:
    Replacement: brake discs – Suzuki Swift MK3. After applying the spray, wait a few minutes.
  20. Step 23
    Remove the guide pins from the brake caliper.
    Step 24
    How to remove SUZUKI SWIFT 1.3 4x4 (RS 413, ZD11S) 2009 Brake Discs - online easy-to-follow instructions
    Clean the brake caliper guide pins.
  21. Step 25
    How to replace Brake Discs on SUZUKI SWIFT III (MZ, EZ) 2010: download PDF manuals and video instructions
    Treat the brake caliper guide pins. Use the brake caliper guide pin grease.
