How to carry out replacement: Brake Discs 1.6 TDI VW Golf Mk7
Disclaimer
Change VW Golf Mk7 2.0 TDI Brake Discs yourself – manuals and video tutorials

How to change front brake discs on VW Golf 7 – replacement guide

downloads: 44
Views: 784
Download your free tutorial and fix VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 1.6 TDI problems yourself Download for free 2.3 MB Brake Discs for VW Golf Mk7 Shop now
Leave a comment Open in a new tab
When to replace the Brake Discs on your VW GOLF
Recommended replacement interval for the part category Brake disc : 50000 km
Important!
This replacement procedure can be used for:
VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 1.4 TGI CNG, VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 1.2 TSI, VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 1.4 TSI, VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 1.6 TDI, VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 2.0 TDI, VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 1.2 TSI, VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 1.4 TSI, VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 1.6 TDI 4motion, VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 2.0 TDI 4motion, VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 1.4 TSI MultiFuel, VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 1.6 TDI, VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 1.6 TDI, VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 2.0 TDI, VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 2.0 TDI, VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 2.0 GTI, VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 2.0 GTI, VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 2.0 GTD, VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 1.6 TDI 4motion, VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 1.2 TSI, VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 1.4 TSI, VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 1.4 TSI, VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 1.4 GTE Hybrid, VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 2.0 GTI, VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 1.4 TSI MultiFuel, VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 1.6, VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 1.0 TSI, VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 1.0 TSI, VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 1.6 TDI, VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 1.0 TSI, VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) e-Golf, VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 1.8 TSI, VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 2.0 R 360S 4motion, VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 2.0 R 4motion, VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 1.0 TSI Flexfuel, VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 2.0 R 4motion, VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) e-Golf, VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 1.5 TSI, VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 2.0 GTD, VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 1.5 TSI, VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 1.4 TSI Flexfuel, VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 1.6 SRE Flex, VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 1.5 TGI, VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 1.0 TSI Flexfuel … View more

The steps may slightly vary depending on the car design.

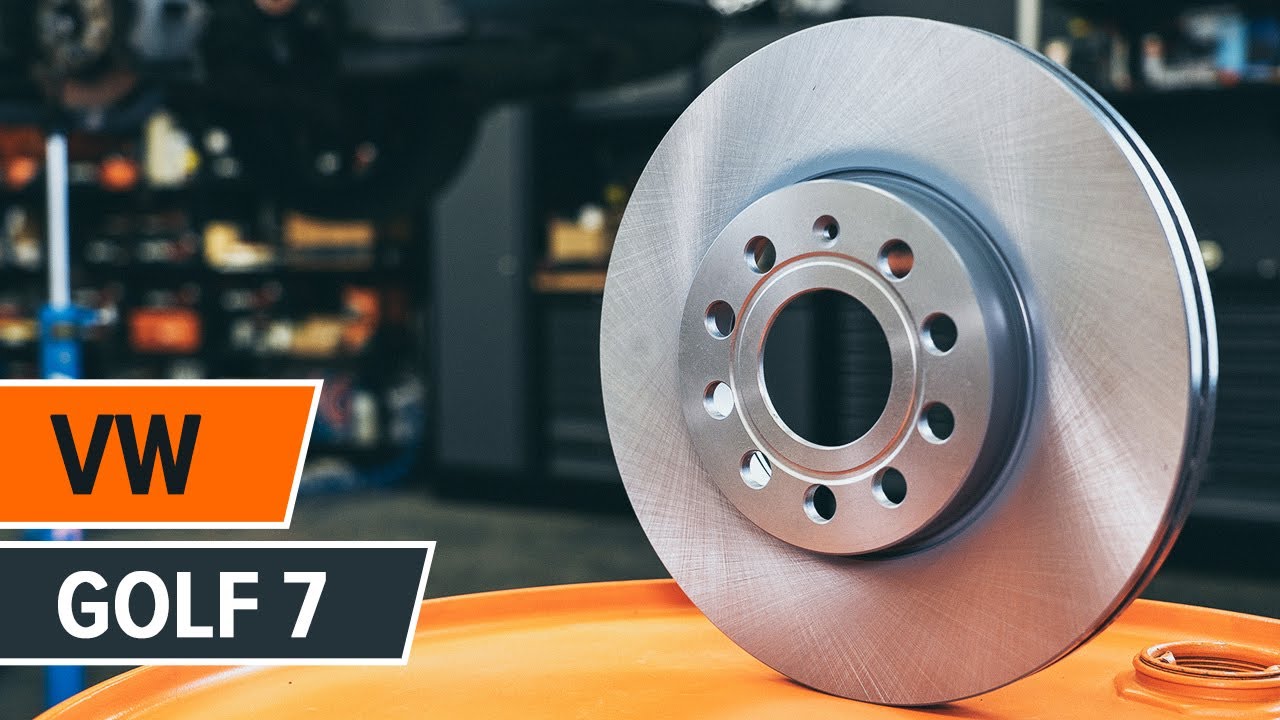

How to change front brake discs on VW GOLF 7 [TUTORIAL AUTODOC]

video
Published on: 12/05/2022
33K views
All the parts you need to replace – Brake Discs for Golf VII Hatchback (5G1, BQ1, BE1, BE2) and other VW models
Alternative products
How to change Brake disc on VW Golf Mk7 1.6 TDI – step-by-step instructions for straightforward car repair Brake disc
82B0028 RIDEX Brake disc
28,94 GBP
Shop
22902 FEBI BILSTEIN Brake disc
35,10 GBP
Shop
J3300807 HERTH+BUSS JAKOPARTS Brake disc
41,84 GBP
Shop
SKBD-0023679 STARK Brake disc
53,11 GBP
Shop
SKAD-2027 STARK Brake disc
69,44 GBP
Shop
Tools
Replacement: brake discs – VW Golf 7. Tools you might need:
Wire brush
Nylon cleaning brush
WD-40 spray
All-purpose cleaning spray
Brake cleaner
Anti-squeal paste
Ceramic grease
Torque wrench
Combination spanner #17
Drive socket # 13
Drive socket # 19
Drive socket # 21
Torx bit T30
Wheel impact socket #17
Ratchet wrench
Rubber mallet
Impact screwdriver
Brake caliper wind back tool
Crow bar
Wheel chock
Buy tools
AUTODOC recommends:
  • Replace the brake disks on the car VW Golf 7 in complete set for each axis. Regardless of the state of components. This will ensure even braking.
  • The replacement procedure is identical for both brake disks on the same axle.
  • When changing the brake discs, always replace the brake pads.
  • Please note: all work on the car – VW Golf 7 – should be done with the engine switched off.
Carry out replacement in the following order:
  1. Step 1
    How to change Brake Discs on VW Golf Mk7 2012 - free PDF and video manuals
    Open the bonnet. Unscrew the brake fluid reservoir cap.
  2. Step 2
    Secure the wheels with chocks.
    Step 3
    How to replace VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 1.6 TDI 2013 Brake Discs - step-by-step manuals and video guides
    Loosen the wheel mounting bolts. Use wheel impact socket #17.
  3. Step 4
    VW Golf Mk7 2.0 TDI 2014 Brake Discs replacement: free workshop manuals
    Raise the car.
    Replacement: brake discs – VW Golf 7. Professionals recommend:
    If you are using a jack, make sure it rests on a flat surface without any unevenness.Be sure to additionally secure the car with jack stands.
  4. Step 5
    Changing Brake Discs on VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 2.0 GTI 2015 by yourself
    Unscrew the wheel bolts.
    AUTODOC recommends:
    Warning! To avoid injury, hold the wheel while unscrewing the fastening bolts. VW Golf 7
  5. Step 6
    How to remove VW GOLF 1.2 TSI 2016 Brake Discs - online easy-to-follow instructions
    Remove the wheel.
  6. Step 7
    How to replace Brake Discs on VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 2017: download PDF manuals and video instructions
    Clean the brake caliper fasteners. Use a wire brush. Use a brake cleaner.
    AUTODOC recommends:
    Replacement: brake discs – VW Golf 7. After applying the spray, wait a few minutes.
  7. Step 8
    How hard is it to do yourself: Brake Discs replacement on VW Golf Mk7 2.0 R 4motion 2018 - download illustrated guide
    Unscrew the brake caliper fasteners. Use a combination spanner #17. Use a drive socket #13. Use a ratchet wrench.
  8. Step 9
    Need to know how to renew Brake Discs on VW GOLF 2019? This free workshop manual will help you to do it yourself
    Remove the fastening bolts.
  9. Step 10
    Changing of Brake Discs on VW Golf Mk7 2020 won't be an issue if you follow this illustrated step-by-step guide
    Spread the brake pads. Use a crowbar.
  10. Step 11
    VW GOLF 2.0 TDI Brake Discs replacement: online guides and video tutorials
    Remove the brake caliper.
    Replacement: brake discs – VW Golf 7. AUTODOC recommends:
    Tie the caliper to the suspension or to the body with a wire without disconnecting from the brake hose to prevent depressurization of the brake system.Make sure that the brake caliper is not hanging on the brake hose.Don't press the brake pedal after the brake caliper has been removed. As a result, the piston can fall out from the brake cylinder, and brake fluid leakage and depressurization of the system may occur.
  11. Step 12
    Replacing Brake Discs on VW Golf Mk7 2022 1.6 TDI by yourself
    Remove the brake pads. Use a crowbar.
  12. Step 13
    Golf VII Hatchback (5G1, BQ1, BE1, BE2) 1.2 TSI 2023 Brake Discs DIY replacement workshop manual
    Clean the brake caliper bracket fasteners. Use a wire brush. Use WD-40 spray.
  13. Step 14
    How to change Brake Discs on VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 2024 - tips and tricks
    Unscrew the brake caliper bracket fasteners. Use a drive socket #21. Use a ratchet wrench.
  14. Step 15
    Step-by-step recommendations for DIY replacement VW Golf Mk7 2012 1.2 TSI Brake Discs
    Remove the fastening bolts.
  15. Step 16
    DIY replacement of Brake Discs on VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 2.0 GTD 2013 is not an issue anymore with our step-by-step tutorial
    Remove the caliper bracket.
  16. Step 17
    How to change Brake Discs on VW Golf Mk7 2012 - free PDF and video manuals
    Clean the brake disc fastener. Use a wire brush. Use WD-40 spray.
  17. Step 18
    How to replace VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 1.6 TDI 2013 Brake Discs - step-by-step manuals and video guides
    Unscrew the brake disc fastening. Use Torx T30. Use an impact screwdriver.
  18. Step 19
    VW Golf Mk7 2.0 TDI 2014 Brake Discs replacement: free workshop manuals
    Remove the fastening bolt.
  19. Step 20
    Changing Brake Discs on VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 2.0 GTI 2015 by yourself
    Remove the brake disc. Use a rubber mallet.
  20. Step 21
    How to remove VW GOLF 1.2 TSI 2016 Brake Discs - online easy-to-follow instructions
    Clean the hub. Use a wire brush. Use all-purpose cleaning spray.
  21. Step 22
    How to replace Brake Discs on VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 2017: download PDF manuals and video instructions
    Treat the contacting surface. Use ceramic grease.
  22. Step 23
    How hard is it to do yourself: Brake Discs replacement on VW Golf Mk7 2.0 R 4motion 2018 - download illustrated guide
    Install the brake disc.
  23. Step 24
    Need to know how to renew Brake Discs on VW GOLF 2019? This free workshop manual will help you to do it yourself
    Install the fastening bolt.
  24. Step 25
    Changing of Brake Discs on VW Golf Mk7 2020 won't be an issue if you follow this illustrated step-by-step guide
    Tighten the brake disc fastening. Use Torx T30. Use a torque wrench. Tighten it to 8 Nm torque.
