Important!
This replacement procedure can be used for:
TOYOTA AURIS (NRE15_, ZZE15_, ADE15_, ZRE15_, NDE15_) 1.8 (ZRE152_), TOYOTA AURIS (NRE15_, ZZE15_, ADE15_, ZRE15_, NDE15_) 1.8 4WD (ZRE154_), TOYOTA AURIS (NRE15_, ZZE15_, ADE15_, ZRE15_, NDE15_) 1.5 (NZE151_), TOYOTA AURIS (NRE15_, ZZE15_, ADE15_, ZRE15_, NDE15_) 2.2 D (ADE157_, ADE151_), TOYOTA AURIS (NRE15_, ZZE15_, ADE15_, ZRE15_, NDE15_) 2.0 D-4D (ADE150_), TOYOTA AURIS (NRE15_, ZZE15_, ADE15_, ZRE15_, NDE15_) 1.4 D-4D (NDE150_), TOYOTA AURIS (NRE15_, ZZE15_, ADE15_, ZRE15_, NDE15_) 1.6 (ZRE151_), TOYOTA AURIS (NRE15_, ZZE15_, ADE15_, ZRE15_, NDE15_) 1.4 (ZZE150_), TOYOTA AURIS (NRE15_, ZZE15_, ADE15_, ZRE15_, NDE15_) 1.8 (ZRE152), TOYOTA AURIS (NRE15_, ZZE15_, ADE15_, ZRE15_, NDE15_) 1.33 Dual-VVTi (NRE150_), TOYOTA AURIS (NRE15_, ZZE15_, ADE15_, ZRE15_, NDE15_) 1.6 (ZRE151_), TOYOTA AURIS (NRE15_, ZZE15_, ADE15_, ZRE15_, NDE15_) 1.8 (ZRE152_), TOYOTA AURIS (NRE15_, ZZE15_, ADE15_, ZRE15_, NDE15_) 1.33 Dual-VVTi (NRE150_) View more

The steps may slightly vary depending on the car design.

How to change front anti roll bar link on TOYOTA AURIS 1 (E150) [TUTORIAL AUTODOC]

video
Tools
Replacement: anti roll bar links – Toyota Auris E15. Tools you need:
Wire brush
WD-40 spray
Brake cleaner
Copper grease
Drive socket # 17
HEX №H6 wrench
Wheel impact socket #21
Ratchet wrench
Torque wrench
Wheel chock
AUTODOC recommends:
  • Replace the stabiliser links on Toyota Auris E15 in pairs.
  • The replacement procedure is identical for both stabiliser links on the same axle.
  • All work should be done with the engine stopped.
Replacement: anti roll bar links – Toyota Auris E15. Use the following procedure:
  1. Step 1
    How to change Anti Roll Bar Links on Toyota Auris E15 2006 - free PDF and video manuals
    Secure the wheels with chocks.
  2. Step 2
    How to replace TOYOTA AURIS (NRE15_, ZZE15_, ADE15_, ZRE15_, NDE15_) 1.4 D-4D (NDE150_) 2007 Anti Roll Bar Links - step-by-step manuals and video guides
    Loosen the wheel mounting bolts. Use wheel impact socket #21.
  3. Step 3
    Toyota Auris E15 2.0 D-4D (ADE150_) 2008 Anti Roll Bar Links replacement: free workshop manuals
    Raise the front of the car and secure on supports.
  4. Step 4
    Changing Anti Roll Bar Links on TOYOTA AURIS (NRE15_, ZZE15_, ADE15_, ZRE15_, NDE15_) 1.8 Hybrid (ZWE150_) 2009 by yourself
    Unscrew the wheel bolts.
    AUTODOC recommends:
    Important! Hold the wheel while unscrewing the fastening bolts. Toyota Auris E15
  5. Step 5
    How to remove TOYOTA AURIS 1.4 (ZZE150_) 2010 Anti Roll Bar Links - online easy-to-follow instructions
    Remove the wheel.
  6. Step 6
    How to replace Anti Roll Bar Links on TOYOTA AURIS (NRE15_, ZZE15_, ADE15_, ZRE15_, NDE15_) 2011: download PDF manuals and video instructions
    Clean the stabiliser link fasteners. Use a wire brush. Use WD-40 spray.
  7. Step 7
    How hard is it to do yourself: Anti Roll Bar Links replacement on Toyota Auris E15 1.33 Dual-VVTi (NRE150_) 2012 - download illustrated guide
    Unscrew the fastener connecting the stabilizer link to the stabilizer bar. Use HEX No.H6. Use a drive socket #17. Use a ratchet wrench.
  8. Step 8
    Need to know how to renew Anti Roll Bar Links on TOYOTA AURIS 2006? This free workshop manual will help you to do it yourself
    Unscrew the fastener connecting the stabilizer link to the shock strut. Use HEX No.H6. Use a drive socket #17. Use a ratchet wrench.
  9. Step 9
    Changing of Anti Roll Bar Links on Toyota Auris E15 2007 won't be an issue if you follow this illustrated step-by-step guide
    Remove the stabilizer rod.
    Replacement: anti roll bar links – Toyota Auris E15. AUTODOC experts recommend:
    Examine stabiliser bushes. Replace them if needed.
  10. Step 10
    Clean the mounting seats of the stabiliser link. Use a wire brush. Use WD-40 spray.
    Step 11
    TOYOTA AURIS 1.4 D-4D (NDE150_) Anti Roll Bar Links replacement: online guides and video tutorials

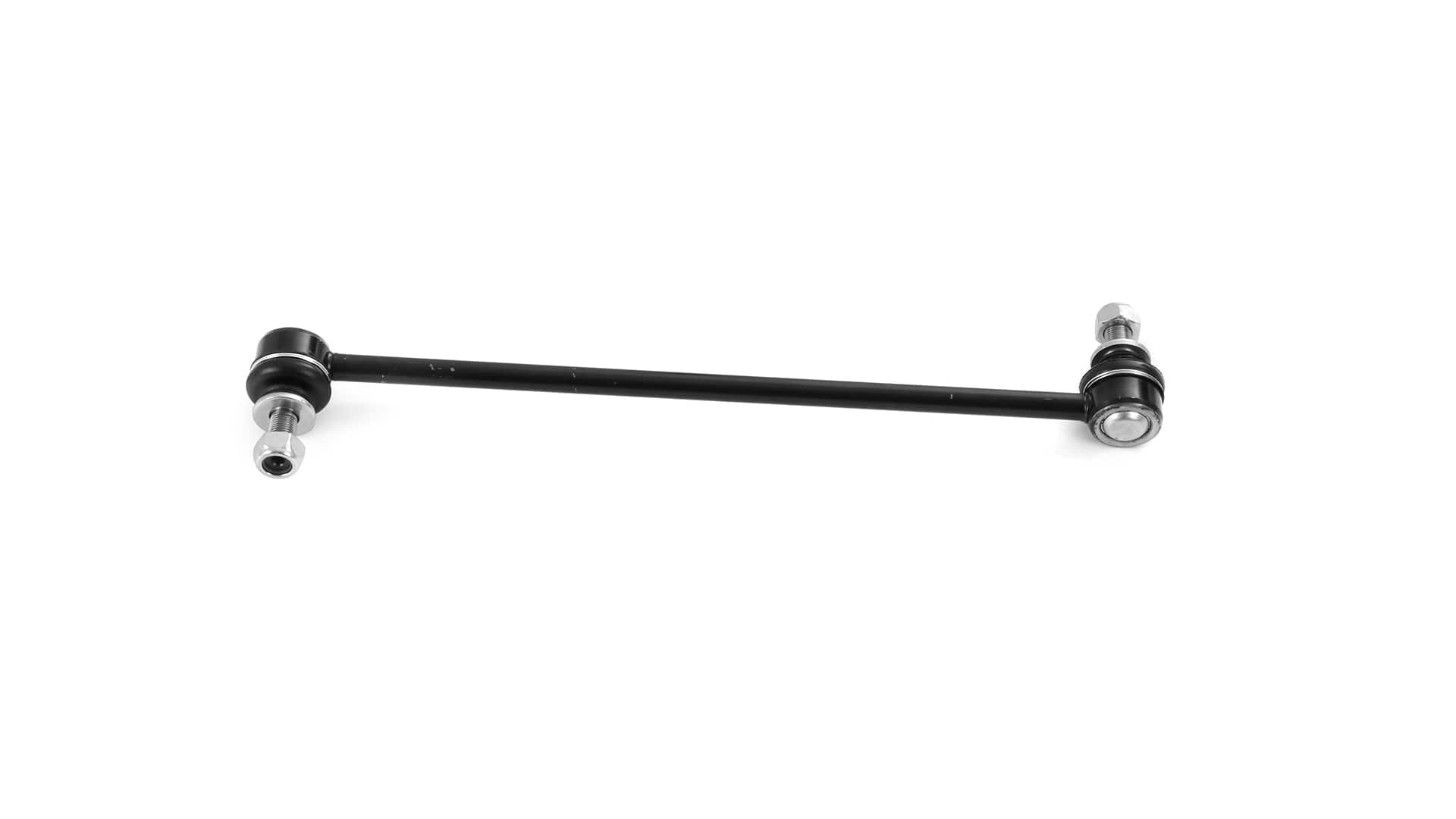

    Install a new rod, tighten the fasteners. Use HEX No.H6. Use a drive socket #17. Use a ratchet wrench.
