Important!

This replacement procedure can be used for:
PEUGEOT 206 Hatchback (2A/C) 1.6, PEUGEOT 206 Hatchback (2A/C) 1.4 LPG, PEUGEOT 206 Hatchback (2A/C) 2.0 S16, PEUGEOT 206 Hatchback (2A/C) 2.0 HDI 90, PEUGEOT 206 Hatchback (2A/C) 1.6 16V, PEUGEOT 206 Hatchback (2A/C) 1.4 HDi, PEUGEOT 206 Hatchback (2A/C) 1.4 HDi eco 70, PEUGEOT 206 Hatchback (2A/C) 2.0 RC, PEUGEOT 206 Hatchback (2A/C) 1.4 16V, PEUGEOT 206 Hatchback (2A/C) 1.6 HDi 110, PEUGEOT 206 Hatchback (2A/C) 2.0 S16, PEUGEOT 206 Hatchback (2A/C) 1.1 i, PEUGEOT 206 Hatchback (2A/C) 1.4 i, PEUGEOT 206 Hatchback (2A/C) 1.6 i, PEUGEOT 206 Hatchback (2A/C) 1.9 D, PEUGEOT 206 Hatchback (2A/C) 1.1, PEUGEOT 208 I Hatchback (CA_, CC_) 1.0, PEUGEOT 208 I Hatchback (CA_, CC_) 1.2, PEUGEOT 208 I Hatchback (CA_, CC_) 1.6 BlueHDi 120, PEUGEOT 208 I Hatchback (CA_, CC_) 1.6 GTi, PEUGEOT 208 I Hatchback (CA_, CC_) 1.4 VTi, PEUGEOT 208 I Hatchback (CA_, CC_) 1.6 BlueHDi 100, PEUGEOT 208 I Hatchback (CA_, CC_) 1.6 GTi, PEUGEOT 208 I Hatchback (CA_, CC_) 1.6, PEUGEOT 208 I Hatchback (CA_, CC_) 1.2 THP, PEUGEOT 208 I Hatchback (CA_, CC_) 1.6 HDi / BlueHDi 75, PEUGEOT 208 I Hatchback (CA_, CC_) 1.6 THP 165, PEUGEOT 208 I Hatchback (CA_, CC_) 1.6, PEUGEOT 208 I Hatchback (CA_, CC_) 1.4 HDi, PEUGEOT 208 I Hatchback (CA_, CC_) 1.6 HDi, PEUGEOT 208 I Hatchback (CA_, CC_) 1.6 HDi, PEUGEOT 206 CC (2D) 1.6 HDi 110, PEUGEOT 206 CC (2D) 2.0 S16, PEUGEOT 206 CC (2D) 1.6 16V, PEUGEOT 206 CC (2D) 1.6, PEUGEOT 206 SW (2E/K) 1.1, PEUGEOT 206 SW (2E/K) 1.4, PEUGEOT 206 SW (2E/K) 1.6 16V, PEUGEOT 206 SW (2E/K) 2.0 16V, PEUGEOT 206 SW (2E/K) 1.4 HDi, PEUGEOT 206 SW (2E/K) 1.4 16V, PEUGEOT 206 SW (2E/K) 1.6, PEUGEOT 206 SW (2E/K) 1.6 HDi 110, PEUGEOT 206 SW (2E/K) 2.0 HDi, PEUGEOT 2008 Estate (CU_) 1.6 BlueHDi 75, PEUGEOT 2008 Estate (CU_) 1.6 BlueHDi 120, PEUGEOT 2008 Estate (CU_) 1.2 THP 110, PEUGEOT 2008 Estate (CU_) 1.2 THP 130, PEUGEOT 2008 Estate (CU_) 1.6 BlueHDi 100, PEUGEOT 2008 Estate (CU_) 1.4 HDi, PEUGEOT 2008 Estate (CU_) 1.2 VTi, PEUGEOT 2008 Estate (CU_) 1.6 VTi, PEUGEOT 2008 Estate (CU_) 1.6 HDi, PEUGEOT 2008 Estate (CU_) 1.6 HDi, PEUGEOT 206+ Hatchback (2L_, 2M_) 1.1, PEUGEOT 206+ Hatchback (2L_, 2M_) 1.4 i, PEUGEOT 206+ Hatchback (2L_, 2M_) 1.4 HDi eco 70, PEUGEOT 206+ Hatchback (2L_, 2M_) 1.4 i, PEUGEOT 1007 (KM_) 1.6 16V, PEUGEOT 1007 (KM_) 1.4 HDi, PEUGEOT 1007 (KM_) 1.4 16V, PEUGEOT 1007 (KM_) 1.6 HDi, PEUGEOT 1007 (KM_) 1.4, PEUGEOT 206 Saloon 1.4, PEUGEOT 206 Saloon 1.6 16V, PEUGEOT 206 Saloon 1.4 HDi eco 70, SMART CABRIO (450) 0.8 CDI (S1OLC1, 450.401, 450.402, 450.403, 450.400), PEUGEOT 206 Van 1.4 HDi, PEUGEOT 206 Van 1.9 D … View more

The steps may slightly vary depending on the car design.

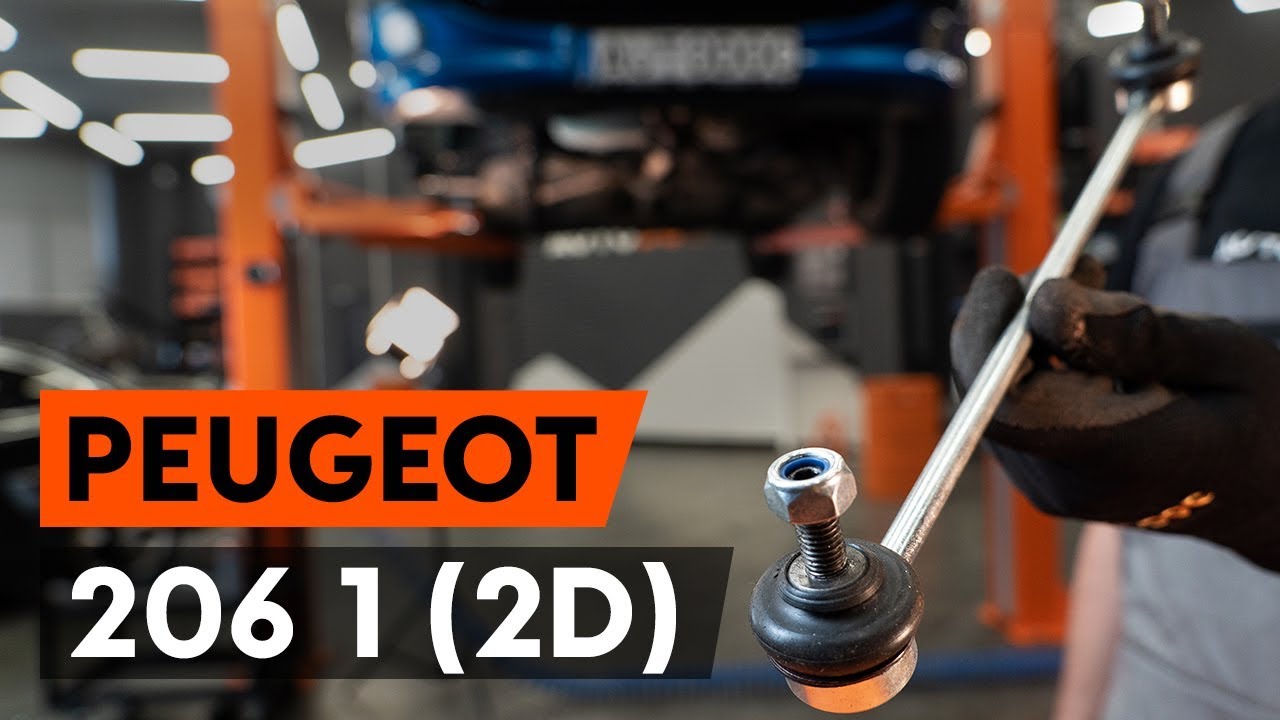

How to change front anti roll bar link / front drop link on PEUGEOT 206 1 (2D) [TUTORIAL AUTODOC]

All the parts you need to replace – Anti Roll Bar Links for 206 CC (2D) and other PEUGEOT models

Mounting, stabilizer coupling rod

Repair Kit, stabilizer coupling rod

Repair Kit, stabilizer suspension

Rod / Strut, stabiliser

Rod / Strut, wheel suspension

Torsion Bar Linkage

      PEUGEOT 206 Hatchback (2A/C) 1.1 i

      PEUGEOT 206 Hatchback (2A/C) 1.4 i

      PEUGEOT 206 Hatchback (2A/C) 1.1

      PEUGEOT 206 Hatchback (2A/C) 1.9 D

      PEUGEOT 206 Hatchback (2A/C) 1.4 LPG

      PEUGEOT 206 SW (2E/K) 1.4

      PEUGEOT 206 SW (2E/K) 1.1

      PEUGEOT 206 Saloon 1.4 HDi eco 70

      PEUGEOT 206 Saloon 1.4

Replacement: anti roll bar links – Peugeot 206 CC 2D. Tools you'll need:

                        Wire brush

                        WD-40 spray

                        Brake cleaner

                        Copper grease

                        Combination spanner #17

                        Torx bit T30

                        Wheel impact socket #19

                        Ratchet wrench

                        Torque wrench

                        Wheel chock

Buy tools

AUTODOC recommends:

Replace the stabiliser links on Peugeot 206 CC 2D in pairs.
The replacement procedure is identical for both stabiliser links on the same axle.
All work should be done with the engine stopped.

Replacement: anti roll bar links – Peugeot 206 CC 2D. Recommended sequence of steps:

Step 1

Secure the wheels with chocks.
Step 2

Loosen the wheel mounting bolts.Use wheel impact socket #19.
Step 3

Raise the front of the car and secure on supports.
Step 4

Unscrew the wheel bolts.

AUTODOC recommends:

Important! Hold the wheel while unscrewing the fastening bolts. Peugeot 206 CC 2D
Step 5

Remove the wheel.
Step 6

Clean the stabiliser link fasteners.Use a wire brush.Use WD-40 spray.
Step 7

Unscrew the fastener connecting the stabilizer link to the stabilizer bar.Use a combination spanner #17.Use Torx T30.Use a ratchet wrench.
Step 8

Unscrew the fastener connecting the stabilizer link to the shock strut.Use a combination spanner #17.Use Torx T30.Use a ratchet wrench.
Step 9

Remove the stabilizer rod.

Replacement: anti roll bar links – Peugeot 206 CC 2D. AUTODOC experts recommend:

Examine stabiliser bushes. Replace them if needed.
Step 10

Install a new rod, tighten the fasteners.
Step 11

Tighten the fastener connecting the stabilizer link to the shock strut.Use a combination spanner #17.Use Torx T30.Use a torque wrench.Tighten it to 60 Nm torque.
Step 12

Tighten the fastener connecting the stabilizer link to the stabilizer bar.Use a combination spanner #17.Use Torx T30.Use a torque wrench.Tighten it to 60 Nm torque.
Step 13

Treat all joints of the stabiliser link.Use copper grease.
Step 14

Treat the surface where the brake disc contacts the wheel rim. Use copper grease.
Step 15

Clean the brake disk surface.Use a brake cleaner.

AUTODOC recommends:

Replacement: anti roll bar links – Peugeot 206 CC 2D. After applying the spray, wait a few minutes.
Step 16

Install the wheel.

AUTODOC recommends:

Peugeot 206 CC 2D – To avoid injury, hold the shock absorber while screwing in the fastening bolts.
Step 17

Screw in the wheel bolts.Use wheel impact socket #19.
Step 18

Lower the car and working in a cross order, tighten the wheel bolts.Use wheel impact socket #19.Use a torque wrench.Tighten it to 120 Nm torque.
Step 19

Remove the jacks and chocks.
