Change Ford Focus Mk3 Estate 1.6 TDCi Track Rod End yourself – manuals and video tutorials

How to change track rod end on FORD FOCUS III Turnier – replacement guide

downloads: 2
Views: 123
Download your free tutorial and fix FORD FOCUS III Turnier 1.6 Ti problems yourself Download for free 1.37 MB Track Rod End for Ford Focus Mk3 Estate Shop now
Leave a comment Open in a new tab
Important!
This replacement procedure can be used for:
FORD FOCUS III Turnier 1.6 Ti, FORD FOCUS III Turnier 1.6 Ti, FORD FOCUS III Turnier 1.6 Ti, FORD FOCUS III Turnier 1.6 LPG, FORD FOCUS III Turnier 1.6 LPG, FORD FOCUS III Turnier 1.6 Ti … View more

The steps may slightly vary depending on the car design.

This video shows the replacement procedure of a similar car part on another vehicle

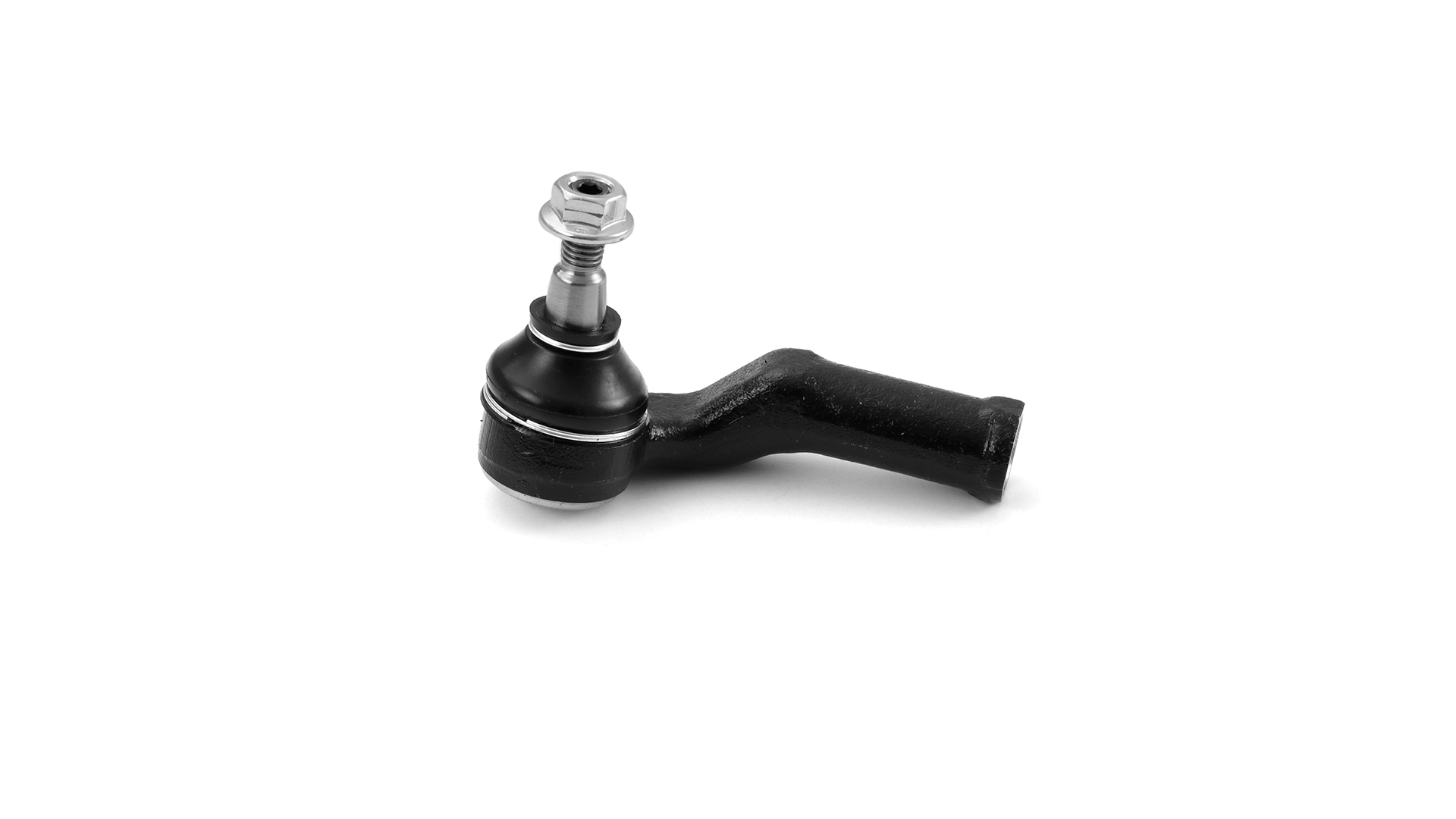

All the parts you need to replace – Track Rod End for FOCUS III Turnier and other FORD models

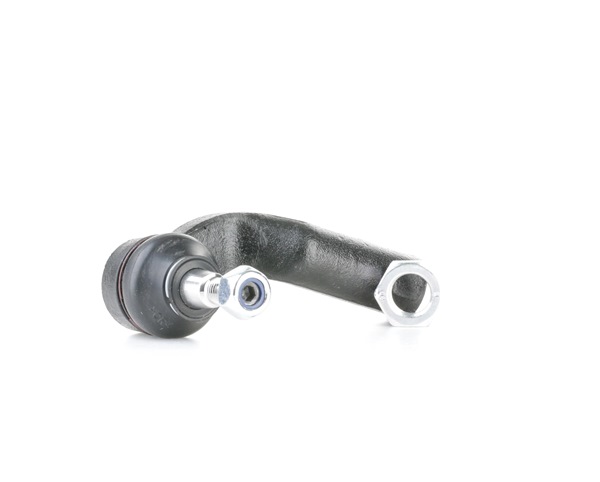

Alternative products
How to change Track rod end on Ford Focus Mk3 Estate 1.6 TDCi – step-by-step instructions for straightforward car repair Track rod end
Tools
Replacement: track rod end – FORD FOCUS III Turnier. Tools you need:
Wire brush
WD-40 spray
Brake cleaner
Copper grease
Combination spanner #24
Drive socket # 15
Wheel impact socket #19
Ratchet wrench
Torque wrench
Vernier caliper
Ball joint puller
Wheel chock
Buy tools
Replacement: track rod end – FORD FOCUS III Turnier. AUTODOC recommends:
  • Replace tie rod ends in pairs.
  • The replacement procedure is identical for the right and left tie rod ends.
  • All work should be done with the engine stopped.
Replacement: track rod end – FORD FOCUS III Turnier. Use the following procedure:
  1. Step 1
    How to change Track Rod End on Ford Focus Mk3 Estate 2010 - free PDF and video manuals
    Secure the wheels with chocks.
  2. Step 2
    How to replace FORD FOCUS III Turnier 1.6 TDCi 2011 Track Rod End - step-by-step manuals and video guides
    Loosen the wheel mounting bolts. Use wheel impact socket #19.
  3. Step 3
    Raise the front of the car and secure on supports.
    Step 4
    Ford Focus Mk3 Estate 1.5 TDCi 2012 Track Rod End replacement: free workshop manuals
    Unscrew the wheel bolts.
    Replacement: track rod end – FORD FOCUS III Turnier. AUTODOC experts recommend:
    To avoid injury, hold up the wheel when unscrewing the bolts.
  4. Step 5
    Changing Track Rod End on FORD FOCUS III Turnier 1.6 TDCi ECOnetic 2013 by yourself
    Remove the wheel.
  5. Step 6
    How to remove FORD FOCUS 1.6 EcoBoost 2014 Track Rod End - online easy-to-follow instructions
    When deinstalling, mark or measure the precise position of the ball joint on the track rod, or count the number of turns in order to prevent misalignment afterward. Use a vernier caliper.
  6. Step 7
    Clean the lock nut that connects the tie rod to the tie rod end. Use a wire brush. Use WD-40 spray.
    Step 8
    How to replace Track Rod End on FORD FOCUS III Turnier 2015: download PDF manuals and video instructions
    Loosen the lock nut securing the tie rod end to the tie rod. Use a combination spanner #24.
  7. Step 9
    Clean the fastener connecting the tie rod end to the steering knuckle. Use a wire brush. Use WD-40 spray.
    Step 10
    How hard is it to do yourself: Track Rod End replacement on Ford Focus Mk3 Estate 2.0 ST 2016 - download illustrated guide
    Unscrew the end fastening nut to the steering knuckle. Use a drive socket #15. Use a ratchet wrench.
  8. Step 11
    Need to know how to renew Track Rod End on FORD FOCUS 2017? This free workshop manual will help you to do it yourself
    Disconnect the tie rod end from the steering knuckle. Use a ball joint puller.
  9. Step 12
    Changing of Track Rod End on Ford Focus Mk3 Estate 2018 won't be an issue if you follow this illustrated step-by-step guide
    Screw the end out of the tie rod.
  10. Step 13
    FORD FOCUS 1.6 TDCi Track Rod End replacement: online guides and video tutorials
    Clean the mounting seats of the tie rod end. Use a wire brush. Use WD-40 spray.
  11. Step 14
    Replacing Track Rod End on Ford Focus Mk3 Estate 2020 1.6 TDCi by yourself
    Treat the mounting seats of the tie rod end. Use copper grease.
