How to carry out replacement: Strut Mount 1.4 TDCi Ford Fiesta Mk5
Disclaimer
Change Ford Fiesta Mk5 1.4 TDCi Strut Mount yourself – manuals and video tutorials

How to change rear strut mount on Ford Fiesta V JH JD – replacement guide

downloads: 10
Views: 120
Download your free tutorial and fix FORD Fiesta Mk5 Hatchback (JH1, JD1, JH3, JD3) 1.0 problems yourself Download for free 2.6 MB Strut Mount for Ford Fiesta Mk5 Shop now
Leave a comment Open in a new tab
Important!
This replacement procedure can be used for:
FORD Fiesta Mk5 Hatchback (JH1, JD1, JH3, JD3) 1.4 TDCi, FORD Fiesta Mk5 Hatchback (JH1, JD1, JH3, JD3) 1.3, FORD Fiesta Mk5 Hatchback (JH1, JD1, JH3, JD3) 1.3, FORD Fiesta Mk5 Hatchback (JH1, JD1, JH3, JD3) 1.6 16V, FORD Fiesta Mk5 Hatchback (JH1, JD1, JH3, JD3) 1.25 16V, FORD Fiesta Mk5 Hatchback (JH1, JD1, JH3, JD3) 1.25 16V, FORD Fiesta Mk5 Hatchback (JH1, JD1, JH3, JD3) 1.6 TDCi, FORD Fiesta Mk5 Hatchback (JH1, JD1, JH3, JD3) ST150 … View more

The steps may slightly vary depending on the car design.

How to change strut mount FORD FIESTA V Van [TUTORIAL AUTODOC]

video
Published on: 16/09/2016
22K views

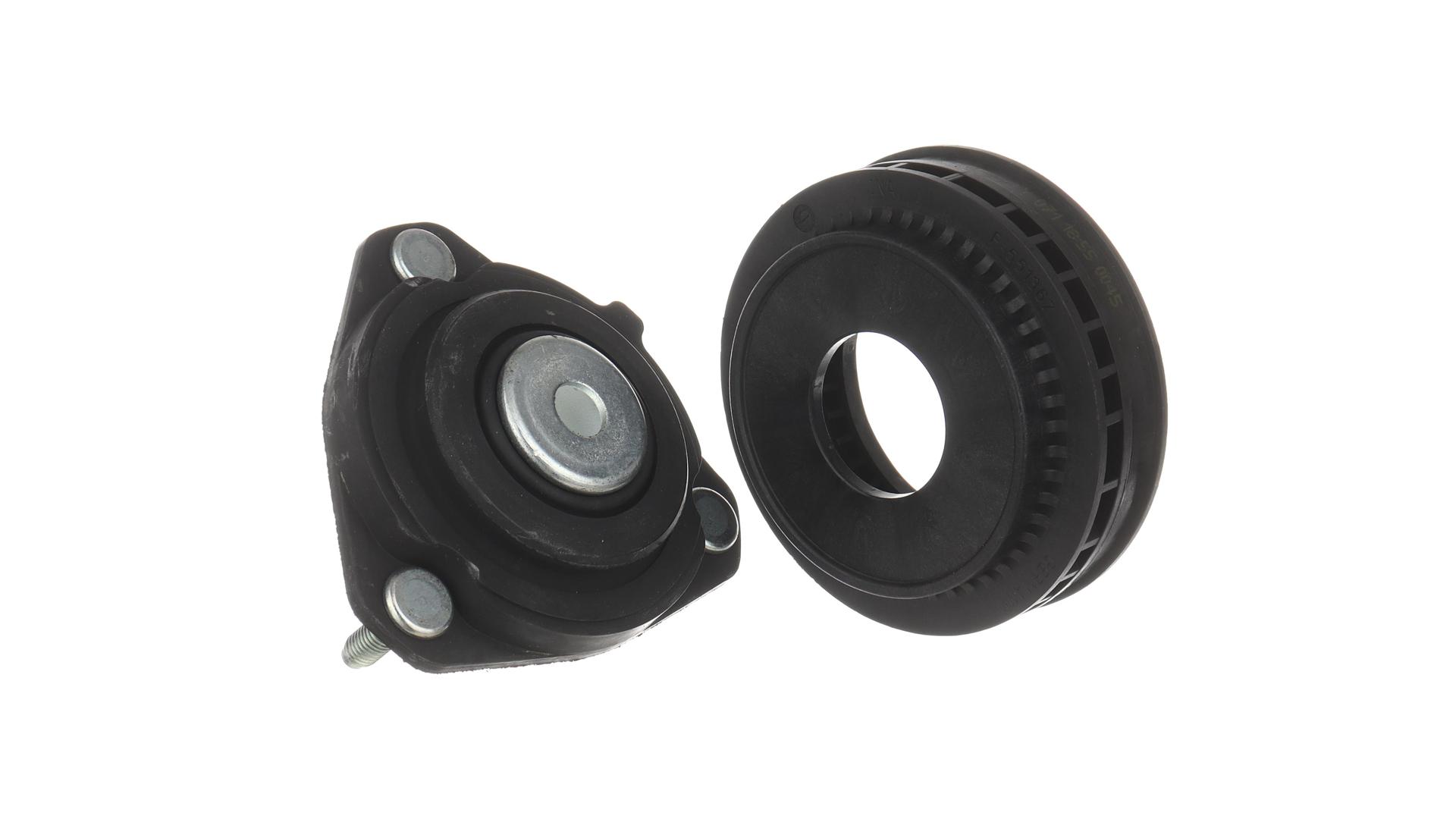

All the parts you need to replace – Strut Mount for Fiesta Mk5 Hatchback (JH1, JD1, JH3, JD3) and other FORD models
Alternative products

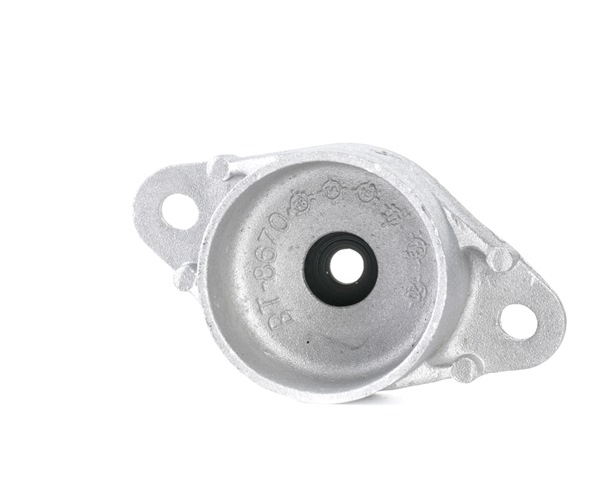

How to change Top strut mount on Ford Fiesta Mk5 1.4 TDCi – step-by-step instructions for straightforward car repair Top strut mount
Tools
Replacement: strut mount – Ford Fiesta V JH JD. List of the tools you'll need:
Wire brush
WD-40 spray
Brake cleaner
Copper grease
Drive socket # 10
Drive socket # 13
Drive socket # 15
Wheel impact socket #19
Ratchet wrench
Torque wrench
Hydraulic transmission jack
Wheel chock
Buy tools
Replacement: strut mount – Ford Fiesta V JH JD. AUTODOC experts recommend:
  • The replacement procedure is identical for the mounts of the right and left shock absorbers of the rear suspension.
  • Both mounts of the rear shock struts should be replaced simultaneously.
  • During the installation process, use only new bolts and nuts.
  • All work should be done with the engine stopped.
Replacement: strut mount – Ford Fiesta V JH JD. Recommended sequence of steps:
  1. Step 1
    How to change Strut Mount on Ford Fiesta Mk5 2001 - free PDF and video manuals
    Secure the wheels with chocks.
  2. Step 2
    How to replace FORD Fiesta Mk5 Hatchback (JH1, JD1, JH3, JD3) 1.4 TDCi 2002 Strut Mount - step-by-step manuals and video guides
    Loosen the wheel mounting bolts. Use wheel impact socket #19.
  3. Step 3
    Raise the rear of the car and secure on supports.
    Step 4
    Ford Fiesta Mk5 1.4 16V 2003 Strut Mount replacement: free workshop manuals
    Unscrew the wheel bolts.
    AUTODOC recommends:
    Warning! To avoid injury, hold the wheel while unscrewing the fastening bolts. Ford Fiesta V JH JD
  4. Step 5
    Changing Strut Mount on FORD Fiesta Mk5 Hatchback (JH1, JD1, JH3, JD3) 1.25 16V 2004 by yourself
    Remove the wheel.
  5. Step 6
    How to remove FORD FIESTA ST150 2.0 2005 Strut Mount - online easy-to-follow instructions
    Support the rear suspension beam. Use a hydraulic transmission jack.
  6. Step 7
    How to replace Strut Mount on FORD Fiesta Mk5 Hatchback (JH1, JD1, JH3, JD3) 2006: download PDF manuals and video instructions
    Clean the shock absorber fasteners. Use a wire brush. Use WD-40 spray.
  7. Step 8
    How hard is it to do yourself: Strut Mount replacement on Ford Fiesta Mk5 1.6 16V 2007 - download illustrated guide
    Unscrew the lower fastener of the shock absorber. Use a drive socket #15. Use a ratchet wrench.
  8. Step 9
    Remove the fastening bolt.
    Replacement: strut mount – Ford Fiesta V JH JD. AUTODOC recommends:
    To avoid injuries, hold the shock absorber when undoing the fastening bolts.
    Step 10
    Need to know how to renew Strut Mount on FORD FIESTA 2008? This free workshop manual will help you to do it yourself
    Unscrew the upper fastener of the shock absorber. Use a drive socket #10. Use a ratchet wrench.
  9. Step 11
    Changing of Strut Mount on Ford Fiesta Mk5 2009 won't be an issue if you follow this illustrated step-by-step guide
    Remove the shock absorber.
  10. Step 12
    FORD FIESTA 1.4 TDCi Strut Mount replacement: online guides and video tutorials
    Unscrew the shock absorber mount fastening. Use a drive socket #13. Use a ratchet wrench.
  11. Step 13
    Replacing Strut Mount on Ford Fiesta Mk5 2011 1.4 TDCi by yourself
    Remove the shock absorber mount, boot and bump stop.
  12. Step 14
    Fiesta Mk5 Hatchback (JH1, JD1, JH3, JD3) ST150 2.0 2012 Strut Mount DIY replacement workshop manual
    Remove the top strut mount.
    Replacement: strut mount – Ford Fiesta V JH JD. Tip from AUTODOC:
    Examine the shock absorber dust cap and the bump stop. Replace them if necessary.
  13. Step 15
    How to change Strut Mount on FORD Fiesta Mk5 Hatchback (JH1, JD1, JH3, JD3) 2013 - tips and tricks
    Install the upper strut mount and the strut mount bearing.
  14. Step 16
    Step-by-step recommendations for DIY replacement Ford Fiesta Mk5 2014 ST150 2.0 Strut Mount
    Install the mount, the boot and the bump stop on the shock absorber.
  15. Step 17
    DIY replacement of Strut Mount on FORD Fiesta Mk5 Hatchback (JH1, JD1, JH3, JD3) 1.3 2001 is not an issue anymore with our step-by-step tutorial
    Tighten the shock absorber mount fasteners. Use a drive socket #13. Use a torque wrench. Tighten it to 25 nm torque.
Was this manual helpful?
