When to replace the Brake Discs on your TOYOTA RAV4
Recommended replacement interval for the part category Brake disc : 50000 km
Important!
This replacement procedure can be used for:
TOYOTA RAV 4 III (ACA3_, ACE_, ALA3_, GSA3_, ZSA3_) 2.4 4WD (ACA31, ACA33), TOYOTA RAV 4 III (ACA3_, ACE_, ALA3_, GSA3_, ZSA3_) 2.0 4WD (ACA30_), TOYOTA RAV 4 III (ACA3_, ACE_, ALA3_, GSA3_, ZSA3_) 2.2 D 4WD (ALA30_), TOYOTA RAV 4 III (ACA3_, ACE_, ALA3_, GSA3_, ZSA3_) 2.2 D 4WD (ALA30_), TOYOTA RAV 4 III (ACA3_, ACE_, ALA3_, GSA3_, ZSA3_) 3.5 4WD (GSA33), TOYOTA RAV 4 III (ACA3_, ACE_, ALA3_, GSA3_, ZSA3_) 2.0 (ZSA35_), TOYOTA RAV 4 III (ACA3_, ACE_, ALA3_, GSA3_, ZSA3_) 2.0 4WD (ZSA30_), TOYOTA RAV 4 III (ACA3_, ACE_, ALA3_, GSA3_, ZSA3_) 2.2 D 4WD (ALA30_), TOYOTA RAV 4 III (ACA3_, ACE_, ALA3_, GSA3_, ZSA3_) 2.2 D (ALA35_), TOYOTA RAV 4 III (ACA3_, ACE_, ALA3_, GSA3_, ZSA3_) 2.0 (ZSA35), TOYOTA RAV 4 III (ACA3_, ACE_, ALA3_, GSA3_, ZSA3_) 2.0 4WD (ZSA30), TOYOTA RAV 4 III (ACA3_, ACE_, ALA3_, GSA3_, ZSA3_) 2.5 4WD (ASA33), TOYOTA RAV 4 III (ACA3_, ACE_, ALA3_, GSA3_, ZSA3_) 2.5 (ASA38), TOYOTA RAV 4 III (ACA3_, ACE_, ALA3_, GSA3_, ZSA3_) 3.5 4WD (GSA33) … View more

The steps may slightly vary depending on the car design.

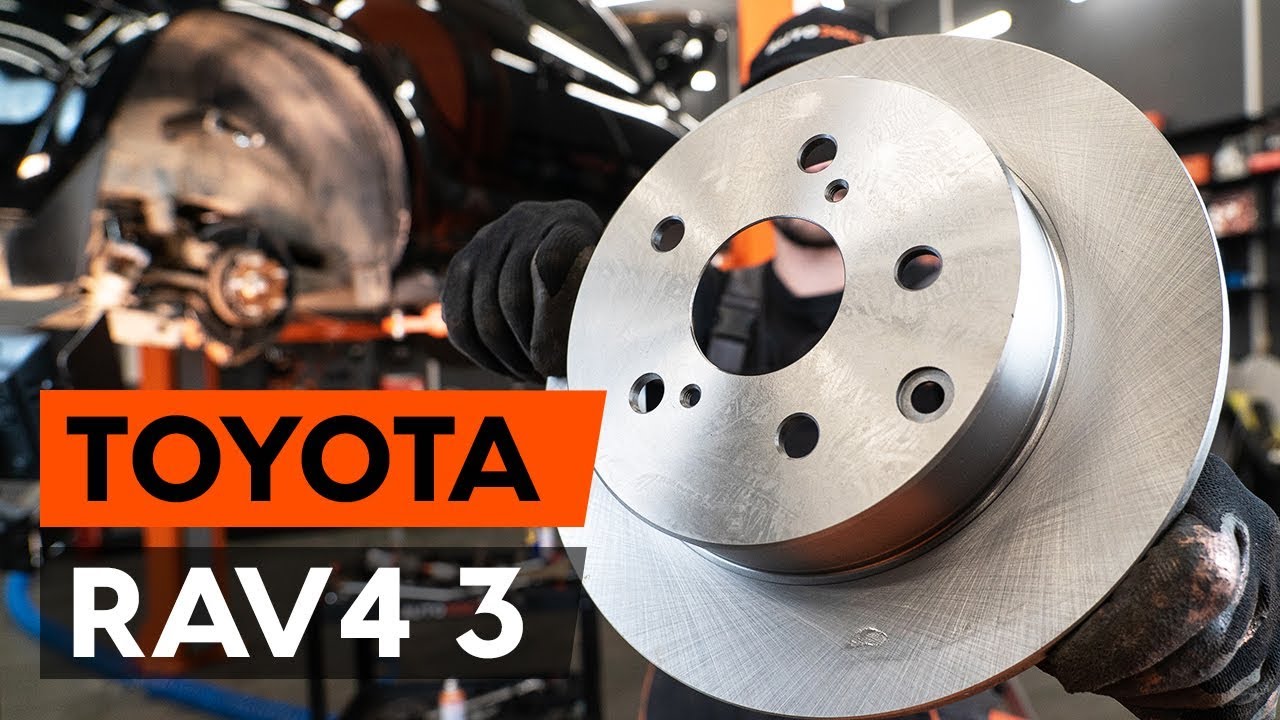

How to change rear brake discs / rear brake rotors on TOYOTA RAV 4 3 (XA30) [TUTORIAL AUTODOC]

video
Published on: 15/08/2019
9K views
All the parts you need to replace – Brake Discs for RAV 4 III (ACA3_, ACE_, ALA3_, GSA3_, ZSA3_) and other TOYOTA models
Alternative products
How to change Brake disc on Toyota RAV4 III 2.2 D 4WD (ALA30_) – step-by-step instructions for straightforward car repair Brake disc
82B0323 RIDEX Brake disc
21,88 GBP
Shop
V70-40011 VAICO Brake disc
23,37 GBP
Shop
T2030P LPR Brake disc
25,29 GBP
Shop
BG4115 DELPHI Brake disc
25,61 GBP
Shop
25230 MAPCO Brake disc
26,21 GBP
Shop
0 986 479 419 BOSCH Brake disc
26,89 GBP
Shop
J3312062 HERTH+BUSS JAKOPARTS Brake disc
32,36 GBP
Shop
BDC5572 QUINTON HAZELL Brake disc
43,13 GBP
Shop
24.0112-0714.1 ATE Brake disc
50,45 GBP
Shop
DDF1846 FERODO Brake disc
65,66 GBP
Shop
Tools
Replacement: brake discs – Toyota RAV4 III. Tools you need:
Wire brush
WD-40 spray
Brake cleaner
Copper grease
Drive socket # 14
Drive socket # 17
Wheel impact socket #21
Brake caliper wind back tool
Ratchet wrench
Torque wrench
Tap wrench
Rubber mallet
Crow bar
Wheel chock
Buy tools
Replacement: brake discs – Toyota RAV4 III. Professionals recommend:
  • Replace the brake disks on the car Toyota RAV4 III in complete set for each axis. Regardless of the state of components. This will ensure even braking.
  • The replacement procedure is identical for both brake disks on the same axle.
  • When changing the brake discs, always replace the brake pads.
  • All work should be done with the engine stopped.
Replacement: brake discs – Toyota RAV4 III. Take the following steps:
  1. Step 1
    How to change Brake Discs on Toyota RAV4 III 2005 - free PDF and video manuals
    Open the bonnet. Unscrew the brake fluid reservoir cap.
  2. Step 2
    How to replace TOYOTA RAV 4 III (ACA3_, ACE_, ALA3_, GSA3_, ZSA3_) 2.2 D 4WD (ALA30_) 2006 Brake Discs - step-by-step manuals and video guides
    Secure the wheels with chocks.
  3. Step 3
    Toyota RAV4 III 2.0 4WD (ACA30_) 2007 Brake Discs replacement: free workshop manuals
    Loosen the wheel mounting bolts. Use wheel impact socket #21.
  4. Step 4
    Changing Brake Discs on TOYOTA RAV 4 III (ACA3_, ACE_, ALA3_, GSA3_, ZSA3_) 2.0 4WD (ZSA30_) 2008 by yourself
    Raise the rear of the car and secure on supports.
  5. Step 5
    How to remove TOYOTA RAV4 2.0 (ZSA35_) 2009 Brake Discs - online easy-to-follow instructions
    Unscrew the wheel bolts.
    AUTODOC recommends:
    Warning! To avoid injury, hold the wheel while unscrewing the fastening bolts. Toyota RAV4 III
  6. Step 6
    How to replace Brake Discs on TOYOTA RAV 4 III (ACA3_, ACE_, ALA3_, GSA3_, ZSA3_) 2010: download PDF manuals and video instructions
    Remove the wheel.
  7. Step 7
    How hard is it to do yourself: Brake Discs replacement on Toyota RAV4 III 2.0 4WD (ZSA30) 2011 - download illustrated guide
    Spread the brake pads. Use a crowbar.
  8. Step 8
    Need to know how to renew Brake Discs on TOYOTA RAV4 2012? This free workshop manual will help you to do it yourself
    Clean the brake caliper fasteners. Use a wire brush. Use WD-40 spray.
  9. Step 9
    Changing of Brake Discs on Toyota RAV4 III 2013 won't be an issue if you follow this illustrated step-by-step guide
    Unscrew the brake caliper fastening. Use a drive socket #14. Use a ratchet wrench.
  10. Step 10
    TOYOTA RAV4 2.2 D 4WD (ALA30_) Brake Discs replacement: online guides and video tutorials
    Remove the brake caliper.
    Replacement: brake discs – Toyota RAV4 III. AUTODOC experts recommend:
    Tie the caliper to the suspension or to the body with a wire without disconnecting from the brake hose to prevent depressurization of the brake system.Make sure that the brake caliper is not hanging on the brake hose.Don't press the brake pedal after the brake caliper has been removed. As a result, the piston can fall out from the brake cylinder, and brake fluid leakage and depressurization of the system may occur. Check the brake caliper bracket, brake caliper guide pins and boots. Clean them. Replace, if necessary.
  11. Step 11
    Replacing Brake Discs on Toyota RAV4 III 2006 2.2 D 4WD (ALA30_) by yourself
    Remove the brake pads.
  12. Step 12
    Clean the brake caliper bracket fasteners. Use a wire brush. Use WD-40 spray.
    Step 13
    RAV 4 III (ACA3_, ACE_, ALA3_, GSA3_, ZSA3_) 2.0 (ZSA35_) 2007 Brake Discs DIY replacement workshop manual
    Unscrew the caliper bracket fastening. Use a drive socket #17. Use a tap wrench.
  13. Step 14
    How to change Brake Discs on TOYOTA RAV 4 III (ACA3_, ACE_, ALA3_, GSA3_, ZSA3_) 2008 - tips and tricks
    Remove the caliper bracket.
  14. Step 15
    Step-by-step recommendations for DIY replacement Toyota RAV4 III 2009 2.0 (ZSA35_) Brake Discs
    Remove the brake disc. Use a rubber mallet.
  15. Step 16
    Clean the drum brake self-adjuster mechanism. Use a wire brush.
    Step 17
    Move the parking brake shoes against the drum. Use a crowbar.
    Step 18
    DIY replacement of Brake Discs on TOYOTA RAV 4 III (ACA3_, ACE_, ALA3_, GSA3_, ZSA3_) 2.2 D (ALA35_) 2010 is not an issue anymore with our step-by-step tutorial
    Clean the hub. Use a wire brush. Treat the contacting surface. Use copper grease.
  16. Step 19
    How to change Brake Discs on Toyota RAV4 III 2005 - free PDF and video manuals
    Install the brake disc.
  17. Step 20
    How to replace TOYOTA RAV 4 III (ACA3_, ACE_, ALA3_, GSA3_, ZSA3_) 2.2 D 4WD (ALA30_) 2006 Brake Discs - step-by-step manuals and video guides
    Clean the brake caliper bracket from dirt and dust. Use a wire brush. Use a brake cleaner.
    Replacement: brake discs – Toyota RAV4 III. AUTODOC recommends:
    After applying the spray, wait a few minutes.
