Important!

This replacement procedure can be used for:
OPEL Meriva A (X03) 1.4 16V Twinport LPG (E75), OPEL Meriva A (X03) 1.8 (E75), OPEL Meriva A (X03) 1.7 DTI (E75), OPEL Meriva A (X03) 1.6 (E75), OPEL Meriva A (X03) 1.7 CDTI (E75), OPEL Meriva A (X03) 1.4 16V Twinport (E75), OPEL Meriva A (X03) 1.6 (E75), OPEL Meriva A (X03) 1.3 CDTI (E75), OPEL Meriva A (X03) 1.6 Turbo (E75), OPEL Meriva A (X03) 1.7 CDTI (E75), OPEL Meriva A (X03) 1.3 CDTI (E75) … View more

The steps may slightly vary depending on the car design.

How to change front suspension arm on OPEL MERIVA A [TUTORIAL AUTODOC]

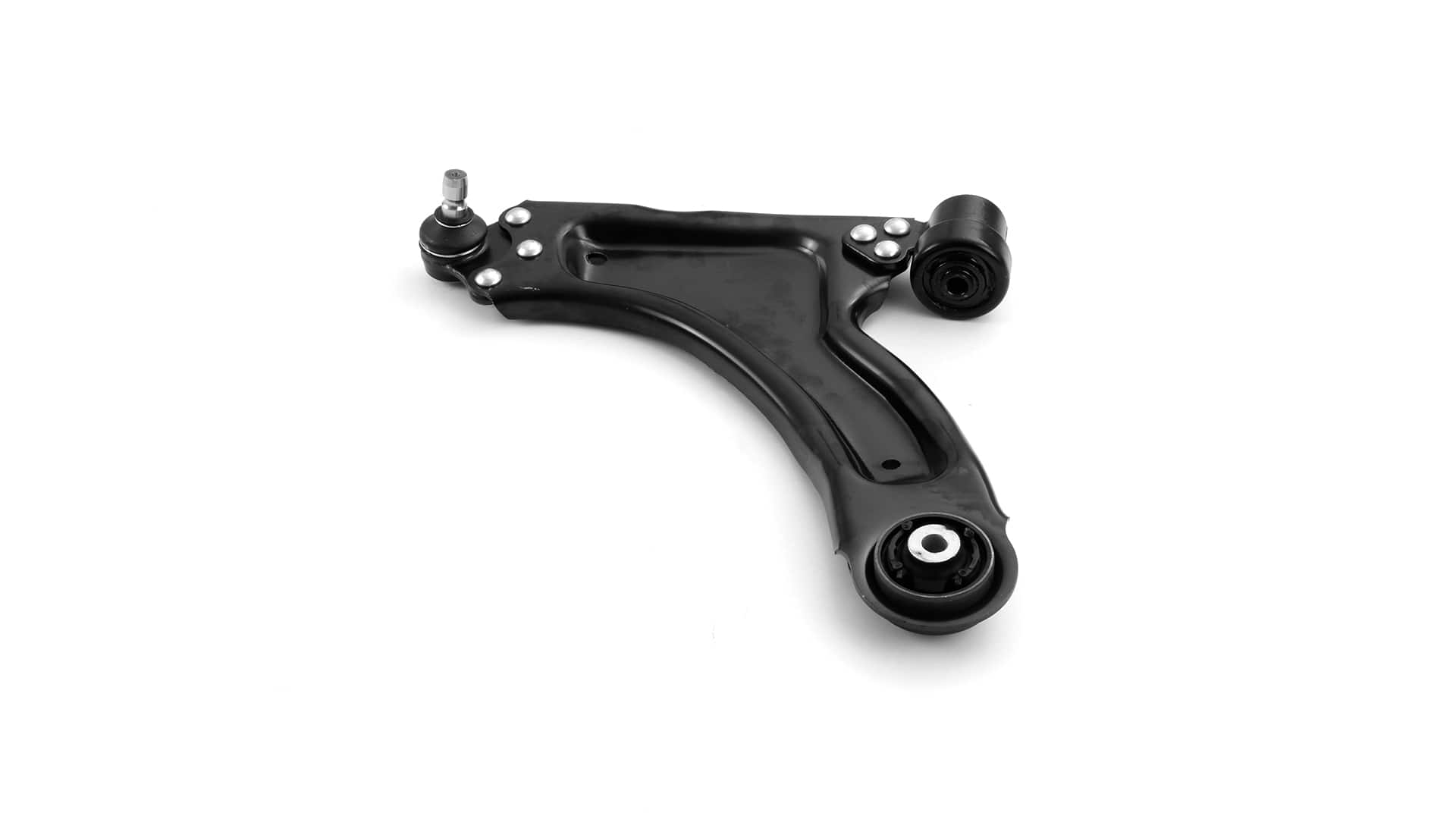

All the parts you need to replace – Control Arm for Meriva A (X03) and other OPEL models

Alternative products

Suspension arm

5013633 NK Suspension arm

43,23 GBP

Shop

SKCA-0050495 STARK Suspension arm

47,53 GBP

Shop

V40-0505 VAICO Suspension arm

48,01 GBP

Shop

TC1313 DELPHI Suspension arm

52,03 GBP

Shop

49614 MAPCO Suspension arm

52,87 GBP

Shop

58004901 METZGER Suspension arm

62,07 GBP

Shop

23797 FEBI BILSTEIN Suspension arm

66,14 GBP

Shop

34223 FEBI BILSTEIN Suspension arm

68,38 GBP

Shop

QSA2101S QUINTON HAZELL Suspension arm

70,92 GBP

Shop

616 050 0021 MEYLE Suspension arm

72,92 GBP

Shop

Replacement: front lower arm – Opel Meriva X03. List of the tools you'll need:

                      Wire brush

                      WD-40 spray

                      Brake cleaner

                      Copper grease

                      Torque wrench

                      Combination spanner #16

                      Combination spanner #18

                      Drive socket # 16

                      Drive socket # 18

                      Wheel impact socket #17

                      Ratchet wrench

                      Crow bar

                      Hydraulic transmission jack

                      Wheel chock

Buy tools

Replacement: front lower arm – Opel Meriva X03. AUTODOC experts recommend:

The replacement procedure is identical for the left and right lower control arms.
All work should be done with the engine stopped.

Replacement: front lower arm – Opel Meriva X03. Use the following procedure:

Step 1

Secure the wheels with chocks.
Step 2

Loosen the wheel mounting bolts. Use wheel impact socket #17.
Step 3

Raise the front of the car and secure on supports.
Step 4

Unscrew the wheel bolts.

AUTODOC recommends:
Important! Hold the wheel while unscrewing the fastening bolts. Opel Meriva X03
Step 5

Remove the wheel.
Step 6

Clean all joints of the arm. Use a wire brush. Use WD-40 spray.

AUTODOC recommends:
Replacement: front lower arm – Opel Meriva X03. After applying the spray, wait a few minutes.Wear protective goggles.Wear a respirator.
Step 7

Unscrew the ball joint fastening to the steering knuckle. Use a combination spanner #16. Use a drive socket #16. Use a ratchet wrench.
Step 8

Remove the fastening bolt. Use a combination spanner #16.
Step 9

Unscrew the front arm fastener. Use a combination spanner #18. Use a drive socket #18. Use a ratchet wrench.
Step 10

Unscrew the rear fastener connecting the control arm to the subframe. Use a combination spanner #18. Use a drive socket #18. Use a ratchet wrench.
Step 11

Remove the rear fastener of the control arm. Use a drive socket #18. Use a ratchet wrench.

Step 12

Disconnect the lower arm from the steering knuckle. Use a crowbar.
Step 13

Remove the front fastener of the control arm. Use a drive socket #18. Use a ratchet wrench.
Step 14

Remove the arm. Use a crowbar.
Step 15

Clean the mounting seats and the thread of the suspension arm. Use a wire brush. Use WD-40 spray.
Step 16

Install a new arm. Use a crowbar.

Replacement: front lower arm – Opel Meriva X03. Professionals recommend:
During the installation process, use only new bolts and nuts.Do not damage the ball joint cover.
Step 17

Install the control arm fasteners. Use a drive socket #18. Use a ratchet wrench.
Step 18

Connect the lower arm to the steering knuckle.
Step 19

Install the fastening bolt.
Step 20

Screw the fasteners of the ball joint. Use a combination spanner #16. Use a drive socket #16. Use a ratchet wrench.
Step 21

Tighten the ball joint fastener. Use a combination spanner #16. Use a drive socket #16. Use a torque wrench. Tighten it to 55 Nm torque.
Step 22

Support the arm. Use a hydraulic transmission jack.
Step 23

Tighten the front fastener connecting the control arm to the subframe. Use a combination spanner #18. Use a drive socket #18. Use a torque wrench. Tighten it to 90 Nm torque.+75°

AUTODOC recommends:
Important! Be sure to use new fasteners.
Step 24

Tighten the rear fastener of the control arm. Use a combination spanner #18. Use a drive socket #18. Use a torque wrench. Tighten it to 90 Nm torque.+75°

AUTODOC recommends:
Important! Be sure to use new fasteners.
Step 25

Remove the support from under the arm.

AUTODOC recommends:
Replacement: front lower arm – Opel Meriva X03. Lower the transmission jack smoothly, without jerks, to avoid damaging components and mechanisms.
Step 26

Treat all joints of the arm. Use copper grease.
Step 27

Treat the contacting surface. Use copper grease.
Step 28

Clean the brake disk surface. Use a brake cleaner.

AUTODOC recommends:
Replacement: front lower arm – Opel Meriva X03. After applying the spray, wait a few minutes.
Step 29

Install the wheel.

AUTODOC recommends:
Warning! To avoid injury, hold the wheel while screwing in the fastening bolts on the car. Opel Meriva X03
Step 30

Screw in the wheel bolts. Use wheel impact socket #17.
Step 31

Lower the car and working in a cross order, tighten the wheel bolts. Use wheel impact socket #17. Use a torque wrench. Tighten it to 120 nm torque.
Step 32

Remove the jacks and chocks.
