Change Audi 80 b4 2.0 E 16V quattro Control Arm yourself – manuals and video tutorials

How to change front lower arm on Audi 80 B4 – replacement guide

downloads: 2
Views: 50
Download your free tutorial and fix AUDI 80 Saloon (8C2, B4) 2.8 quattro problems yourself Download for free 1.88 MB Control Arm for Audi 80 b4 Shop now
Leave a comment Open in a new tab
Important!
This replacement procedure can be used for:
AUDI 80 Saloon (8C2, B4) 1.9 TD, AUDI 80 Saloon (8C2, B4) 1.9 TDI, AUDI 80 Saloon (8C2, B4) 1.6, AUDI 80 Saloon (8C2, B4) 1.6 E, AUDI 80 Saloon (8C2, B4) 2.0 E, AUDI 80 Saloon (8C2, B4) 2.0 E 16V, AUDI 80 Saloon (8C2, B4) 2.3 E, AUDI 80 Saloon (8C2, B4) 2.6, AUDI 80 Saloon (8C2, B4) 2.8, AUDI 80 Saloon (8C2, B4) 2.0 E 16V quattro, AUDI 80 Saloon (8C2, B4) 2.0 E quattro, AUDI 80 Saloon (8C2, B4) S2 quattro, AUDI 80 Saloon (8C2, B4) 2.3 E quattro, AUDI 80 Saloon (8C2, B4) 2.6 quattro, AUDI 80 Saloon (8C2, B4) 2.8 quattro, AUDI 80 Saloon (8C2, B4) 2.0 quattro … View more

The steps may slightly vary depending on the car design.

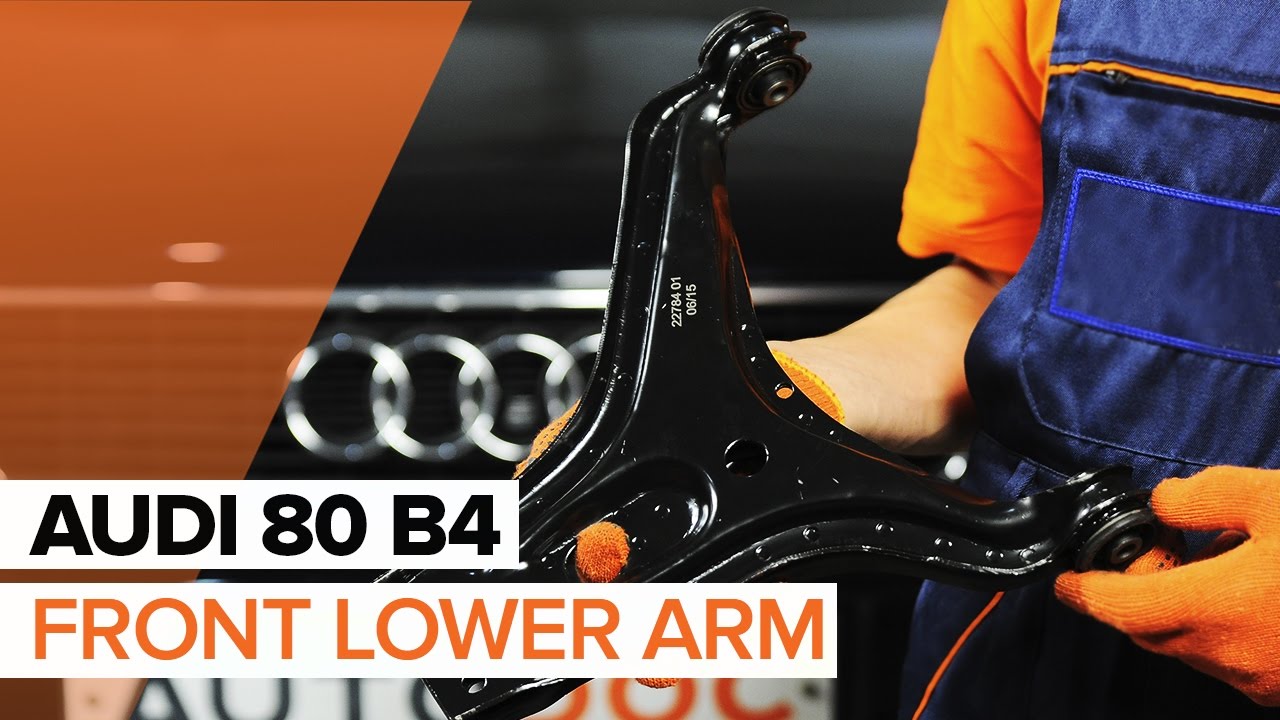

How to change front lower arm on AUDI 80 B4 TUTORIAL | AUTODOC

video
Published on: 14/11/2016
18K views
All the parts you need to replace – Control Arm for 80 Saloon (8C2, B4) and other AUDI models
Alternative products
How to change Suspension arm on Audi 80 b4 2.0 – step-by-step instructions for straightforward car repair Suspension arm
Tools
Replacement: front lower arm – Audi 80 B4. Tools you might need:
Wire brush
WD-40 spray
Brake cleaner
Copper grease
High-temperature ceramic grease
Torque wrench
Drive socket # 17
Combination spanner #17
Wheel impact socket #17
Ratchet wrench
Flat Screwdriver
Rubber mallet
Wheel chock
Buy tools
Replacement: front lower arm – Audi 80 B4. AUTODOC recommends:
  • The replacement procedure is identical for the left and right lower control arms.
  • All work should be done with the engine stopped.
Replacement: front lower arm – Audi 80 B4. Recommended sequence of steps:
  1. Step 1
    How to change Control Arm on Audi 80 b4 1991 - free PDF and video manuals
    Secure the wheels with chocks.
  2. Step 2
    How to replace AUDI 80 Saloon (8C2, B4) 2.0 1992 Control Arm - step-by-step manuals and video guides
    Loosen the wheel mounting bolts. Use wheel impact socket #17.
  3. Step 3
    Audi 80 b4 2.0 E 1993 Control Arm replacement: free workshop manuals
    Raise the front of the car and secure on supports.
  4. Step 4
    Changing Control Arm on AUDI 80 Saloon (8C2, B4) 2.3 E 1994 by yourself
    Unscrew the wheel bolts.
    AUTODOC recommends:
    Warning! To avoid injury, hold the wheel while unscrewing the fastening bolts. Audi 80 B4
  5. Step 5
    How to remove AUDI 80 2.3 E quattro 1991 Control Arm - online easy-to-follow instructions
    Remove the wheel.
  6. Step 6
    How to replace Control Arm on AUDI 80 Saloon (8C2, B4) 1992: download PDF manuals and video instructions
    Clean all joints of the arm. Use a wire brush. Use WD-40 spray.
  7. Step 7
    How hard is it to do yourself: Control Arm replacement on Audi 80 b4 1.9 TD 1993 - download illustrated guide
    Unscrew the ball joint fastening to the steering knuckle. Use a combination spanner #17. Use a drive socket #17. Use a ratchet wrench.
  8. Step 8
    Need to know how to renew Control Arm on AUDI 80 1994? This free workshop manual will help you to do it yourself
    Remove the fastening bolt.
  9. Step 9
    Changing of Control Arm on Audi 80 b4 1991 won't be an issue if you follow this illustrated step-by-step guide
    Unscrew the front arm fastener. Use a combination spanner #17 (2 pieces).
  10. Step 10
    Remove the front fastener of the control arm.
    Step 11
    AUDI 80 2.0 E 16V quattro Control Arm replacement: online guides and video tutorials
    Unscrew the rear fastener connecting the control arm to the subframe. Use a combination spanner #17 (2 pieces).
  11. Step 12
    Remove the rear fastener of the control arm.
    Step 13
    Replacing Control Arm on Audi 80 b4 1993 2.0 by yourself
    Disconnect the ball joint from the steering knuckle. Use a rubber mallet.
  12. Step 14
    80 Saloon (8C2, B4) 2.3 E quattro 1994 Control Arm DIY replacement workshop manual
    Remove the arm.
  13. Step 15
    How to change Control Arm on AUDI 80 Saloon (8C2, B4) 1991 - tips and tricks
    Unscrew the fastener connecting the ball joint to the suspension control arm. Use a combination spanner #17. Use a drive socket #17. Use a ratchet wrench.
  14. Step 16
    Step-by-step recommendations for DIY replacement Audi 80 b4 1992 2.3 E quattro Control Arm
    Remove the ball joint. Use a rubber mallet.
  15. Step 17
    DIY replacement of Control Arm on AUDI 80 Saloon (8C2, B4) 1.9 TDI 1993 is not an issue anymore with our step-by-step tutorial
    Attach the ball joint to the control arm. Use a rubber mallet. Use a flat screwdriver.
  16. Step 18
    How to change Control Arm on Audi 80 b4 1991 - free PDF and video manuals
    Tighten the fasteners connecting the ball joint to the control arm. Use a combination spanner #17. Use a drive socket #17. Use a torque wrench. Tighten it to 65 Nm torque.
  17. Step 19
    Clean the suspension arm mounting seats. Use a wire brush. Use WD-40 spray.
    Step 20
    How to replace AUDI 80 Saloon (8C2, B4) 2.0 1992 Control Arm - step-by-step manuals and video guides
    Install a new arm. Use a rubber mallet.
