Important!
This replacement procedure can be used for:
AUDI A3 Sportback (8PA) 1.6 E-Power, AUDI A3 Sportback (8PA) 1.6, AUDI A3 Sportback (8PA) 1.9 TDI, AUDI A3 Sportback (8PA) 1.6 FSI, AUDI A3 Sportback (8PA) 2.0 FSI, AUDI A3 Sportback (8PA) 3.2 V6 quattro, AUDI A3 Sportback (8PA) 2.0 TDI 16V, AUDI A3 Sportback (8PA) 2.0 TFSI, AUDI A3 Sportback (8PA) 2.0 TFSI quattro, AUDI A3 Sportback (8PA) 2.0 TDI, AUDI A3 Sportback (8PA) 2.0 TDI 16V quattro, AUDI A3 Sportback (8PA) 2.0 TDI, AUDI A3 Sportback (8PA) 2.0 TDI quattro, AUDI A3 Sportback (8PA) 2.0 TDI, AUDI A3 Sportback (8PA) 2.0 TDI quattro, AUDI A3 Sportback (8PA) 1.8 TFSI, AUDI A3 Sportback (8PA) 1.4 TFSI, AUDI A3 Sportback (8PA) S3 quattro, AUDI A3 Sportback (8PA) 1.8 TFSI quattro, AUDI A3 Sportback (8PA) 1.6 TDI, AUDI A3 Sportback (8PA) 1.6 TDI, AUDI A3 Sportback (8PA) 2.0 TDI, AUDI A3 Sportback (8PA) S3 quattro, AUDI A3 Sportback (8PA) RS3 quattro, AUDI A3 Sportback (8PA) 1.2 TSI, AUDI A3 Sportback (8PA) 1.8 FSI View more

The steps may slightly vary depending on the car design.

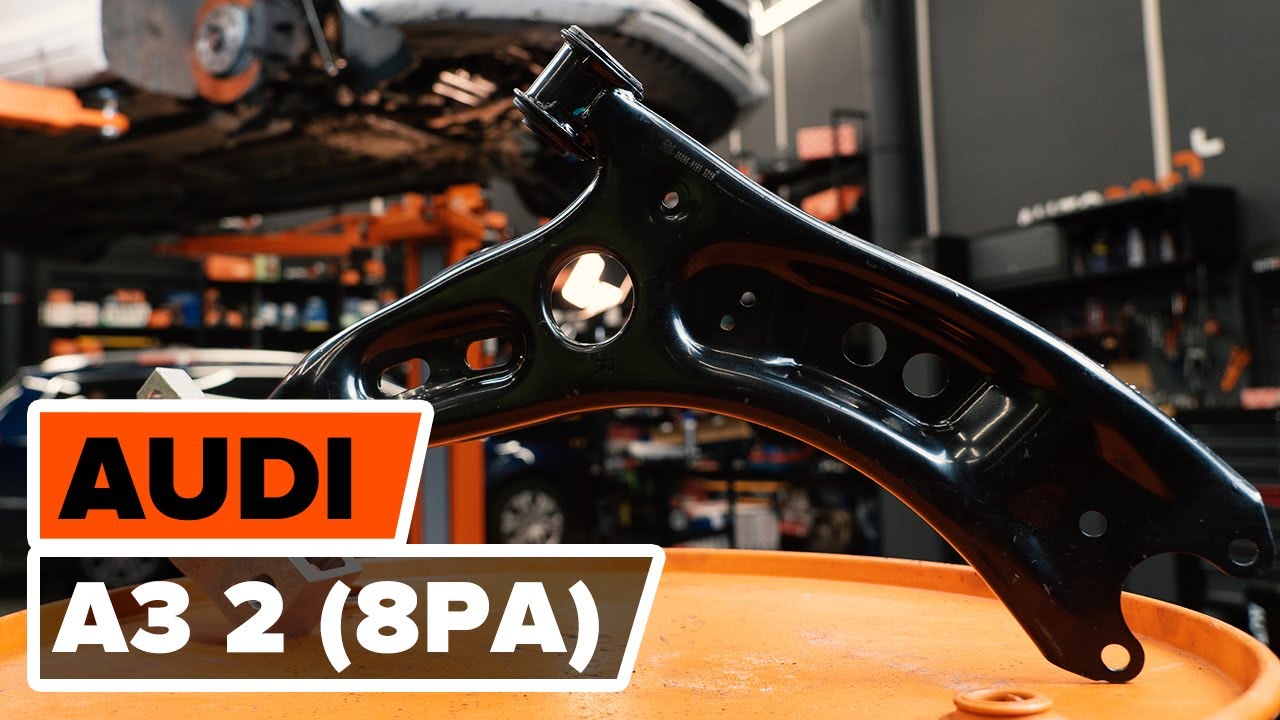

How to change front suspension arm / front control arm on AUDI A3 2 (8PA) [TUTORIAL AUTODOC]

video
Tools
Replacement: front lower arm – Audi A3 8PA. List of the tools you'll need:
Wire brush
WD-40 spray
Brake cleaner
Copper grease
Combination spanner #16
Combination spanner #18
Drive socket # 16
Drive socket # 18
Wheel impact socket #17
Ratchet wrench
Torque wrench
Tap wrench
Hydraulic transmission jack
Wheel chock
Replacement: front lower arm – Audi A3 8PA. AUTODOC experts recommend:
  • The replacement procedure is identical for the left and right lower control arms.
  • All work should be done with the engine stopped.
Replacement: front lower arm – Audi A3 8PA. Use the following procedure:
  1. Step 1
    How to change Control Arm on Audi A3 8P Sportback 2004 - free PDF and video manuals
    Secure the wheels with chocks.
  2. Step 2
    How to replace AUDI A3 Sportback (8PA) 2.0 TDI 16V 2005 Control Arm - step-by-step manuals and video guides
    Loosen the wheel mounting bolts. Use wheel impact socket #17.
  3. Step 3
    Audi A3 8P Sportback 1.9 TDI 2006 Control Arm replacement: free workshop manuals
    Raise the front of the car and secure on supports.
  4. Step 4
    Changing Control Arm on AUDI A3 Sportback (8PA) 1.6 TDI 2007 by yourself
    Unscrew the wheel bolts.
    Replacement: front lower arm – Audi A3 8PA. Tip:
    To avoid injury, hold up the wheel when unscrewing the bolts.
  5. Step 5
    Remove the wheel.
    Step 6
    How to remove AUDI A3 1.6 2008 Control Arm - online easy-to-follow instructions
    Clean all joints of the arm. Use a wire brush. Use WD-40 spray.
    AUTODOC recommends:
    Replacement: front lower arm – Audi A3 8PA. After applying the spray, wait a few minutes.Wear protective goggles.
  6. Step 7
    How to replace Control Arm on AUDI A3 Sportback (8PA) 2009: download PDF manuals and video instructions
    Unscrew the fastener connecting the ball joint to the suspension control arm. Use a drive socket #16. Use a tap wrench.
  7. Step 8
    How hard is it to do yourself: Control Arm replacement on Audi A3 8P Sportback 1.4 TFSI 2010 - download illustrated guide
    Unscrew the front arm fastener. Use a drive socket #18. Use a tap wrench.
  8. Step 9
    Need to know how to renew Control Arm on AUDI A3 2011? This free workshop manual will help you to do it yourself
    Unscrew the rear fastener connecting the control arm to the car body. Use a drive socket #18. Use a tap wrench.
  9. Step 10
    Changing of Control Arm on Audi A3 8P Sportback 2012 won't be an issue if you follow this illustrated step-by-step guide
    Unscrew the rear fastener connecting the control arm to the subframe. Use a drive socket #16. Use a tap wrench.
  10. Step 11
    AUDI A3 2.0 TDI quattro Control Arm replacement: online guides and video tutorials
    Remove the fastening bolts. Use a drive socket #18. Use a drive socket #16.
  11. Step 12
    Replacing Control Arm on Audi A3 8P Sportback 2004 2.0 TDI 16V by yourself
    Remove the arm.
  12. Step 13
    A3 Sportback (8PA) 1.6 2005 Control Arm DIY replacement workshop manual
    Clean the mounting seats and the thread of the suspension arm. Use a wire brush. Use WD-40 spray.
  13. Step 14
    How to change Control Arm on AUDI A3 Sportback (8PA) 2006 - tips and tricks
    Install a new arm.
    Replacement: front lower arm – Audi A3 8PA. AUTODOC recommends:
    During the installation process, use only new bolts and nuts.
  14. Step 15
    Step-by-step recommendations for DIY replacement Audi A3 8P Sportback 2007 1.6 Control Arm
    Install the front fastener of the arm.
  15. Step 16
    DIY replacement of Control Arm on AUDI A3 Sportback (8PA) 2.0 TDI 2008 is not an issue anymore with our step-by-step tutorial
    Screw the fasteners of the ball joint. Use a drive socket #16. Use a ratchet wrench.
  16. Step 17
    How to change Control Arm on Audi A3 8P Sportback 2004 - free PDF and video manuals
    Install the rear fastener of the arm.
  17. Step 18
    How to replace AUDI A3 Sportback (8PA) 2.0 TDI 16V 2005 Control Arm - step-by-step manuals and video guides
    Screw the rear fastener connecting the control arm to the car body. Use a combination spanner #18. Use a drive socket #18. Use a ratchet wrench.
  18. Step 19
    Audi A3 8P Sportback 1.9 TDI 2006 Control Arm replacement: free workshop manuals
    Install the rear fastener of the arm.
  19. Step 20
    Changing Control Arm on AUDI A3 Sportback (8PA) 1.6 TDI 2007 by yourself
    Screw the rear fastener connecting the control arm to the subframe. Use a combination spanner #16. Use a drive socket #16. Use a ratchet wrench.
