When to replace the Brake Pads on your TOYOTA YARIS
Recommended replacement interval for the part category Brake pad set : 30000 km
Important!
This replacement procedure can be used for:
TOYOTA Yaris Hatchback (_P9_) 1.3 VVT-i (NCP90_), TOYOTA Yaris Hatchback (_P9_) 1.33 VVT-i (NSP90_), TOYOTA Yaris Hatchback (_P9_) 1.0 VVT-i (KSP90_), TOYOTA Yaris Hatchback (_P9_) 1.4 D-4D (NLP90_), TOYOTA Yaris Hatchback (_P9_) 1.33 VVT-i (NSP90_), TOYOTA Yaris Hatchback (_P9_) 1.0 GPL (KSP90_), TOYOTA Yaris Hatchback (_P9_) 1.0 VVT-i (KSP90), TOYOTA Yaris Hatchback (_P9_) 1.3 VVT-i (SCP90_) … View more

The steps may slightly vary depending on the car design.

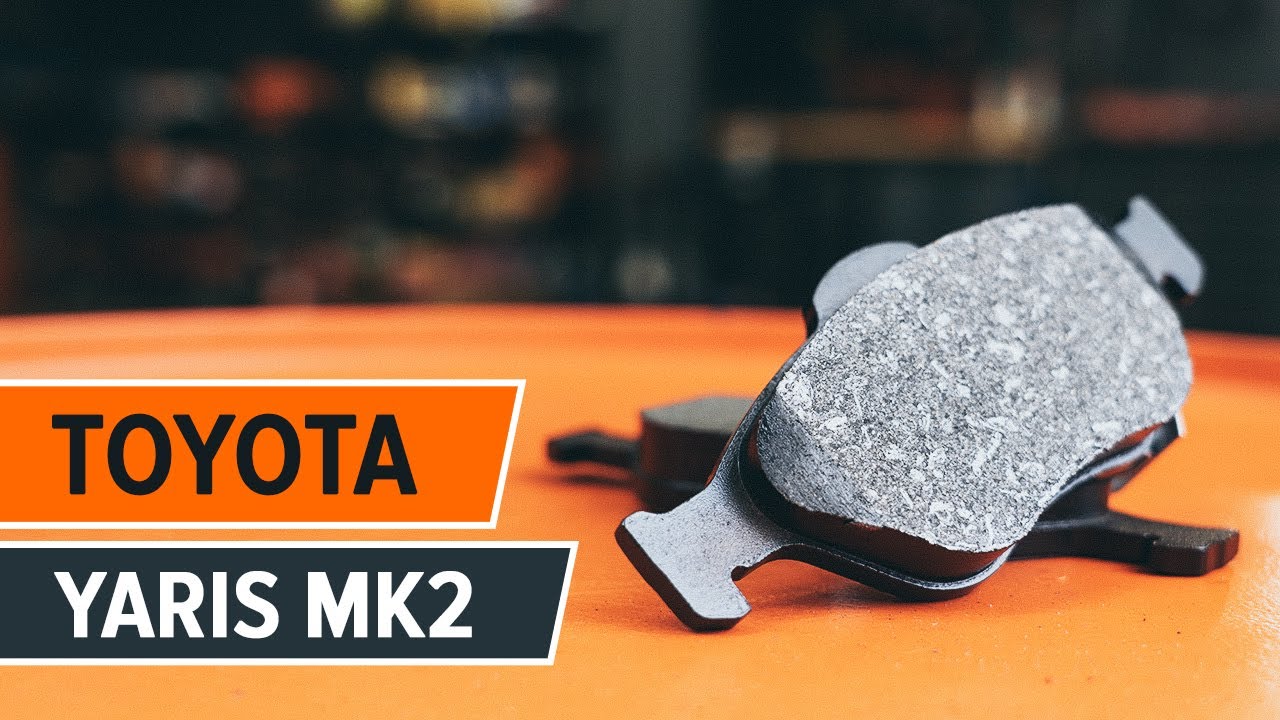

How to change front brake pads on TOYOTA YARIS Mk2 [TUTORIAL AUTODOC]

video
Published on: 29/04/2022
8K views
All the parts you need to replace – Brake Pads for Yaris Hatchback (_P9_) and other TOYOTA models
How to change Brake pad set on Toyota Yaris Mk2 1.4 D-4D (NLP90_) – step-by-step instructions for straightforward car repair Brake pad set
How to change Brake pad set on Yaris II Hatchback (XP9) – tips for proper car maintenance
Brake pad set for Yaris II Hatchback (XP9) Petrol (86 hp)
Simple DIY car repair steps – Replacing Brake pad set on Yaris II Hatchback (XP9)
Brake pad set for Yaris II Hatchback (XP9) Petrol (99 hp)
Easy tricks to help you to replace Brake pad set on Yaris II Hatchback (XP9)
Brake pad set for Yaris II Hatchback (XP9) Petrol (69 hp)
Brake pad set removal & installation, incredibly easy steps for Yaris II Hatchback (XP9)
Brake pad set for Yaris II Hatchback (XP9) Diesel (90 hp)
Changing Brake pad set on Yaris II Hatchback (XP9) – tips for first time repair
Brake pad set for Yaris II Hatchback (XP9) Petrol (87 hp)
Main steps for Brake pad set replacement on Yaris II Hatchback (XP9)
Brake pad set for Yaris II Hatchback (XP9) Petrol (100 hp)
How to change Brake pad set on Yaris II Hatchback (XP9) – tips for proper car maintenance
Brake pad set for Yaris II Hatchback (XP9) Petrol/Petroleum Gas (LPG) (69 hp)
Simple DIY car repair steps – Replacing Brake pad set on Yaris II Hatchback (XP9)
Brake pad set for Yaris II Hatchback (XP9) Petrol (71 hp)
Tools
Replacement: brake pads – Toyota Yaris Mk2. Tools you might need:
Wire brush
Nylon cleaning brush
Brake cleaner
Anti-squeal paste
Ceramic grease
Torque wrench
HEX bit No.H7
Wheel impact socket #21
Ratchet wrench
Brake caliper wind back tool
Crow bar
Wheel chock
Buy tools
Replacement: brake pads – Toyota Yaris Mk2. AUTODOC experts recommend:
  • Perform the replacement of brake pads in complete set for each axis. This provides effective braking.
  • The replacement procedure is identical for all brake pads on the same axle.
  • Please note: all work on the car – Toyota Yaris Mk2 – should be done with the engine switched off.
Carry out replacement in the following order:
  1. Step 1
    How to change Brake Pads on Toyota Yaris Mk2 2005 - free PDF and video manuals
    Open the bonnet. Unscrew the brake fluid reservoir cap.
  2. Step 2
    Secure the wheels with chocks.
    Step 3
    How to replace TOYOTA Yaris Hatchback (_P9_) 1.4 D-4D (NLP90_) 2006 Brake Pads - step-by-step manuals and video guides
    Loosen the wheel mounting bolts. Use wheel impact socket #21.
  3. Step 4
    Toyota Yaris Mk2 1.3 VVT-i (SCP90_) 2007 Brake Pads replacement: free workshop manuals
    Raise the car.
    Replacement: brake pads – Toyota Yaris Mk2. Tip from AUTODOC:
    If you are using a jack, make sure it rests on a flat surface without any unevenness.Be sure to additionally secure the car with jack stands.
  4. Step 5
    Changing Brake Pads on TOYOTA Yaris Hatchback (_P9_) 1.33 VVT-i (NSP90_) 2008 by yourself
    Unscrew the wheel bolts.
    AUTODOC recommends:
    Warning! To avoid injury, hold the wheel while unscrewing the fastening bolts. Toyota Yaris Mk2
  5. Step 6
    How to remove TOYOTA YARIS 1.8 VVTi (ZSP90_) 2009 Brake Pads - online easy-to-follow instructions
    Remove the wheel.
  6. Step 7
    How to replace Brake Pads on TOYOTA Yaris Hatchback (_P9_) 2010: download PDF manuals and video instructions
    Remove the dust boot caps of the brake caliper guide pins. Use a crowbar.
  7. Step 8
    How hard is it to do yourself: Brake Pads replacement on Toyota Yaris Mk2 1.0 GPL (KSP90_) 2011 - download illustrated guide
    Unscrew the brake caliper fasteners. Use HEX No.H7. Use a ratchet wrench.
  8. Step 9
    Need to know how to renew Brake Pads on TOYOTA YARIS 2012? This free workshop manual will help you to do it yourself
    Detach the brake caliper retaining spring. Use a crowbar.
  9. Step 10
    Changing of Brake Pads on Toyota Yaris Mk2 2013 won't be an issue if you follow this illustrated step-by-step guide
    Spread the brake pads. Use a crowbar.
  10. Step 11
    TOYOTA YARIS 1.8 VVTi (KVP91) Brake Pads replacement: online guides and video tutorials
    Remove the brake caliper. Use a crowbar.
    Replacement: brake pads – Toyota Yaris Mk2. Professionals recommend:
    Tie the caliper to the suspension or to the body with a wire without disconnecting from the brake hose to prevent depressurization of the brake system.Make sure that the brake caliper is not hanging on the brake hose.Don't press the brake pedal after the brake caliper has been removed. As a result, the piston can fall out from the brake cylinder, and brake fluid leakage and depressurization of the system may occur.
  11. Step 12
    Replacing Brake Pads on Toyota Yaris Mk2 2005 1.4 D-4D (NLP90_) by yourself
    Remove the brake pads.
    Replacement: brake pads – Toyota Yaris Mk2. Tip:
    Measure the brake disc thickness. Upon reaching the wear limit the part must be replaced.
  12. Step 13
    Yaris Hatchback (_P9_) 1.8 VVTi (ZSP90_) 2006 Brake Pads DIY replacement workshop manual
    Treat the brake caliper piston. Use a nylon cleaning brush. Use a brake cleaner.
    AUTODOC recommends:
    Replacement: brake pads – Toyota Yaris Mk2. After applying the spray, wait a few minutes.
  13. Step 14
    How to change Brake Pads on TOYOTA Yaris Hatchback (_P9_) 2007 - tips and tricks
    Press in the brake caliper piston. Use brake caliper wind back tool.
    Replacement: brake pads – Toyota Yaris Mk2. Tip from AUTODOC experts:
    Check the brake caliper bracket, brake caliper guide pins and boots. Clean them. Replace, if necessary.
  14. Step 15
    Step-by-step recommendations for DIY replacement Toyota Yaris Mk2 2008 1.8 VVTi (ZSP90_) Brake Pads
    Clean the brake caliper bracket from dirt and dust. Use a wire brush. Use a brake cleaner.
    AUTODOC recommends:
    Replacement: brake pads – Toyota Yaris Mk2. After applying the spray, wait a few minutes.
  15. Step 16
    DIY replacement of Brake Pads on TOYOTA Yaris Hatchback (_P9_) 1.0 VVT-i (KSP90_) 2009 is not an issue anymore with our step-by-step tutorial
    Treat the brake pads in the area where their surface comes into contact with the brake caliper bracket. Use anti-squeal paste.
    Replacement: brake pads – Toyota Yaris Mk2. Tip from AUTODOC:
    Make sure the disc surface is clean before installing the pads.
  16. Step 17
    How to change Brake Pads on Toyota Yaris Mk2 2005 - free PDF and video manuals
    Install new brake pads.
    Replacement: brake pads – Toyota Yaris Mk2. AUTODOC experts recommend:
    Measure the brake disc thickness. Upon reaching the wear limit the part must be replaced.
