Recommended replacement interval for the part category Brake pad set : 30000 km

Important!

This replacement procedure can be used for:
TOYOTA Yaris Hatchback (_P9_) 1.3 VVT-i (NCP90_), TOYOTA Yaris Hatchback (_P9_) 1.33 VVT-i (NSP90_), TOYOTA Yaris Hatchback (_P9_) 1.0 VVT-i (KSP90_), TOYOTA Yaris Hatchback (_P9_) 1.4 D-4D (NLP90_), TOYOTA Yaris Hatchback (_P9_) 1.33 VVT-i (NSP90_), TOYOTA Yaris Hatchback (_P9_) 1.0 GPL (KSP90_), TOYOTA Yaris Hatchback (_P9_) 1.0 VVT-i (KSP90), TOYOTA Yaris Hatchback (_P9_) 1.3 VVT-i (SCP90_) … View more

The steps may slightly vary depending on the car design.

How to change rear brake pads on TOYOTA YARIS Mk2 [TUTORIAL AUTODOC]

All the parts you need to replace – Brake Pads for Yaris Hatchback (_P9_) and other TOYOTA models

Brake pad set

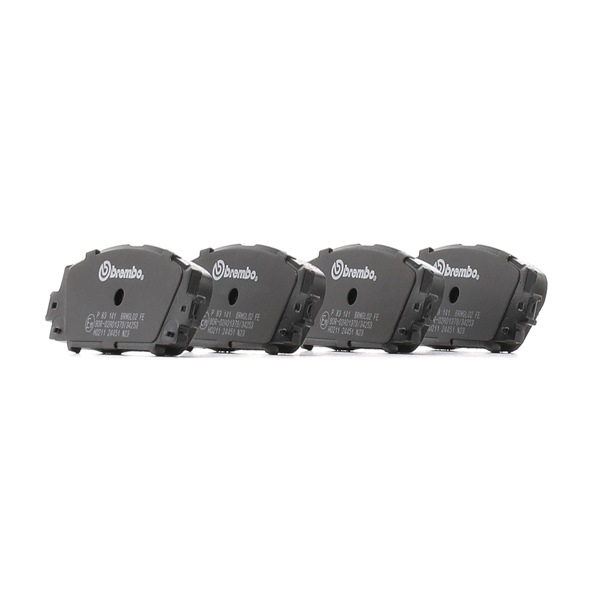

        Brake pad set for TOYOTA Yaris Hatchback (_P9_) 1.3 VVT-i (NCP90_) Petrol (86 hp)

        Brake pad set for TOYOTA Yaris Hatchback (_P9_) 1.33 VVT-i (NSP90_) Petrol (99 hp)

        Brake pad set for TOYOTA Yaris Hatchback (_P9_) 1.0 VVT-i (KSP90_) Petrol (69 hp)

        Brake pad set for TOYOTA Yaris Hatchback (_P9_) 1.4 D-4D (NLP90_) Diesel (90 hp)

        Brake pad set for TOYOTA Yaris Hatchback (_P9_) 1.3 VVT-i (SCP90_) Petrol (87 hp)

        Brake pad set for TOYOTA Yaris Hatchback (_P9_) 1.33 VVT-i (NSP90_) Petrol (100 hp)

        Brake pad set for TOYOTA Yaris Hatchback (_P9_) 1.0 GPL (KSP90_) Petrol/Petroleum Gas (LPG) (69 hp)

        Brake pad set for TOYOTA Yaris Hatchback (_P9_) 1.0 VVT-i (KSP90) Petrol (71 hp)

Replacement: brake pads – Toyota Yaris Mk2. List of the tools you'll need:

                        Wire brush

                        Nylon cleaning brush

                        Brake cleaner

                        Anti-squeal paste

                        Ceramic grease

                        Torque wrench

                        HEX bit No.H7

                        Wheel impact socket #21

                        Ratchet wrench

                        Brake caliper wind back tool

                        Crow bar

                        Wheel chock

Buy tools

Replacement: brake pads – Toyota Yaris Mk2. Tip from AUTODOC experts:

Perform the replacement of brake pads in complete set for each axis. This provides effective braking.
The replacement procedure is identical for all brake pads on the same axle.
Please note: all work on the car – Toyota Yaris Mk2 – should be done with the engine switched off.

Carry out replacement in the following order:

Step 1

Open the bonnet. Unscrew the brake fluid reservoir cap.
Step 2

Secure the wheels with chocks.

Step 3

Loosen the wheel mounting bolts. Use wheel impact socket #21.
Step 4

Raise the car.

Replacement: brake pads – Toyota Yaris Mk2. AUTODOC experts recommend:
If you are using a jack, make sure it rests on a flat surface without any unevenness.Be sure to additionally secure the car with jack stands.
Step 5

Unscrew the wheel bolts.

AUTODOC recommends:
Important! Hold the wheel while unscrewing the fastening bolts. Toyota Yaris Mk2
Step 6

Remove the wheel.
Step 7

Detach the brake caliper retaining spring. Use a crowbar.
Step 8

Remove the dust boot caps of the brake caliper guide pins. Use a crowbar.
Step 9

Unscrew the brake caliper fasteners. Use HEX No.H7. Use a ratchet wrench.
Step 10

Remove the brake caliper. Use a crowbar.

Replacement: brake pads – Toyota Yaris Mk2. Tip from AUTODOC:
Tie the caliper to the suspension or to the body with a wire without disconnecting from the brake hose to prevent depressurization of the brake system.Make sure that the brake caliper is not hanging on the brake hose.Don't press the brake pedal after the brake caliper has been removed. As a result, the piston can fall out from the brake cylinder, and brake fluid leakage and depressurization of the system may occur.
Step 11

Remove the brake pads.

AUTODOC recommends:
Measure the brake disc thickness. Upon reaching the wear limit the part must be replaced.
Step 12

Treat the brake caliper piston. Use a nylon cleaning brush. Use a brake cleaner.

AUTODOC recommends:
Replacement: brake pads – Toyota Yaris Mk2. After applying the spray, wait a few minutes.
Step 13

Press in the brake caliper piston. Use brake caliper wind back tool.
Step 14

Clean the brake caliper bracket from dirt and dust. Use a wire brush. Use a brake cleaner.

Replacement: brake pads – Toyota Yaris Mk2. Tip from AUTODOC experts:
After applying the spray, wait a few minutes.Check the brake caliper bracket, brake caliper guide pins and boots. Clean them. Replace, if necessary.
Step 15

Treat the brake pads in the area where their surface comes into contact with the brake caliper bracket. Use anti-squeal paste.

Replacement: brake pads – Toyota Yaris Mk2. AUTODOC recommends:
Make sure the disc surface is clean before installing the pads.
Step 16

Install new brake pads.

AUTODOC recommends:
Measure the brake disc thickness. Upon reaching the wear limit the part must be replaced.
Step 17

Install the brake caliper and fix it.
Step 18

Tighten the brake caliper fasteners. Use HEX No.H7. Use a torque wrench. Tighten it to 34 nm torque.
Step 19

Install the dust boot caps of the brake caliper guide pins.
Step 20

Install the brake caliper retaining spring.
Step 21

Clean the wheel rim mounting seat. Use a wire brush.
Step 22

Treat the surface where the brake disc contacts the wheel rim. Use ceramic grease.
Step 23

Clean the brake disk surface. Use a brake cleaner.

AUTODOC recommends:
Replacement: brake pads – Toyota Yaris Mk2. After applying the spray, wait a few minutes.
Step 24

Install the wheel.

AUTODOC recommends:
Important! Hold the wheel while screwing in the fastening bolts. Toyota Yaris Mk2
Step 25

Screw in the wheel bolts. Use wheel impact socket #21.
Step 26

Lower the car and working in a cross order, tighten the wheel bolts. Use wheel impact socket #21. Use a torque wrench. Tighten it to 103 Nm torque.
Step 27

Remove the jacks and chocks.

Replacement: brake pads – Toyota Yaris Mk2. Tip from AUTODOC experts:
Without starting the engine, press the brake pedal several times until you feel significant resistance.Check the brake fluid level in the expansion tank and refill if necessary.
Step 28

Tighten the brake fluid reservoir cap. Close the hood.
