How to change front brake caliper on Nissan Qashqai J10 – replacement guide
downloads:
16
Views:
200
Recommended replacement interval for the part category Brake caliper : 100000 km
Important!
This replacement procedure can be used for:
NISSAN Qashqai / Qashqai +2 I (J10, NJ10) 1.6, NISSAN Qashqai / Qashqai +2 I (J10, NJ10) 1.6, NISSAN Qashqai / Qashqai +2 I (J10, NJ10) 1.6 LPG, NISSAN Qashqai / Qashqai +2 I (J10, NJ10) 1.5 dCi, NISSAN Qashqai / Qashqai +2 I (J10, NJ10) 2.0, NISSAN Qashqai / Qashqai +2 I (J10, NJ10) 2.0 Allrad, NISSAN Qashqai / Qashqai +2 I (J10, NJ10) 1.6 dCi Allrad, NISSAN Qashqai / Qashqai +2 I (J10, NJ10) 1.6 dCi, NISSAN Qashqai / Qashqai +2 I (J10, NJ10) 1.5 dCi, NISSAN Qashqai / Qashqai +2 I (J10, NJ10) 2.0 dCi, NISSAN Qashqai / Qashqai +2 I (J10, NJ10) 2.0 dCi Allrad, NISSAN Qashqai / Qashqai +2 I (J10, NJ10) 1.5 dCi, NISSAN Qashqai / Qashqai +2 I (J10, NJ10) 2.0, NISSAN Qashqai / Qashqai +2 I (J10, NJ10) 2.0 Allrad, NISSAN Qashqai / Qashqai +2 I (J10, NJ10) 2.0 … View more
The steps may slightly vary depending on the car design.
NISSAN Qashqai / Qashqai +2 I (J10, NJ10) 1.6, NISSAN Qashqai / Qashqai +2 I (J10, NJ10) 1.6, NISSAN Qashqai / Qashqai +2 I (J10, NJ10) 1.6 LPG, NISSAN Qashqai / Qashqai +2 I (J10, NJ10) 1.5 dCi, NISSAN Qashqai / Qashqai +2 I (J10, NJ10) 2.0, NISSAN Qashqai / Qashqai +2 I (J10, NJ10) 2.0 Allrad, NISSAN Qashqai / Qashqai +2 I (J10, NJ10) 1.6 dCi Allrad, NISSAN Qashqai / Qashqai +2 I (J10, NJ10) 1.6 dCi, NISSAN Qashqai / Qashqai +2 I (J10, NJ10) 1.5 dCi, NISSAN Qashqai / Qashqai +2 I (J10, NJ10) 2.0 dCi, NISSAN Qashqai / Qashqai +2 I (J10, NJ10) 2.0 dCi Allrad, NISSAN Qashqai / Qashqai +2 I (J10, NJ10) 1.5 dCi, NISSAN Qashqai / Qashqai +2 I (J10, NJ10) 2.0, NISSAN Qashqai / Qashqai +2 I (J10, NJ10) 2.0 Allrad, NISSAN Qashqai / Qashqai +2 I (J10, NJ10) 2.0 … View more
The steps may slightly vary depending on the car design.

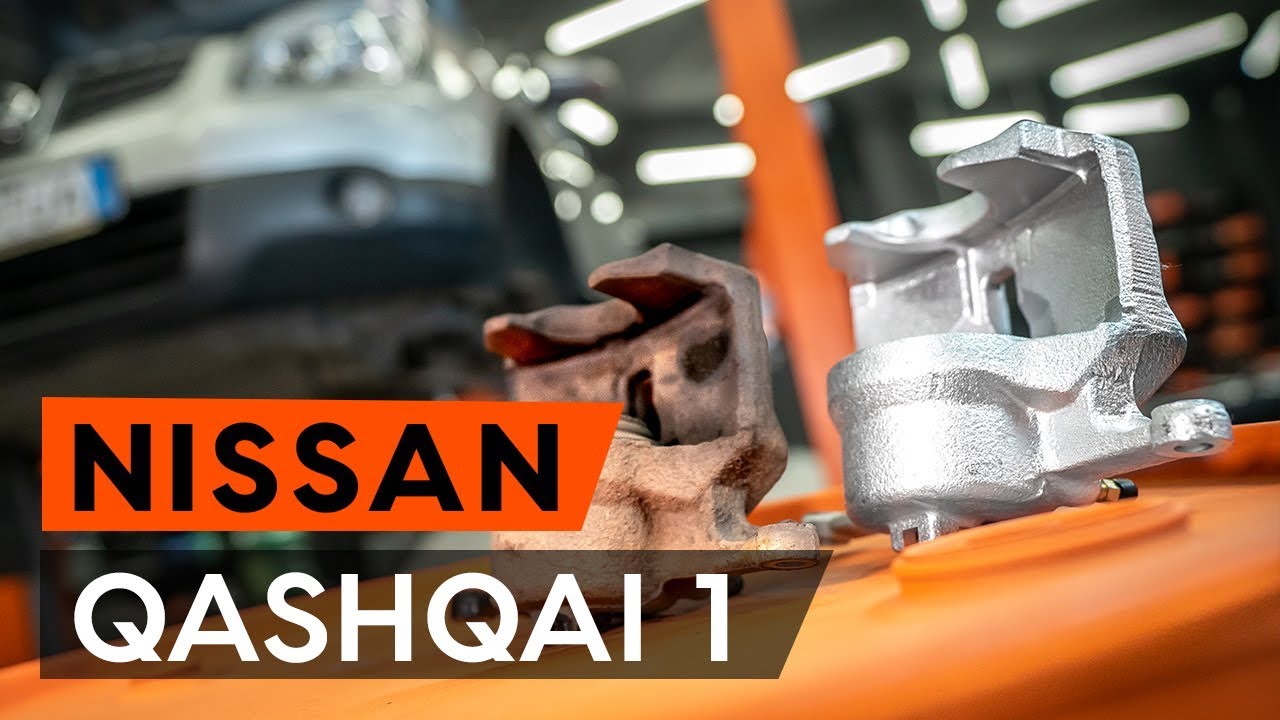

How to change front brake caliper on NISSAN QASHQAI 1 (J10) [TUTORIAL AUTODOC]
All the parts you need to replace – Brake Calipers for Qashqai / Qashqai +2 I (J10, NJ10) and other NISSAN models
Brake caliper
Alternative products
Brake caliper
Wire brush
Brake cleaner
Copper grease
Combination spanner №12
Combination spanner №14
Drive socket # 12
Drive socket # 14
Wheel impact socket #21
Ratchet wrench
Torque wrench
Hammer
Crow bar
Fluid container
Brake hose clip
Wheel chock
Replacement: brake caliper – Nissan Qashqai J10. Tip from AUTODOC:
- The replacement procedure is identical for the left and right brake calipers on the same axle.
- Warning! Shut down the engine before starting any work – Nissan Qashqai J10
Carry out replacement in the following order:
- Step 1
Open the bonnet. - Step 2
Unscrew the brake fluid reservoir cap. - Step 3
Secure the wheels with chocks. - Step 4
Loosen the wheel mounting bolts. Use wheel impact socket #21. - Step 5
Raise the front of the car and secure on supports. - Step 6
Unscrew the wheel bolts.AUTODOC recommends:Important! Hold the wheel while unscrewing the fastening bolts. Nissan Qashqai J10 - Step 7
Remove the wheel. - Step 8
Remove the fastener attaching the brake hose to the shock strut. Use a crowbar. Use a hammer. - Step 9
Detach the brake hose from the shock strut. - Step 10
Clean the area where the brake hose is connected to the caliper, and the guide pins area. Use a wire brush. Use a brake cleaner.Replacement: brake caliper – Nissan Qashqai J10. Tip from AUTODOC:After applying the spray, wait a few minutes. - Step 11
Put a container for gathering brake fluid beneath. - Step 12
Clamp the brake hose off using a brake hose clamp. - Step 13
Unscrew the brake hose from the brake caliper. Use a drive socket #12. Use a ratchet wrench. - Step 14
Spread the brake pads. Use a crowbar. - Step 15
Unscrew the brake caliper fastening. Use a drive socket #14. Use a ratchet wrench. - Step 16
Remove the brake caliper.AUTODOC recommends:When replacing the brake caliper, it is recommended to check the brake hose for damages and, if necessary, to replace it with a new one. When replacing a brake caliper it is recommended to replace brake pads, check the state of the brake discs and replace them with new ones if necessary. - Step 17
Clean the brake caliper bracket from dirt and dust. Use a wire brush. Treat the brake caliper bracket. Use a brake cleaner.Replacement: brake caliper – Nissan Qashqai J10. Tip:After applying the spray, wait a few minutes.
