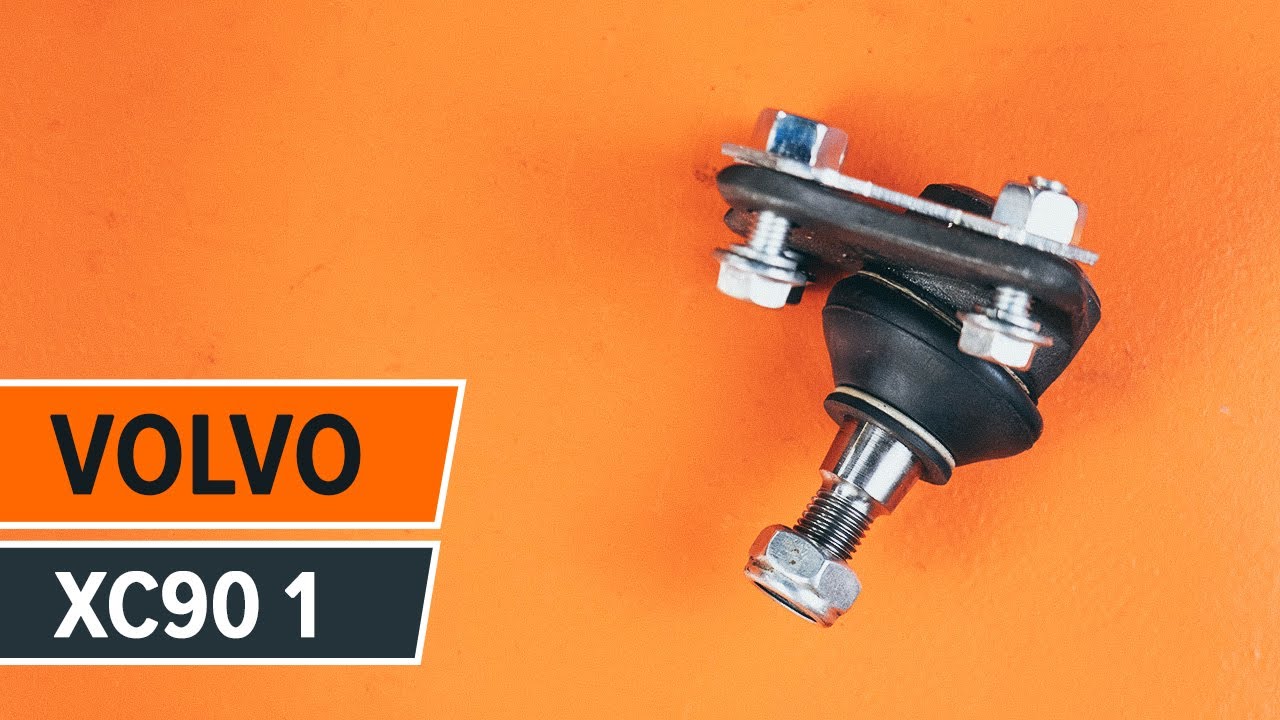

How to change a front ball joint VOLVO XC90 1 TUTORIAL | AUTODOC

video
Published on: 27/07/2018
77K views
All the parts you need to replace – Suspension Ball Joint for XC90 I (275) and other VOLVO models
How to change Ball Joint on Volvo XC90 Mk1 D5 AWD – step-by-step instructions for straightforward car repair Ball Joint
How to change Ball Joint on XC90 I (C, 275) – tips for proper car maintenance
Ball Joint for XC90 I (C, 275) Diesel (200 hp)
Simple DIY car repair steps – Replacing Ball Joint on XC90 I (C, 275)
Ball Joint for XC90 I (C, 275) Petrol (243 hp)
Easy tricks to help you to replace Ball Joint on XC90 I (C, 275)
Ball Joint for XC90 I (C, 275) Petrol (209 hp)
Ball Joint removal & installation, incredibly easy steps for XC90 I (C, 275)
Ball Joint for XC90 I (C, 275) Petrol (272 hp)
Changing Ball Joint on XC90 I (C, 275) – tips for first time repair
Ball Joint for XC90 I (C, 275) Diesel (163 hp)
Main steps for Ball Joint replacement on XC90 I (C, 275)
Ball Joint for XC90 I (C, 275) Petrol (316 hp)
How to change Ball Joint on XC90 I (C, 275) – tips for proper car maintenance
Ball Joint for XC90 I (C, 275) Diesel (185 hp)
Simple DIY car repair steps – Replacing Ball Joint on XC90 I (C, 275)
Ball Joint for XC90 I (C, 275) Petrol (238 hp)
Easy tricks to help you to replace Ball Joint on XC90 I (C, 275)
Ball Joint for XC90 I (C, 275) Petrol (243 hp)
Tools
Replacement: ball joint – Volvo XC90 1. Tools you need:
Wire brush
WD-40 spray
Brake cleaner
Copper grease
Drive socket # 13
Drive socket # 21
Wheel impact socket #19
Ratchet wrench
Torque wrench
Crow bar
Hammer
Flat chisel
Rubber mallet
Ball joint puller
Wheel chock
Buy tools
Replacement: ball joint – Volvo XC90 1. Tip:
  • The replacement procedure is identical for the left and right ball joints.
  • All work should be done with the engine stopped.
Replacement: ball joint – Volvo XC90 1. Take the following steps:
  1. Step 1
    How to change Suspension Ball Joint on Volvo XC90 Mk1 2002 - free PDF and video manuals
    Secure the wheels with chocks.
  2. Step 2
    How to replace VOLVO XC90 I (275) D5 AWD 2003 Suspension Ball Joint - step-by-step manuals and video guides
    Loosen the wheel mounting bolts. Use wheel impact socket #19.
  3. Step 3
    Volvo XC90 Mk1 2.5 T AWD 2004 Suspension Ball Joint replacement: free workshop manuals
    Raise the front of the car and secure on supports.
  4. Step 4
    Changing Suspension Ball Joint on VOLVO XC90 I (275) V8 AWD 2005 by yourself
    Unscrew the wheel bolts.
    AUTODOC recommends:
    Warning! To avoid injury, hold the wheel while unscrewing the fastening bolts. Volvo XC90 1
  5. Step 5
    How to remove VOLVO XC90 3.2 AWD 2006 Suspension Ball Joint - online easy-to-follow instructions
    Remove the wheel.
  6. Step 6
    How to replace Suspension Ball Joint on VOLVO XC90 I (275) 2007: download PDF manuals and video instructions
    Clean all joints of the arm. Use a wire brush. Use WD-40 spray.
  7. Step 7
    How hard is it to do yourself: Suspension Ball Joint replacement on Volvo XC90 Mk1 2.4 D3 / D5 2008 - download illustrated guide
    Unscrew the fastener connecting the ball joint to the suspension control arm. Use a drive socket #21. Use a ratchet wrench.
  8. Step 8
    Need to know how to renew Suspension Ball Joint on VOLVO XC90 2009? This free workshop manual will help you to do it yourself
    Unscrew the ball joint fastening to the steering knuckle. Use a drive socket #13. Use a ratchet wrench.
  9. Step 9
    Remove the fastening bolts.
    Step 10
    Changing of Suspension Ball Joint on Volvo XC90 Mk1 2010 won't be an issue if you follow this illustrated step-by-step guide
    Disconnect the ball joint from the steering knuckle. Use a flat metal-working chisel. Use a hammer. Use a crowbar.
  10. Step 11
    VOLVO XC90 D5 AWD Suspension Ball Joint replacement: online guides and video tutorials
    Disconnect the spherical joint from the arm. Use a ball joint puller.
  11. Step 12
    Replacing Suspension Ball Joint on Volvo XC90 Mk1 2012 D5 AWD by yourself
    Remove the ball joint. Use a crowbar.
  12. Step 13
    XC90 I (275) 3.2 AWD 2013 Suspension Ball Joint DIY replacement workshop manual
    Clean the ball joint mounting seat. Use a wire brush. Use WD-40 spray.
  13. Step 14
    How to change Suspension Ball Joint on VOLVO XC90 I (275) 2014 - tips and tricks
    Install a new ball joint. Use a crowbar.
    Replacement: ball joint – Volvo XC90 1. Professionals recommend:
    Do not damage the ball joint cover.
  14. Step 15
    Step-by-step recommendations for DIY replacement Volvo XC90 Mk1 2002 3.2 AWD Suspension Ball Joint
    Attach the ball joint to the control arm. Use a crowbar.
