Important!

This replacement procedure can be used for:
VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 TDI, VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 1.8, VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.8 VR 6, VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 1.9 D, VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 1.9 TD, VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.4 D, VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.0, VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 TDI Syncro, VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.8 VR6, VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 TDI, VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.4 D, VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.4 D Syncro, VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 Syncro, VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5, VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 Syncro, VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 … View more

The steps may slightly vary depending on the car design.

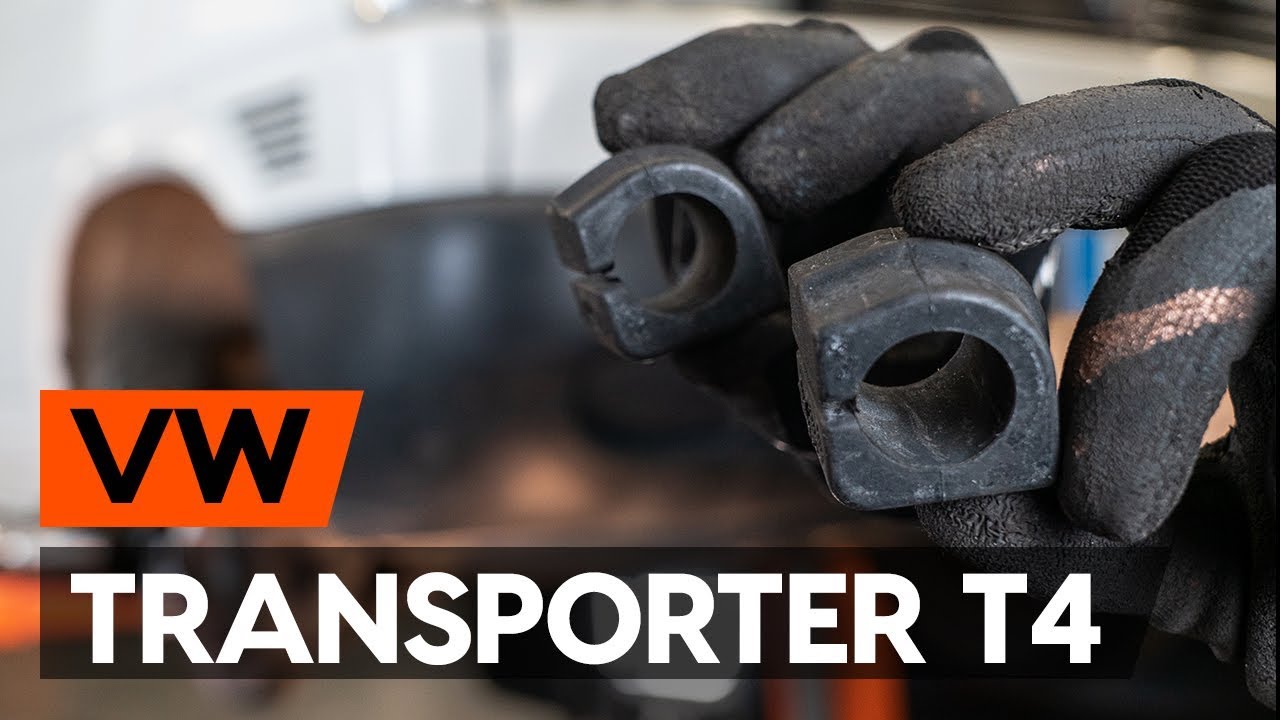

How to change anti roll bar bushes / sway bar bushes on VW TRANSPORTER 4 (T4) [TUTORIAL AUTODOC]

All the parts you need to replace – Anti Roll Bar Bushes for Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) and other VW models

Stabiliser Mounting

Bearing Bush, stabiliser

Repair Kit, stabilizer suspension

Mounting, stabilizer coupling rod

        Stabiliser Mounting for VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 Syncro Petrol (115 hp)

        Stabiliser Mounting for VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 1.9 TD Diesel (68 hp)

        Stabiliser Mounting for VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.4 D Syncro Diesel (78 hp)

        Stabiliser Mounting for VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 Petrol (115 hp)

        Stabiliser Mounting for VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.4 D Diesel (78 hp)

        Stabiliser Mounting for VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 Syncro Petrol (110 hp)

        Stabiliser Mounting for VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.8 VR 6 Petrol (140 hp)

        Stabiliser Mounting for VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.0 Petrol (84 hp)

        Stabiliser Mounting for VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 Petrol (110 hp)

Replacement: anti roll bar bushes – VW Transporter T4. List of the tools you'll need:

                        Wire brush

                        WD-40 spray

                        Copper grease

                        Combination spanner #16

                        Drive socket # 16

                        Wheel impact socket #17

                        Ratchet wrench

                        Torque wrench

                        Crow bar

                        Wheel chock

Buy tools

Replacement: anti roll bar bushes – VW Transporter T4. Tip from AUTODOC:

Both stabilizer bushes should be replaced simultaneously.
The replacement procedure is identical for the right and left stabilizer bushes.
All work should be done with the engine stopped.

Replacement: anti roll bar bushes – VW Transporter T4. Recommended sequence of steps:

Step 1

Secure the wheels with chocks.
Step 2

Loosen the wheel mounting bolts.Use wheel impact socket #17.
Step 3

Raise the front of the car and secure on supports.
Step 4

Unscrew the wheel bolts.

Replacement: anti roll bar bushes – VW Transporter T4. AUTODOC recommends:

To avoid injury, hold up the wheel when unscrewing the bolts.
Step 5

Remove the wheel.
Step 6

Clean the fasteners of the stabilizer bush brackets.Use a wire brush.Use WD-40 spray.
Step 7

Unscrew the fasteners of the stabilizer bush brackets.Use a combination spanner #16.Use a drive socket #16.Use a ratchet wrench.
Step 8

Remove the stabilizer bush brackets.Use a crowbar.
Step 9

Remove the stabilizer bushes.
Step 10

Clean the mounting seats of the stabilizer bushes.Use WD-40 spray.
Step 11

Install the new stabilizer bushes.
Step 12

Install the stabilizer bush brackets.Use a crowbar.
Step 13

Screw the fasteners of the stabilizer bush brackets.Use a drive socket #16.Use a torque wrench.Tighten it to 45 nm torque.
Step 14

Treat the surface where the brake disc contacts the wheel rim. Use copper grease.
Step 15

Install the wheel.

Replacement: anti roll bar bushes – VW Transporter T4. AUTODOC experts recommend:

To avoid injury, hold up the wheel when screwing in the fastening bolts.
Step 16

Screw in the wheel bolts.Use wheel impact socket #17.
Step 17

Lower the car and working in a cross order, tighten the wheel bolts.Use a torque wrench.Tighten it to 170 Nm torque.
Step 18

Remove the jacks and chocks.
