Important!

This replacement procedure can be used for:
TOYOTA LAND CRUISER (KDJ12_, GRJ12_) 3.0 D-4D (KDJ120, KDJ125), TOYOTA LAND CRUISER (KDJ12_, GRJ12_) 3.0 D-4D (KDJ120), TOYOTA LAND CRUISER (KDJ12_, GRJ12_) 4.0 (GRJ120), TOYOTA LAND CRUISER (KDJ12_, GRJ12_) 3.0 D (LJ120, LJ125), TOYOTA LAND CRUISER (KDJ12_, GRJ12_) 4.0 (GRJ120, GRJ125, GRJ121), TOYOTA LAND CRUISER (KDJ12_, GRJ12_) 4.0 (GRJ120), TOYOTA LAND CRUISER (KDJ12_, GRJ12_) 3.0 D (KZJ120), TOYOTA LAND CRUISER (KDJ12_, GRJ12_) 4.0 V6 VVT-i (GRJ125) … View more

The steps may slightly vary depending on the car design.

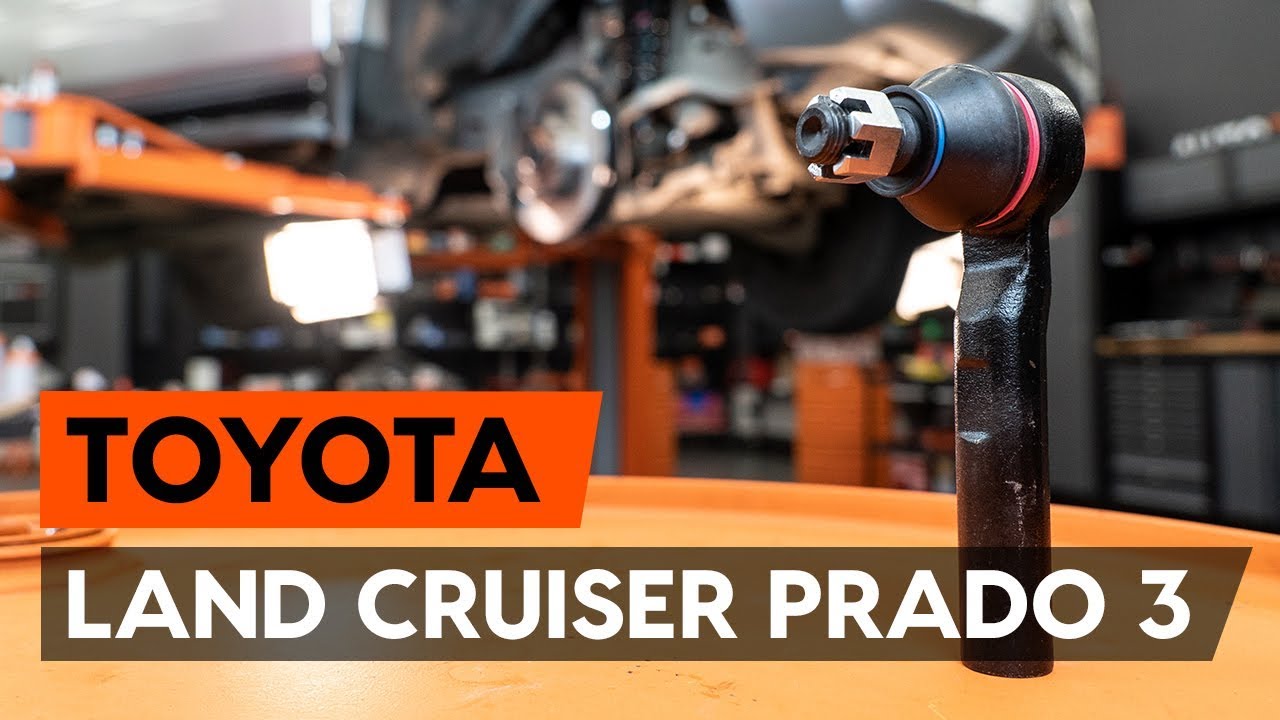

How to change tie rod end / track rod end on TOYOTA LAND CRUISER PRADO 3 (J120) [TUTORIAL AUTODOC]

All the parts you need to replace – Track Rod End for LAND CRUISER (KDJ12_, GRJ12_) and other TOYOTA models

Alternative products

Track rod end

SKTE-0280294 STARK Track rod end

11,31 GBP

Shop

914T0250 RIDEX Track rod end

11,31 GBP

Shop

TA2400 DELPHI Track rod end

11,43 GBP

Shop

JTE7597 TRW Track rod end

11,53 GBP

Shop

ADT387156 BLUE PRINT Track rod end

12,45 GBP

Shop

43187 FEBI BILSTEIN Track rod end

12,53 GBP

Shop

J4822072 HERTH+BUSS JAKOPARTS Track rod end

12,77 GBP

Shop

J4822072 NIPPARTS Track rod end

13,27 GBP

Shop

TO-ES-4996 MOOG Track rod end

15,38 GBP

Shop

45647 SIDEM Track rod end

18,50 GBP

Shop

Replacement: track rod end – Toyota Prado J120. Tools you'll need:

                      Wire brush

                      WD-40 spray

                      Copper grease

                      Combination spanner #14

                      Combination spanner #22

                      Drive socket # 19

                      Wheel impact socket #21

                      Torque wrench

                      Ball joint puller

                      Tap wrench

                      Flat Screwdriver

                      Round-nose pliers

                      Vernier caliper

                      Crow bar

                      Wheel chock

Buy tools

Replacement: track rod end – Toyota Prado J120. AUTODOC recommends:

Replace tie rod ends in pairs.
The replacement procedure is identical for the right and left tie rod ends.
During the installation process, use only new bolts and nuts.
Please note: all work on the car – Toyota Prado J120 – should be done with the engine switched off.

Carry out replacement in the following order:

Step 1

Secure the wheels with chocks.
Step 2

Loosen the wheel mounting bolts. Use wheel impact socket #21.
Step 3

Raise the front of the car and secure on supports.
Step 4

Unscrew the wheel bolts.

Replacement: track rod end – Toyota Prado J120. AUTODOC experts recommend:
To avoid injury, hold up the wheel when unscrewing the bolts.
Step 5

Remove the wheel.
Step 6

Clean the fastener connecting the tie rod end to the steering knuckle. Use a wire brush. Use WD-40 spray.
Step 7

Remove the cotter pin fixing the tie rod end fastening. Use a flat screwdriver. Use round-nose pliers. Use a crowbar.
Step 8

Unscrew the end fastening nut to the steering knuckle. Use a drive socket #19. Use a tap wrench.
Step 9

When deinstalling, mark or measure the precise position of the ball joint on the track rod, or count the number of turns in order to prevent misalignment afterward. Use a vernier caliper.
Step 10

Loosen the lock nut securing the tie rod end to the tie rod. Use a combination spanner #14. Use a combination spanner #22.
Step 11

Disconnect the tie rod end from the steering knuckle. Use a ball joint puller.
Step 12

Screw the end out of the tie rod.
Step 13

Screw on a new tie rod end.

Replacement: track rod end – Toyota Prado J120. Professionals recommend:
While installing the steering rod end remember to make the same number of turns or to leave the same length of thread showing as per your measurements.
Step 14

Treat the threaded part of the tie rod. Use copper grease.
Step 15

Connect the tie rod end to the steering knuckle.
Step 16

Tighten the fastening nut connecting the tie rod end to the steering knuckle. Use a drive socket #19. Use a torque wrench. Tighten it to 91 nm torque.
Step 17

Install the cotter pin fixing the tie rod end fastening. Use round-nose pliers.
Step 18

When deinstalling, mark or measure the precise position of the ball joint on the track rod, or count the number of turns in order to prevent misalignment afterward. Use a vernier caliper.
Step 19

Tighten the tie rod end locknut. Use a combination spanner #14. Use a combination spanner #22. Use a torque wrench. Tighten it to 88 nm torque.
Step 20

Treat the fastener connecting the tie rod end to the steering knuckle. Use copper grease.
Step 21

Treat the surface where the brake disc contacts the wheel rim. Use copper grease.
Step 22

Clean the wheel rim mounting seat. Use a brake cleaner.

AUTODOC recommends:
Replacement: track rod end – Toyota Prado J120. After applying the spray, wait a few minutes.
Step 23

Install the wheel.

Replacement: track rod end – Toyota Prado J120. Tip from AUTODOC:
To avoid injury, hold up the wheel when screwing in the fastening bolts.
Step 24

Screw in the wheel bolts. Use wheel impact socket #21.
Step 25

Lower the car and working in a cross order, tighten the wheel bolts. Use a torque wrench. Tighten it to 112 nm torque.

Replacement: track rod end – Toyota Prado J120. Tip:
Check and adjust wheel alignment if necessary.
Step 26

Remove the jacks and chocks.
