When to replace the Spark Plug on your VW GOLF
Recommended replacement interval for the part category Spark plug : 4 year / 60000 km
Important!
This replacement procedure can be used for:
VW Golf V Hatchback (1K1) 1.4 16V, VW Golf V Hatchback (1K1) 2.0 FSI, VW Golf V Hatchback (1K1) 2.0 … View more

The steps may slightly vary depending on the car design.

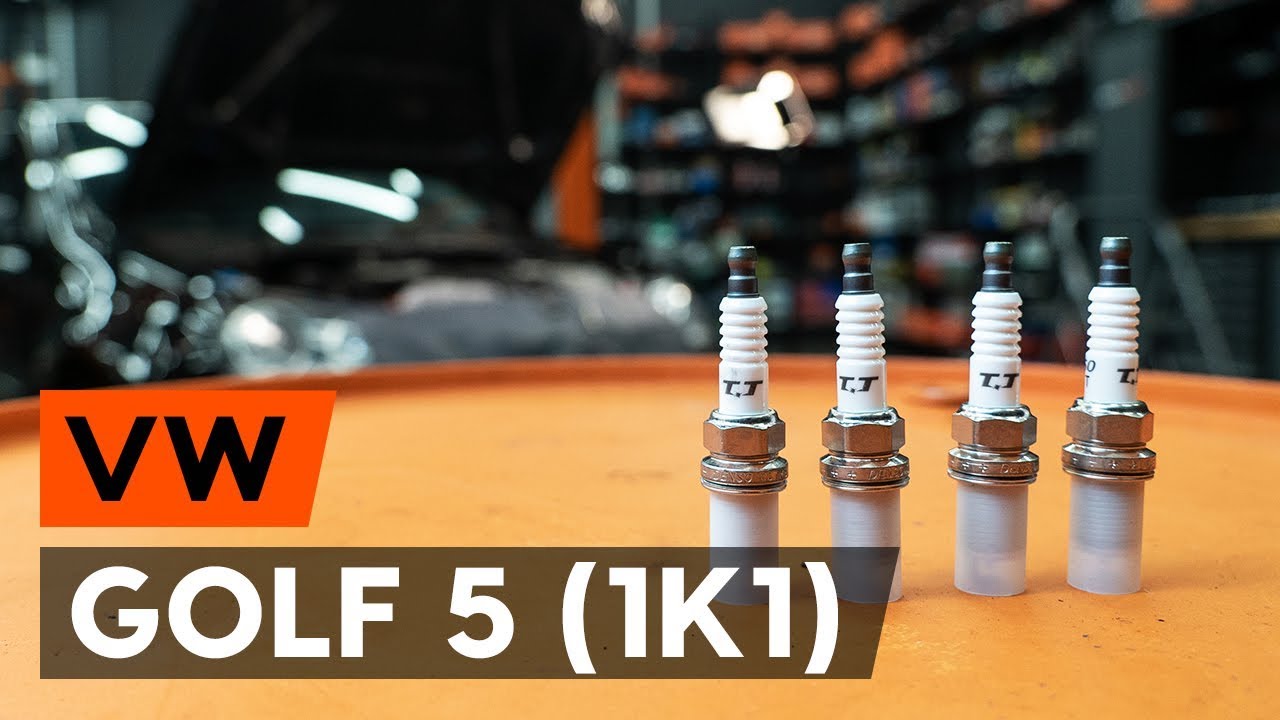

How to change spark plug on VW GOLF 5 (1K1) [TUTORIAL AUTODOC]

video
Published on: 18/09/2019
28K views
All the parts you need to replace – Spark Plug for Golf V Hatchback (1K1) and other VW models
Alternative products
How to change Spark plug on Golf 5 1.9 TDI – step-by-step instructions for straightforward car repair Spark plug
Tools
Replacement: spark plugs – VW Golf 5. Tools you might need:
All-purpose cleaning spray
High-temperature anti-seize lubricant
Drive socket # 13
HEX bit No.H6.
XZN socket bit # 8
Spark plug socket # 16
Ratchet wrench
Torque wrench
Flat Screwdriver
Phillips screwdriver
Microfibre towel
Fender cover
Buy tools
Replacement: spark plugs – VW Golf 5. AUTODOC experts recommend:
  • The replacement procedure is the same for all spark plugs.
  • All work should be done with the engine stopped.
Replacement: spark plugs – VW Golf 5. Use the following procedure:
  1. Step 1
    How to change Spark Plug on Golf 5 2003 - free PDF and video manuals
    Open the hood.
  2. Step 2
    How to replace VW Golf V Hatchback (1K1) 1.9 TDI 2004 Spark Plug - step-by-step manuals and video guides
    Use a fender protection cover to prevent damaging paintwork and plastic parts of the car.
  3. Step 3
    Golf 5 1.6 2005 Spark Plug replacement: free workshop manuals
    Remove the engine cover.
    Replacement: spark plugs – VW Golf 5. Tip:
    Raise the engine cover, holding it on two sides simultaneously.
  4. Step 4
    Changing Spark Plug on VW Golf V Hatchback (1K1) 1.6 FSI 2006 by yourself
    Unscrew the oil dipstick bracket. Use XZN #8. Use a ratchet wrench.
  5. Step 5
    How to remove VW GOLF 2.0 TDI 16V 2007 Spark Plug - online easy-to-follow instructions
    Remove the oil dipstick.
  6. Step 6
    How to replace Spark Plug on VW Golf V Hatchback (1K1) 2008: download PDF manuals and video instructions
    Unscrew the intake manifold fasteners. Use HEX No.H6. Use a drive socket #13. Use a ratchet wrench.
  7. Step 7
    How hard is it to do yourself: Spark Plug replacement on Golf 5 2.0 TDI 2009 - download illustrated guide
    Detach the retainers of the ignition cables.
  8. Step 8
    Need to know how to renew Spark Plug on VW GOLF 2003? This free workshop manual will help you to do it yourself
    Disconnect the vacuum sensor.
  9. Step 9
    Changing of Spark Plug on Golf 5 2004 won't be an issue if you follow this illustrated step-by-step guide
    Detach the vacuum pipe.
  10. Step 10
    VW GOLF 1.9 TDI Spark Plug replacement: online guides and video tutorials
    Unscrew the intake manifold fasteners. Use a Phillips screwdriver.
  11. Step 11
    Replacing Spark Plug on Golf 5 2006 1.9 TDI by yourself
    Remove the intake manifold.
  12. Step 12
    Golf V Hatchback (1K1) 2.0 TDI 16V 2007 Spark Plug DIY replacement workshop manual
    Cover the intake manifold passages with a microfibre towel to prevent dust and dirt from getting inside.
  13. Step 13
    How to change Spark Plug on VW Golf V Hatchback (1K1) 2008 - tips and tricks
    Remove the spark plug wire connectors from the spark plug wells.
    Replacement: spark plugs – VW Golf 5. AUTODOC recommends:
    Be careful to avoid damaging spark plug wires.Remember the sequence of the spark plug wires connectors.
  14. Step 14
    Step-by-step recommendations for DIY replacement Golf 5 2009 2.0 TDI 16V Spark Plug
    Clean dirt, dust and debris from inside the spark plug wells.
  15. Step 15
    DIY replacement of Spark Plug on VW Golf V Hatchback (1K1) 2.0 GTI 2003 is not an issue anymore with our step-by-step tutorial
    Unscrew the spark plugs. Use the spark plug socket #16. Use a ratchet wrench.
  16. Step 16
    How to change Spark Plug on Golf 5 2003 - free PDF and video manuals
    Take out the spark plugs. Use the spark plug socket #16.
  17. Step 17
    How to replace VW Golf V Hatchback (1K1) 1.9 TDI 2004 Spark Plug - step-by-step manuals and video guides
    Apply a thin layer of a special high temperature anti-seize lubricant to the threads of the new spark plugs.
  18. Step 18
    Golf 5 1.6 2005 Spark Plug replacement: free workshop manuals
    Install the new spark plugs into their mounting seats. Use the spark plug socket #16.
  19. Step 19
    Changing Spark Plug on VW Golf V Hatchback (1K1) 1.6 FSI 2006 by yourself
    Screw new spark plugs and tighten them. Use the spark plug socket #16. Use a torque wrench. Tighten it to 25 nm torque.
    Replacement: spark plugs – VW Golf 5. Tip from AUTODOC:
    Don't tighten the plugs with excessive force. Exceeding tightening torque can damage the thread connection. Be careful when working with a spark plug wrench. Its skewing can cause damage to the threaded connection.
  20. Step 20
    How to remove VW GOLF 2.0 TDI 16V 2007 Spark Plug - online easy-to-follow instructions
    Clean the intake manifold fasteners. Use all-purpose cleaning spray.
  21. Step 21
    How to replace Spark Plug on VW Golf V Hatchback (1K1) 2008: download PDF manuals and video instructions
    Treat the spark plug wire connectors. Use high-temperature grease. Use a flat screwdriver.
  22. Step 22
    How hard is it to do yourself: Spark Plug replacement on Golf 5 2.0 TDI 2009 - download illustrated guide
    Install the spark plug wire connectors into the spark plug wells. Make sure you hear a click indicating that it is locked in place.
    AUTODOC recommends:
    Replacement: spark plugs – VW Golf 5. Follow the installation steps.
