Important!

This replacement procedure can be used for:
TOYOTA RAV 4 II (CLA2_, XA2_, ZCA2_, ACA2_) 1.8 (ZCA25_, ZCA26_), TOYOTA RAV 4 II (CLA2_, XA2_, ZCA2_, ACA2_) 2.0 D 4WD (CLA20_, CLA21_), TOYOTA RAV 4 II (CLA2_, XA2_, ZCA2_, ACA2_) 2.4 4WD (ACA23, ACA22), TOYOTA RAV 4 II (CLA2_, XA2_, ZCA2_, ACA2_) 2.4 4WD (ACA23, ACA22), TOYOTA RAV 4 II (CLA2_, XA2_, ZCA2_, ACA2_) 2.0 (ACA26) … View more

The steps may slightly vary depending on the car design.

How to change rear shock absorber on TOYOTA RAV4 II [TUTORIAL AUTODOC]

Alternative products

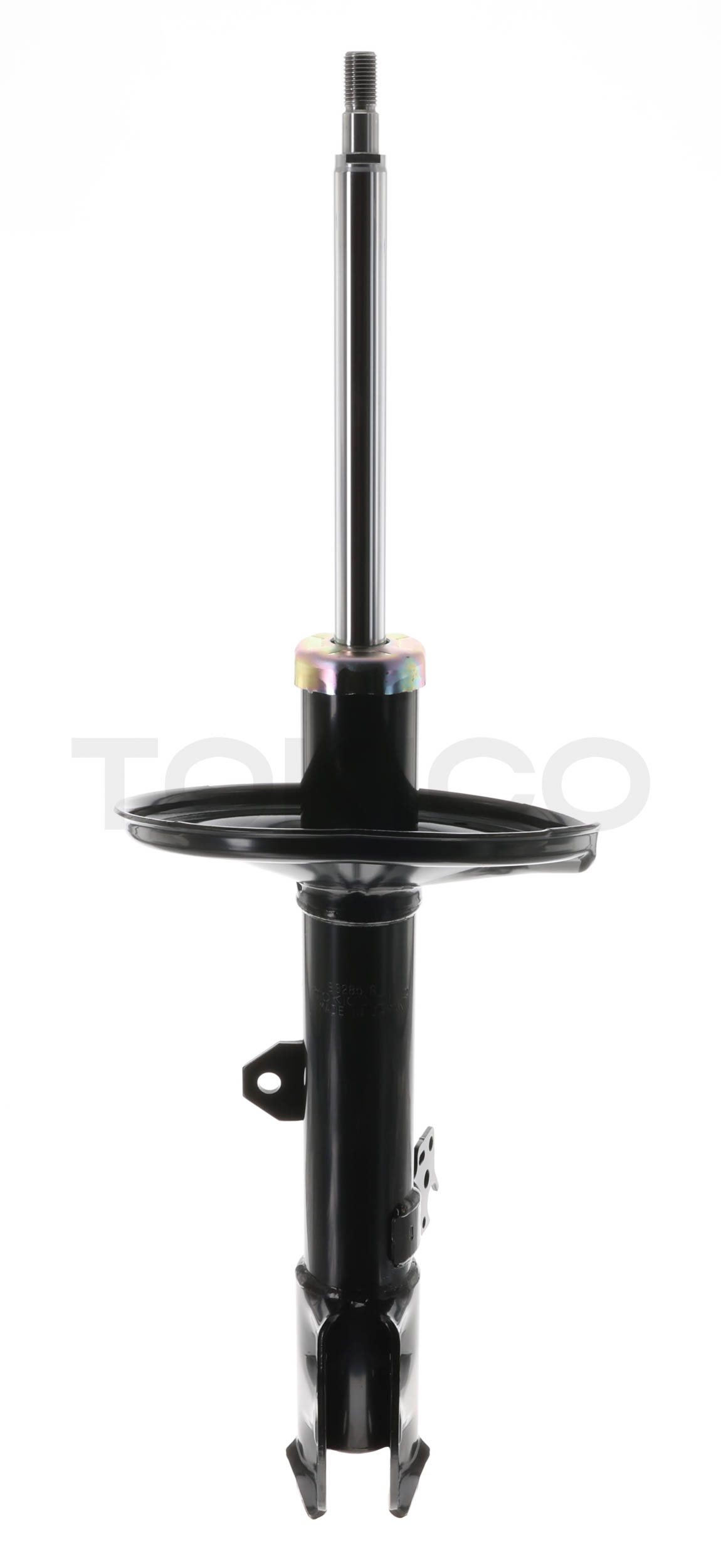

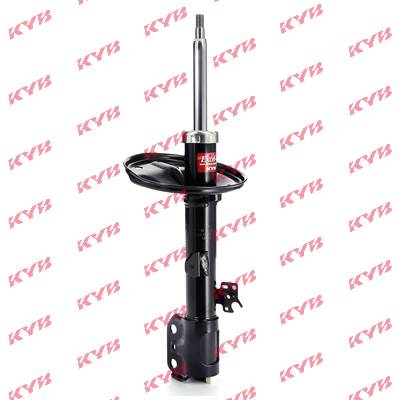

Shock absorber

Replacement: shock absorbers – Toyota RAV4 II. List of the tools you'll need:

                      Wire brush

                      WD-40 spray

                      Brake cleaner

                      Ceramic grease

                      Copper grease

                      Torque wrench

                      Combination spanner #6

                      Combination spanner #14

                      Combination spanner #17

                      Drive socket # 14

                      Wheel impact socket #19

                      Ratchet wrench

                      Crow bar

                      Plastic trim tool

                      Hydraulic transmission jack

                      Wheel chock

Buy tools

Replacement: shock absorbers – Toyota RAV4 II. AUTODOC experts recommend:

Both shock absorbers of the rear suspension should be replaced simultaneously.
The replacement procedure is identical for the left and right shock absorbers of the rear suspension.
Please note: all work on the car – Toyota RAV4 II – should be done with the engine switched off.

Carry out replacement in the following order:

Step 1

Open the boot lid.
Step 2

Remove the cover of the boot side lining. Use a plastic trim tool.
Step 3

Clean the upper fastener of the shock absorber. Use a wire brush. Use WD-40 spray.
Step 4

Loosen the upper fastener of the shock absorber. Use a combination spanner #14 (2 pieces).
Step 5

Secure the wheels with chocks.

Step 6

Loosen the wheel mounting bolts. Use wheel impact socket #19.
Step 7

Raise the car.

Replacement: shock absorbers – Toyota RAV4 II. Professionals recommend:
If you are using a jack, make sure it rests on a flat surface without any unevenness.Be sure to additionally secure the car with jack stands.
Step 8

Unscrew the wheel bolts.

AUTODOC recommends:
Warning! To avoid injury, hold the wheel while unscrewing the fastening bolts. Toyota RAV4 II
Step 9

Remove the wheel.
Step 10

Clean the lower shock absorber fastener. Use a wire brush. Use WD-40 spray.
Step 11

Unscrew the lower fastener of the shock absorber. Use a drive socket #14. Use a ratchet wrench.
Step 12

Remove the fastening bolt.
Step 13

Support the rear knuckle. Use a hydraulic transmission jack.
Step 14

Unscrew the upper fastener of the shock absorber.
Step 15

Remove the elements of the shock absorber upper mount.
Step 16

Remove the support from under the rear knuckle.

AUTODOC recommends:
Replacement: shock absorbers – Toyota RAV4 II. Lower the transmission jack smoothly, without jerks, to avoid damaging components and mechanisms.
Step 17

Remove the shock absorber. Use a crowbar.
Step 18

Clean the shock absorber mounting seats. Use a wire brush. Use WD-40 spray.
Step 19

Place the shock absorber in the wheel arch and fasten it.

AUTODOC recommends:
Before installing a new shock absorber you should pump it manually 3-5 times.
Step 20

Install the fastening bolt.

Step 21

Support the rear knuckle. Use a hydraulic transmission jack.

Replacement: shock absorbers – Toyota RAV4 II. Tip:
For tightening the fasteners correctly, you have to jack up the suspension components to their working position.
Step 22

Tighten the lower fastener of the shock absorber. Use a drive socket #14. Use a torque wrench. Tighten it to 37 Nm torque.
Step 23

Treat the lower fastener of the shock absorber. Use copper grease.
Step 24

Install the elements of the shock absorber upper mount.
Step 25

Screw the upper fastener of the shock absorber.
Step 26

Remove the support from under the rear knuckle.

AUTODOC recommends:
Toyota RAV4 II – Do not lower the transmission jack sharply to avoid damaging components and mechanisms of the car.
Step 27

Clean the wheel rim mounting seat. Use a wire brush.
Step 28

Treat the surface where the brake disc contacts the wheel rim. Use ceramic grease.
Step 29

Clean the brake disk surface. Use a brake cleaner.

AUTODOC recommends:
After applying the spray, wait a few minutes.
Step 30

Install the wheel.

AUTODOC recommends:
Important! Hold the wheel while screwing in the fastening bolts. Toyota RAV4 II
Step 31

Screw in the wheel bolts. Use wheel impact socket #19.
Step 32

Lower the car and working in a cross order, tighten the wheel bolts. Use wheel impact socket #19. Use a torque wrench. Tighten it to 103 Nm torque.
Step 33

Remove the jacks and chocks.
Step 34

Tighten the top shock absorber fastening. Use a combination spanner #17. Use a combination spanner #6. Use a torque wrench. Tighten it to 15 Nm torque.
Step 35

Treat the upper fastener of the shock absorber. Use copper grease.
Step 36

Install the cover of the boot side lining.
Step 37

Close the lid of the luggage compartment.
