How to change rear brake discs on Hyundai Santa Fe CM – replacement guide
downloads:
18
Views:
406
Recommended replacement interval for the part category Brake disc : 50000 km
Important!
This replacement procedure can be used for:
HYUNDAI SANTA FÉ II (CM) 2.2 CRDi, HYUNDAI SANTA FÉ II (CM) 2.2 CRDi 4x4, HYUNDAI SANTA FÉ II (CM) 2.2 CRDi GLS, HYUNDAI SANTA FÉ II (CM) 2.2 CRDi GLS 4x4, HYUNDAI SANTA FÉ II (CM) 2.2 CRDi 4x4, HYUNDAI SANTA FÉ II (CM) 2.7 4x4, HYUNDAI SANTA FÉ II (CM) 2.7, HYUNDAI SANTA FÉ II (CM) 2.7 V6 GLS, HYUNDAI SANTA FÉ II (CM) 2.7 V6 GLS 4x4, HYUNDAI SANTA FÉ II (CM) 2.0 CRDi 4x4, HYUNDAI SANTA FÉ II (CM) 2.0 CRDi 4x4 … View more
The steps may slightly vary depending on the car design.
HYUNDAI SANTA FÉ II (CM) 2.2 CRDi, HYUNDAI SANTA FÉ II (CM) 2.2 CRDi 4x4, HYUNDAI SANTA FÉ II (CM) 2.2 CRDi GLS, HYUNDAI SANTA FÉ II (CM) 2.2 CRDi GLS 4x4, HYUNDAI SANTA FÉ II (CM) 2.2 CRDi 4x4, HYUNDAI SANTA FÉ II (CM) 2.7 4x4, HYUNDAI SANTA FÉ II (CM) 2.7, HYUNDAI SANTA FÉ II (CM) 2.7 V6 GLS, HYUNDAI SANTA FÉ II (CM) 2.7 V6 GLS 4x4, HYUNDAI SANTA FÉ II (CM) 2.0 CRDi 4x4, HYUNDAI SANTA FÉ II (CM) 2.0 CRDi 4x4 … View more
The steps may slightly vary depending on the car design.
How to change rear brake discs and rear brake pads on HYUNDAI SANTA FÉ CM TUTORIAL | AUTODOC
All the parts you need to replace – Brake Discs for SANTA FÉ II (CM) and other HYUNDAI models

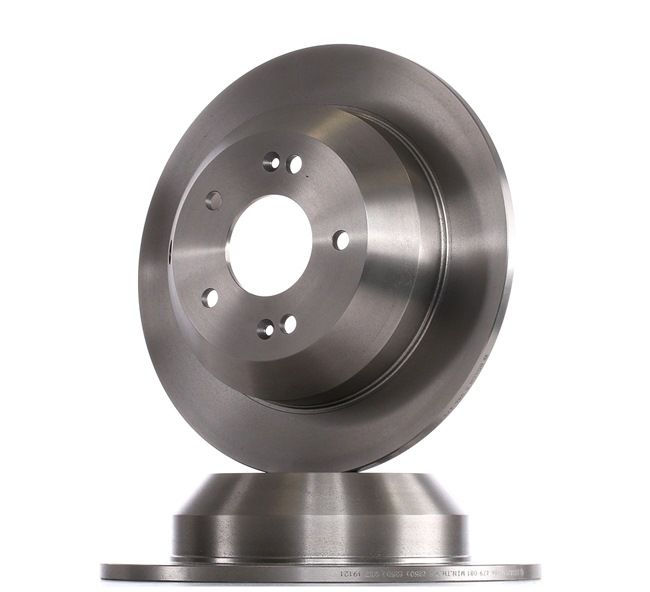

Brake disc

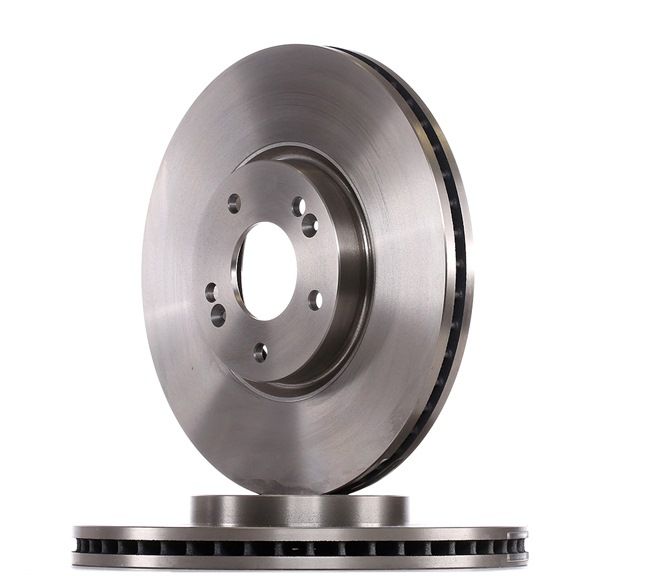

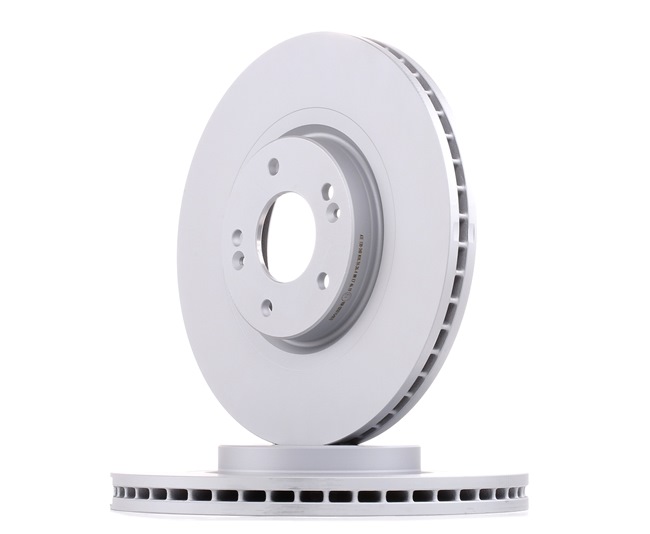

Alternative products
Brake disc
Wire brush
Nylon cleaning brush
WD-40 spray
Brake cleaner
Copper grease
Torque wrench
Combination spanner #17
Drive socket # 14
Wheel impact socket #21
Ratchet wrench
Phillips screwdriver
Brake caliper wind back tool
Crow bar
Wheel chock
AUTODOC recommends:
- Replace the brake disks on the car Hyundai Santa Fe CM in complete set for each axis. Regardless of the state of components. This will ensure even braking.
- The replacement procedure is identical for both brake disks on the same axle.
- When changing the brake discs, always replace the brake pads.
- Please note: all work on the car – Hyundai Santa Fe CM – should be done with the engine switched off.
Carry out replacement in the following order:
- Step 1
Open the hood. Unscrew the brake fluid reservoir cap. - Step 2
Secure the wheels with chocks. - Step 3
Loosen the wheel mounting bolts. Use wheel impact socket #21. - Step 4
Raise the rear of the car and secure on supports. - Step 5
Unscrew the wheel bolts.AUTODOC recommends:Warning! To avoid injury, hold the wheel while unscrewing the fastening bolts. Hyundai Santa Fe CM - Step 6
Remove the wheel. - Step 7Clean the brake caliper fasteners. Use a wire brush. Use WD-40 spray.Step 8
Unscrew the brake caliper fastening. Use a combination spanner #17. Use a drive socket #14. Use a ratchet wrench. - Step 9Remove the guide pins from the old brake caliper.Step 10Spread the brake pads. Use a crowbar.Step 11
Remove the brake caliper. Use a crowbar.Replacement: brake discs – Hyundai Santa Fe CM. AUTODOC recommends:Tie the caliper to the suspension or to the body with a wire without disconnecting from the brake hose to prevent depressurization of the brake system.Make sure that the brake caliper is not hanging on the brake hose.Don't press the brake pedal after the brake caliper has been removed. As a result, the piston can fall out from the brake cylinder, and brake fluid leakage and depressurization of the system may occur. Check the brake caliper bracket, brake caliper guide pins and boots. Clean them. Replace, if necessary. - Step 12
Remove the brake pads. - Step 13Remove the brake pads retaining clips.Step 14
Clean the brake caliper bracket fasteners. Use a wire brush. Use WD-40 spray. - Step 15
Unscrew the caliper bracket fastening. Use a drive socket #14. Use a ratchet wrench. - Step 16Remove the fastening bolts.Step 17
Remove the caliper bracket. - Step 18Clean the brake disc fasteners. Use a wire brush. Use WD-40 spray.Step 19
Unscrew the brake disc mounting bolts and remove it. Use a Phillips screwdriver. - Step 20
Clean the hub. Use a wire brush. Treat the contacting surface. Use WD-40 spray. - Step 21
Install the new brake disc on the hub and screw in the mounting bolts. Use a Phillips screwdriver. Use a torque wrench. Tighten it to 6 Nm torque. - Step 22
Clean the brake caliper bracket from dirt and dust. Use a wire brush. Use a brake cleaner.AUTODOC recommends:Replacement: brake discs – Hyundai Santa Fe CM. After applying the spray, wait a few minutes. - Step 23
Install the brake caliper bracket.
