Recommended replacement interval for the part category Fuel filter : 60000 km

Important!

This replacement procedure can be used for:
VW PASSAT Variant (3B6) 1.9 TDI, VW PASSAT Variant (3B6) 1.9 TDI 4motion … View more

The steps may slightly vary depending on the car design.

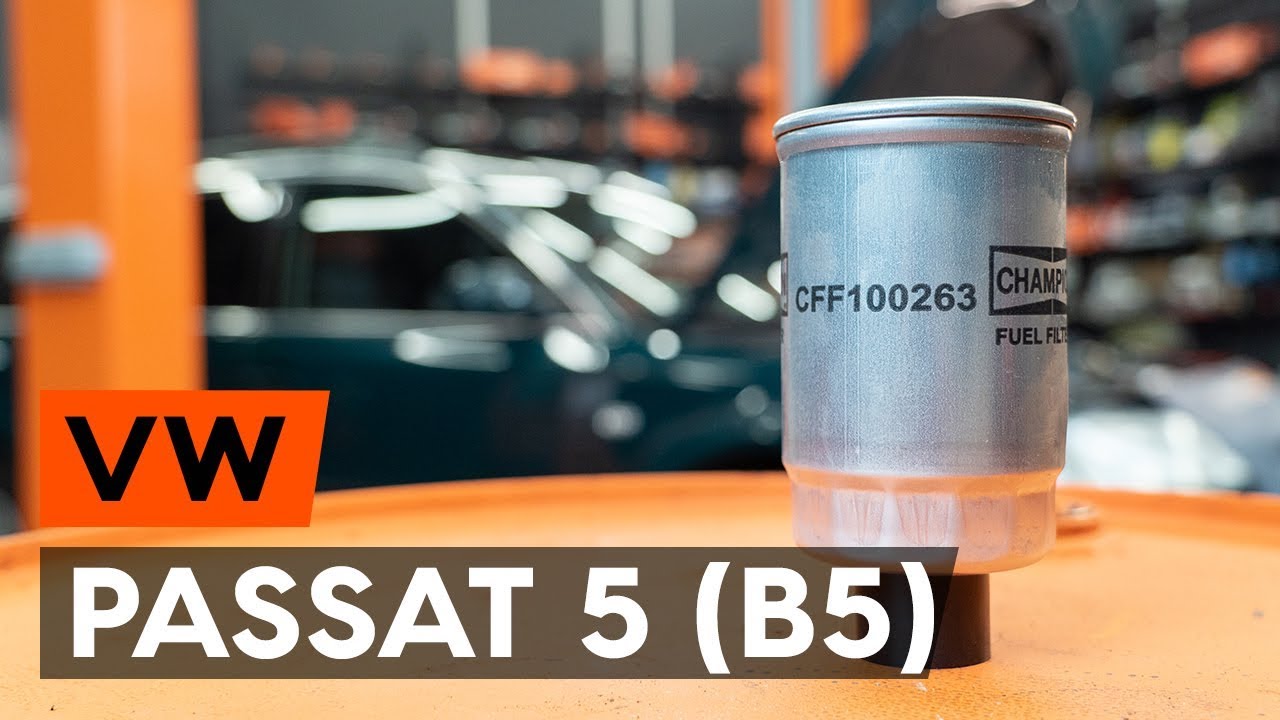

How to change fuel filter VW PASSAT 5 (B5) [TUTORIAL AUTODOC]

All the parts you need to replace – Fuel Filter for PASSAT Variant (3B6) and other VW models

Alternative products

Fuel filter

SKFF-0870062 STARK Fuel filter

1,34 GBP

Shop

SKFF-0870063 STARK Fuel filter

7,58 GBP

Shop

V10-0357-1 VAICO Fuel filter

7,91 GBP

Shop

CFF100263 CHAMPION Fuel filter

9,15 GBP

Shop

153071760107 MAGNETI MARELLI Fuel filter

11,32 GBP

Shop

109 045 TOPRAN Fuel filter

12,06 GBP

Shop

KC 80 MAHLE ORIGINAL Fuel filter

13,58 GBP

Shop

100 127 0013 MEYLE Fuel filter

14,21 GBP

Shop

H122WK HENGST FILTER Fuel filter

15,14 GBP

Shop

1 457 434 329 BOSCH Fuel filter

15,17 GBP

Shop

Replacement: fuel filter – VW Passat B5 Variant. Tools you'll need:

                      All-purpose cleaning spray

                      HEX bit no.H13.

                      Drive socket # 10

                      Ratchet wrench

                      Torque wrench

                      Phillips screwdriver

                      Flat Screwdriver

                      Fender cover

Buy tools

Replacement: fuel filter – VW Passat B5 Variant. Professionals recommend:

Ensure adequate ventilation of the workplace. Fuel vapors are poisonous.
Warning! Shut down the engine before starting any work – VW Passat B5 Variant

Carry out replacement in the following order:

Step 1

Open the bonnet.
Step 2

Use a fender protection cover to prevent damaging paintwork and plastic parts of the car.
Step 3

Remove the engine cover caps. Use a flat screwdriver.
Step 4

Unscrew the engine cover fastener. Use a drive socket #10.
Step 5

Remove the engine cover.

Replacement: fuel filter – VW Passat B5 Variant. Tip:
Raise the engine cover, holding it on two sides simultaneously.
Step 6

Clean the fuel filter. Use all-purpose cleaning spray.
Step 7

Unscrew the fasteners of the fuel filter housing cover. Use HEX No.H13. Use a ratchet wrench.
Step 8

Detach the fuel pressure sensor connector.
Step 9

Unscrew the fuel filter cover.

Step 10

Loosen the fuel filter mounting. Use a Phillips screwdriver.
Step 11

Remove the fuel filter. Put the old filter cartridge in the container.
Step 12

Install a new fuel filter.

Replacement: fuel filter – VW Passat B5 Variant. Tip from AUTODOC experts:
Make sure that the fuel filter is positioned correctly. Consider the fuel flow direction mark.During installation, take care to prevent dust and dirt from getting into the fuel filter housing.Take care to only use quality filters.
Step 13

Tighten the fuel filter fasteners. Use a Phillips screwdriver.
Step 14

Install and tighten the cap of the fuel filter housing.
Step 15

Tighten the fasteners of the fuel filter housing cover. Use HEX No.H13. Use a torque wrench. Tighten it to 25 nm torque.
Step 16

Attach the fuel pressure sensor connector.
Step 17

Install the engine cover and secure it.

AUTODOC recommends:
Make sure the engine cover is properly seated. It should not be displaced with respect to the guiding fasteners.Replacement: fuel filter – VW Passat B5 Variant. Do not use excessive force during installation. This may damage the fasteners.
Step 18

Screw in the engine cover fasteners. Use a drive socket #10.
Step 19

Install the engine cover caps.

Replacement: fuel filter – VW Passat B5 Variant. Tip:
Before starting off, switch the ignition on and off several times. This should be done to activate the fuel pump to make it pump fuel through the fuel system.
Step 20

Run the engine for a few minutes. This is necessary in order to make sure that the component operates properly.
Step 21

Shut off the engine.
Step 22

Remove the fender protection cover.
Step 23

Close the hood.

Replacement: fuel filter – VW Passat B5 Variant. Tip from AUTODOC:
To protect the environment from pollution, be sure to dispose of the used filters at special collection points.
