How to change fuel filter on Renault Master 2 van – replacement guide
downloads:
1
Views:
32
Recommended replacement interval for the part category Fuel filter : 30000 km
Important!
This replacement procedure can be used for:
RENAULT MASTER II Box (FD) 2.2 dCI, RENAULT MASTER II Box (FD) 2.5 dCi, RENAULT MASTER II Box (FD) 2.5 dCi, RENAULT MASTER II Box (FD) 3.0 dCi, RENAULT MASTER II Box (FD) 2.5 dCi, RENAULT MASTER II Box (FD) 2.5 dCi, RENAULT MASTER II Box (FD) 2.5 dCi … View more
The steps may slightly vary depending on the car design.
RENAULT MASTER II Box (FD) 2.2 dCI, RENAULT MASTER II Box (FD) 2.5 dCi, RENAULT MASTER II Box (FD) 2.5 dCi, RENAULT MASTER II Box (FD) 3.0 dCi, RENAULT MASTER II Box (FD) 2.5 dCi, RENAULT MASTER II Box (FD) 2.5 dCi, RENAULT MASTER II Box (FD) 2.5 dCi … View more
The steps may slightly vary depending on the car design.
How to change the fuel filter on the RENAULT MASTER 2 Van [AUTODOC TUTORIAL]

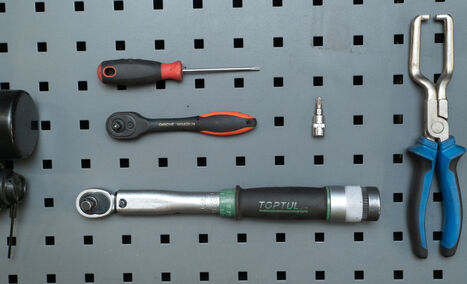

All the parts you need to replace – Fuel Filter for MASTER II Box (FD) and other RENAULT models
Alternative products
Fuel filter
All-purpose cleaning spray
Electronic spray
Torque wrench
T30 Torx bit
Ratchet screwdriver
Fuel line pliers
Fluid drain pan
Fender cover
Replacement: fuel filter – Renault Master 2 van. Professionals recommend:
- Ensure adequate ventilation of the workplace. Fuel vapours are poisonous.
- To avoid fire, wait until the engine has cooled down completely before beginning work. Keep open flames or sources of sparks away from the area.
- Relieve the fuel system pressure using the method specified by your car manufacturer, to prevent fuel from spraying out.
- All the work should be carried out with the ignition switched off.
Replacement: fuel filter – Renault Master 2 van. Use the following procedure:
- Step 1
Open the bonnet. - Step 2
Use a fender protection cover to avoid damaging the paintwork and plastic parts of the car. - Step 3Prepare a fluid drain pan.Step 4
Clean all filter connections. Use an all-purpose cleaning spray. - Step 5
Detach the electrical connector of the fuel filter. - Step 6

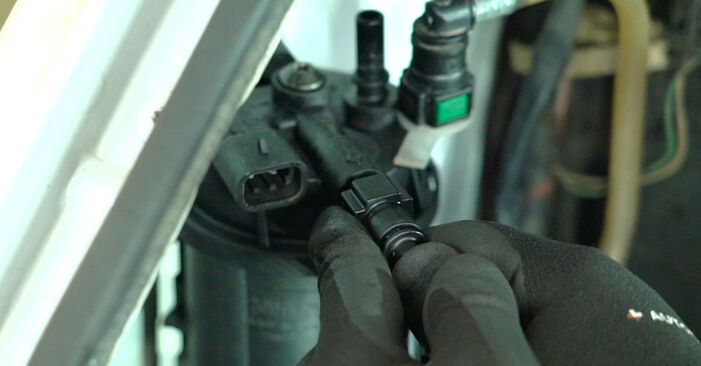

Disconnect the fuel lines from the fuel filter. Plug the fuel lines immediately after disconnecting them to prevent spills and contamination. Use the fuel line pliers. - Step 7
Remove the fuel filter housing. - Step 8
Unscrew the fuel filter cap fastener. Use a T30 Torx bit. Use a ratchet wrench. - Step 9
Remove the fastener. - Step 10
Remove the fuel filter cap. - Step 11Remove the sealing ring.Step 12
Remove the filter element from the fuel filter housing. - Step 13
Clean the fuel filter housing, cap, and cap fastener. Use an all-purpose cleaning spray. - Step 14
Install a new filter element into the fuel filter housing. - Step 15
Install a new sealing ring.
