When to replace the Fuel Filter on your HYUNDAI H-1
Recommended replacement interval for the part category Fuel filter : 3 year / 60000 km
Important!
This replacement procedure can be used for:
HYUNDAI H-1 Travel (TQ) 2.5 CRDi … View more

The steps may slightly vary depending on the car design.

This video shows the replacement procedure of a similar car part on another vehicle

All the parts you need to replace – Fuel Filter for H-1 Travel (TQ) and other HYUNDAI models
How to change Fuel filter on Hyundai H1 Travel 2.5 CRDi – step-by-step instructions for straightforward car repair Fuel filter
How to change Fuel filter on H-1 / i800 Travel (TQ) – tips for proper car maintenance

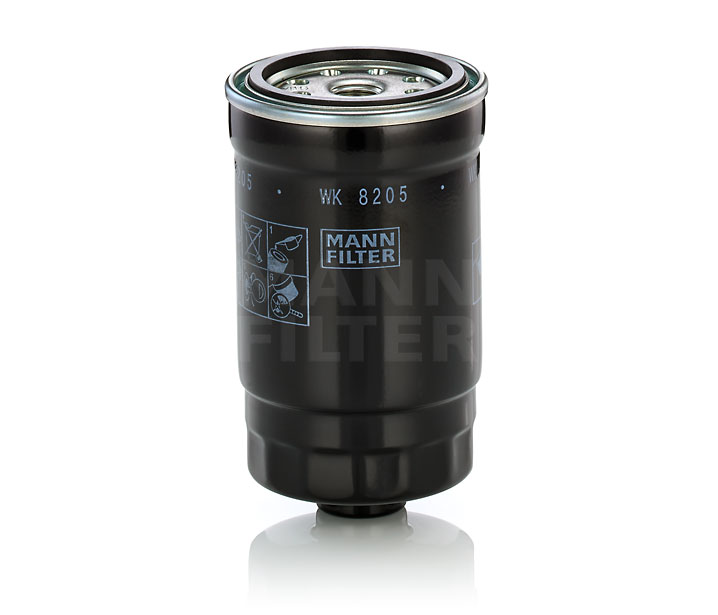

Fuel filter for H-1 / i800 Travel (TQ) Diesel (101 hp)
Tools
Replacement: fuel filter – HYUNDAI H-1 Travel (TQ). Tools you'll need:
All-purpose cleaning spray
Combination spanner #19
Oil filter cup socket #76-14 F
Ratchet wrench
Flat Screwdriver
Fuel line pliers
Fluid container
Fender cover
Buy tools
Replacement: fuel filter – HYUNDAI H-1 Travel (TQ). AUTODOC experts recommend:
  • Ensure adequate ventilation of the workplace. Fuel vapors are poisonous.
  • Please note: all work on the car – HYUNDAI H-1 Travel (TQ) – should be done with the engine switched off.
Carry out replacement in the following order:
  1. Step 1
    Open the bonnet.
    Step 2
    Use a fender protection cover to prevent damaging paintwork and plastic parts of the car.
    Step 3
    How to change Fuel Filter on Hyundai H1 Travel 2008 - free PDF and video manuals
    Detach the fuel pressure sensor connector. Use fuel line pliers. Use a flat screwdriver.
  2. Step 4
    Clean the fasteners of the fuel supply lines. Use all-purpose cleaning spray.
    Step 5
    How to replace HYUNDAI H-1 Travel (TQ) 2.5 CRDi 2009 Fuel Filter - step-by-step manuals and video guides
    Squeeze the clips and detach the fuel supply lines from the fuel filter housing. Use fuel line pliers. Use a flat screwdriver.
    Replacement: fuel filter – HYUNDAI H-1 Travel (TQ). Professionals recommend:
    Be careful! Fuel may leak from the filter housing and hoses.
  3. Step 6
    Hyundai H1 Travel 2.5 CRDI 2010 Fuel Filter replacement: free workshop manuals
    Unscrew the fuel filter bracket fixing bolts. Use a combination spanner #19.
  4. Step 7
    Changing Fuel Filter on HYUNDAI H-1 Travel (TQ) 2.4 2011 by yourself
    Remove the fuel filter together with its bracket.
  5. Step 8
    How to remove HYUNDAI H-1 2.5 TDCi 2012 Fuel Filter - online easy-to-follow instructions
    Unscrew the water-in-fuel sensor.
  6. Step 9
    Prepare a container for fluids.
    Step 10
    How to replace Fuel Filter on HYUNDAI H-1 Travel (TQ) 2013: download PDF manuals and video instructions
    Unscrew the fuel filter bracket. Use the 76-14 F socket. Use a ratchet wrench.
  7. Step 11
    How hard is it to do yourself: Fuel Filter replacement on Hyundai H1 Travel 2.5 CRDI 2014 - download illustrated guide
    Remove the fuel filter fastening bracket. Remove the fuel filter.
    Replacement: fuel filter – HYUNDAI H-1 Travel (TQ). AUTODOC experts recommend:
    Be careful! Fuel may leak from the filter housing and hoses.
  8. Step 12
    Need to know how to renew Fuel Filter on HYUNDAI H-1 2015? This free workshop manual will help you to do it yourself
    Install a new fuel filter. Install the fuel filter fastening bracket.
    Replacement: fuel filter – HYUNDAI H-1 Travel (TQ). AUTODOC recommends:
    Make sure that the fuel filter is positioned correctly. Consider the fuel flow direction mark.During installation, take care to prevent dust and dirt from getting into the fuel filter housing.Attention! Use quality components. HYUNDAI H-1 Travel (TQ)
  9. Step 13
    Changing of Fuel Filter on Hyundai H1 Travel 2016 won't be an issue if you follow this illustrated step-by-step guide
    Screw in the fuel filter mounting bracket. Use the 76-14 F socket. Use a ratchet wrench.
