Important!

This replacement procedure can be used for:
HONDA ACCORD VIII (CU) 2.2 i-DTEC (CU3), HONDA ACCORD VIII (CU) 2.2 i-DTEC (CU3), HONDA ACCORD VIII (CU) 2.0 i (CU1) … View more

The steps may slightly vary depending on the car design.

How to change front strut mount / top munt HONDA ACCORD 8 (CU2) [TUTORIAL AUTODOC]

All the parts you need to replace – Strut Mount for ACCORD VIII (CU) and other HONDA models

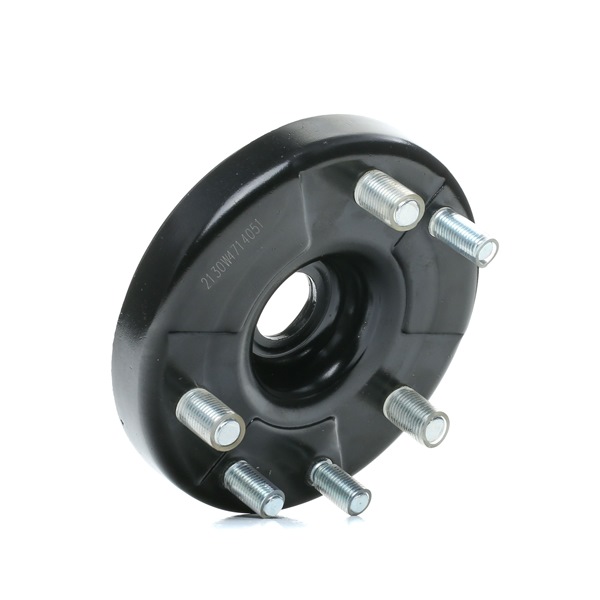

Top strut mount

Repair kit, suspension strut

Suspension Strut Mounting

        Top strut mount for HONDA ACCORD VIII (CU) 2.0 i (CU1) Petrol (156 hp)

        Top strut mount for HONDA ACCORD VIII (CU) 2.2 i-DTEC (CU3) Diesel (150 hp)

        Top strut mount for HONDA ACCORD VIII (CU) 2.2 i-DTEC (CU3) Diesel (180 hp)

Replacement: strut mount – Honda Accord VIII CU. List of the tools you'll need:

                        Wire brush

                        WD-40 spray

                        Copper grease

                        Combination spanner #14

                        Combination spanner #17

                        Drive socket # 12

                        Drive socket # 14

                        Drive socket # 17

                        HEX bit No.H6.

                        Wheel impact socket #19

                        Ratchet wrench

                        Torque wrench

                        Pin punch

                        Tap wrench

                        Hammer

                        Flat chisel

                        Rubber mallet

                        Crow bar

                        Hydraulic strut spring compressor

                        Hydraulic transmission jack

                        Fender cover

                        Wheel chock

Buy tools

Replacement: strut mount – Honda Accord VIII CU. AUTODOC experts recommend:

All mounts of the front shock struts should be replaced simultaneously.
The replacement procedure is identical for the mounts of the left and right shock struts of the front suspension.
Be sure to replace all self-locking nuts and bolts during installation.
All work should be done with the engine stopped.

Replacement: strut mount – Honda Accord VIII CU. Recommended sequence of steps:

Step 1

Open the bonnet.
Step 2

Use a fender protection cover to prevent damaging paintwork and plastic parts of the car.
Step 3

Clean the fasteners of the shock strut upper mount. Use WD-40 spray.
Step 4

Loosen the upper fastener of the shock strut mount. Use a drive socket #14. Use a ratchet wrench.
Step 5

Secure the wheels with chocks.
Step 6

Loosen the wheel mounting bolts. Use wheel impact socket #19.
Step 7

Raise the front of the car and secure on supports.
Step 8

Unscrew the wheel bolts.

Replacement: strut mount – Honda Accord VIII CU. Tip:
To avoid injury, hold up the wheel when unscrewing the bolts.
Step 9

Remove the wheel.
Step 10

Clean the shock strut fasteners. Use a wire brush. Use WD-40 spray.
Step 11

Unscrew the ABS cable holder. Use a drive socket #12. Use a ratchet wrench.
Step 12

Unscrew the fastening bolt that connects the shock strut with the shock absorber fork. Use a drive socket #14. Use a tap wrench.
Step 13

Undo the fastener that connects the shock strut with the shock absorber fork. Use a crowbar. Use a hammer.
Step 14

Pull aside the shock strut from its mounting seat.
Step 15

Clean the fastening bolt that connects the shock absorber fork with the lower control arm. Use a wire brush. Use WD-40 spray.
Step 16

Unscrew the fastening bolt that connects the shock absorber fork with the lower control arm. Use a combination spanner #17. Use a drive socket #17. Use a tap wrench.
Step 17

Remove the fastening bolt. Use a pin punch. Use a rubber mallet.
Step 18

Detach the shock absorber fork from the shock strut. Use a flat metal-working chisel. Use a hammer.
Step 19

Unscrew the top fastening of the shock strut mount. Use a drive socket #14. Use a ratchet wrench.

AUTODOC recommends:
Important! Hold the suspension strut while unscrewing the fastening bolts. Honda Accord VIII CU
Step 20

Support the arm. Use a hydraulic transmission jack.
Step 21

Disconnect the brake hose mounting bracket. Use a drive socket #12. Use a ratchet wrench.
Step 22

Remove the suspension strut.
Step 23

Set the shock absorber strut on the spring compressor tool.

Replacement: strut mount – Honda Accord VIII CU. Professionals recommend:
Note that when using a spring compressor, spring coils need to be securely gripped, compressing the spring on the opposite sides.Ensure the correct position of the spring in the retainer.Make sure that the spring coils tightly entered the lock handles.
Step 24

Compress the spring.
Step 25

Remove the strut piston rod nut. Use a combination spanner #14. Use HEX No.H6. Use a ratchet wrench.
Step 26

Remove the top strut mount. Use a crowbar.
Step 27

Treat the fasteners of the shock strut mount. Use WD-40 spray.

Replacement: strut mount – Honda Accord VIII CU. AUTODOC experts recommend:
Examine the shock absorber dust cap and the bump stop. Replace them if necessary.
Step 28

Install the upper strut mount and the strut mount bearing.
Step 29

Tighten the shock strut piston rod nut. Use a combination spanner #17. Use HEX No.H6. Use a torque wrench. Tighten it to 29 Nm torque.

Replacement: strut mount – Honda Accord VIII CU. AUTODOC recommends:
Check to make sure the spring is positioned correctly. Avoid its misalignment.
Step 30

Decompress the spring.
Step 31

Remove the assembled shock strut.
Step 32

Install the shock strut into the wheel arch.
Step 33

Screw the top fastening of the shock strut mount. Do not tighten it.

AUTODOC recommends:
Honda Accord VIII CU – To avoid injury, hold the suspension strut while screwing in the fastening bolts.
Step 34

Remove the support from under the arm.

AUTODOC recommends:
Replacement: strut mount – Honda Accord VIII CU. Lower the transmission jack smoothly, without jerks, to avoid damaging components and mechanisms.
Step 35

Clean the mounting seats of the shock absorber fork. Use a wire brush. Use WD-40 spray.
Step 36

Attach the shock absorber fork to the shock strut.
Step 37

Install the fastening bolt. Use a rubber mallet.
Step 38

Support the arm. Use a hydraulic transmission jack.
Step 39

Tighten the fastening bolt that connects the shock strut with the shock absorber fork. Use a drive socket #14. Use a torque wrench. Tighten it to 49 Nm torque.
Step 40

Tighten the fastening bolt that connects the shock absorber fork to the lower control arm. Use a combination spanner #17. Use a drive socket #17. Use a torque wrench. Tighten it to 64 Nm torque.
Step 41

Secure the brake hose fastening bracket. Use a drive socket #12. Use a ratchet wrench.
Step 42

Tighten the ABS cable holder. Use a drive socket #12. Use a ratchet wrench.
Step 43

Remove the support from under the arm.

Replacement: strut mount – Honda Accord VIII CU. AUTODOC recommends:
Lower the hydraulic transmission jack smoothly, without jerks, to avoid damaging assemblies and mechanisms.
Step 44

Treat the shock strut fasteners. Use copper grease.
Step 45

Clean the wheel rim mounting seat. Use a wire brush. Treat the contacting surface. Use copper grease.
Step 46

Install the wheel.

AUTODOC recommends:
Important! Hold the wheel while screwing in the fastening bolts. Honda Accord VIII CU
Step 47

Screw in the wheel bolts. Use wheel impact socket #19.
Step 48

Tighten the upper fastener of the shock absorber strut mount. Use a drive socket #14. Use a torque wrench. Tighten it to 22 Nm torque.
Step 49

Treat the fasteners of the shock strut mount. Use copper grease.
Step 50

Lower the car and working in a cross order, tighten the wheel bolts. Use a torque wrench. Tighten it to 108 Nm torque.
Step 51

Remove the fender protection cover.
Step 52

Close the hood.
Step 53

Remove the jacks and chocks.
