Recommended replacement interval for the part category Brake pad set : 30000 km

Important!

This replacement procedure can be used for:
TOYOTA Yaris III Van (XP13) 1.4 D4d (NLP130), TOYOTA Yaris III Van (XP13) 1.0 VVTi (KSP130), TOYOTA Yaris III Van (XP13) 1.3 VVTi (NSP130) … View more

The steps may slightly vary depending on the car design.

This video shows the replacement procedure of a similar car part on another vehicle

Alternative products

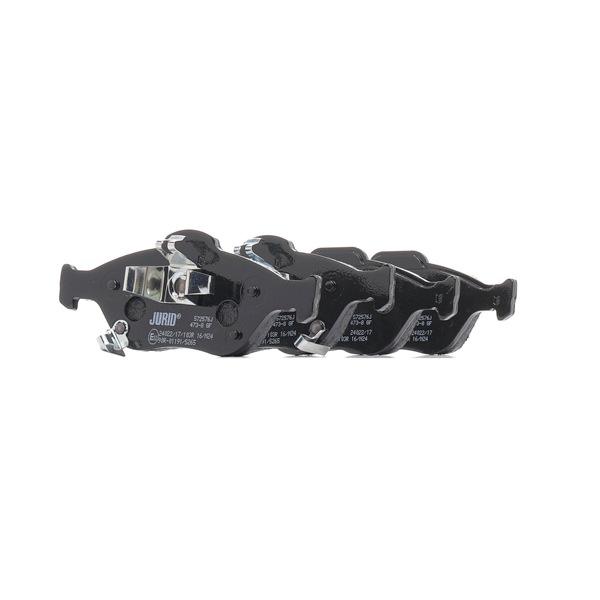

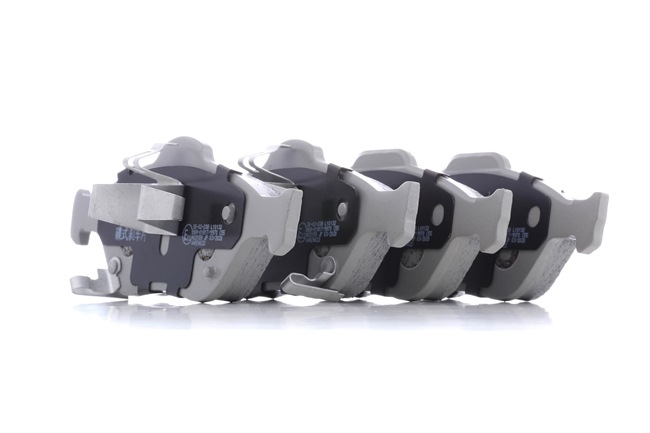

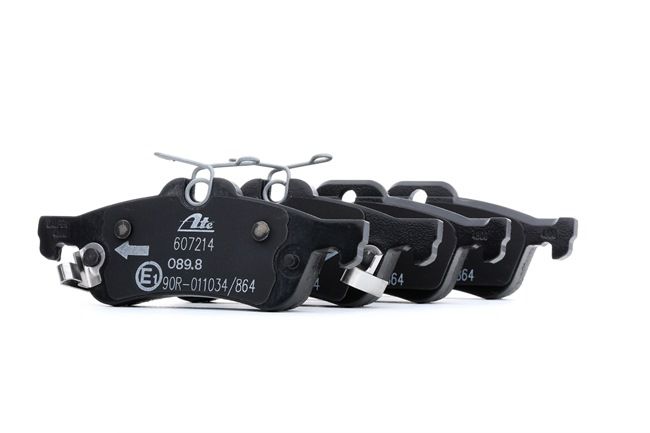

Brake pad set

Replacement: brake pads – TOYOTA Yaris III Kastenwagen (XP13). Tools you might need:

                      Wire brush

                      Nylon cleaning brush

                      Brake cleaner

                      Anti-squeal paste

                      Ceramic grease

                      Torque wrench

                      HEX bit No.H7

                      Wheel impact socket #21

                      Ratchet wrench

                      Brake caliper wind back tool

                      Crow bar

                      Wheel chock

Buy tools

Replacement: brake pads – TOYOTA Yaris III Kastenwagen (XP13). AUTODOC experts recommend:

Perform the replacement of brake pads in complete set for each axis. This provides effective braking.
The replacement procedure is identical for all brake pads on the same axle.
Please note: all work on the car – TOYOTA Yaris III Kastenwagen (XP13) – should be done with the engine switched off.

Carry out replacement in the following order:

Step 1

Open the bonnet. Unscrew the brake fluid reservoir cap.
Step 2

Secure the wheels with chocks.

Step 3

Loosen the wheel mounting bolts. Use wheel impact socket #21.
Step 4

Raise the car.

Replacement: brake pads – TOYOTA Yaris III Kastenwagen (XP13). Tip from AUTODOC:
If you are using a jack, make sure it rests on a flat surface without any unevenness.Be sure to additionally secure the car with jack stands.
Step 5

Unscrew the wheel bolts.

AUTODOC recommends:
Warning! To avoid injury, hold the wheel while unscrewing the fastening bolts. TOYOTA Yaris III Kastenwagen (XP13)
Step 6

Remove the wheel.
Step 7

Remove the dust boot caps of the brake caliper guide pins. Use a crowbar.
Step 8

Unscrew the brake caliper fasteners. Use HEX No.H7. Use a ratchet wrench.
Step 9

Detach the brake caliper retaining spring. Use a crowbar.
Step 10

Spread the brake pads. Use a crowbar.
Step 11

Remove the brake caliper. Use a crowbar.

Replacement: brake pads – TOYOTA Yaris III Kastenwagen (XP13). Professionals recommend:
Tie the caliper to the suspension or to the body with a wire without disconnecting from the brake hose to prevent depressurization of the brake system.Make sure that the brake caliper is not hanging on the brake hose.Don't press the brake pedal after the brake caliper has been removed. As a result, the piston can fall out from the brake cylinder, and brake fluid leakage and depressurization of the system may occur.
Step 12

Remove the brake pads.

AUTODOC recommends:
Measure the brake disc thickness. Upon reaching the wear limit the part must be replaced.
Step 13

Treat the brake caliper piston. Use a nylon cleaning brush. Use a brake cleaner.

AUTODOC recommends:
Replacement: brake pads – TOYOTA Yaris III Kastenwagen (XP13). After applying the spray, wait a few minutes.
Step 14

Press in the brake caliper piston. Use brake caliper wind back tool.

Replacement: brake pads – TOYOTA Yaris III Kastenwagen (XP13). Tip from AUTODOC experts:
Check the brake caliper bracket, brake caliper guide pins and boots. Clean them. Replace, if necessary.
Step 15

Clean the brake caliper bracket from dirt and dust. Use a wire brush. Use a brake cleaner.

AUTODOC recommends:
Replacement: brake pads – TOYOTA Yaris III Kastenwagen (XP13). After applying the spray, wait a few minutes.
Step 16

Treat the brake pads in the area where their surface comes into contact with the brake caliper bracket. Use anti-squeal paste.

Replacement: brake pads – TOYOTA Yaris III Kastenwagen (XP13). Tip from AUTODOC:
Make sure the disc surface is clean before installing the pads.
Step 17

Install new brake pads.

AUTODOC recommends:
Measure the brake disc thickness. Upon reaching the wear limit the part must be replaced.
Step 18

Install the brake caliper and fix it.
Step 19

Tighten the brake caliper fasteners. Use HEX No.H7. Use a torque wrench. Tighten it to 34 nm torque.
Step 20

Install the dust boot caps of the brake caliper guide pins.
Step 21

Install the brake caliper retaining spring. Use a crowbar.
Step 22

Clean the wheel rim mounting seat. Use a wire brush.
Step 23

Treat the surface where the brake disc contacts the wheel rim. Use ceramic grease.
Step 24

Clean the brake disk surface. Use a brake cleaner.

AUTODOC recommends:
Replacement: brake pads – TOYOTA Yaris III Kastenwagen (XP13). After applying the spray, wait a few minutes.
Step 25

Install the wheel.

AUTODOC recommends:
Warning! To avoid injury, hold the wheel while screwing in the fastening bolts on the car. TOYOTA Yaris III Kastenwagen (XP13)
Step 26

Screw in the wheel bolts. Use wheel impact socket #21.
Step 27

Lower the car and working in a cross order, tighten the wheel bolts. Use wheel impact socket #21. Use a torque wrench. Tighten it to 103 Nm torque.
Step 28

Remove the jacks and chocks.

Replacement: brake pads – TOYOTA Yaris III Kastenwagen (XP13). Tip from AUTODOC experts:
Without starting the engine, press the brake pedal several times until you feel significant resistance.Check the brake fluid level in the expansion tank and refill if necessary.
Step 29

Tighten the brake fluid reservoir cap. Close the hood.
