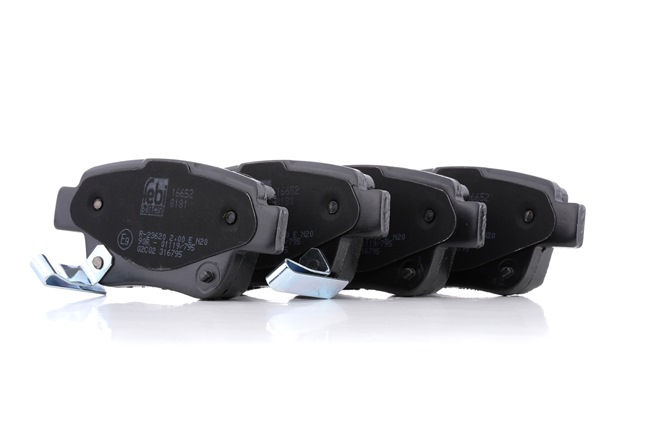

Brake pad set

Replacement: brake pads – TOYOTA COROLLA Verso (ZER_, ZZE12_, R1_). Tools you need:

                      Wire brush

                      WD-40 spray

                      Brake cleaner

                      Anti-squeal paste

                      Copper grease

                      Combination spanner #13

                      Combination spanner #17

                      Drive socket # 13

                      Wheel impact socket #21

                      Brake caliper wind back tool

                      Torque wrench

                      Crow bar

                      Wheel chock

Buy tools

Replacement: brake pads – TOYOTA COROLLA Verso (ZER_, ZZE12_, R1_). AUTODOC recommends:

Perform the replacement of brake pads in complete set for each axis. This provides effective braking.
The replacement procedure is identical for all brake pads on the same axle.
All work should be done with the engine stopped.

Replacement: brake pads – TOYOTA COROLLA Verso (ZER_, ZZE12_, R1_). Use the following procedure:

Step 1

Open the bonnet. Unscrew the brake fluid reservoir cap.

Step 2

Secure the wheels with chocks.
Step 3

Loosen the wheel mounting bolts. Use wheel impact socket #21.
Step 4

Raise the front of the car and secure on supports.

Step 5

Unscrew the wheel bolts.

Replacement: brake pads – TOYOTA COROLLA Verso (ZER_, ZZE12_, R1_). Tip from AUTODOC:
To avoid injury, hold up the wheel when unscrewing the bolts.
Step 6

Remove the wheel.
Step 7

Spread the brake pads. Use a crowbar.
Step 8

Clean the brake caliper fasteners. Use a wire brush. Use WD-40 spray.
Step 9

Unscrew the brake caliper fastening. Use a combination spanner #13. Use a combination spanner #17.
Step 10

Remove the brake caliper.

Replacement: brake pads – TOYOTA COROLLA Verso (ZER_, ZZE12_, R1_). Tip:
Tie the caliper to the suspension or to the body with a wire without disconnecting from the brake hose to prevent depressurization of the brake system.Make sure that the brake caliper is not hanging on the brake hose.Don't press the brake pedal after the brake caliper has been removed. As a result, the piston can fall out from the brake cylinder, and brake fluid leakage and depressurization of the system may occur. Check the brake caliper bracket, brake caliper guide pins and boots. Clean them. Replace, if necessary.
Step 11

Remove the brake pads. Use a crowbar.

Replacement: brake pads – TOYOTA COROLLA Verso (ZER_, ZZE12_, R1_). AUTODOC experts recommend:
Measure the brake disc thickness. Upon reaching the wear limit the part must be replaced.
Step 12

Clean the brake caliper bracket from dirt and dust. Use a wire brush. Use WD-40 spray.
Step 13

Treat the brake caliper piston. Use a brake cleaner.

AUTODOC recommends:
Replacement: brake pads – TOYOTA COROLLA Verso (ZER_, ZZE12_, R1_). After applying the spray, wait a few minutes.
Step 14

Press in the brake caliper piston. Use brake caliper wind back tool.
Step 15

Treat the brake pads in the area where their surface comes into contact with the brake caliper bracket. Use anti-squeal paste.

Replacement: brake pads – TOYOTA COROLLA Verso (ZER_, ZZE12_, R1_). Tip from AUTODOC experts:
Make sure the disc surface is clean before installing the pads.
Step 16

Install new brake pads.

AUTODOC recommends:
Make sure the pads are installed with linings facing the disc.
Step 17

Install the brake caliper and fix it. Use a drive socket #13. Use a torque wrench. Tighten it to 35 Nm torque.
Step 18

Treat the surface where the brake disc contacts the wheel rim. Use copper grease.
Step 19

Clean the brake disk surface. Use a brake cleaner.

Replacement: brake pads – TOYOTA COROLLA Verso (ZER_, ZZE12_, R1_). AUTODOC experts recommend:
After applying the spray, wait a few minutes.
Step 20

Install the wheel.

AUTODOC recommends:
Important! Hold the wheel while screwing in the fastening bolts. TOYOTA COROLLA Verso (ZER_, ZZE12_, R1_)
Step 21

Screw in the wheel bolts. Use wheel impact socket #21.
Step 22

Lower the car and working in a cross order, tighten the wheel bolts. Use a torque wrench. Tighten it to 103 Nm torque.
Step 23

Remove the jacks and chocks.

AUTODOC recommends:
Important! Replacement: brake pads – TOYOTA COROLLA Verso (ZER_, ZZE12_, R1_). Check the brake fluid level in the reservoir and top up if necessary.
Step 24

Tighten the brake fluid reservoir cap.

AUTODOC recommends:
TOYOTA COROLLA Verso (ZER_, ZZE12_, R1_) – Press the brake pedal several times with the engine shut down until you feel the resistance built up.
Step 25

Close the hood.

Replacement: brake pads – TOYOTA COROLLA Verso (ZER_, ZZE12_, R1_). AUTODOC recommends:
Slow down smoothly for first 150-200 km after the brake pads replacement. Avoid unneccessary and sharp braking to a stop.
