How to change front brake pads on Opel Zafira B A05 – replacement guide
downloads:
16
Views:
370
Recommended replacement interval for the part category Brake pad set : 30000 km
Important!
This replacement procedure can be used for:
OPEL ZAFIRA B (A05) 1.6 (M75), OPEL ZAFIRA B (A05) 2.0 (M75), OPEL ZAFIRA B (A05) 2.2 (M75), OPEL ZAFIRA B (A05) 1.9 CDTI (M75), OPEL ZAFIRA B (A05) 1.9 CDTI (M75), OPEL ZAFIRA B (A05) 1.9 CDTI (M75), OPEL ZAFIRA B (A05) 1.6 CNG (M75), OPEL ZAFIRA B (A05) 1.6 (M75), OPEL ZAFIRA B (A05) 1.7 CDTI (M75), OPEL ZAFIRA B (A05) 1.7 CDTI (M75), OPEL ZAFIRA B (A05) 1.6 CNG Turbo (M75), OPEL ZAFIRA B (A05) 1.8 (M75), OPEL ZAFIRA B (A05) 1.6 FlexFuel (M75) … View more
The steps may slightly vary depending on the car design.
OPEL ZAFIRA B (A05) 1.6 (M75), OPEL ZAFIRA B (A05) 2.0 (M75), OPEL ZAFIRA B (A05) 2.2 (M75), OPEL ZAFIRA B (A05) 1.9 CDTI (M75), OPEL ZAFIRA B (A05) 1.9 CDTI (M75), OPEL ZAFIRA B (A05) 1.9 CDTI (M75), OPEL ZAFIRA B (A05) 1.6 CNG (M75), OPEL ZAFIRA B (A05) 1.6 (M75), OPEL ZAFIRA B (A05) 1.7 CDTI (M75), OPEL ZAFIRA B (A05) 1.7 CDTI (M75), OPEL ZAFIRA B (A05) 1.6 CNG Turbo (M75), OPEL ZAFIRA B (A05) 1.8 (M75), OPEL ZAFIRA B (A05) 1.6 FlexFuel (M75) … View more
The steps may slightly vary depending on the car design.

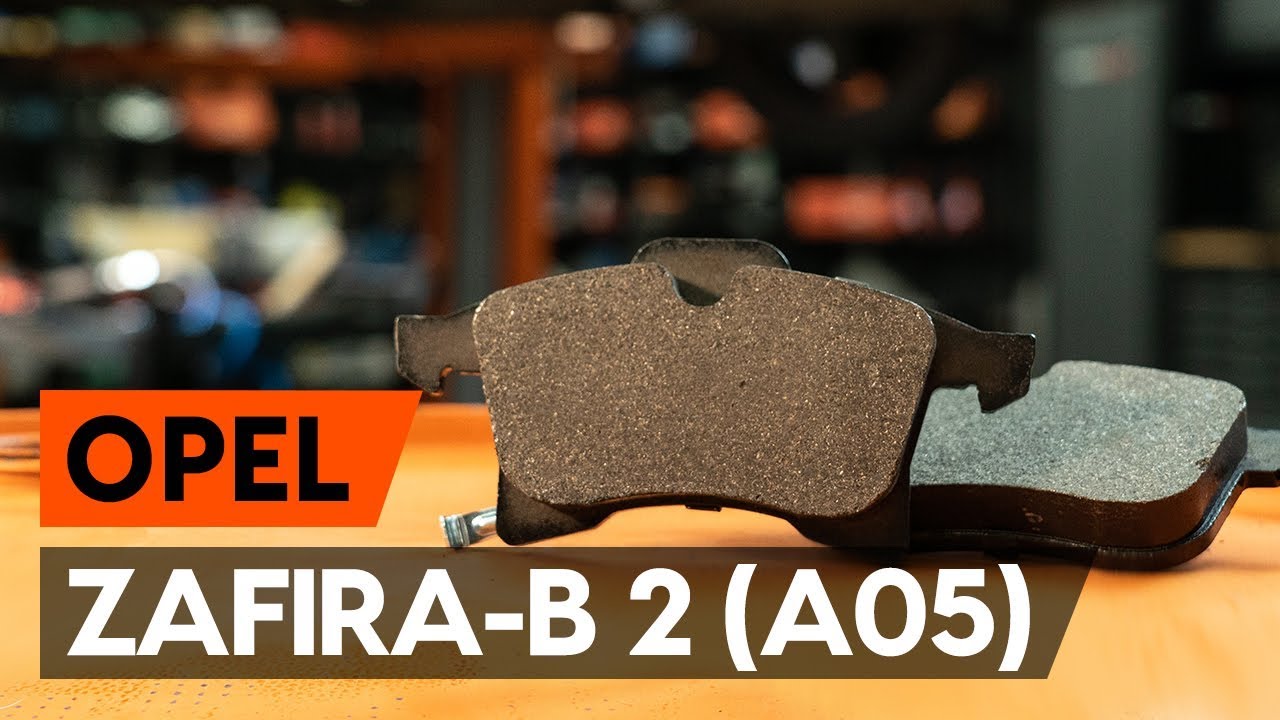

How to change front brake pads / front brake pad set on OPEL ZAFIRA-B 2 (A05) [TUTORIAL AUTODOC]
All the parts you need to replace – Brake Pads for ZAFIRA B (A05) and other OPEL models

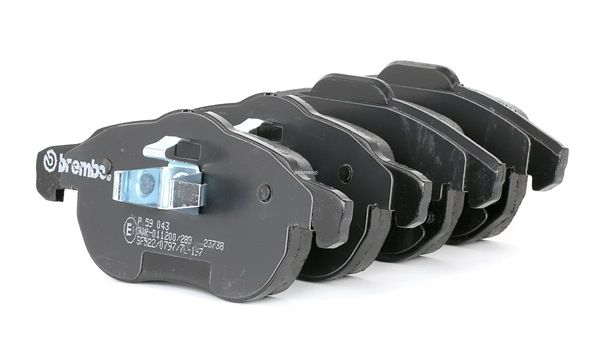

Brake pad set
Alternative products

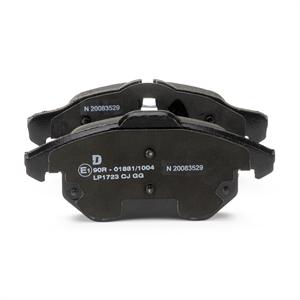

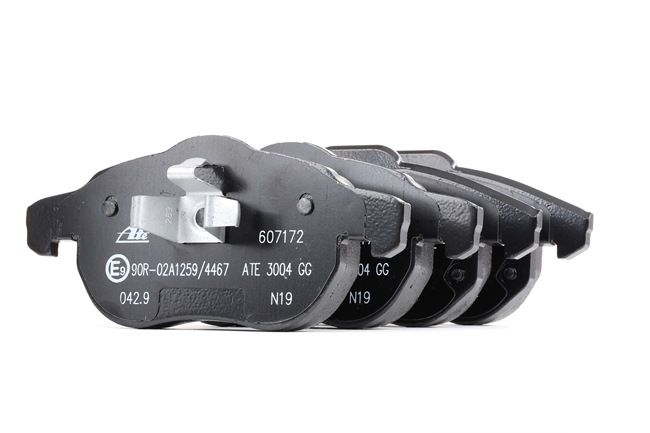

Brake pad set
Wire brush
Brake cleaner
Anti-squeal paste
Copper grease
HEX bit No.H7.
Wheel impact socket #17
Brake caliper wind back tool
Ratchet wrench
Torque wrench
Crow bar
Wheel chock
Replacement: brake pads – Opel Zafira B A05. AUTODOC recommends:
- Perform the replacement of brake pads in complete set for each axis. This provides effective braking.
- The replacement procedure is identical for all brake pads on the same axle.
- All work should be done with the engine stopped.
Replacement: brake pads – Opel Zafira B A05. Take the following steps:
- Step 1
Open the bonnet. Unscrew the brake fluid reservoir cap. - Step 2
Secure the wheels with chocks. - Step 3
Loosen the wheel mounting bolts. Use wheel impact socket #17. - Step 4
Raise the front of the car and secure on supports. - Step 5
Unscrew the wheel bolts.Replacement: brake pads – Opel Zafira B A05. Tip:To avoid injury, hold up the wheel when unscrewing the bolts. - Step 6
Remove the wheel. - Step 7
Remove the dust boot caps of the brake caliper guide pins. Use a crowbar. - Step 8
Unscrew the brake caliper fastening. Use HEX No.H7. Use a ratchet wrench. - Step 9
Spread the brake pads. Use a crowbar. - Step 10
Pull aside the brake caliper retaining spring. Use a crowbar. - Step 11
Remove the brake caliper.Replacement: brake pads – Opel Zafira B A05. AUTODOC experts recommend:Tie the caliper to the suspension or to the body with a wire without disconnecting from the brake hose to prevent depressurization of the brake system.Make sure that the brake caliper is not hanging on the brake hose.Don't press the brake pedal after the brake caliper has been removed. As a result, the piston can fall out from the brake cylinder, and brake fluid leakage and depressurization of the system may occur. Check the brake caliper bracket, brake caliper guide pins and boots. Clean them. Replace, if necessary. - Step 12
Remove the brake pads.Replacement: brake pads – Opel Zafira B A05. Tip from AUTODOC:Measure the brake disc thickness. Upon reaching the wear limit the part must be replaced. - Step 13
Clean the brake caliper bracket from dirt and dust. Use a wire brush. Use a brake cleaner.AUTODOC recommends:Replacement: brake pads – Opel Zafira B A05. After applying the spray, wait a few minutes. - Step 14
Treat the brake caliper piston. Use a brake cleaner.Replacement: brake pads – Opel Zafira B A05. Tip:After applying the spray, wait a few minutes. - Step 15
Press in the brake caliper piston. Use brake caliper wind back tool. - Step 16
Treat the brake pads in the area where their surface comes into contact with the brake caliper bracket. Use anti-squeal paste.Replacement: brake pads – Opel Zafira B A05. Professionals recommend:Make sure the disc surface is clean before installing the pads.
