Recommended replacement interval for the part category Brake Disc : 50000 km

Important!

This replacement procedure can be used for:
HONDA INSIGHT (ZE_) 1.3 Hybrid (ZE2), HONDA INSIGHT (ZE_) 1.3 Hybrid (ZE28, ZE2) … View more

The steps may slightly vary depending on the car design.

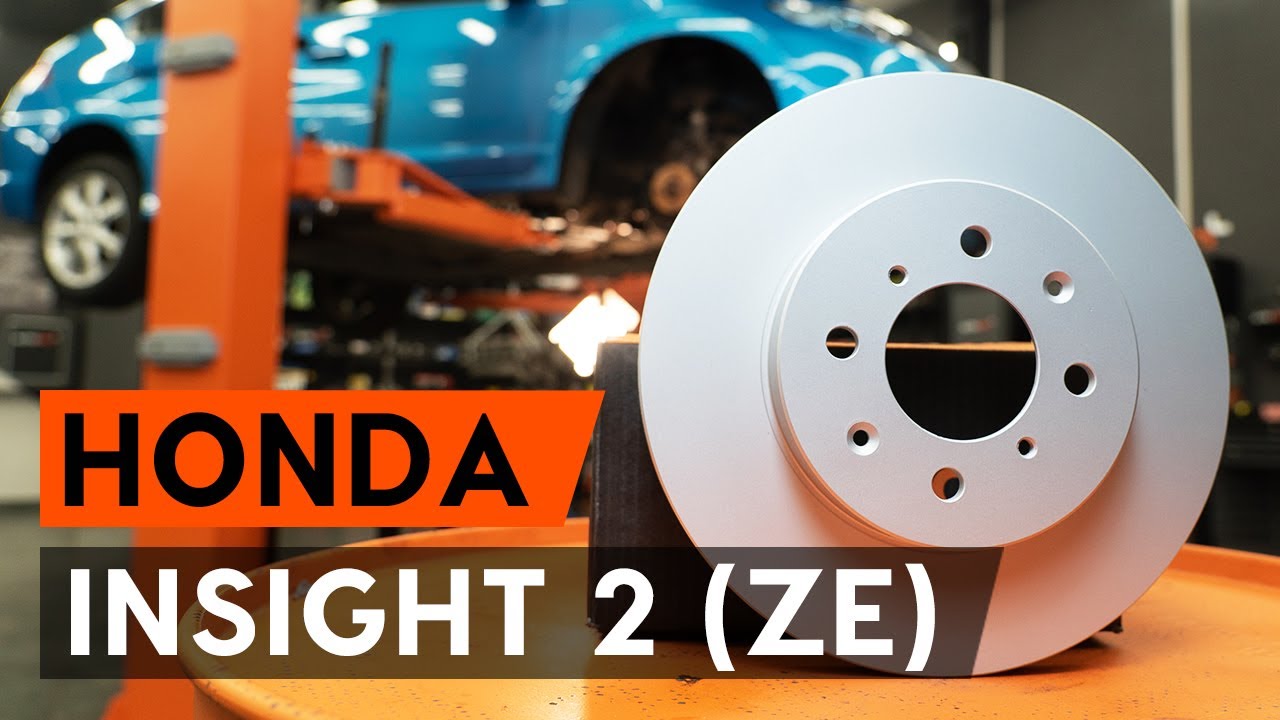

How to change front brake discs / front brake rotors on HONDA INSIGHT 2 (ZE) [TUTORIAL AUTODOC]

All the parts you need to replace – Brake Discs for INSIGHT (ZE_) and other HONDA models

Brake Disc

HONDA INSIGHT (ZE_) 1.3 Hybrid (ZE28, ZE2)

HONDA INSIGHT (ZE_) 1.3 Hybrid (ZE2)

Replacement: brake discs – Honda Insight ZE2_ZE3. Tools you need:

                        Wire brush

                        WD-40 spray

                        Brake cleaner

                        Copper grease

                        Drive socket # 12

                        Drive socket # 19

                        Wheel impact socket #19

                        Brake caliper wind back tool

                        Ratchet wrench

                        Torque wrench

                        Impact screwdriver

                        Phillips screwdriver

                        Tap wrench

                        Crow bar

                        Wheel chock

Buy tools

Replacement: brake discs – Honda Insight ZE2_ZE3. Professionals recommend:

Replace the brake disks on the car Honda Insight ZE2_ZE3 in complete set for each axis. Regardless of the state of components. This will ensure even braking.
The replacement procedure is identical for both brake disks on the same axle.
When changing the brake discs, always replace the brake pads.
All work should be done with the engine stopped.

Replacement: brake discs – Honda Insight ZE2_ZE3. Take the following steps:

Step 1

Open the bonnet.Unscrew the brake fluid reservoir cap.
Step 2

Secure the wheels with chocks.
Step 3

Loosen the wheel mounting bolts.Use wheel impact socket #19.
Step 4

Raise the front of the car and secure on supports.
Step 5

Unscrew the wheel bolts.

AUTODOC recommends:

Warning! To avoid injury, hold the wheel while unscrewing the fastening bolts. Honda Insight ZE2_ZE3
Step 6

Remove the wheel.
Step 7

Clean the brake caliper fasteners. Use a wire brush.Use WD-40 spray.
Step 8

Spread the brake pads.Use a crowbar.
Step 9

Unscrew the brake caliper fastening.Use a drive socket #12.Use a ratchet wrench.
Step 10

Remove the brake caliper.

Replacement: brake discs – Honda Insight ZE2_ZE3. AUTODOC recommends:

Tie the caliper to the suspension or to the body with a wire without disconnecting from the brake hose to prevent depressurization of the brake system.Make sure that the brake caliper is not hanging on the brake hose.Don't press the brake pedal after the brake caliper has been removed. As a result, the piston can fall out from the brake cylinder, and brake fluid leakage and depressurization of the system may occur. Check the brake caliper bracket, brake caliper guide pins and boots. Clean them. Replace, if necessary.
Step 11

Remove the brake pads.Use a crowbar.
Step 12

Clean the brake caliper bracket fasteners. Use a wire brush.Use WD-40 spray.
Step 13

Unscrew the caliper bracket fastening.Use a drive socket #19.Use a tap wrench.Use a ratchet wrench.
Step 14

Remove the caliper bracket.
Step 15

Clean the brake disc fasteners.Use a wire brush.Use WD-40 spray.
Step 16

Unscrew the brake disc fastening.Use a Phillips screwdriver.Use an impact screwdriver.
Step 17

Remove the brake disc.
Step 18

Clean the hub.Use a wire brush.Treat the contacting surface.Use copper grease.
Step 19

Install the brake disc.
Step 20

Tighten the brake disc fastening.Use a Phillips screwdriver.Use a torque wrench.Tighten it to 9 Nm torque.
Step 21

Clean the brake caliper bracket from dirt and dust.Use a wire brush.Use a brake cleaner.

Replacement: brake discs – Honda Insight ZE2_ZE3. Tip:

After applying the spray, wait a few minutes.
Step 22

Install the brake caliper bracket.
Step 23

Tighten the brake caliper bracket.Use a drive socket #19.Use a torque wrench.Tighten it to 70 Nm torque.
Step 24

Treat the brake caliper piston.Use a brake cleaner.

AUTODOC recommends:

Replacement: brake discs – Honda Insight ZE2_ZE3. After applying the spray, wait a few minutes.
Step 25

Press in the brake caliper piston.Use brake caliper wind back tool.
Step 26

Install the brake pads.
Step 27

Install the brake caliper and fix it.Use a drive socket #12.Use a torque wrench.Tighten it to 35 Nm torque.
Step 28

Treat the surface where the brake disc contacts the wheel rim. Use copper grease.
Step 29

Clean the brake disk surface.Use a brake cleaner.

Replacement: brake discs – Honda Insight ZE2_ZE3. AUTODOC experts recommend:

After applying the spray, wait a few minutes.
Step 30

Install the wheel.

Replacement: brake discs – Honda Insight ZE2_ZE3. Tip:

To avoid injury, hold up the wheel when screwing in the fastening bolts.
Step 31

Screw in the wheel bolts.Use wheel impact socket #19.
Step 32

Lower the car and working in a cross order, tighten the wheel bolts.Use wheel impact socket #19.Use a torque wrench.Tighten it to 125 Nm torque.
Step 33

Remove the jacks and chocks.

Replacement: brake discs – Honda Insight ZE2_ZE3. Tip from AUTODOC experts:

Check the brake fluid level in the expansion tank and refill if necessary.
Step 34

Tighten the brake fluid reservoir cap.

AUTODOC recommends:

Honda Insight ZE2_ZE3 – Press the brake pedal several times with the engine shut down until you feel the resistance built up.
Step 35

Close the hood.
