Important!

This replacement procedure can be used for:
OPEL Zafira A (T98) 2.2 DTI 16V (F75), OPEL Zafira A (T98) 1.6 16V (F75), OPEL Zafira A (T98) 1.8 16V (F75), OPEL Zafira A (T98) 1.8 16V (F75), OPEL Zafira A (T98) 2.2 16V (F75), OPEL Zafira A (T98) 2.0 DTI 16V (F75), OPEL Zafira A (T98) 2.0 OPC (F75), OPEL Zafira A (T98) 1.6 CNG (F75), OPEL Zafira A (T98) 2.2 DTI 16V (F75), OPEL Zafira A (T98) 2.0 OPC (F75), OPEL Zafira A (T98) 1.6 (F75) … View more

The steps may slightly vary depending on the car design.

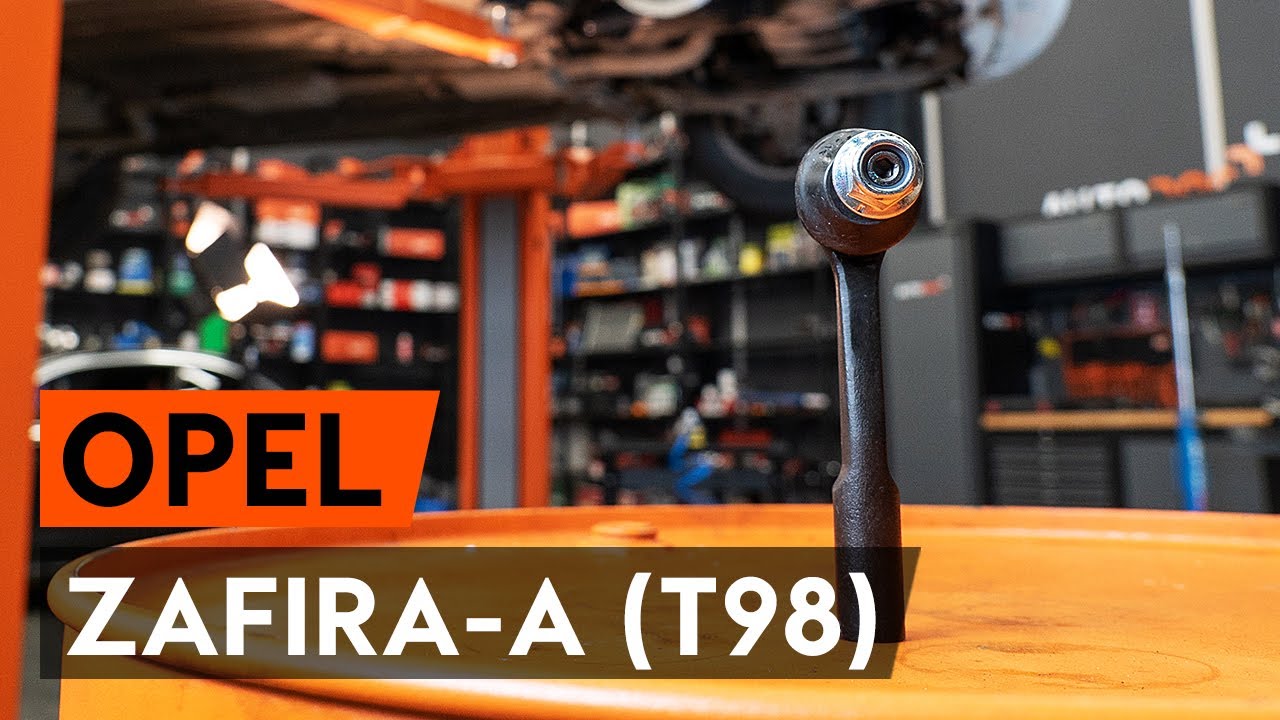

How to change tie rod end / track rod end on OPEL ZAFIRA-A 1 (T98) [TUTORIAL AUTODOC]

Alternative products

Track rod end

Replacement: track rod end – Opel Zafira F75. Tools you might need:

                      Wire brush

                      WD-40 spray

                      Brake cleaner

                      Copper grease

                      Combination spanner #13

                      Combination spanner #22

                      Drive socket # 18

                      Wheel impact socket #19

                      Torque wrench

                      Tap wrench

                      Vernier caliper

                      Ball joint puller

                      Wheel chock

Buy tools

Replacement: track rod end – Opel Zafira F75. AUTODOC experts recommend:

Replace tie rod ends in pairs.
The replacement procedure is identical for the right and left tie rod ends.
All work should be done with the engine stopped.

Replacement: track rod end – Opel Zafira F75. Take the following steps:

Step 1

Secure the wheels with chocks.
Step 2

Loosen the wheel mounting bolts. Use wheel impact socket #19.
Step 3

Raise the front of the car and secure on supports.
Step 4

Unscrew the wheel bolts.

AUTODOC recommends:
Important! Hold the wheel while unscrewing the fastening bolts. Opel Zafira F75
Step 5

Remove the wheel.
Step 6

Clean the fastener connecting the tie rod end to the steering knuckle. Use a wire brush. Use WD-40 spray.
Step 7

When deinstalling, mark or measure the precise position of the ball joint on the track rod, or count the number of turns in order to prevent misalignment afterward. Use a vernier caliper.
Step 8

Loosen the lock nut securing the tie rod end to the tie rod. Use a combination spanner #22.
Step 9

Unscrew the end fastening nut to the steering knuckle. Use a drive socket #18. Use a tap wrench.
Step 10

Disconnect the tie rod end from the steering knuckle. Use a ball joint puller.
Step 11

Screw the end out of the tie rod.
Step 12

Clean the mounting seats of the tie rod end. Use a wire brush. Use WD-40 spray.
Step 13

Screw on a new tie rod end.

Replacement: track rod end – Opel Zafira F75. Professionals recommend:
While installing the steering rod end remember to make the same number of turns or to leave the same length of thread showing as per your measurements.
Step 14

Connect the tie rod end to the steering knuckle.
Step 15

Screw on the fastening nut that connects the tie rod end to the steering knuckle. Use a drive socket #18. Use a ratchet wrench.
Step 16

Screw on the tie rod end jam nut. Use a combination spanner #22.
Step 17

When deinstalling, mark or measure the precise position of the ball joint on the track rod, or count the number of turns in order to prevent misalignment afterward. Use a vernier caliper.
Step 18

Tighten the tie rod end locknut. Use a combination spanner #13. Use a combination spanner #22. Use a torque wrench. Tighten it to 60 nm torque.
Step 19

Tighten the fastening nut connecting the tie rod end to the steering knuckle. Use a drive socket #18. Use a torque wrench. Tighten it to 50 nm torque.
Step 20

Treat the fastener connecting the tie rod end to the steering knuckle. Use copper grease.
Step 21

Treat the surface where the brake disc contacts the wheel rim. Use copper grease.
Step 22

Clean the brake disk surface. Use a brake cleaner.

AUTODOC recommends:
Replacement: track rod end – Opel Zafira F75. After applying the spray, wait a few minutes.
Step 23

Install the wheel.

Replacement: track rod end – Opel Zafira F75. Tip from AUTODOC experts:
To avoid injury, hold up the wheel when screwing in the fastening bolts.
Step 24

Screw in the wheel bolts. Use wheel impact socket #19.
Step 25

Lower the car and working in a cross order, tighten the wheel bolts. Use wheel impact socket #19. Use a torque wrench. Tighten it to 110 nm torque.

Replacement: track rod end – Opel Zafira F75. Tip:
Check and adjust wheel alignment if necessary.
Step 26

Remove the jacks and chocks.

Was this manual helpful?
