Important!
This replacement procedure can be used for:
FIAT PUNTO (188) 1.2 Natural Power, FIAT PUNTO (188) 1.2 Bifuel, FIAT PUNTO (188) 1.2 Bipower (188BXA1A), FIAT PUNTO (188) 1.2 16V 80 (188.233, .235, .253, .255, .333, .353, .639,..., FIAT PUNTO (188) 1.8 130 HGT (188.738, .718), FIAT PUNTO (188) 1.9 JTD 80 (188.237, .257, .337, .357), FIAT PUNTO (188) 1.9 DS 60 (188.031, .051, .231, .251), FIAT PUNTO (188) 1.9 JTD, FIAT PUNTO (188) 1.3 JTD 16V, FIAT PUNTO (188) 1.4, FIAT PUNTO (188) 1.9 JTD View more

The steps may slightly vary depending on the car design.

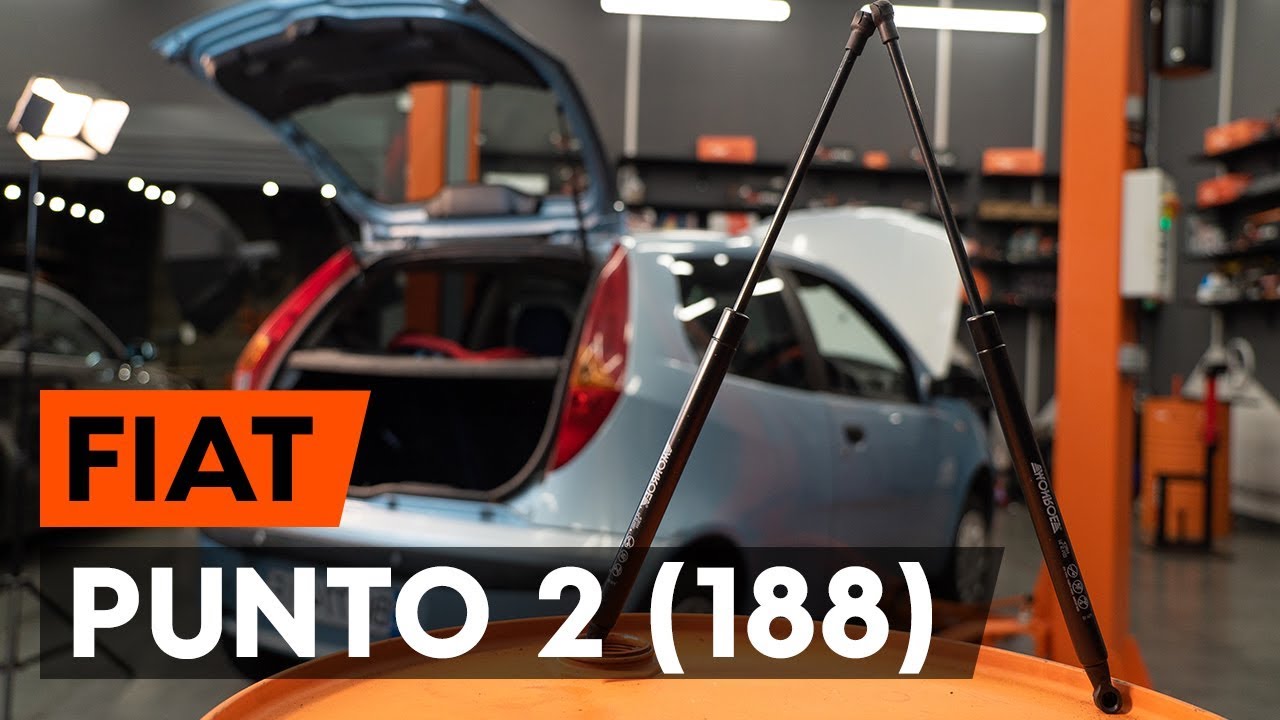

How to change gas struts / tailgate struts on FIAT PUNTO 2 (188) [TUTORIAL AUTODOC]

video
Tools
Replacement: tailgate struts – Fiat Punto 188. Tools you need:
Flat Screwdriver
Hydraulic transmission jack
Replacement: tailgate struts – Fiat Punto 188. AUTODOC experts recommend:
  • Right and left gas struts of the boot lid should be replaced simultaneously.
  • The replacement procedure is identical for the right and left gas struts of the boot lid.
  • Please note: all work on the car – Fiat Punto 188 – should be done with the engine switched off.
Carry out replacement in the following order:
  1. Step 1
    How to change Tailgate Struts on Fiat Punto Mk2 1999 - free PDF and video manuals
    Open the boot lid.
  2. Step 2
    Detach the rear parcel shelf straps.
    Step 3
    How to replace FIAT PUNTO (188) 1.2 60 2000 Tailgate Struts - step-by-step manuals and video guides
    Support the boot lid. Use a hydraulic transmission jack.
  3. Step 4
    Fiat Punto Mk2 1.2 16V 80 (188.233, .235, .253, .255, .333, .353, .639,... 2001 Tailgate Struts replacement: free workshop manuals
    Release the circlip connecting the gas strut to the boot lid. Use a flat screwdriver.
  4. Step 5
    Changing Tailgate Struts on FIAT PUNTO (188) 1.9 JTD 80 2002 by yourself
    Release the circlip connecting the gas strut to the car body. Use a flat screwdriver.
    Replacement: tailgate struts – Fiat Punto 188. Tip from AUTODOC:
    To avoid any injuries, be sure to hold the boot lid while demounting the gas struts.
  5. Step 6
    How to remove FIAT PUNTO 1.9 JTD 2003 Tailgate Struts - online easy-to-follow instructions
    Remove the boot lid gas strut.
  6. Step 7
    How to replace Tailgate Struts on FIAT PUNTO (188) 2004: download PDF manuals and video instructions
    Install the new boot lid gas strut.
    Replacement: tailgate struts – Fiat Punto 188. Professionals recommend:
    To avoid any injuries, be sure to hold the boot lid while installing the gas strut.
