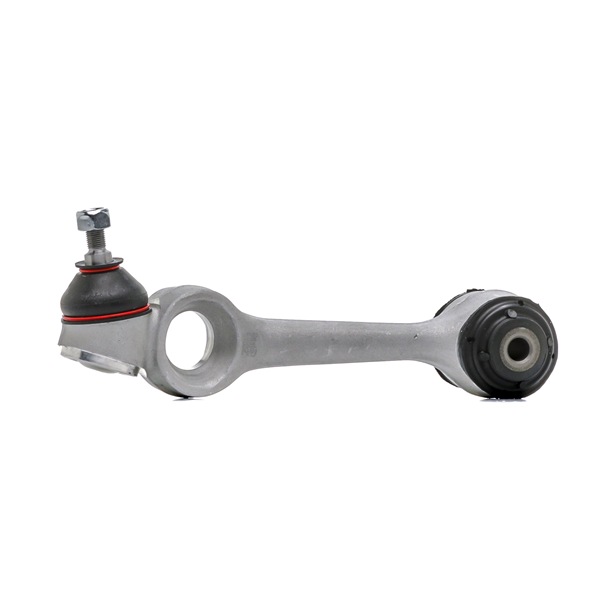

All the parts you need to replace – Control Arm for W124 Estate (S124) and other MERCEDES-BENZ models
How to change Suspension arm on Mercedes S124 (W124) 250 D 2.5 (124.185) – step-by-step instructions for straightforward car repair Suspension arm
How to change Suspension arm on W124 Estate (S124) – tips for proper car maintenance
Suspension arm for W124 Estate (S124) Petrol (105 hp)
Simple DIY car repair steps – Replacing Suspension arm on W124 Estate (S124)
Suspension arm for W124 Estate (S124) Petrol (109 hp)
Easy tricks to help you to replace Suspension arm on W124 Estate (S124)
Suspension arm for W124 Estate (S124) Petrol (118 hp)
Suspension arm removal & installation, incredibly easy steps for W124 Estate (S124)
Suspension arm for W124 Estate (S124) Petrol (122 hp)
Changing Suspension arm on W124 Estate (S124) – tips for first time repair
Suspension arm for W124 Estate (S124) Petrol (132 hp)
Main steps for Suspension arm replacement on W124 Estate (S124)
Suspension arm for W124 Estate (S124) Petrol (136 hp)
How to change Suspension arm on W124 Estate (S124) – tips for proper car maintenance
Suspension arm for W124 Estate (S124) Petrol (180 hp)
Simple DIY car repair steps – Replacing Suspension arm on W124 Estate (S124)
Suspension arm for W124 Estate (S124) Petrol (180 hp)
Easy tricks to help you to replace Suspension arm on W124 Estate (S124)
Suspension arm for W124 Estate (S124) Petrol (188 hp)
Tools
Replacement: rear suspension lower control arm – MERCEDES-BENZ KOMBI Estate (S124). Tools you need:
Wire brush
WD-40 spray
Brake cleaner
Copper grease
Torque wrench
Combination spanner #16
HEX bit No.H5.
XZN socket bit # 12
Drive socket # 10
Drive socket # 19
Wheel impact socket #17
Ratchet wrench
Hammer
Crow bar
Tap wrench
Ball joint puller
Hydraulic transmission jack
Wheel chock
Buy tools
Replacement: rear suspension lower control arm – MERCEDES-BENZ KOMBI Estate (S124). AUTODOC experts recommend:
  • The replacement procedure is identical for the left and right lower control arms.
  • All work should be done with the engine stopped.
Replacement: rear suspension lower control arm – MERCEDES-BENZ KOMBI Estate (S124). Use the following procedure:
  1. Step 1
    Secure the wheels with chocks.
    Step 2
    How to change Control Arm on Mercedes S124 (W124) 1985 - free PDF and video manuals
    Loosen the wheel mounting bolts. Use wheel impact socket #17.
  2. Step 3
    Raise the rear of the car and secure on supports.
    Step 4
    How to replace MERCEDES-BENZ W124 Estate (S124) 250 D 2.5 (124.185) 1986 Control Arm - step-by-step manuals and video guides
    Unscrew the wheel bolts.
    AUTODOC recommends:
    Warning! To avoid injury, hold the wheel while unscrewing the fastening bolts. MERCEDES-BENZ KOMBI Estate (S124)
  3. Step 5
    Mercedes S124 (W124) 300 3.0 Turbo Diesel (124.193) 1987 Control Arm replacement: free workshop manuals
    Remove the wheel.
  4. Step 6
    Unscrew the fasteners of the plastic car body protective cover. Use a drive socket #10. Use a ratchet wrench.
    Step 7
    Changing Control Arm on MERCEDES-BENZ W124 Estate (S124) 300 D 3.0 (124.190) 1988 by yourself
    Remove the plastic car body protective cover.
  5. Step 8
    How to remove MERCEDES-BENZ 123 SERIES 230 TE 2.3 (124.083) 1989 Control Arm - online easy-to-follow instructions
    Clean all joints of the arm. Use a wire brush. Use WD-40 spray.
  6. Step 9
    How to replace Control Arm on MERCEDES-BENZ W124 Estate (S124) 1990: download PDF manuals and video instructions
    Make a mark on the camber adjustment bolt.
  7. Step 10
    How hard is it to do yourself: Control Arm replacement on Mercedes S124 (W124) 230 TE Cat (124.083) 1991 - download illustrated guide
    Unscrew the fastener connecting the control arm to the subframe. Use XZN #12. Use a drive socket #19. Use a tap wrench.
  8. Step 11
    Need to know how to renew Control Arm on MERCEDES-BENZ 123 SERIES 1992? This free workshop manual will help you to do it yourself
    Remove the fastening bolt. Use a crowbar. Use a hammer.
  9. Step 12
    Changing of Control Arm on Mercedes S124 (W124) 1993 won't be an issue if you follow this illustrated step-by-step guide
    Unscrew the fastener connecting the control arm to the rear knuckle. Use a combination spanner #16. Use HEX No.H5. Use a ratchet wrench.
  10. Step 13
    MERCEDES-BENZ 123 SERIES 250 D 2.5 (124.185) Control Arm replacement: online guides and video tutorials
    Detach the ball joint from the rear knuckle. Use a ball joint puller.
  11. Step 14
    Replacing Control Arm on Mercedes S124 (W124) 1986 250 D 2.5 (124.185) by yourself
    Remove the arm. Use a crowbar.
  12. Step 15
    W124 Estate (S124) 230 TE 2.3 (124.083) 1987 Control Arm DIY replacement workshop manual
    Clean the mounting seats and the thread of the suspension arm. Use a wire brush. Use WD-40 spray.
  13. Step 16
    How to change Control Arm on MERCEDES-BENZ W124 Estate (S124) 1988 - tips and tricks
    Install a new arm.
    AUTODOC recommends:
    Replacement: rear suspension lower control arm – MERCEDES-BENZ KOMBI Estate (S124). Use only new bolts and nuts for installation.Do not damage the ball joint cover.
  14. Step 17
    Step-by-step recommendations for DIY replacement Mercedes S124 (W124) 1989 230 TE 2.3 (124.083) Control Arm
    Install the fastening bolt.
  15. Step 18
    Attach the ball joint to the rear knuckle.
    Step 19
    DIY replacement of Control Arm on MERCEDES-BENZ W124 Estate (S124) 300 TE 3.0 (124.090) 1990 is not an issue anymore with our step-by-step tutorial
    Screw in the fasteners connecting the control arm to the rear knuckle. Use a combination spanner #16. Use HEX No.H5. Use a ratchet wrench.
  16. Step 20
    How to change Control Arm on Mercedes S124 (W124) 1985 - free PDF and video manuals
    Adjust the position of the alignment bolt according to the mark.
