When to replace the Brake Discs on your VW PASSAT
Recommended replacement interval for the part category Brake disc : 50000 km
Important!
This replacement procedure can be used for:
VW Passat Variant (3C5) 2.0 TDI 4motion, VW Passat Variant (3C5) 2.0 TDI, VW Passat Variant (3C5) 1.6 FSI, VW Passat Variant (3C5) 2.0 FSI, VW Passat Variant (3C5) 1.9 TDI, VW Passat Variant (3C5) 2.0 TDI 16V, VW Passat Variant (3C5) 1.6, VW Passat Variant (3C5) 2.0 TDI, VW Passat Variant (3C5) 2.0 TDI, VW Passat Variant (3C5) 2.0 TDI, VW Passat Variant (3C5) 2.0 TFSI, VW Passat Variant (3C5) 3.2 FSI 4motion, VW Passat Variant (3C5) 2.0 TDI 16V 4motion, VW Passat Variant (3C5) 2.0 FSI 4motion, VW Passat Variant (3C5) 3.6 R36 4motion, VW Passat Variant (3C5) 1.4 TSI, VW Passat Variant (3C5) 1.8 TSI, VW Passat Variant (3C5) 2.0 TDI, VW Passat Variant (3C5) 1.4 TSI EcoFuel, VW Passat Variant (3C5) 2.0 TDI, VW Passat Variant (3C5) 2.0 BlueTDI, VW Passat Variant (3C5) 1.6 TDI, VW Passat Variant (3C5) 2.0 TDI 4motion, VW Passat Variant (3C5) 1.8 TSI … View more

The steps may slightly vary depending on the car design.

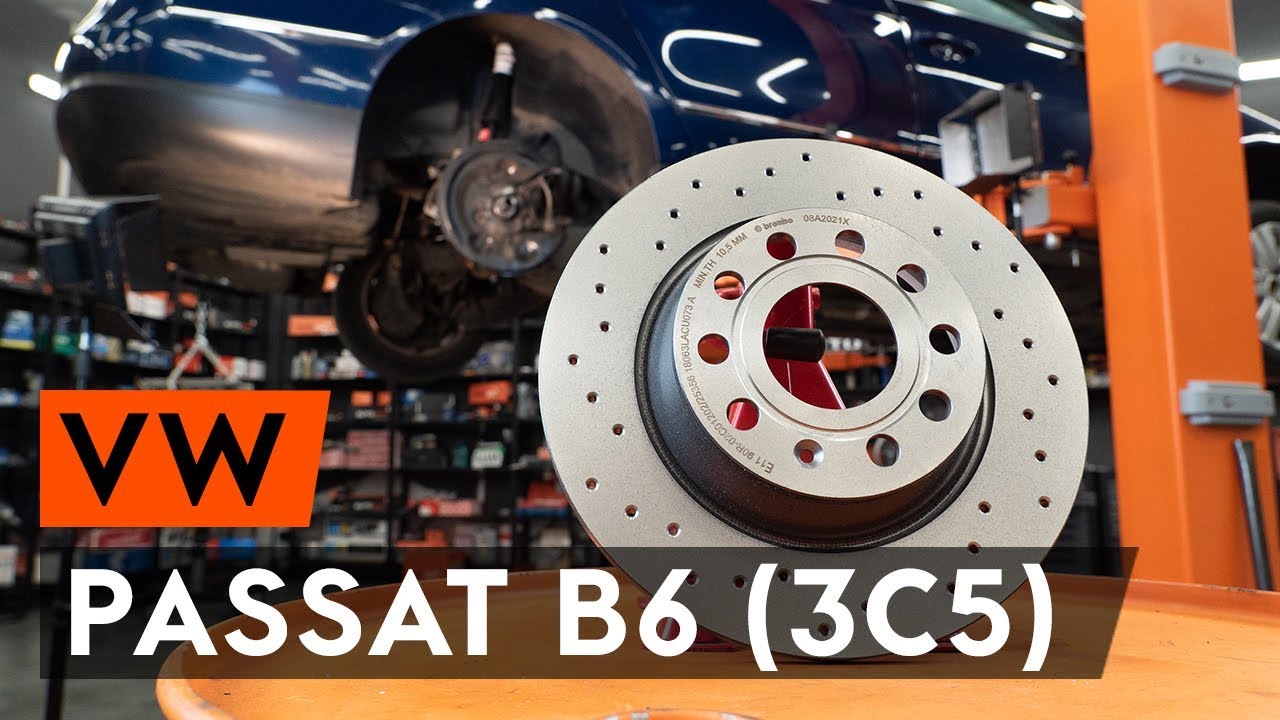

How to change rear brake discs / rear brake rotors on VW PASSAT B6 (3C5) [TUTORIAL AUTODOC]

video
Published on: 08/04/2020
29K views
All the parts you need to replace – Brake Discs for Passat Variant (3C5) and other VW models
Alternative products
How to change Brake disc on Passat B6 Variant 2.0 TDI – step-by-step instructions for straightforward car repair Brake disc
Tools
Replacement: brake discs – Passat 3C5. Tools you'll need:
Wire brush
All-purpose cleaning spray
Brake cleaner
Copper grease
Combination spanner #15
Drive socket # 13
XZN socket bit # 16
Torx bit T30
Wheel impact socket #17
Brake caliper wind back tool
Ratchet wrench
Torque wrench
Hammer
Tap wrench
Impact screwdriver
Rubber mallet
Crow bar
Wheel chock
Buy tools
Replacement: brake discs – VW Passat B6 3C Variant. AUTODOC recommends:
  • Replace the brake disks on the car VW Passat 3C B6 Variant in complete set for each axis. Regardless of the state of components. This will ensure even braking.
  • The replacement procedure is identical for both brake disks on the same axle.
  • When changing the brake discs, always replace the brake pads.
  • All work should be done with the engine stopped.
Replacement: brake discs – Passat Variant B6. Take the following steps:
  1. Step 1
    How to change Brake Discs on Passat B6 Variant 2005 - free PDF and video manuals
    Open the bonnet. Unscrew the brake fluid reservoir cap.
  2. Step 2
    How to replace VW Passat Variant (3C5) 2.0 TDI 2006 Brake Discs - step-by-step manuals and video guides
    Secure the wheels with chocks.
  3. Step 3
    Passat B6 Variant 2.0 TDI 16V 2007 Brake Discs replacement: free workshop manuals
    Loosen the wheel mounting bolts. Use wheel impact socket #17.
  4. Step 4
    Changing Brake Discs on VW Passat Variant (3C5) 2.0 FSI 2008 by yourself
    Raise the rear of the car and secure on supports.
  5. Step 5
    How to remove VW PASSAT 2.0 TDI 4motion 2009 Brake Discs - online easy-to-follow instructions
    Unscrew the wheel bolts.
    Replacement: brake discs – VW Passat 3C5. Tip:
    To avoid injury, hold up the wheel when unscrewing the bolts.
  6. Step 6
    How to replace Brake Discs on VW Passat Variant (3C5) 2010: download PDF manuals and video instructions
    Remove the wheel.
  7. Step 7
    How hard is it to do yourself: Brake Discs replacement on Passat B6 Variant 1.4 TSI EcoFuel 2011 - download illustrated guide
    Put the parking brake system into service mode.
  8. Step 8
    Need to know how to renew Brake Discs on VW PASSAT 2005? This free workshop manual will help you to do it yourself
    Clean the parking brake connector. Use a wire brush. Use all-purpose cleaning spray.
  9. Step 9
    Changing of Brake Discs on Passat B6 Variant 2006 won't be an issue if you follow this illustrated step-by-step guide
    Unplug the parking brake connector.
  10. Step 10
    VW PASSAT 2.0 TDI Brake Discs replacement: online guides and video tutorials
    Unscrew the brake caliper fastening. Use a combination spanner #15. Use a drive socket #13. Use a ratchet wrench.
  11. Step 11
    Replacing Brake Discs on Passat B6 Variant 2008 2.0 TDI by yourself
    Remove the brake caliper.
    Replacement: brake discs – Passat B6 3C Variant. AUTODOC experts recommend:
    Tie the caliper to the suspension or to the body with a wire without disconnecting from the brake hose to prevent depressurization of the brake system.Make sure that the brake caliper is not hanging on the brake hose.Don't press the brake pedal after the brake caliper has been removed. As a result, the piston can fall out from the brake cylinder, and brake fluid leakage and depressurization of the system may occur. Check the brake caliper bracket, brake caliper guide pins and boots. Clean them. Replace, if necessary.
  12. Step 12
    Passat Variant (3C5) 2.0 TDI 4motion 2009 Brake Discs DIY replacement workshop manual
    Remove the brake pads. Use a crowbar.
  13. Step 13
    How to change Brake Discs on VW Passat Variant (3C5) 2010 - tips and tricks
    Remove the hub bearing protection cap. Use a crowbar. Use a hammer.
    Please note!
    Some cars are not equipped with wheel hub caps.
  14. Step 14
    Step-by-step recommendations for DIY replacement Passat B6 Variant 2011 2.0 TDI 4motion Brake Discs
    Unscrew the hub bearing mounting. Use XZN #16. Use a tap wrench.
  15. Step 15
    DIY replacement of Brake Discs on VW Passat Variant (3C5) 1.9 TDI 2005 is not an issue anymore with our step-by-step tutorial
    Unscrew the brake disc fastening. Use Torx T30. Use an impact screwdriver.
  16. Step 16
    How to change Brake Discs on Passat B6 Variant 2005 - free PDF and video manuals
    Remove the brake disc.
  17. Step 17
    How to replace VW Passat Variant (3C5) 2.0 TDI 2006 Brake Discs - step-by-step manuals and video guides
    Clean the brake caliper bracket from dirt and dust. Use a wire brush. Use a brake cleaner.
    AUTODOC recommends:
    Replacement: brake discs – VW Passat Variant B6. After applying the spray, wait a few minutes.
  18. Step 18
    Passat B6 Variant 2.0 TDI 16V 2007 Brake Discs replacement: free workshop manuals
    Clean the hub. Use a wire brush. Treat the contacting surface. Use copper grease.
  19. Step 19
    Changing Brake Discs on VW Passat Variant (3C5) 2.0 FSI 2008 by yourself
    Install the brake disc.
  20. Step 20
    How to remove VW PASSAT 2.0 TDI 4motion 2009 Brake Discs - online easy-to-follow instructions
    Tighten the brake disc fastening. Use Torx T30. Use a torque wrench. Tighten it to 4 Nm torque.
Comments – 2
  • S. S.
    28.07.2024 04:47
    Member
    Steps 13 and 14 on this video are incorrect and should be fixed immediately as there is no need to touch the wheel bearing at all.
    The M14 Torx bolt is behind the disc pad assembly and is visible after removing the piston assembly.
    • Jessica_L
      29.07.2024 07:27
      S. S.
      Moderator
      Starting from 3:56 minutes of the video, you can see the mechanic removing the bearing to remove the disc.
