When to replace the Brake Discs on your VOLVO V50
Recommended replacement interval for the part category Brake disc : 50000 km
Important!
This replacement procedure can be used for:
VOLVO V50 (545) 1.6 D, VOLVO V50 (545) D4, VOLVO V50 (545) D3, VOLVO V50 (545) 2.4, VOLVO V50 (545) 2.4, VOLVO V50 (545) T5, VOLVO V50 (545) 2.0 D, VOLVO V50 (545) T5 AWD, VOLVO V50 (545) 1.8, VOLVO V50 (545) 1.6, VOLVO V50 (545) 2.0, VOLVO V50 (545) D5, VOLVO V50 (545) T5, VOLVO V50 (545) T5 AWD, VOLVO V50 (545) 1.8 FlexFuel, VOLVO V50 (545) 2.4 AWD, VOLVO V50 (545) 2.4 Tdi, VOLVO V50 (545) D2, VOLVO V50 (545) 2.0 FlexFuel, VOLVO V50 (545) 2.0 CDI, VOLVO V50 (545) 2.0 D4, VOLVO V50 (545) 1.8 BiFuel … View more

The steps may slightly vary depending on the car design.

How to change rear brake discs / rear brake rotors on VOLVO V50 1 (P12) [TUTORIAL AUTODOC]

video
Published on: 10/03/2020
12K views

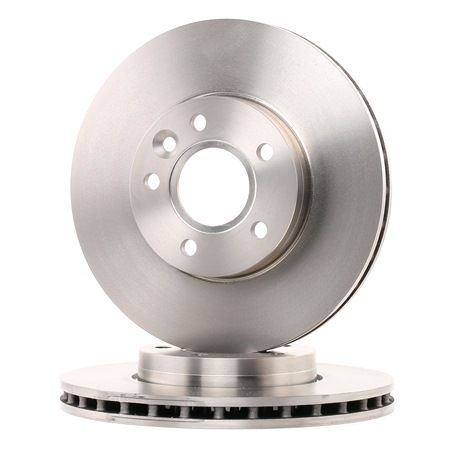

All the parts you need to replace – Brake Discs for V50 (545) and other VOLVO models
How to change Brake disc on Volvo V50 545 2.0 D – step-by-step instructions for straightforward car repair Brake disc
How to change Brake disc on V50 (MW, 545) – tips for proper car maintenance
Brake disc for V50 (MW, 545) Diesel (177 hp)
Simple DIY car repair steps – Replacing Brake disc on V50 (MW, 545)
Brake disc for V50 (MW, 545) Diesel (150 hp)
Easy tricks to help you to replace Brake disc on V50 (MW, 545)
Brake disc for V50 (MW, 545) Petrol (140 hp)
Brake disc removal & installation, incredibly easy steps for V50 (MW, 545)
Brake disc for V50 (MW, 545) Petrol (170 hp)
Changing Brake disc on V50 (MW, 545) – tips for first time repair
Brake disc for V50 (MW, 545) Petrol (220 hp)
Main steps for Brake disc replacement on V50 (MW, 545)
Brake disc for V50 (MW, 545) Diesel (136 hp)
How to change Brake disc on V50 (MW, 545) – tips for proper car maintenance
Brake disc for V50 (MW, 545) Petrol (220 hp)
Simple DIY car repair steps – Replacing Brake disc on V50 (MW, 545)
Brake disc for V50 (MW, 545) Petrol (125 hp)
Easy tricks to help you to replace Brake disc on V50 (MW, 545)
Brake disc for V50 (MW, 545) Petrol (101 hp)
Tools
Replacement: brake discs – Volvo V50 MW. List of the tools you'll need:
Wire brush
WD-40 spray
Brake cleaner
Anti-squeal paste
Copper grease
Drive socket # 13
HEX bit no.H7.
Wheel impact socket #19
Brake caliper wind back tool
Ratchet wrench
Torque wrench
Tap wrench
Rubber mallet
Crow bar
Wheel chock
Buy tools
Replacement: brake discs – Volvo V50 MW. AUTODOC recommends:
  • Replace the brake disks on the car Volvo V50 MW in complete set for each axis. Regardless of the state of components. This will ensure even braking.
  • The replacement procedure is identical for both brake disks on the same axle.
  • When changing the brake discs, always replace the brake pads.
  • Warning! Shut down the engine before starting any work – Volvo V50 MW.
Carry out replacement in the following order:
  1. Step 1
    How to change Brake Discs on Volvo V50 545 2003 - free PDF and video manuals
    Open the bonnet. Unscrew the brake fluid reservoir cap.
  2. Step 2
    How to replace VOLVO V50 (545) 2.0 D 2004 Brake Discs - step-by-step manuals and video guides
    Secure the wheels with chocks.
  3. Step 3
    Volvo V50 545 1.6 D 2005 Brake Discs replacement: free workshop manuals
    Loosen the wheel mounting bolts. Use wheel impact socket #19.
  4. Step 4
    Changing Brake Discs on VOLVO V50 (545) 2.4 2006 by yourself
    Raise the rear of the car and secure on supports.
  5. Step 5
    How to remove VOLVO V50 1.8 FlexFuel 2007 Brake Discs - online easy-to-follow instructions
    Unscrew the wheel bolts.
    Replacement: brake discs – Volvo V50 MW. Tip:
    To avoid injury, hold up the wheel when unscrewing the bolts.
  6. Step 6
    How to replace Brake Discs on VOLVO V50 (545) 2008: download PDF manuals and video instructions
    Remove the wheel.
  7. Step 7
    How hard is it to do yourself: Brake Discs replacement on Volvo V50 545 D5 2009 - download illustrated guide
    Remove the dust boot caps of the brake caliper guide pins. Use a crowbar.
  8. Step 8
    Need to know how to renew Brake Discs on VOLVO V50 2010? This free workshop manual will help you to do it yourself
    Unscrew the brake caliper fastening. Use HEX No.H7. Use a ratchet wrench.
  9. Step 9
    Changing of Brake Discs on Volvo V50 545 2011 won't be an issue if you follow this illustrated step-by-step guide
    Detach the brake caliper retaining spring. Use a crowbar.
  10. Step 10
    VOLVO V50 2.0 D Brake Discs replacement: online guides and video tutorials
    Remove the brake caliper. Use a crowbar.
    Replacement: brake discs – Volvo V50 MW. AUTODOC experts recommend:
    Tie the caliper to the suspension or to the body with a wire without disconnecting from the brake hose to prevent depressurization of the brake system.Make sure that the brake caliper is not hanging on the brake hose.Don't press the brake pedal after the brake caliper has been removed. As a result, the piston can fall out from the brake cylinder, and brake fluid leakage and depressurization of the system may occur. Check the brake caliper bracket, brake caliper guide pins and boots. Clean them. Replace, if necessary.
  11. Step 11
    Replacing Brake Discs on Volvo V50 545 2003 2.0 D by yourself
    Remove the brake pads. Use a crowbar.
  12. Step 12
    V50 (545) 1.8 FlexFuel 2004 Brake Discs DIY replacement workshop manual
    Clean the brake caliper bracket fasteners. Use a wire brush. Use WD-40 spray.
  13. Step 13
    How to change Brake Discs on VOLVO V50 (545) 2005 - tips and tricks
    Unscrew the caliper bracket fastening. Use a drive socket #13. Use a ratchet wrench. Use a tap wrench.
  14. Step 14
    Step-by-step recommendations for DIY replacement Volvo V50 545 2006 1.8 FlexFuel Brake Discs
    Remove the caliper bracket.
  15. Step 15
    DIY replacement of Brake Discs on VOLVO V50 (545) D2 2007 is not an issue anymore with our step-by-step tutorial
    Remove the brake disc. Use a rubber mallet.
  16. Step 16
    How to change Brake Discs on Volvo V50 545 2003 - free PDF and video manuals
    Clean the brake caliper bracket from dirt and dust. Use a wire brush. Use a brake cleaner.
    Replacement: brake discs – Volvo V50 MW. Tip from AUTODOC:
    After applying the spray, wait a few minutes.
  17. Step 17
    How to replace VOLVO V50 (545) 2.0 D 2004 Brake Discs - step-by-step manuals and video guides
    Clean the hub. Use a wire brush. Treat the contacting surface. Use copper grease.
  18. Step 18
    Volvo V50 545 1.6 D 2005 Brake Discs replacement: free workshop manuals
    Install the brake disc.
  19. Step 19
    Changing Brake Discs on VOLVO V50 (545) 2.4 2006 by yourself
    Install the brake caliper bracket.
  20. Step 20
    How to remove VOLVO V50 1.8 FlexFuel 2007 Brake Discs - online easy-to-follow instructions
    Tighten the brake caliper bracket. Use a drive socket #13. Use a torque wrench. Tighten it to 70 Nm torque.
