Recommended replacement interval for the part category Brake disc : 50000 km

Important!

This replacement procedure can be used for:
PEUGEOT 207 (WA_, WC_) 1.6 16V, PEUGEOT 207 (WA_, WC_) 1.6 16V Turbo, PEUGEOT 207 (WA_, WC_) 1.6 HDi, PEUGEOT 207 (WA_, WC_) 1.6 HDi, PEUGEOT 207 (WA_, WC_) 1.6 16V RC, PEUGEOT 207 (WA_, WC_) 1.6 16V Turbo, PEUGEOT 207 (WA_, WC_) 1.6 HDi 110, PEUGEOT 207 (WA_, WC_) 1.4, PEUGEOT 207 (WA_, WC_) 1.4 16V, PEUGEOT 207 (WA_, WC_) 1.4 HDi, PEUGEOT 207 (WA_, WC_) 1.6 16V VTi, PEUGEOT 207 (WA_, WC_) 1.4 16V, PEUGEOT 207 (WA_, WC_) 1.6 HDi, PEUGEOT 207 (WA_, WC_) 1.4 … View more

The steps may slightly vary depending on the car design.

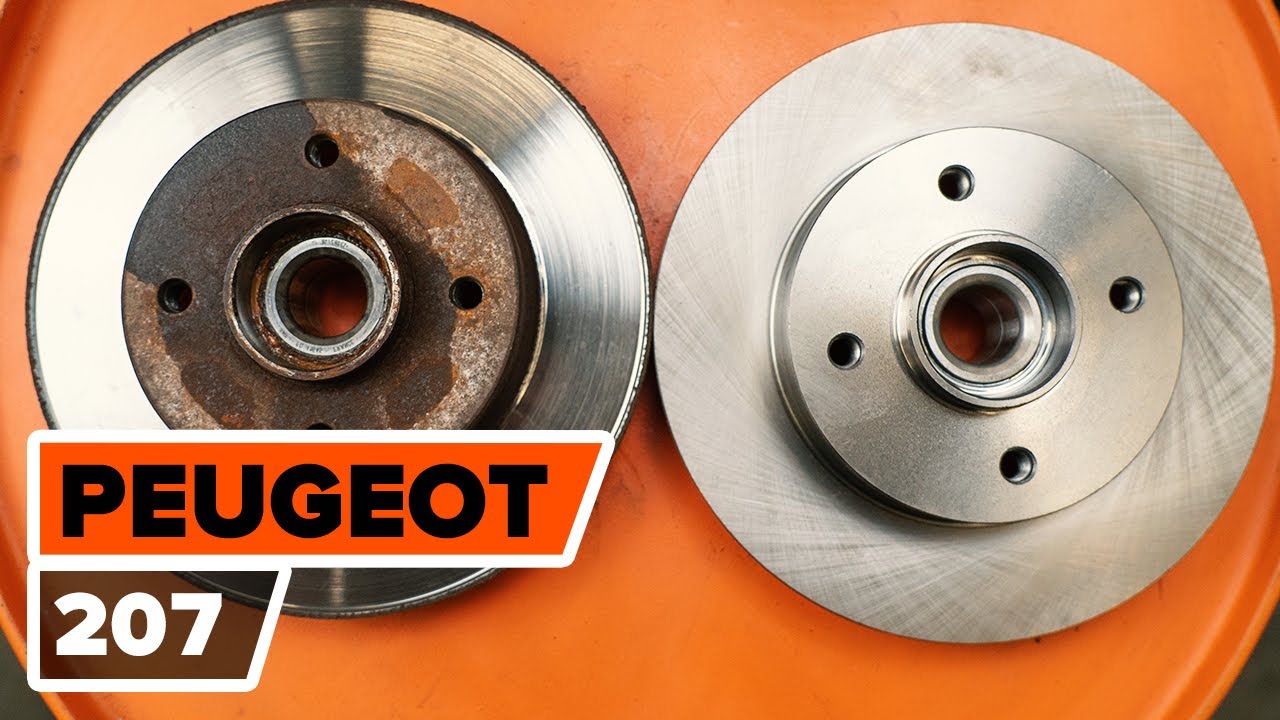

How to change rear brake discs on PEUGEOT 207 [TUTORIAL AUTODOC]

All the parts you need to replace – Brake Discs for 207 (WA_, WC_) and other PEUGEOT models

Brake disc

        Brake disc for 207 Hatchback Petrol (72 hp)

        Brake disc for 207 Hatchback Petrol (88 hp)

        Brake disc for 207 Hatchback Petrol (109 hp)

        Brake disc for 207 Hatchback Petrol (150 hp)

        Brake disc for 207 Hatchback Diesel (90 hp)

        Brake disc for 207 Hatchback Diesel (109 hp)

        Brake disc for 207 Hatchback Diesel (68 hp)

        Brake disc for 207 Hatchback Petrol (120 hp)

        Brake disc for 207 Hatchback Petrol (174 hp)

Replacement: brake discs – Peugeot 207 hatchback. Tools you might need:

                        Wire brush

                        Nylon cleaning brush

                        WD-40 spray

                        All-purpose cleaning spray

                        Brake cleaner

                        Copper grease

                        Torque wrench

                        Combination spanner #19

                        Drive socket # 13

                        Drive socket # 36

                        Torx bit T55

                        Wheel impact socket #17

                        Brake caliper wind back tool

                        Ratchet wrench

                        Tap wrench

                        Hammer

                        Pliers

                        Flat chisel

                        Water pump pliers

                        Rubber mallet

                        Crow bar

                        Hub slide hammer puller

                        Wheel chock

Buy tools

Replacement: brake discs – Peugeot 207 hatchback. Tip from AUTODOC:

Replace the brake disks on the car PEUGEOT 207 in complete set for each axis. Regardless of the state of components. This will ensure even braking.
The replacement procedure is identical for both brake disks on the same axle.
When changing the brake discs, always replace the brake pads.
All work should be done with the engine stopped.

Replacement: brake discs – Peugeot 207 hatchback. Recommended sequence of steps:

Step 1

Open the bonnet. Unscrew the brake fluid reservoir cap.
Step 2

Secure the wheels with chocks.

Step 3

Loosen the wheel mounting bolts. Use wheel impact socket #17.
Step 4

Raise the rear of the car and secure on supports.
Step 5

Unscrew the wheel bolts.

AUTODOC recommends:
Important! Hold the wheel while unscrewing the fastening bolts. Peugeot 207 hatchback
Step 6

Remove the wheel.
Step 7

Clean the fastener of the parking brake cable. Use a wire brush. Use WD-40 spray.
Step 8

Release the parking brake cable. Use water pump pliers. Use pliers. Use a crowbar.
Step 9

Clean the brake caliper fasteners. Use a wire brush. Use all-purpose cleaning spray.
Step 10

Unscrew the brake caliper fastening. Use a combination spanner #19. Use a drive socket #13. Use a ratchet wrench.
Step 11

Spread the brake pads. Use a crowbar.
Step 12

Remove the brake caliper.

Replacement: brake discs – Peugeot 207 hatchback. Tip from AUTODOC experts:
Tie the caliper to the suspension or to the body with a wire without disconnecting from the brake hose to prevent depressurization of the brake system.Make sure that the brake caliper is not hanging on the brake hose.Don't press the brake pedal after the brake caliper has been removed. As a result, the piston can fall out from the brake cylinder, and brake fluid leakage and depressurization of the system may occur. Check the brake caliper bracket, brake caliper guide pins and boots. Clean them. Replace, if necessary.
Step 13

Remove the brake pads. Use a crowbar.
Step 14

Clean the brake caliper bracket fasteners. Use a wire brush. Use WD-40 spray.
Step 15

Unscrew the caliper bracket fastening. Use Torx T55. Use a tap wrench.
Step 16

Remove the caliper bracket.
Step 17

Clean the brake disc fasteners. Use a wire brush. Use WD-40 spray.
Step 18

Remove the wheel hub nut cap. Use a crowbar. Use a rubber mallet.

Replacement: brake discs – Peugeot 207 hatchback. Tip from AUTODOC:
In some cars, the wheel hub nut is not protected with a cap.
Step 19

Unstake the wheel hub retaining nut. Use a flat metal-working chisel. Use a hammer.
Step 20

Unscrew the hub nut. Use a drive socket #36. Use a tap wrench.
Step 21

Remove the brake disc assemled with the wheel hub bearing. Use the hub slide hammer puller.
Step 22

Clean the stub axle. Use a wire brush. Use all-purpose cleaning spray.
Step 23

Clean the brake caliper bracket from dirt and dust. Use a wire brush. Use a brake cleaner.

AUTODOC recommends:
Replacement: brake discs – Peugeot 207 hatchback. After applying the spray, wait a few minutes.
Step 24

Install the brake disc assembled with the wheel hub bearing.
Step 25

Tighten the wheel hub nut. Use a drive socket #36. Use a torque wrench. Tighten it to 270 nm torque.

Replacement: brake discs – Peugeot 207 hatchback. Tip from AUTODOC experts:
The wheel bearing unit must not tilt on the axle pin.During the installation process, use only new bolts and nuts.
Step 26

Restake the wheel hub retaining nut. Use a flat metal-working chisel. Use a hammer.
Step 27

Install the cap of the hub nut. Use a rubber mallet.
Step 28

Clean the mounting seats of the caliper and its bracket. Use a wire brush. Use WD-40 spray.
Step 29

Install the brake caliper bracket.
Step 30

Tighten the brake caliper bracket. Use Torx T55. Use a torque wrench. Tighten it to 53 Nm torque.
Step 31

Treat the brake caliper piston. Use a nylon cleaning brush. Use a brake cleaner.

AUTODOC recommends:
Replacement: brake discs – Peugeot 207 hatchback. After applying the spray, wait a few minutes.
Step 32

Press in the brake caliper piston. Use brake caliper wind back tool.
Step 33

Install the brake pads.
Step 34

Install the brake caliper and fix it. Use a combination spanner #19. Use a drive socket #13. Use a torque wrench. Tighten it to 30 Nm torque.
Step 35

Install the parking brake cable into the brake caliper bracket. Use water pump pliers. Use pliers.
Step 36

Treat the surface where the brake disc contacts the wheel rim. Use copper grease.
Step 37

Clean the brake disk surface. Use a brake cleaner.

AUTODOC recommends:
Replacement: brake discs – Peugeot 207 hatchback. After applying the spray, wait a few minutes.
Step 38

Install the wheel.

AUTODOC recommends:
Warning! To avoid injury, hold the wheel while screwing in the fastening bolts on the car. Peugeot 207 hatchback
Step 39

Screw in the wheel bolts. Use wheel impact socket #17.
Step 40

Lower the car and working in a cross order, tighten the wheel bolts. Use wheel impact socket #17. Use a torque wrench. Tighten it to 100 Nm torque.
Step 41

Remove the jacks and chocks.

Replacement: brake discs – Peugeot 207 hatchback. Tip from AUTODOC experts:
Check the brake fluid level in the expansion tank and refill if necessary.
Step 42

Tighten the brake fluid reservoir cap.
Step 43

Close the hood.

Replacement: brake discs – Peugeot 207 hatchback. AUTODOC experts recommend:
Without starting the engine, press the brake pedal several times until you feel significant resistance.
