Important!

This replacement procedure can be used for:
PEUGEOT 207 (WA_, WC_) 1.4, PEUGEOT 207 (WA_, WC_) 1.4 16V, PEUGEOT 207 (WA_, WC_) 1.6 16V, PEUGEOT 207 (WA_, WC_) 1.6 16V Turbo, PEUGEOT 207 (WA_, WC_) 1.6 HDi, PEUGEOT 207 (WA_, WC_) 1.6 HDi, PEUGEOT 207 (WA_, WC_) 1.4 HDi, PEUGEOT 207 (WA_, WC_) 1.6 Flex, PEUGEOT 207 (WA_, WC_) 1.6 16V RC, PEUGEOT 207 (WA_, WC_) 1.4 16V, PEUGEOT 207 (WA_, WC_) 1.6 16V Turbo, PEUGEOT 207 (WA_, WC_) 1.6 HDi, PEUGEOT 207 (WA_, WC_) 1.6 HDi, PEUGEOT 207 (WA_, WC_) 1.6 16V VTi, PEUGEOT 207 (WA_, WC_) 1.4, PEUGEOT 207 (WA_, WC_) 1.4 16V, PEUGEOT 207 (WA_, WC_) 1.4 BiFuel, PEUGEOT 207 (WA_, WC_) 1.6 16V VTi … View more

The steps may slightly vary depending on the car design.

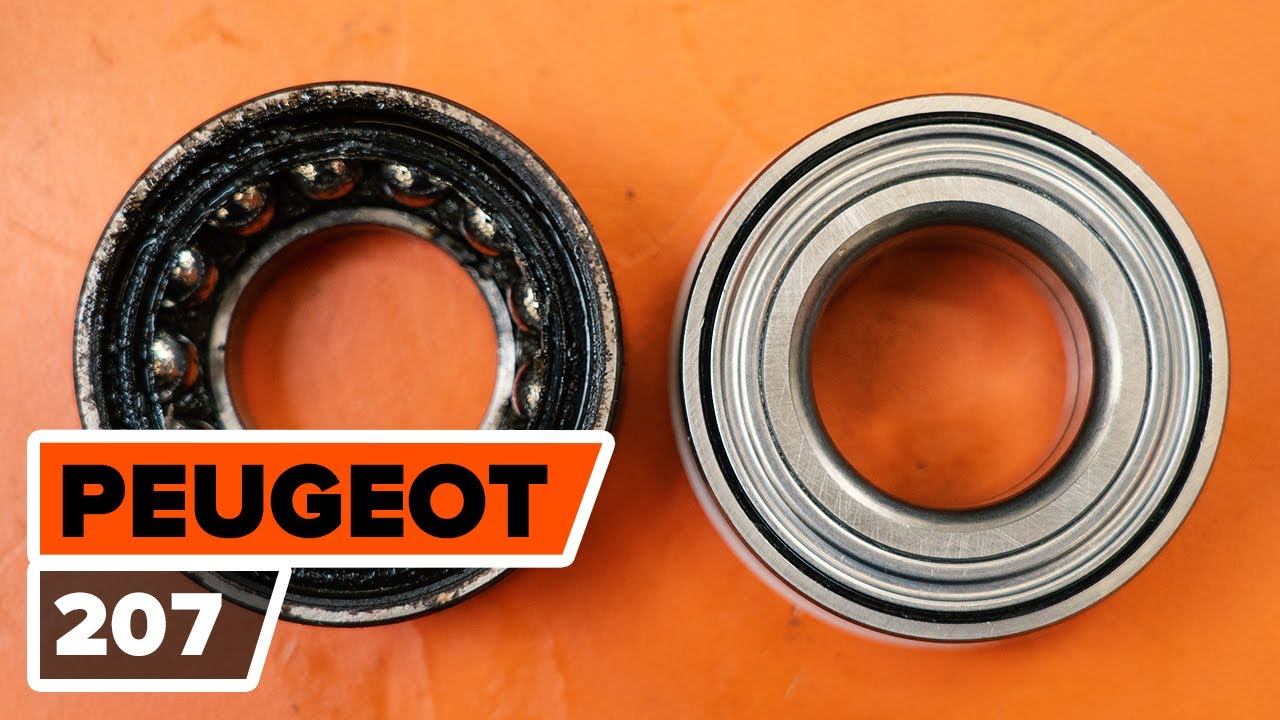

How to change rear wheel bearing on PEUGEOT 207 [TUTORIAL AUTODOC]

All the parts you need to replace – Wheel Bearing for 207 (WA_, WC_) and other PEUGEOT models

Alternative products

Wheel bearing kit

Replacement: wheel bearing – Peugeot 207 hatchback. List of the tools you'll need:

                      Wire brush

                      Nylon cleaning brush

                      WD-40 spray

                      All-purpose cleaning spray

                      Brake cleaner

                      Multipurpose grease

                      Copper grease

                      Torque wrench

                      Combination spanner #19

                      Drive socket # 13

                      Drive socket # 36

                      Torx bit T55

                      Wheel impact socket #17

                      Brake caliper wind back tool

                      Ratchet wrench

                      Tap wrench

                      Hammer

                      Flat chisel

                      Rubber mallet

                      Flat Screwdriver

                      Crow bar

                      Hub slide hammer puller

                      Wheel chock

Buy tools

Replacement: wheel bearing – Peugeot 207 hatchback. AUTODOC recommends:

Do not re-use the bearing assembly of your PEUGEOT 207 car.
The wheel hub bearing replacement procedure is identical for both wheels on the same axle.
All work should be done with the engine stopped.

Replacement: wheel bearing – Peugeot 207 hatchback. Recommended sequence of steps:

Step 1

Open the bonnet. Unscrew the brake fluid reservoir cap.
Step 2

Secure the wheels with chocks.

Step 3

Loosen the wheel mounting bolts. Use wheel impact socket #17.
Step 4

Raise the rear of the car and secure on supports.
Step 5

Unscrew the wheel bolts.

AUTODOC recommends:
Important! Hold the wheel while unscrewing the fastening bolts. Peugeot 207 hatchback
Step 6

Remove the wheel.
Step 7

Clean the brake caliper fasteners. Use a wire brush. Use all-purpose cleaning spray.
Step 8

Unscrew the brake caliper fastening. Use a combination spanner #19. Use a drive socket #13. Use a ratchet wrench.
Step 9

Spread the brake pads. Use a crowbar.

Step 10

Remove the brake caliper.

Replacement: wheel bearing – Peugeot 207 hatchback. Tip from AUTODOC experts:
Tie the caliper to the suspension or to the body with a wire without disconnecting from the brake hose to prevent depressurization of the brake system.Make sure that the brake caliper is not hanging on the brake hose.Don't press the brake pedal after the brake caliper has been removed. As a result, the piston can fall out from the brake cylinder, and brake fluid leakage and depressurization of the system may occur. Check the brake caliper bracket, brake caliper guide pins and boots. Clean them. Replace, if necessary.
Step 11

Remove the brake pads. Use a crowbar.
Step 12

Clean the brake caliper bracket fasteners. Use a wire brush. Use WD-40 spray.
Step 13

Unscrew the caliper bracket fastening. Use Torx T55. Use a tap wrench.
Step 14

Remove the caliper bracket.
Step 15

Clean the brake disc fasteners. Use a wire brush. Use WD-40 spray.
Step 16

Remove the wheel hub nut cap. Use a crowbar. Use a rubber mallet.

Replacement: wheel bearing – Peugeot 207 hatchback. Tip from AUTODOC:
In some cars, the wheel hub nut is not protected with a cap.
Step 17

Unstake the wheel hub retaining nut. Use a flat metal-working chisel. Use a hammer.
Step 18

Unscrew the hub nut. Use a drive socket #36. Use a tap wrench.
Step 19

Remove the brake disc assemled with the wheel hub bearing. Use the hub slide hammer puller.
Step 20

Clean the stub axle. Use a wire brush. Use all-purpose cleaning spray.
Step 21

Treat the stub axle. Use a multipurpose grease. Use a flat screwdriver.
Step 22

Clean the brake caliper bracket from dirt and dust. Use a wire brush. Use a brake cleaner.

AUTODOC recommends:
Replacement: wheel bearing – Peugeot 207 hatchback. After applying the spray, wait a few minutes.
Step 23

Install the brake disc assembled with the wheel hub bearing.
Step 24

Tighten the wheel hub nut. Use a drive socket #36. Use a torque wrench. Tighten it to 270 nm torque.

Replacement: wheel bearing – Peugeot 207 hatchback. AUTODOC experts recommend:
The wheel bearing unit must not tilt on the axle pin.During the installation process, use only new bolts and nuts.
Step 25

Restake the wheel hub retaining nut. Use a flat metal-working chisel. Use a hammer.
Step 26

Install the cap of the hub nut. Use a rubber mallet.
Step 27

Clean the mounting seats of the caliper and its bracket. Use a wire brush. Use WD-40 spray.
Step 28

Install the brake caliper bracket.
Step 29

Tighten the brake caliper bracket. Use Torx T55. Use a torque wrench. Tighten it to 53 Nm torque.
Step 30

Treat the brake caliper piston. Use a nylon cleaning brush. Use a brake cleaner.

AUTODOC recommends:
Replacement: wheel bearing – Peugeot 207 hatchback. After applying the spray, wait a few minutes.
Step 31

Press in the brake caliper piston. Use brake caliper wind back tool.
Step 32

Install the brake pads.
Step 33

Install the brake caliper and fix it. Use a combination spanner #19. Use a drive socket #13. Use a torque wrench. Tighten it to 30 Nm torque.
Step 34

Treat the surface where the brake disc contacts the wheel rim. Use copper grease.
Step 35

Clean the brake disk surface. Use a brake cleaner.

AUTODOC recommends:
Replacement: wheel bearing – Peugeot 207 hatchback. After applying the spray, wait a few minutes.
Step 36

Install the wheel.

AUTODOC recommends:
Warning! To avoid injury, hold the wheel while screwing in the fastening bolts on the car. Peugeot 207 hatchback
Step 37

Screw in the wheel bolts. Use wheel impact socket #17.
Step 38

Lower the car and working in a cross order, tighten the wheel bolts. Use wheel impact socket #17. Use a torque wrench. Tighten it to 100 Nm torque.
Step 39

Remove the jacks and chocks.

Replacement: wheel bearing – Peugeot 207 hatchback. AUTODOC experts recommend:
Check the brake fluid level in the expansion tank and refill if necessary.
Step 40

Tighten the brake fluid reservoir cap. Close the hood.

Replacement: wheel bearing – Peugeot 207 hatchback. AUTODOC experts recommend:
Without starting the engine, press the brake pedal several times until you feel significant resistance.
