How to change pollen filter on TOYOTA PRIUS PLUS (ZVW4_) – replacement guide
TOYOTA PRIUS PLUS (ZVW4_) 1.8 Hybrid (ZVW40W, ZVW41W) … View more
The steps may slightly vary depending on the car design.
This video shows the replacement procedure of a similar car part on another vehicle

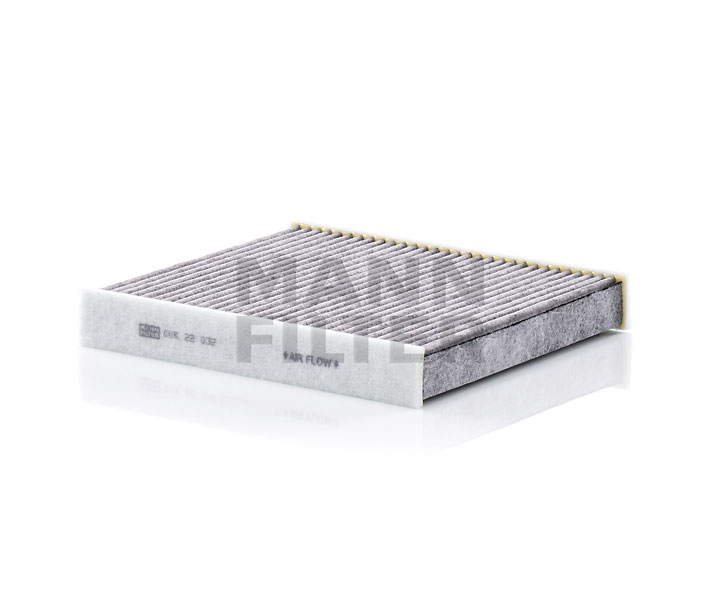

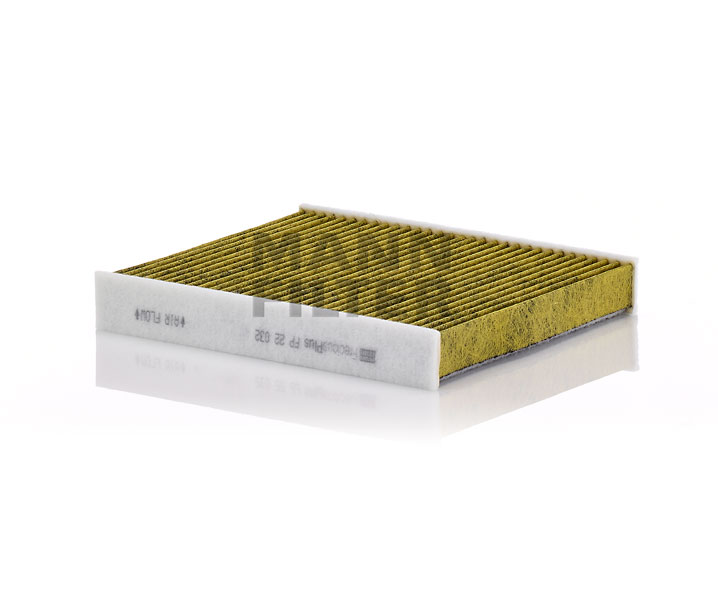

Pollen filter
- Replace the cabin filter at least once every six months, in early spring and autumn seasons.
- Follow the terms, recommendations and requirements of the part operation provided by the manufacturer.
- If the air flow into the cabin has sharply reduced, replace the filter before a scheduled maintenance.
- Warning! Shut down the engine before starting any work – TOYOTA PRIUS PLUS (ZVW4_).
- Step 1
Open the glove box.
- Step 2
Detach the stopper (strap) from the glove box lid.
- Step 3
Release the cabin filter cover clips.
- Step 4
Remove the cabin filter housing cover.
AUTODOC recommends:Replacement: pollen filter – TOYOTA PRIUS PLUS (ZVW4_). To avoid damaging the part when removing it, do not use excessive force.
- Step 5
Remove the cabin filter.
AUTODOC recommends:Do not attempt to clean and reuse the filter - it will affect the quality of air cleaning inside the car.
- Step 6
Install the cabin filter to its mounting seat.
Replacement: pollen filter – TOYOTA PRIUS PLUS (ZVW4_). Tip from AUTODOC experts:Check out the correct location of the filter element. Do not skew.Follow the air flow direction arrow on the filter.TOYOTA PRIUS PLUS (ZVW4_) – It's important to only use high-quality filters.
- Step 7
Reinstall the cabin filter housing cover. Make sure you hear a click indicating that it is locked in place.
Find out which tyre and wheel sizes are compatible with the TOYOTA Prius Plus (XW40) model
