How to change pollen filter on Opel Corsa D – replacement guide
OPEL Corsa D Hatchback (S07) 1.4 (L08, L68), OPEL Corsa D Hatchback (S07) 1.0 (L08, L68), OPEL Corsa D Hatchback (S07) 1.4 LPG (L08, L68), OPEL Corsa D Hatchback (S07) 1.6 Turbo (L08, L68), OPEL Corsa D Hatchback (S07) 1.2 LPG (L08, L68), OPEL Corsa D Hatchback (S07) 1.2 LPG (L08, L68), OPEL Corsa D Hatchback (S07) 1.0 (L08, L68), OPEL Corsa D Hatchback (S07) 1.2 (L08, L68), OPEL Corsa D Hatchback (S07) 1.4 LPG (L08, L68), OPEL Corsa D Hatchback (S07) 1.3 CDTI (L08, L68), OPEL Corsa D Hatchback (S07) 1.7 CDTI (L08, L68), OPEL Corsa D Hatchback (S07) 1.6 Turbo (L08, L68), OPEL Corsa D Hatchback (S07) 1.6 Turbo (L08, L68), OPEL Corsa D Hatchback (S07) 1.2 LPG (L08, L68), OPEL Corsa D Hatchback (S07) 1.4 (L08, L68), OPEL Corsa D Hatchback (S07) 1.3 CDTI (L08, L68), OPEL Corsa D Hatchback (S07) 1.7 CDTI (L08, L68), OPEL Corsa D Hatchback (S07) 1.2 (L08, L68), OPEL Corsa D Hatchback (S07) 1.2 (L08, L68), OPEL Corsa D Hatchback (S07) 1.4 (L08, L68), OPEL Corsa D Hatchback (S07) 1.4 (L08, L68), OPEL Corsa D Hatchback (S07) 1.2 LPG (L08, L68) … View more
The steps may slightly vary depending on the car design.
How to change pollen filter on OPEL CORSA D [TUTORIAL AUTODOC]
Pollen filter
- Replace the cabin filter at least once every six months, in early spring and autumn seasons.
- Follow the terms, recommendations and requirements of the part operation provided by the manufacturer.
- If the air flow into the cabin has sharply reduced, replace the filter before a scheduled maintenance.
- Please note: all work on the car – Opel Corsa D – should be done with the engine switched off.
- Step 1
Move the passenger seat fully backwards.
- Step 2
Spread a cloth under the cabin filter cover to protect the interior upholstery from getting dirty.
- Step 3
Unscrew the fasteners of the bottom trim panel. Use Torx T20.
- Step 4
Remove the bottom cover of the glove box.
- Step 5
Unscrew the glove box fastening screws. Use Torx T20.
- Step 6
Open the glove box.
- Step 7
Unscrew the glove box fastening screws. Use Torx T20.
- Step 8
Unplug the glove box light connector.
- Step 9
Remove the glovebox.
Replacement: pollen filter – Opel Corsa D. AUTODOC recommends:Be careful to avoid damaging the glove compartment fasteners.
- Step 10
Remove the fasteners of the air duct housing. Use a clip removal tool.
- Step 11
Remove the air distribution housing assembly.
- Step 12
Remove the cabin filter housing cover
- Step 13
Remove the filter element from the filter housing
Replacement: pollen filter – Opel Corsa D. Tip from AUTODOC:Do not attempt to clean and reuse the filter - it will affect the quality of air cleaning inside the car.
- Step 14

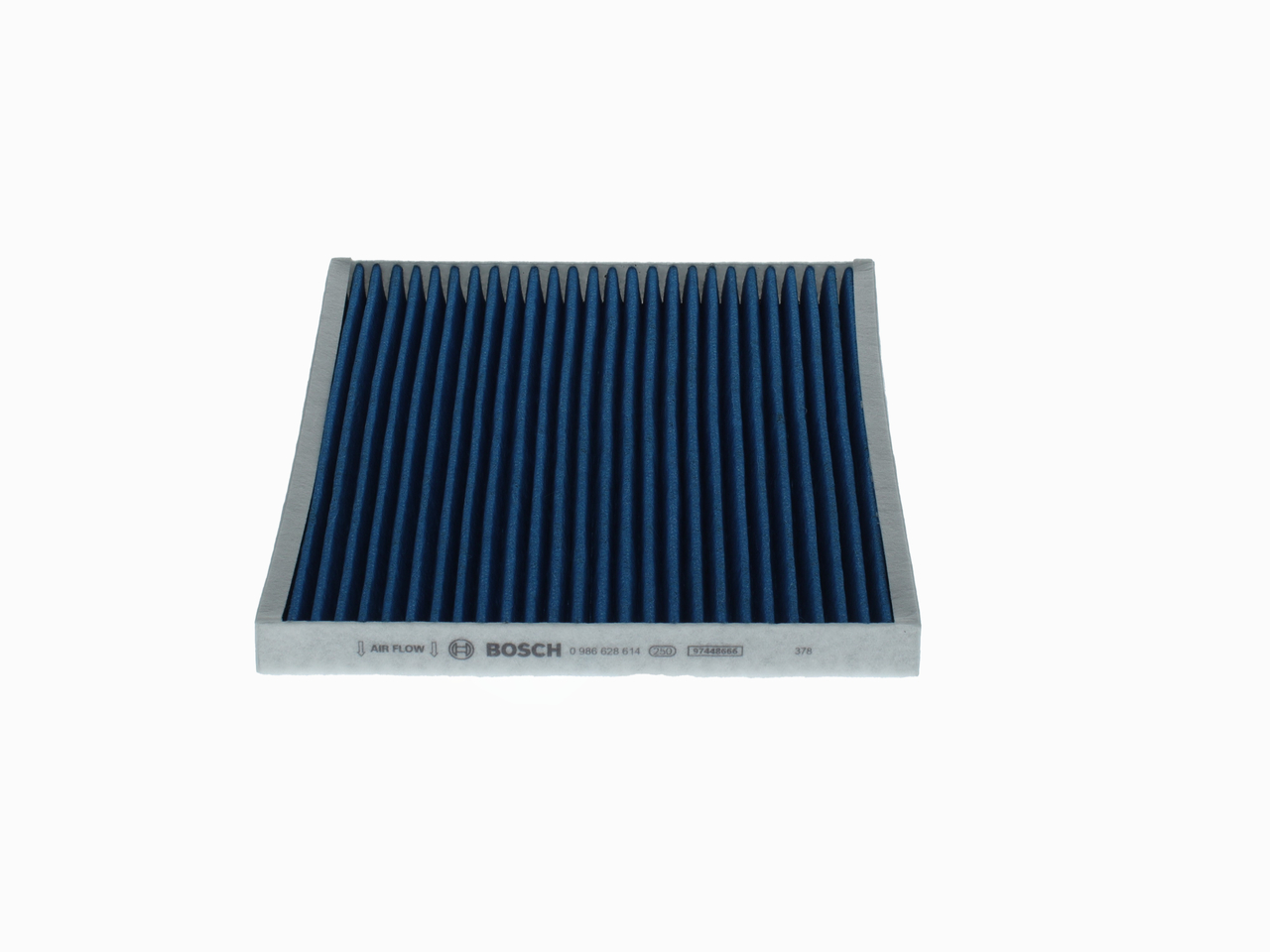

Insert a new filter element into the filter housing. Make sure that the filter edge fits tight to the housing.
AUTODOC recommends:Check out the correct location of the filter element. Do not skew.Follow the air flow direction arrow on the filter.Opel Corsa D – It's important to only use high-quality filters.
- Step 15
Reinstall the cabin filter housing cover Make sure you hear a click indicating that it is locked in place.
Replacement: pollen filter – Opel Corsa D. Tip from AUTODOC experts:Do not apply excessive force when installing the part. Otherwise you may damage the fasteners.
- Step 16
Reinstall the air distribution housing assembly.
- Step 17
Install the air duct housing fasteners.
