Important!
This replacement procedure can be used for:
VOLVO V50 (545) D4, VOLVO V50 (545) D3, VOLVO V50 (545) 2.4, VOLVO V50 (545) 2.4, VOLVO V50 (545) T5, VOLVO V50 (545) 2.0 D, VOLVO V50 (545) 1.8, VOLVO V50 (545) 1.6, VOLVO V50 (545) 1.6 D, VOLVO V50 (545) 2.0, VOLVO V50 (545) D5, VOLVO V50 (545) T5, VOLVO V50 (545) 1.8 FlexFuel, VOLVO V50 (545) 2.4 Tdi, VOLVO V50 (545) D2, VOLVO V50 (545) 2.0 FlexFuel, VOLVO V50 (545) 2.0 CDI, VOLVO V50 (545) 2.0 D4 View more

The steps may slightly vary depending on the car design.

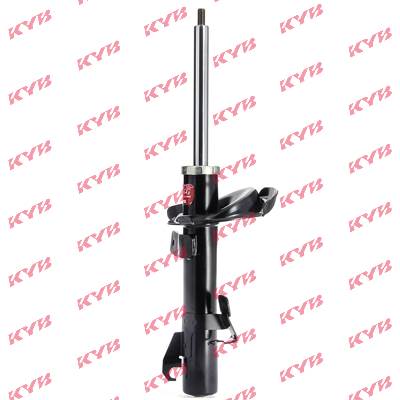

How to change a front shock strut on VOLVO V50 1 (P12) [TUTORIAL AUTODOC]

video
Tools
Replacement: suspension strut – Volvo V50 MW. Tools you'll need:
Wire brush
WD-40 spray
Copper grease
Combination spanner #15
Combination spanner #18
Combination spanner #21
Impact socket №13
Impact socket №15
Impact socket №18
Impact socket №21
HEX bit no.H5.
HEX bit no.H6.
Wheel impact socket #19
Shock absorber socket
Ratchet wrench
Torque wrench
Tap wrench
Ball joint puller
Hydraulic strut spring compressor
Hydraulic transmission jack
Fender cover
Wheel chock
Replacement: suspension strut – Volvo V50 MW. Tip from AUTODOC:
  • Both shock struts of the front suspension should be replaced simultaneously.
  • The replacement procedure is identical for the left and right shock struts of the front suspension.
  • All work should be done with the engine stopped.
Replacement: suspension strut – Volvo V50 MW. Take the following steps:
  1. Step 1
    How to change Shock Absorber on Volvo V50 545 2003 - free PDF and video manuals
    Open the bonnet.
  2. Step 2
    How to replace VOLVO V50 (545) 2.0 D 2004 Shock Absorber - step-by-step manuals and video guides
    Use a fender protection cover to prevent damaging paintwork and plastic parts of the car.
  3. Step 3
    Volvo V50 545 1.6 D 2005 Shock Absorber replacement: free workshop manuals
    Clean the fasteners of the shock strut upper mount. Use WD-40 spray.
  4. Step 4
    Changing Shock Absorber on VOLVO V50 (545) 2.4 2006 by yourself
    Loosen the upper fastener of the shock strut mount. Use a drive socket #13. Use a ratchet wrench.
  5. Step 5
    How to remove VOLVO V50 1.8 FlexFuel 2007 Shock Absorber - online easy-to-follow instructions
    Secure the wheels with chocks.
  6. Step 6
    How to replace Shock Absorber on VOLVO V50 (545) 2008: download PDF manuals and video instructions
    Loosen the wheel mounting bolts. Use wheel impact socket #19.
  7. Step 7
    How hard is it to do yourself: Shock Absorber replacement on Volvo V50 545 D5 2009 - download illustrated guide
    Loosen the fastener of the driveshaft. Use a drive socket #13. Use a tap wrench.
  8. Step 8
    Need to know how to renew Shock Absorber on VOLVO V50 2010? This free workshop manual will help you to do it yourself
    Raise the front of the car and secure on supports.
  9. Step 9
    Changing of Shock Absorber on Volvo V50 545 2011 won't be an issue if you follow this illustrated step-by-step guide
    Unscrew the wheel bolts.
    Replacement: suspension strut – Volvo V50 MW. Professionals recommend:
    To avoid injury, hold up the wheel when unscrewing the bolts.
  10. Step 10
    VOLVO V50 2.0 D Shock Absorber replacement: online guides and video tutorials
    Remove the wheel.
  11. Step 11
    Replacing Shock Absorber on Volvo V50 545 2003 2.0 D by yourself
    Remove the fastening bolt.
  12. Step 12
    V50 (545) 1.8 FlexFuel 2004 Shock Absorber DIY replacement workshop manual
    Disconnect the ABS sensor cable fastener.
  13. Step 13
    How to change Shock Absorber on VOLVO V50 (545) 2005 - tips and tricks
    Clean the stabiliser link fasteners. Use a wire brush. Use WD-40 spray.
  14. Step 14
    Step-by-step recommendations for DIY replacement Volvo V50 545 2006 1.8 FlexFuel Shock Absorber
    Unscrew the fastener connecting the stabilizer link to the shock strut. Use a combination spanner #15. Use HEX No.H5. Use a ratchet wrench.
  15. Step 15
    DIY replacement of Shock Absorber on VOLVO V50 (545) D2 2007 is not an issue anymore with our step-by-step tutorial
    Remove the stabilizer rod.
  16. Step 16
    How to change Shock Absorber on Volvo V50 545 2003 - free PDF and video manuals
    Detach the brake hose from the shock strut.
  17. Step 17
    How to replace VOLVO V50 (545) 2.0 D 2004 Shock Absorber - step-by-step manuals and video guides
    Clean the fasteners connecting the shock strut to the steering knuckle. Use a wire brush. Use WD-40 spray.
  18. Step 18
    Volvo V50 545 1.6 D 2005 Shock Absorber replacement: free workshop manuals
    Unscrew the lower fastener connecting the shock strut to the steering knuckle. Use a drive socket #15. Use a ratchet wrench. Use a tap wrench.
  19. Step 19
    Changing Shock Absorber on VOLVO V50 (545) 2.4 2006 by yourself
    Clean the fastener that connects the ball joint to the steering knuckle. Use a wire brush. Use WD-40 spray.
  20. Step 20
    How to remove VOLVO V50 1.8 FlexFuel 2007 Shock Absorber - online easy-to-follow instructions
    Unscrew the ball joint fastening to the steering knuckle. Use a combination spanner #21.
  21. Step 21
    How to replace Shock Absorber on VOLVO V50 (545) 2008: download PDF manuals and video instructions
    Disconnect the ball joint from the steering knuckle. Use a ball joint puller.
  22. Step 22
    How hard is it to do yourself: Shock Absorber replacement on Volvo V50 545 D5 2009 - download illustrated guide
    Disconnect the lower arm from the steering knuckle.
  23. Step 23
    Need to know how to renew Shock Absorber on VOLVO V50 2010? This free workshop manual will help you to do it yourself
    Remove the drive shaft.
  24. Step 24
    Changing of Shock Absorber on Volvo V50 545 2011 won't be an issue if you follow this illustrated step-by-step guide
    Prop up the steering knuckle. Use a hydraulic transmission jack.
  25. Step 25
    VOLVO V50 2.0 D Shock Absorber replacement: online guides and video tutorials
    Release the lower fastener connecting the shock strut to the steering knuckle. Use a special drive socket to remove the shock absorber. Use a ratchet wrench.
  26. Step 26
    Replacing Shock Absorber on Volvo V50 545 2003 2.0 D by yourself
    Remove the fastening bolt.
  27. Step 27
    V50 (545) 1.8 FlexFuel 2004 Shock Absorber DIY replacement workshop manual
    Disconnect the steering knuckle from the shock absorber strut.
  28. Step 28
    How to change Shock Absorber on VOLVO V50 (545) 2005 - tips and tricks
    Unscrew the top fastening of the shock strut mount.
    Replacement: suspension strut – Volvo V50 MW. AUTODOC experts recommend:
    To avoid injuries, hold the shock strut when undoing the fastening bolts.
  29. Step 29
    Step-by-step recommendations for DIY replacement Volvo V50 545 2006 1.8 FlexFuel Shock Absorber
    Remove the suspension strut.
  30. Step 30
    DIY replacement of Shock Absorber on VOLVO V50 (545) D2 2007 is not an issue anymore with our step-by-step tutorial
    Set the shock absorber strut on the spring compressor tool.
    Replacement: suspension strut – Volvo V50 MW. AUTODOC recommends:
    Note that when using a spring compressor, spring coils need to be securely gripped, compressing the spring on the opposite sides.Ensure the correct position of the spring in the retainer.Make sure that the spring coils tightly entered the lock handles.
  31. Step 31
    How to change Shock Absorber on Volvo V50 545 2003 - free PDF and video manuals
    Compress the spring.
  32. Step 32
    How to replace VOLVO V50 (545) 2.0 D 2004 Shock Absorber - step-by-step manuals and video guides
    Remove the strut piston rod nut. Use a drive socket #18. Use HEX No.H6. Use a ratchet wrench.
  33. Step 33
    Volvo V50 545 1.6 D 2005 Shock Absorber replacement: free workshop manuals
    Remove the top mount of the shock absorber strut together with the mount bearing.
  34. Step 34
    Changing Shock Absorber on VOLVO V50 (545) 2.4 2006 by yourself
    Remove the shock absorber dust cap and the bump stop.
    AUTODOC recommends:
    Replacement: suspension strut – Volvo V50 MW. Carefully inspect the mount, the boot, and the bump stop of the shock absorber. Replace if necessary.
  35. Step 35
    How to remove VOLVO V50 1.8 FlexFuel 2007 Shock Absorber - online easy-to-follow instructions
    Release the coil spring.
  36. Step 36
    How to replace Shock Absorber on VOLVO V50 (545) 2008: download PDF manuals and video instructions
    Remove the spring.
  37. Step 37
    How hard is it to do yourself: Shock Absorber replacement on Volvo V50 545 D5 2009 - download illustrated guide
    Remove the old shock absorber from the hydraulic coil spring compressor.
    Replacement: suspension strut – Volvo V50 MW. AUTODOC experts recommend:
    Before installing a new shock absorber you should pump it manually 3-5 times.
  38. Step 38
    Need to know how to renew Shock Absorber on VOLVO V50 2010? This free workshop manual will help you to do it yourself
    Install the new shock absorber on the hydraulic coil spring compressor.
  39. Step 39
    Changing of Shock Absorber on Volvo V50 545 2011 won't be an issue if you follow this illustrated step-by-step guide
    Install the spring on the shock absorber.
  40. Step 40
    VOLVO V50 2.0 D Shock Absorber replacement: online guides and video tutorials
    Compress the spring.
  41. Step 41
    Replacing Shock Absorber on Volvo V50 545 2003 2.0 D by yourself
    Install the dust sleeve and the bump stop on the new shock absorber.
  42. Step 42
    V50 (545) 1.8 FlexFuel 2004 Shock Absorber DIY replacement workshop manual
    Install the upper strut mount and the strut mount bearing.
  43. Step 43
    How to change Shock Absorber on VOLVO V50 (545) 2005 - tips and tricks
    Tighten the shock strut piston rod nut. Use HEX No.H6. Use a drive socket #18. Use a torque wrench. Tighten it to 50 Nm torque.
    Replacement: suspension strut – Volvo V50 MW. Tip:
    Check to make sure the spring is positioned correctly. Avoid its misalignment.
  44. Step 44
    Step-by-step recommendations for DIY replacement Volvo V50 545 2006 1.8 FlexFuel Shock Absorber
    Decompress the spring.
  45. Step 45
    DIY replacement of Shock Absorber on VOLVO V50 (545) D2 2007 is not an issue anymore with our step-by-step tutorial
    Remove the assembled shock strut.
