Important!

This replacement procedure can be used for:
MERCEDES-BENZ 190 (W201) E 1.8 (201.018), MERCEDES-BENZ 190 (W201) 2.0 (201.023), MERCEDES-BENZ 190 (W201) 2.0 (201.023), MERCEDES-BENZ 190 (W201) E 2.0 (201.024), MERCEDES-BENZ 190 (W201) D 2.0 (201.122) … View more

The steps may slightly vary depending on the car design.

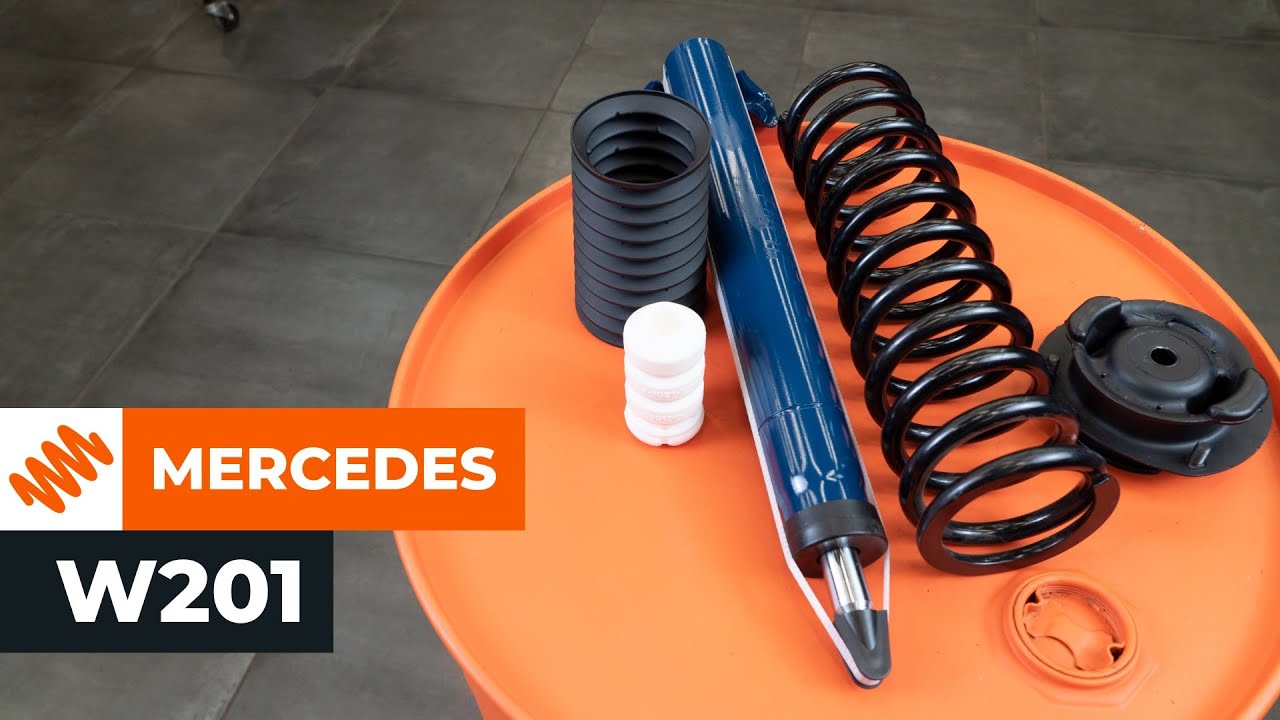

How to change front shock absorber and coil springs on MERCEDES W201 [TUTORIAL AUTODOC]

All the parts you need to replace – Strut Mount for 190 (W201) and other MERCEDES-BENZ models

Top strut mount

        Top strut mount for 190 (W201) Petrol (109 hp)

        Top strut mount for 190 (W201) Petrol (102 hp)

        Top strut mount for 190 (W201) Petrol (105 hp)

        Top strut mount for 190 (W201) Petrol (122 hp)

        Top strut mount for 190 (W201) Diesel (75 hp)

Replacement: strut mount – Mercedes W201. Tools you need:

                        Wire brush

                        WD-40 spray

                        All-purpose cleaning spray

                        Ceramic grease

                        Torque wrench

                        Combination spanner #13

                        Combination spanner #19

                        Combination spanner #22

                        Drive socket # 13

                        Drive socket # 19

                        Drive socket # 22

                        Shock absorber socket # 19

                        Shock absorber socket # 22

                        HEX bit no.H6

                        HEX bit no.H7

                        Wheel impact socket #17

                        Ratchet wrench

                        Tap wrench

                        Crow bar

                        Strut spring compressor

                        Hydraulic transmission jack

                        Fender cover

                        Wheel chock

Buy tools

Replacement: strut mount – Mercedes W201. AUTODOC recommends:

The replacement procedure is identical for the mounts of the left and right shock struts of the front suspension.
All mounts of the front shock struts should be replaced simultaneously.
All work should be done with the engine stopped.

Replacement: strut mount – Mercedes W201. Take the following steps:

Step 1

Open the bonnet.
Step 2

Use a fender protection cover to prevent damaging paintwork and plastic parts of the car.
Step 3

Clean the fasteners of the shock strut upper mount. Use a wire brush. Use WD-40 spray.
Step 4

Clean the fastener of the suspension strut piston rod. Use a wire brush. Use WD-40 spray.
Step 5

Loosen the fastener of the strut piston rod. Use a special drive socket to remove the shock absorber # 22. Use HEX No.H7. Use a ratchet wrench.

AUTODOC recommends:
Don't unscrew it completely.
Step 6

Loosen the fasteners of the upper strut mount. Use a drive socket #13. Use a ratchet wrench.

Replacement: strut mount – Mercedes W201. Professionals recommend:
Don't unscrew it completely.
Step 7

Secure the wheels with chocks.

Step 8

Loosen the wheel bolts. Use wheel impact socket #17. Use a tap wrench.
Step 9

Raise the car.

AUTODOC recommends:
If you are using a jack, make sure it rests on a flat surface without any unevenness.Be sure to additionally secure the car with jack stands.
Step 10

Unscrew the wheel bolts.

AUTODOC recommends:
Important! Hold the wheel while unscrewing the fastening bolts. Mercedes W201
Step 11

Remove the wheel.
Step 12

Support the steering knuckle. Use a hydraulic transmission jack.
Step 13

Disconnect the wiring from the strut.

Step 14

Clean the fasteners connecting the shock strut to the steering knuckle. Use a wire brush. Use WD-40 spray.
Step 15

Unscrew the lower suspension strut fasteners. Use a combination spanner #19. Use a drive socket #19. Use a ratchet wrench.
Step 16

Unscrew the fastener of the suspension strut piston rod.

Step 17

Remove the fastening bolts.
Step 18

Detach the strut from the steering knuckle. Use a crowbar.
Step 19

Lower the hydraulic transmission jack by 10-15 cm.

AUTODOC recommends:
Lower the hydraulic transmission jack smoothly, without jerks, to avoid damaging assemblies and mechanisms.
Step 20

Remove the suspension strut.

Replacement: strut mount – Mercedes W201. Tip from AUTODOC:
Do not allow the steering knuckle to hang on the brake hose or wiring harness.
Step 21

Unscrew the fasteners of the upper strut mount.
Step 22

Remove the strut mount.
Step 23

Clean the mounting seat of the suspension strut mount. Use a wire brush. Use all-purpose cleaning spray.
Step 24

Clean the mounting seats of the shock strut. Use a wire brush. Use all-purpose cleaning spray.
Step 25

Install a new strut mount.
Step 26

Screw on the fasteners of the upper strut mount.
Step 27

Install the dust boot and the bump stop.
Step 28

Install the shock absorber.
Step 29

Install the fastening bolts.
Step 30

Secure the wiring to the strut.
Step 31

Screw on the fastener of the strut piston rod.
Step 32

Tighten the lower fasteners connecting the shock strut to the steering knuckle. Use a combination spanner #19. Use a drive socket #19. Use a torque wrench. Tighten it to 110 Nm torque.
Step 33

Clean the wheel rim mounting seat. Use a wire brush. Use all-purpose cleaning spray.
Step 34

Treat the surface where the brake disc contacts the wheel rim. Use ceramic grease.
Step 35

Install the wheel.

AUTODOC recommends:
To avoid injury, hold up the wheel when screwing in the fastening bolts.
Step 36

Screw in the wheel bolts. Use wheel impact socket #17. Use a ratchet wrench.
Step 37

Lower the car and working in a cross order, tighten the wheel bolts. Use wheel impact socket #17. Use a torque wrench. Tighten it to 110 Nm torque.
Step 38

Remove the jacks and chocks.
Step 39

Tighten the fasteners of the upper strut mount. Use a drive socket #13. Use a torque wrench. Tighten it to 20 Nm torque.
Step 40

Tighten the fastener of the suspension strut piston rod. Use a special drive socket to remove the shock absorber # 19. Use HEX No.H6. Use a torque wrench. Tighten it to 60 Nm torque.
Step 41

Remove the fender protection cover.
Step 42

Close the bonnet.

Was this manual helpful?
