How to carry out replacement: Control Arm 1.3 IMA (ZE28, ZE2) Honda Insight ZE2/ZE3
Disclaimer
Change Honda Insight ZE2/ZE3 1.5 IMA (ZE3) Control Arm yourself – manuals and video tutorials

How to change front lower arm on Honda Insight ZE2_ZE3 – replacement guide

downloads: 12
Views: 122
Download your free tutorial and fix HONDA INSIGHT (ZE_) 1.3 IMA (ZE2) problems yourself Download for free 2.8 MB Control Arm for Honda Insight ZE2/ZE3 Shop now
Leave a comment Open in a new tab
Important!
This replacement procedure can be used for:
HONDA INSIGHT (ZE_) 1.3 IMA (ZE28, ZE2) … View more

The steps may slightly vary depending on the car design.

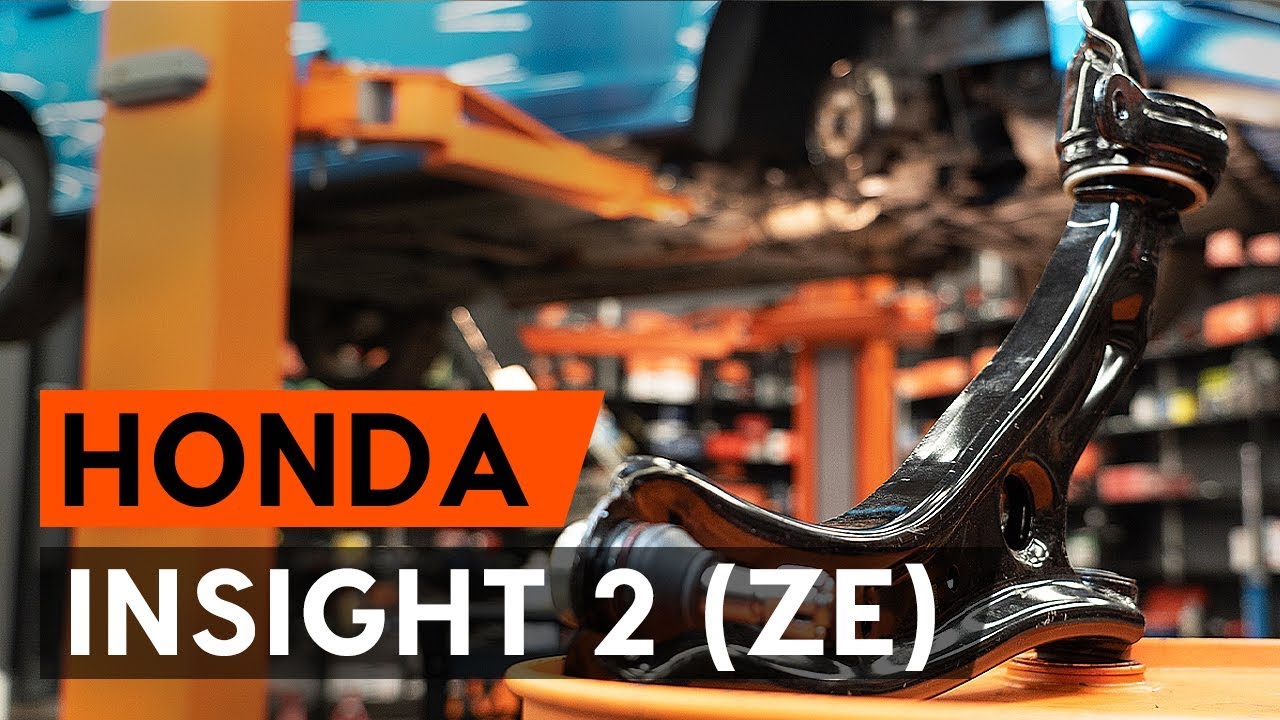

How to change front suspension arm / front control arm on HONDA INSIGHT 2 (ZE) [TUTORIAL AUTODOC]

video
Published on: 16/04/2020
6K views
All the parts you need to replace – Control Arm for INSIGHT (ZE_) and other HONDA models
Alternative products
How to change Suspension arm on Honda Insight ZE2/ZE3 1.3 IMA (ZE28, ZE2) – step-by-step instructions for straightforward car repair Suspension arm
273C1924 RIDEX Suspension arm
46,51 GBP
Shop
TC2574 DELPHI Suspension arm
66,06 GBP
Shop
31-16 050 0134 MEYLE Suspension arm
88,78 GBP
Shop
L40559 MONROE Suspension arm
97,69 GBP
Shop
Tools
Replacement: front lower arm – Honda Insight ZE2_ZE3. List of the tools you'll need:
Wire brush
WD-40 spray
Brake cleaner
Copper grease
Combination spanner #19
Combination spanner #22
Drive socket # 19
Wheel impact socket #19
Torque wrench
Tap wrench
Clip removal tool
Round-nose pliers
Phillips screwdriver
Crow bar
Ball joint puller
Hydraulic transmission jack
Wheel chock
Buy tools
Replacement: front lower arm – Honda Insight ZE2_ZE3. AUTODOC experts recommend:
  • The replacement procedure is identical for the left and right lower control arms.
  • All work should be done with the engine stopped.
Replacement: front lower arm – Honda Insight ZE2_ZE3. Take the following steps:
  1. Step 1
    How to change Control Arm on Honda Insight ZE2/ZE3 2009 - free PDF and video manuals
    Secure the wheels with chocks.
  2. Step 2
    How to replace HONDA INSIGHT (ZE_) 1.3 IMA (ZE28, ZE2) 2010 Control Arm - step-by-step manuals and video guides
    Loosen the wheel mounting bolts. Use wheel impact socket #19.
  3. Step 3
    Honda Insight ZE2/ZE3 1.3 IMA (ZE2) 2011 Control Arm replacement: free workshop manuals
    Raise the front of the car and secure on supports.
  4. Step 4
    Changing Control Arm on HONDA INSIGHT (ZE_) 1.3 IMA (ZE28, ZE2) 2012 by yourself
    Unscrew the wheel bolts.
    Replacement: front lower arm – Honda Insight ZE2_ZE3. Tip:
    To avoid injury, hold up the wheel when unscrewing the bolts.
  5. Step 5
    How to remove HONDA INSIGHT 1.3 IMA (ZE2) 2013 Control Arm - online easy-to-follow instructions
    Remove the wheel.
  6. Step 6
    How to replace Control Arm on HONDA INSIGHT (ZE_) 2014: download PDF manuals and video instructions
    Undo the fasteners of the oil pan lower cover. Use a Phillips screwdriver.
  7. Step 7
    How hard is it to do yourself: Control Arm replacement on Honda Insight ZE2/ZE3 1.3 IMA (ZE28, ZE2) 2015 - download illustrated guide
    Unscrew and remove the wheel arch cover fasteners. Use a clip removal tool.
  8. Step 8
    Need to know how to renew Control Arm on HONDA INSIGHT 2016? This free workshop manual will help you to do it yourself
    Remove the wheel arch cover.
  9. Step 9
    Changing of Control Arm on Honda Insight ZE2/ZE3 2017 won't be an issue if you follow this illustrated step-by-step guide
    Clean all joints of the arm. Use a wire brush. Use WD-40 spray.
    AUTODOC recommends:
    Replacement: front lower arm – Honda Insight ZE2_ZE3. After applying the spray, wait a few minutes.Wear protective goggles.
  10. Step 10
    HONDA INSIGHT 1.5 IMA (ZE3) Control Arm replacement: online guides and video tutorials
    Remove the cotter pin. Use round-nose pliers.
  11. Step 11
    Replacing Control Arm on Honda Insight ZE2/ZE3 2019 1.3 IMA (ZE28, ZE2) by yourself
    Unscrew the ball joint fastening to the steering knuckle. Use a combination spanner #19.
  12. Step 12
    INSIGHT (ZE_) 1.3 IMA (ZE2) 2020 Control Arm DIY replacement workshop manual
    Disconnect the lower arm from the steering knuckle. Use a ball joint puller.
  13. Step 13
    How to change Control Arm on HONDA INSIGHT (ZE_) 2021 - tips and tricks
    Clean all joints of the arm. Use a wire brush. Use WD-40 spray.
    Replacement: front lower arm – Honda Insight ZE2_ZE3. AUTODOC recommends:
    After applying the spray, wait a few minutes.
  14. Step 14
    Step-by-step recommendations for DIY replacement Honda Insight ZE2/ZE3 2022 1.3 IMA (ZE2) Control Arm
    Unscrew the front arm fastener. Use a drive socket #19. Use a tap wrench.
  15. Step 15
    DIY replacement of Control Arm on HONDA INSIGHT (ZE_) 1.5 IMA (ZE3) 2023 is not an issue anymore with our step-by-step tutorial
    Unscrew the rear fastener connecting the control arm to the subframe. Use a drive socket #19. Use a tap wrench.
  16. Step 16
    How to change Control Arm on Honda Insight ZE2/ZE3 2009 - free PDF and video manuals
    Remove the rear fastener of the control arm. Use a drive socket #19.
  17. Step 17
    How to replace HONDA INSIGHT (ZE_) 1.3 IMA (ZE28, ZE2) 2010 Control Arm - step-by-step manuals and video guides
    Remove the front fastener of the control arm. Use a drive socket #19.
  18. Step 18
    Honda Insight ZE2/ZE3 1.3 IMA (ZE2) 2011 Control Arm replacement: free workshop manuals
    Remove the arm. Use a crowbar.
  19. Step 19
    Changing Control Arm on HONDA INSIGHT (ZE_) 1.3 IMA (ZE28, ZE2) 2012 by yourself
    Clean the mounting seats and the thread of the suspension arm. Use a wire brush. Use WD-40 spray.
  20. Step 20
    How to remove HONDA INSIGHT 1.3 IMA (ZE2) 2013 Control Arm - online easy-to-follow instructions
    Install a new arm. Use a crowbar.
    Replacement: front lower arm – Honda Insight ZE2_ZE3. Tip:
    During the installation process, use only new bolts and nuts.Do not damage the ball joint cover.
  21. Step 21
    How to replace Control Arm on HONDA INSIGHT (ZE_) 2014: download PDF manuals and video instructions
    Install the front fastener of the arm. Use a drive socket #19.
  22. Step 22
    How hard is it to do yourself: Control Arm replacement on Honda Insight ZE2/ZE3 1.3 IMA (ZE28, ZE2) 2015 - download illustrated guide
    Install the rear fastener of the control arm. Use a drive socket #19.
  23. Step 23
    Need to know how to renew Control Arm on HONDA INSIGHT 2016? This free workshop manual will help you to do it yourself
    Connect the lower arm to the steering knuckle.
  24. Step 24
    Changing of Control Arm on Honda Insight ZE2/ZE3 2017 won't be an issue if you follow this illustrated step-by-step guide
    Treat the fasteners of the ball joint. Use copper grease.
  25. Step 25
    HONDA INSIGHT 1.5 IMA (ZE3) Control Arm replacement: online guides and video tutorials
    Screw the fasteners of the ball joint. Use a combination spanner #22.
Was this manual helpful?
