How to carry out replacement: Anti Roll Bar Links 2.4 Volvo V70 Mk2
Disclaimer
Change Volvo V70 Mk2 2.4 Anti Roll Bar Links yourself – manuals and video tutorials

How to change front anti roll bar links on Volvo V70 SW – replacement guide

downloads: 7
Views: 57
Download your free tutorial and fix VOLVO V70 II (285) 2.4 Bifuel (CNG) problems yourself Download for free 1.31 MB Anti Roll Bar Links for Volvo V70 Mk2 Shop now
Leave a comment Open in a new tab
Important!
This replacement procedure can be used for:
VOLVO V70 II (285) T5, VOLVO V70 II (285) 2.4 T, VOLVO V70 II (285) 2.5 TDI, VOLVO V70 II (285) 2.4, VOLVO V70 II (285) 2.4, VOLVO V70 II (285) D5, VOLVO V70 II (285) 2.4 Bifuel (CNG), VOLVO V70 II (285) 2.4 T AWD, VOLVO V70 II (285) 2.4 D, VOLVO V70 II (285) R 2,5 T AWD, VOLVO V70 II (285) 2.5 T AWD, VOLVO V70 II (285) D5 AWD, VOLVO V70 II (285) 2.5 T, VOLVO V70 II (285) T5, VOLVO V70 II (285) D5, VOLVO V70 II (285) D5 AWD, VOLVO V70 II (285) 2.4 D, VOLVO V70 II (285) 2.3, VOLVO V70 II (285) 2.4 Bifuel (LPG), VOLVO V70 II (285) 2.5 AWD, VOLVO V70 II (285) 2.4 CDI … View more

The steps may slightly vary depending on the car design.

How to change front anti roll bar link / front drop link on VOLVO V70 2 (SW) [TUTORIAL AUTODOC]

video
Published on: 04/09/2019
4K views
All the parts you need to replace – Anti Roll Bar Links for V70 II (285) and other VOLVO models
Alternative products
How to change Anti-roll bar link on Volvo V70 Mk2 2.4 – step-by-step instructions for straightforward car repair Anti-roll bar link
SKST-0230003 STARK Anti-roll bar link
7,75 GBP
Shop

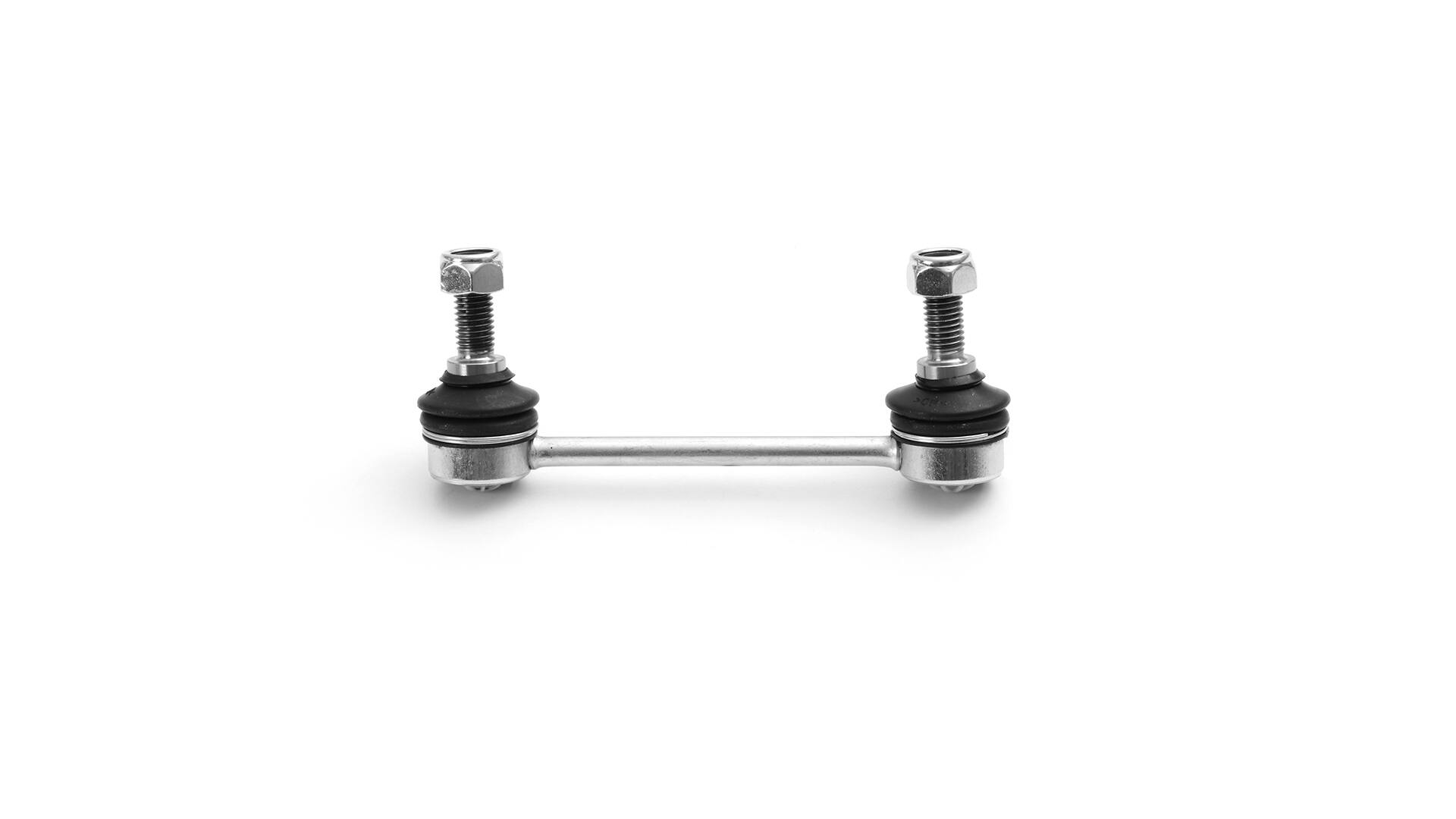

260286 A.B.S. Anti-roll bar link
10,64 GBP
Shop
53014818 METZGER Anti-roll bar link
10,80 GBP
Shop
TC1173 DELPHI Anti-roll bar link
11,79 GBP
Shop
67667 SIDEM Anti-roll bar link
12,48 GBP
Shop
49906HPS MAPCO Anti-roll bar link
14,00 GBP
Shop
4306367 KRAFT Anti-roll bar link
14,49 GBP
Shop
19379 FEBI BILSTEIN Anti-roll bar link
14,51 GBP
Shop
19939 MAPCO Anti-roll bar link
15,86 GBP
Shop
QLS3310S QUINTON HAZELL Anti-roll bar link
20,75 GBP
Shop
Tools
Replacement: anti roll bar links – Volvo V70 SW. List of the tools you'll need:
Wire brush
WD-40 spray
Brake cleaner
Copper grease
Combination spanner #18
Impact socket №18
Wheel impact socket #19
Ratchet wrench
Torque wrench
Wheel chock
Buy tools
AUTODOC recommends:
  • Replace the stabiliser links on Volvo V70 SW in pairs.
  • The replacement procedure is identical for both stabiliser links on the same axle.
  • All work should be done with the engine stopped.
Replacement: anti roll bar links – Volvo V70 SW. Use the following procedure:
  1. Step 1
    How to change Anti Roll Bar Links on Volvo V70 Mk2 1999 - free PDF and video manuals
    Secure the wheels with chocks.
  2. Step 2
    How to replace VOLVO V70 II (285) 2.4 2000 Anti Roll Bar Links - step-by-step manuals and video guides
    Loosen the wheel mounting bolts. Use wheel impact socket #19.
  3. Step 3
    Volvo V70 Mk2 D5 2001 Anti Roll Bar Links replacement: free workshop manuals
    Raise the front of the car and secure on supports.
  4. Step 4
    Changing Anti Roll Bar Links on VOLVO V70 II (285) 2.5 T 2002 by yourself
    Unscrew the wheel bolts.
    AUTODOC recommends:
    Warning! To avoid injury, hold the wheel while unscrewing the fastening bolts. Volvo V70 SW
  5. Step 5
    How to remove VOLVO V70 T5 2003 Anti Roll Bar Links - online easy-to-follow instructions
    Remove the wheel.
  6. Step 6.1
    How to replace Anti Roll Bar Links on VOLVO V70 II (285) 2004: download PDF manuals and video instructions
    Clean the stabiliser link fasteners.
    Step 6.2
    How hard is it to do yourself: Anti Roll Bar Links replacement on Volvo V70 Mk2 2.4 D 2005 - download illustrated guide
    Use a wire brush. Use WD-40 spray.
  7. Step 7
    Need to know how to renew Anti Roll Bar Links on VOLVO V70 2006? This free workshop manual will help you to do it yourself
    Unscrew the fastener connecting the stabilizer link to the shock strut. Use a drive socket #18. Use a ratchet wrench.
  8. Step 8
    Clean the stabiliser link fasteners. Use a wire brush. Use WD-40 spray.
    Step 9
    Changing of Anti Roll Bar Links on Volvo V70 Mk2 2007 won't be an issue if you follow this illustrated step-by-step guide
    Unscrew the fastener connecting the stabilizer link to the stabilizer bar. Use a drive socket #18. Use a ratchet wrench.
  9. Step 10
    VOLVO V70 2.4 Anti Roll Bar Links replacement: online guides and video tutorials
    Remove the stabilizer rod.
    Replacement: anti roll bar links – Volvo V70 SW. Tip from AUTODOC experts:
    Examine stabiliser bushes. Replace them if needed.
  10. Step 11
    Clean the mounting seats of the stabiliser link. Use a wire brush. Use WD-40 spray.
    Step 12
    Replacing Anti Roll Bar Links on Volvo V70 Mk2 1999 2.4 by yourself
    Install a new rod, tighten the fasteners.
