Important!

This replacement procedure can be used for:
SKODA FABIA (6Y2) 1.2, SKODA Fabia I Combi (6Y5) 1.2, SKODA FABIA Saloon (6Y3) 1.2, SKODA Fabia I Praktik (6Y5) 1.2

The steps may slightly vary depending on the car design.

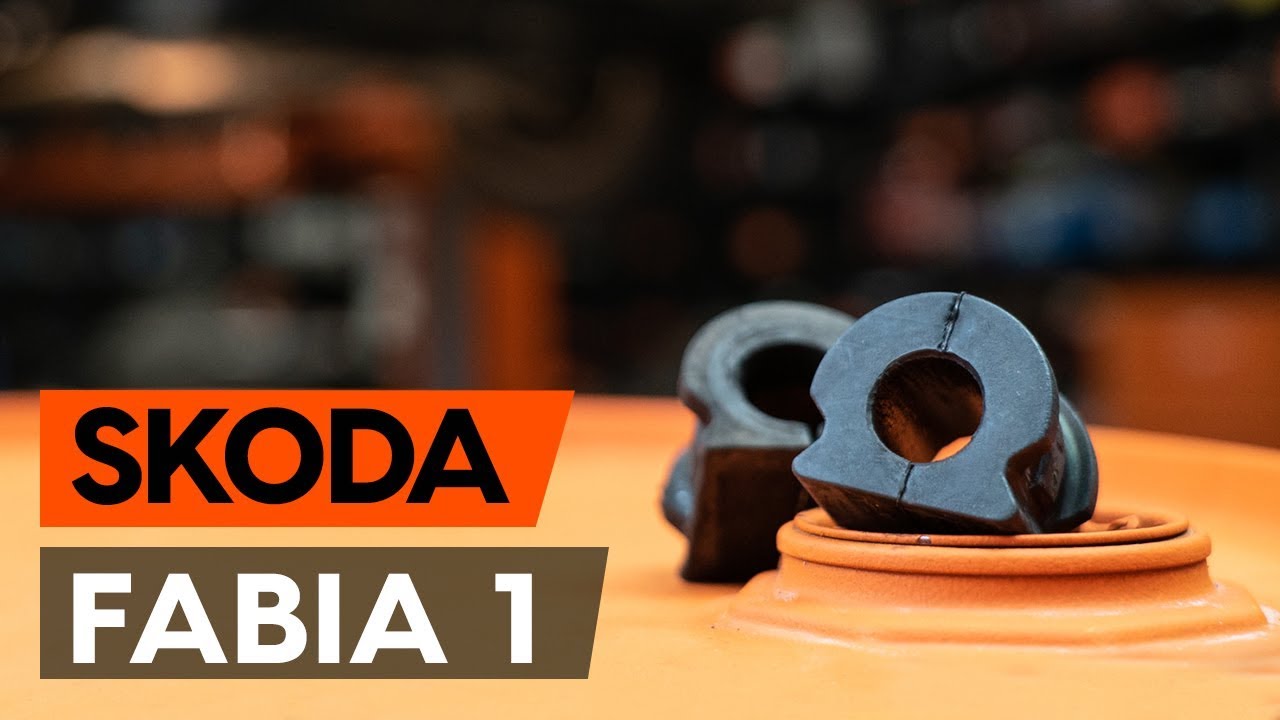

How to change anti roll bar bushes / sway bar bushes on SKODA FABIA 1 (6Y5) [TUTORIAL AUTODOC]

All the parts you need to replace – Anti Roll Bar Bushes for Fabia I Combi (6Y5) and other SKODA models

Bearing Bush, stabiliser

Bearing Set, stabiliser

Mounting, stabilizer coupling rod

Repair Kit, stabilizer coupling rod

Repair Kit, stabilizer suspension

Stabiliser Mounting

      SKODA FABIA (6Y2) 1.2

      SKODA Fabia I Combi (6Y5) 1.2

      SKODA FABIA Saloon (6Y3) 1.2

      SKODA Fabia I Praktik (6Y5) 1.2

Replacement: anti roll bar bushes – Skoda Fabia 6Y5. List of the tools you'll need:

                        Wire brush

                        WD-40 spray

                        Copper grease

                        Drive socket # 13

                        Combination spanner #13

                        Wheel impact socket #17

                        Torque wrench

                        Crow bar

                        Hydraulic transmission jack

                        Wheel chock

Buy tools

Replacement: anti roll bar bushes – Skoda Fabia 6Y5. AUTODOC experts recommend:

Both stabilizer bushes should be replaced simultaneously.
The replacement procedure is identical for the right and left stabilizer bushes.
All work should be done with the engine stopped.

Replacement: anti roll bar bushes – Skoda Fabia 6Y5. Use the following procedure:

Step 1

Secure the wheels with chocks.
Step 2

Loosen the wheel mounting bolts.Use wheel impact socket #17.
Step 3

Raise the front of the car and secure on supports.
Step 4

Unscrew the wheel bolts.

Replacement: anti roll bar bushes – Skoda Fabia 6Y5. AUTODOC recommends:

To avoid injury, hold up the wheel when unscrewing the bolts.
Step 5

Remove the wheel.
Step 6

Clean the fasteners of the stabilizer bush brackets.Use a wire brush.Use WD-40 spray.
Step 7

Unscrew the fasteners of the stabilizer bush brackets.Use a combination spanner #13.
Step 8

Support the arm. Use a hydraulic transmission jack.
Step 9

Remove the fastening bolts (2 pieces).
Step 10

Lower the hydraulic transmission jack by 10-15 cm.

AUTODOC recommends:

Replacement: anti roll bar bushes – Skoda Fabia 6Y5. Lower the transmission jack smoothly, without jerks, to avoid damaging components and mechanisms.
Step 11

Remove the stabilizer bush brackets.Use a crowbar.
Step 12

Remove the stabilizer bushes.
Step 13

Install the new stabilizer bushes.
Step 14

Install the stabilizer bush brackets.
Step 15

Support the arm. Use a hydraulic transmission jack.
Step 16

Install the fastening bolts (2 pieces). Use a crowbar.
Step 17

Screw the fasteners of the stabilizer bush brackets.Use a drive socket #13.Use a torque wrench.Tighten it to 35 nm torque.
Step 18

Remove the support from under the arm.

AUTODOC recommends:

Skoda Fabia 6Y5 – Do not lower the transmission jack sharply to avoid damaging components and mechanisms of the car.
Step 19

Clean the wheel rim mounting seat. Use a wire brush.
Step 20

Treat the surface where the brake disc contacts the wheel rim. Use copper grease.
Step 21

Install the wheel.

Replacement: anti roll bar bushes – Skoda Fabia 6Y5. Tip from AUTODOC experts:

To avoid injury, hold up the wheel when screwing in the fastening bolts.
Step 22

Screw in the wheel bolts.Use wheel impact socket #17.
Step 23

Lower the car and working in a cross order, tighten the wheel bolts.Use a torque wrench.Tighten it to 120 Nm torque.
Step 24

Remove the jacks and chocks.
