Important!

This replacement procedure can be used for:
AUDI A4 Saloon (8D2, B5) 1.6 … View more

The steps may slightly vary depending on the car design.

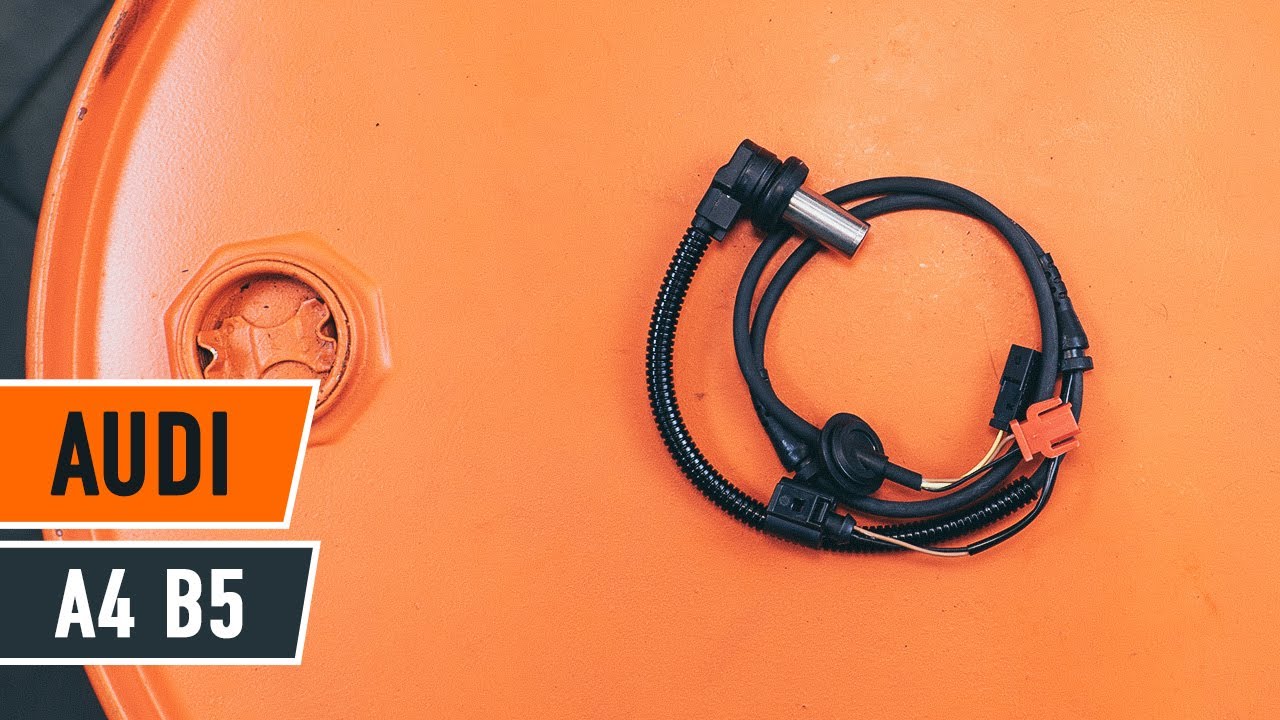

How to change front ABS sensor on AUDI A4 B5 Saloon [TUTORIAL AUTODOC]

All the parts you need to replace – ABS Sensor for A4 Saloon (8D2, B5) and other AUDI models

Clamping Sleeve, wheel speed sensor

Sensor Ring, ABS

Sensor, wheel speed

AUDI A4 Saloon (8D2, B5) 1.6

Replacement: ABS sensor – Audi A4 B5 saloon. Tools you might need:

                        Wire brush

                        WD-40 spray

                        Brake cleaner

                        Electronic spray

                        Multipurpose grease

                        Copper grease

                        Torque wrench

                        HEX bit No.H14

                        Wheel impact socket #17

                        Ratchet wrench

                        Clip removal tool

                        Flat screwdriver

                        Tap wrench

                        Pincers

                        Wheel chock

Buy tools

Replacement: ABS sensor – Audi A4 B5 saloon. Tip:

All work should be done with the engine stopped.

Replacement: ABS sensor – Audi A4 B5 saloon. Use the following procedure:

Step 1

Secure the wheels with chocks.

Step 2

Loosen the fastener of the driveshaft.Use HEX No.H14.Use a tap wrench.
Step 3

Loosen the wheel mounting bolts.Use wheel impact socket #17.
Step 4

Raise the front of the car and secure on supports.
Step 5

Unscrew the wheel bolts.

AUTODOC recommends:

Warning! To avoid injury, hold the wheel while unscrewing the fastening bolts. Audi A4 B5 saloon
Step 6

Remove the wheel.
Step 7

Disconnect the ABS sensor wiring.Use a clip removal tool.
Step 8

Detach the ABS sensor connector.
Step 9

Clean the ABS sensor fastener.Use WD-40 spray.
Step 10

Disconnect the ABS sensor.Use pincers.
Step 11

Clean the ABS sensor mounting seat.Use a wire brush.Use WD-40 spray.Use a brake cleaner.

AUTODOC recommends:

Replacement: ABS sensor – Audi A4 B5 saloon. After applying the spray, wait a few minutes.
Step 12

Treat the ABS sensor fastener.Use a multipurpose grease.Use a flat screwdriver.
Step 13

Connect the ABS sensor.
Step 14

Connect the ABS sensor wiring.
Step 15

Unscrew the fastener connecting the drive shaft to the wheel hub.Use HEX No.H14.Use a ratchet wrench.
Step 16

Remove the fastening bolt.

Replacement: ABS sensor – Audi A4 B5 saloon. Tip from AUTODOC experts:

Make sure the ABS sensor is installed correctly.

Step 17

Install and tighten the drive shaft bolt.Use HEX No.H14.Use a ratchet wrench.
Step 18

Connect the ABS sensor wiring.
Step 19

Treat the ABS sensor connector.Use dielectric grease.

Step 20

Attach the ABS sensor connector.
Step 21

Clean the wheel rim mounting seat.Use a wire brush.
Step 22

Treat the surface where the brake disc contacts the wheel rim. Use copper grease.
Step 23

Clean the brake disk surface.Use a brake cleaner.

AUTODOC recommends:

Replacement: ABS sensor – Audi A4 B5 saloon. After applying the spray, wait a few minutes.

Step 24

Install the wheel.

AUTODOC recommends:

Warning! To avoid injury, hold the wheel while screwing in the fastening bolts on the car. Audi A4 B5 saloon
Step 25

Screw in the wheel bolts.Use wheel impact socket #17.
Step 26

Lower the car.
Step 27

Tighten the bolt connecting the drive shaft to the wheel hub.Use HEX No.H14.Use a torque wrench.Tighten it to 175 Nm torque.

Step 28

Tighten the wheel bolts using a criss-cross pattern.Use wheel impact socket #17.Use a torque wrench.Tighten it to 120 Nm torque.
Step 29

Remove the jacks and chocks.
