When to replace the Brake Drum on your TOYOTA YARIS
Recommended replacement interval for the part category Brake Drum : 100000 km
Important!
This replacement procedure can be used for:
TOYOTA Yaris Hatchback (_P1_) 1.0 (SCP10_), TOYOTA Yaris Hatchback (_P1_) 1.5 (NCP13_), TOYOTA Yaris Hatchback (_P1_) 1.4 D-4D (NLP10_), TOYOTA Yaris Hatchback (_P1_) 1.3 (SCP12_, SCP13_), TOYOTA Yaris Hatchback (_P1_) 1.0 (SCP10_) … View more

The steps may slightly vary depending on the car design.

How to change rear brake drums and rear brake shoes on TOYOTA YARIS XP10 TUTORIAL | AUTODOC

video
Published on: 07/06/2018
61K views

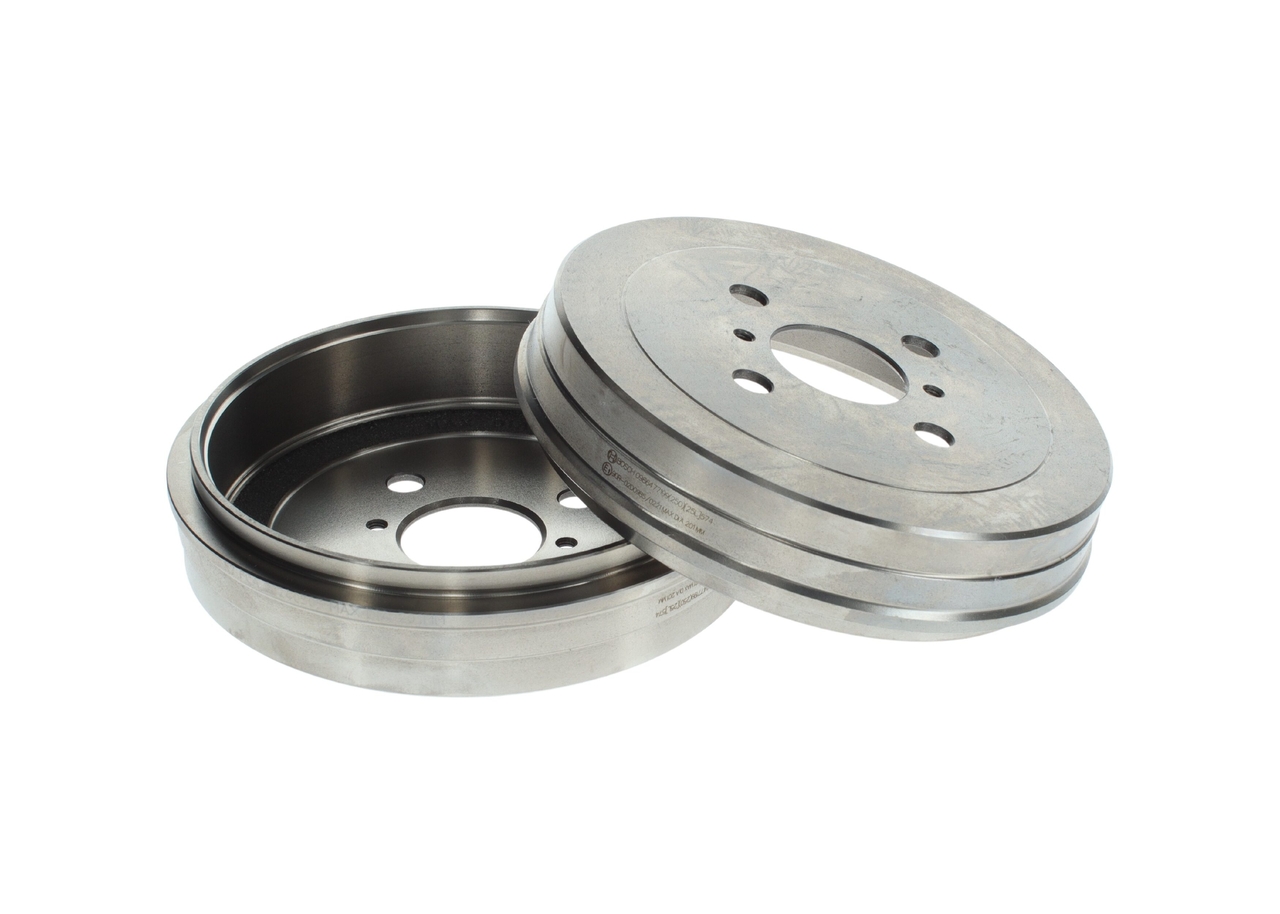

All the parts you need to replace – Brake Drum for Yaris Hatchback (_P1_) and other TOYOTA models
How to change Brake Drum on Toyota Yaris Mk1 1.0 (SCP10_) – step-by-step instructions for straightforward car repair Brake Drum
How to change Brake Drum on TOYOTA Yaris Hatchback (_P1_) 1.0 (SCP10_) – tips for proper car maintenance
Brake Drum for TOYOTA Yaris Hatchback (_P1_) 1.0 (SCP10_) Petrol (68 hp)
Simple DIY car repair steps – Replacing Brake Drum on TOYOTA Yaris Hatchback (_P1_) 1.5 (NCP13_)
Brake Drum for TOYOTA Yaris Hatchback (_P1_) 1.5 (NCP13_) Petrol (106 hp)
Easy tricks to help you to replace Brake Drum on TOYOTA Yaris Hatchback (_P1_) 1.4 D-4D (NLP10_)
Brake Drum for TOYOTA Yaris Hatchback (_P1_) 1.4 D-4D (NLP10_) Diesel (75 hp)
Brake Drum removal & installation, incredibly easy steps for TOYOTA Yaris Hatchback (_P1_) 1.3 (SCP12_, SCP13_)
Brake Drum for TOYOTA Yaris Hatchback (_P1_) 1.3 (SCP12_, SCP13_) Petrol (87 hp)
Changing Brake Drum on TOYOTA Yaris Hatchback (_P1_) 1.0 (SCP10_) – tips for first time repair
Brake Drum for TOYOTA Yaris Hatchback (_P1_) 1.0 (SCP10_) Petrol (65 hp)
Tools
Replacement: brake drum – Toyota Yaris P1. List of the tools you'll need:
Wire brush
WD-40 spray
Copper grease
Wheel impact socket #21
Torque wrench
Wheel chock
Buy tools
Replacement: brake drum – Toyota Yaris P1. Professionals recommend:
  • Replace the brake drums on Toyota Yaris P1 in pair for the rear axle. Disregarding the parts state. It ensures even braking.
  • The replacement procedure is identical for the right and left brake drums on the same axle.
  • When replacing the brake drums, be sure to also change the brake shoes.
  • Please note: all work on the car – Toyota Yaris P1 – should be done with the engine switched off.
Carry out replacement in the following order:
  1. Step 1
    How to change Brake Drum on Toyota Yaris Mk1 1999 - free PDF and video manuals
    Open the bonnet. Unscrew the brake fluid reservoir cap.
  2. Step 2
    Secure the wheels with chocks.
    Step 3
    How to replace TOYOTA Yaris Hatchback (_P1_) 1.0 (SCP10_) 2000 Brake Drum - step-by-step manuals and video guides
    Loosen the wheel mounting bolts. Use wheel impact socket #21.
  3. Step 4
    Raise the rear of the car and secure on supports.
    Step 5
    Toyota Yaris Mk1 1.4 D-4D (NLP10_) 2001 Brake Drum replacement: free workshop manuals
    Unscrew the wheel bolts.
    Replacement: brake drum – Toyota Yaris P1. AUTODOC experts recommend:
    To avoid injury, hold up the wheel when unscrewing the bolts.
  4. Step 6
    Changing Brake Drum on TOYOTA Yaris Hatchback (_P1_) 1.3 (NCP10_, SCP12_) 2002 by yourself
    Remove the wheel.
  5. Step 7
    Fully lower the parking brake lever.
    Step 8
    How to remove TOYOTA YARIS 1.5 (NCP13_) 2003 Brake Drum - online easy-to-follow instructions
    Remove the brake drum.
    Replacement: brake drum – Toyota Yaris P1. Tip:
    Examine the brake shoes. Replace them if needed.
  6. Step 9
    How to replace Brake Drum on TOYOTA Yaris Hatchback (_P1_) 2004: download PDF manuals and video instructions
    Clean the hub. Use a wire brush. Treat the contacting surface. Use copper grease.
  7. Step 10
    How hard is it to do yourself: Brake Drum replacement on Toyota Yaris Mk1 1.3 4WD (NCP15) 2005 - download illustrated guide
    Move the parking brake shoes against the drum.
